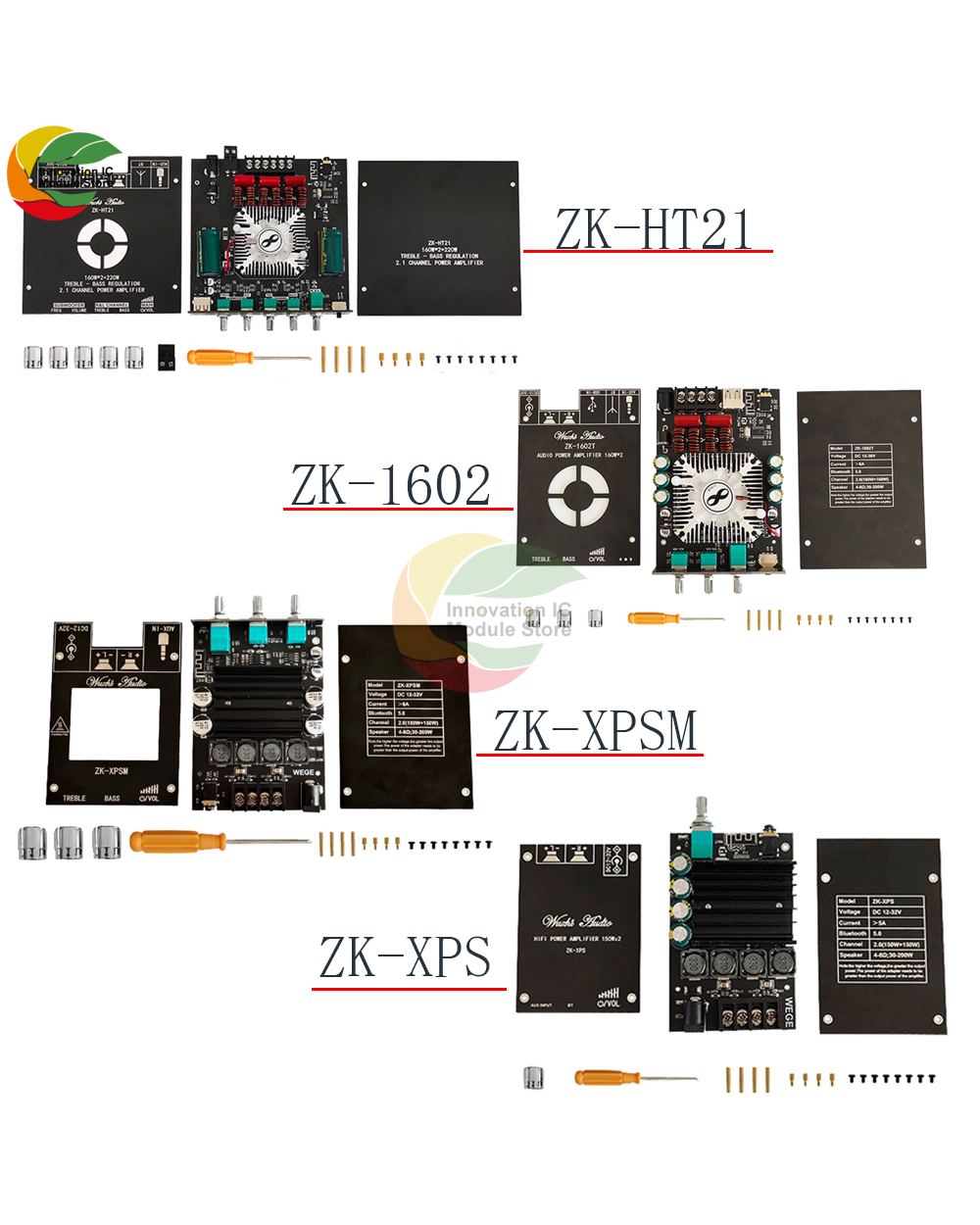

Zk-Ht21/1602T/Xpsm/Xps 150W/160Wx2 Audio Power Amplifier Board Module 2.0 Two-Channel Stereo Tda7498e Power Amplifier B

Zk-Ht21/1602T/Xpsm/Xps 150W/160Wx2 Audio Power Amplifier Board Module 2.0 Two-Channel Stereo Tda7498e Power Amplifier B

$51.95
2/7
description
product reviews




ZK-HT21 2.1 channel TDA7498E Bluetooth digital power amplifier module high and low tone subwoofer 160WX2+220W


Features

1: Power amplifier chip: TDA7498E

2: Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection

3: Wide application

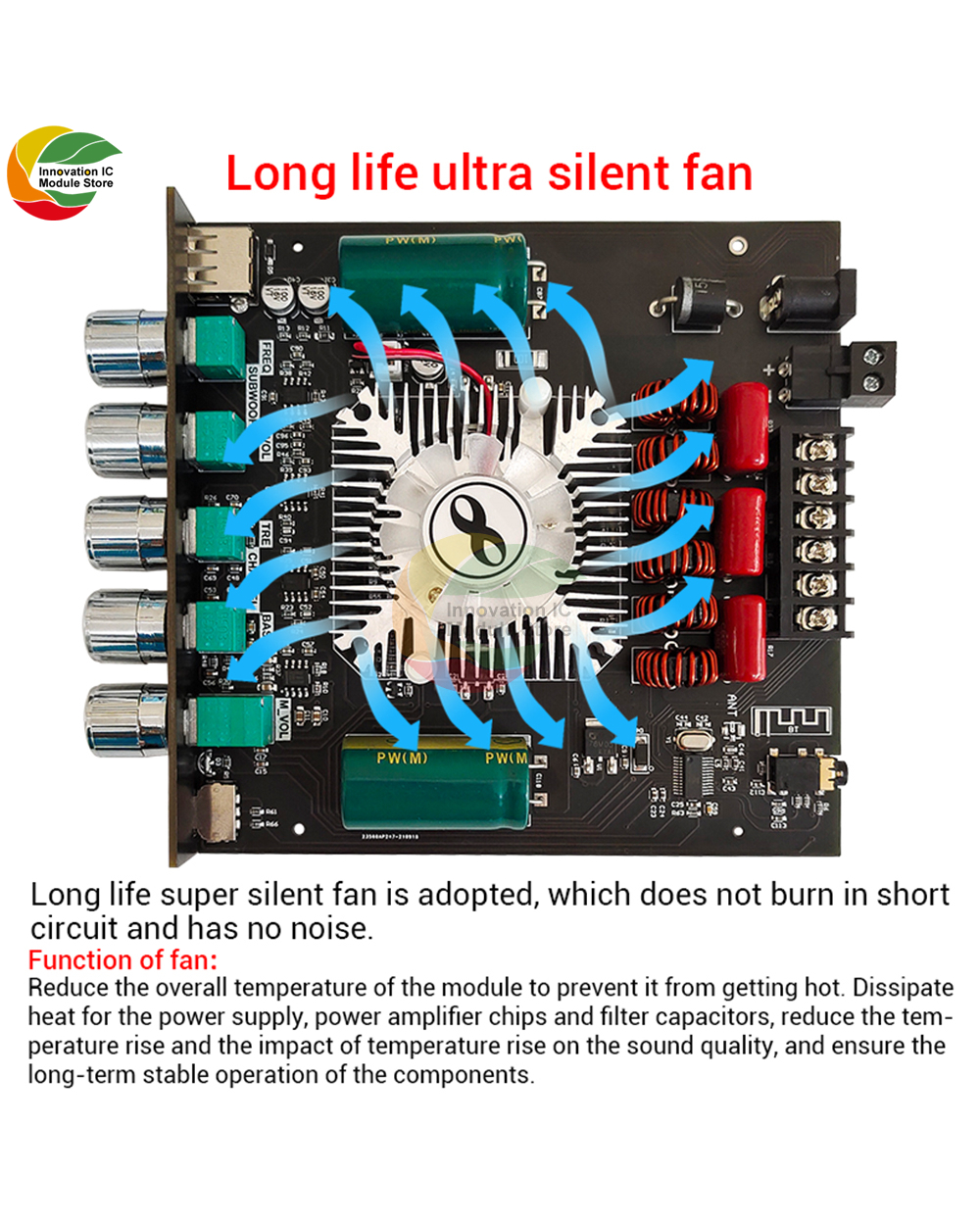

4: Long-life ultra-quiet fan (blocked rotor does not burn, no noise)

5: Simple to use and easy to understand


Product name: 2.1 channel bluetooth audio power amplifier module

Product model: ZK-HT21

for Bluetooth version: 5.0 (unblocked, 15 meters)

Input method: AUX+for Bluetooth+USB (dial-wheel button to switch modes and songs)

Number of channels: 2.1 channels (left channel + right channel + subwoofer)

Power amplifier chip: TDA7498E

Adapter power supply: DC15~36 V (under 9V under-voltage protection, can also support 12V power supply)

Adapter speaker: 30-200W, 4-8Ω

Output power: left and right channels≤160w

Subwoofer≤220w

Protection mechanism: anti-reverse, undervoltage, overheating, overcurrent, short circuit protection

Product size: 145*126*28mm

Product weight: net weight 327g, including packaging 395g

Tip: Only when the audio signal input is large enough and the power supply voltage/current is large enough will there be enough

Output Power!

The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! Please ensure that the power of the adapted power supply is greater than the actual working power of the power amplifier!


list

1*Amplifier board kit




ZK-1602T TDA7498E 160WX2 high and bass adjustment Bluetooth audio power amplifier board module


product information

1: Power amplifier chip: TDA7498E

2: Widely used

3: Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection

4: Long-life ultra-quiet fan (locked rotor does not burn, no noise)

5: Simple to use and easy to understand


Product parameter

Product name: 2.0 channel Bluetooth audio power amplifier module

Product model: ZK-1602T

Bluetooth version: 5.0 (unobstructed, 10 meters)

Input method: AUX + for Bluetooth + USB (switching mode and song by dial button)

Number of channels: 2.0 channels (left channel + right channel)

Amplifier chip: TDA7498E

Adapter power supply: DC15~36 V (under voltage protection below 9V, 12V power supply can also be supported)

Adapted speaker: 30-200W, 4-8Ω

Output power: left and right channels ≤160w

Protection mechanism: anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection

Product size: 134*80*28mm

Product weight: net weight 209g, including packaging 257g

Tip: When the audio signal input is large enough and the power supply voltage/current is large enough, there will be enough

Output Power!

The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! Please make sure that the power of the adaptor is greater than the actual working power of the amplifier!


Checklist

1*Power amplifier board module

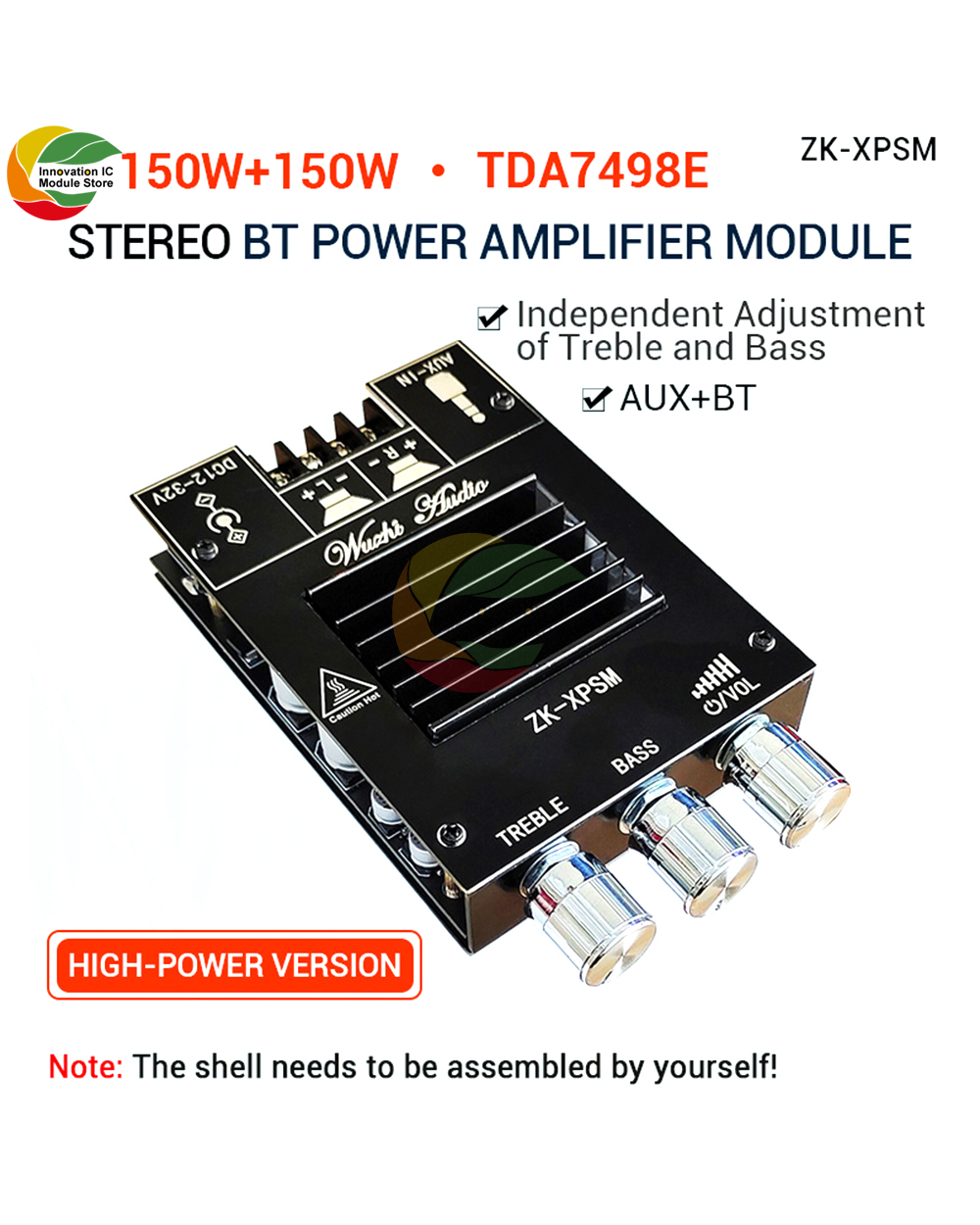

1 set [1 piece] ZK-XPSM 150WX2 high-bass adjustment Bluetooth audio power amplifier board module two-channel TDA7498E


Features

1: Wide range of applications

2: Anti-reverse connection, undervoltage, overheating, overcurrent, short circuit protection

3: Using TDA7498E chip solution

4: The output has a filter, high-quality sound quality.

5: Heat sink heat dissipation, high power.


Product parameters

Product name: 2.0 channel bluetooth audio power amplifier module

Bluetooth version: 5.0 (unblocked, 15 meters)

Input method: AUX+Bluetooth

Number of channels: 2.0 channels (left channel + right channel)

Power amplifier chip: TDA7498E

Adapter power supply: DC12~32V (under-voltage protection below 9V, can also support 12V power supply)

Adapter speaker: 30-200w, 4-8Ω

Output power: left and right channels ≤ 150W

Protection mechanism: anti-reverse, undervoltage, overheating, overcurrent, short circuit protection

Product size: 119*70*21mm

Product weight: net weight 135g, including packaging 175g

Tip: Only when the audio signal input is large enough and the power supply voltage/current is large enough will there be enough

Output Power!

The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power!

Please make sure that the power of the adapted power supply is greater than the actual working power of the power amplifier!


list

1*Amplifier board module

1 set [1 piece] ZK-XPS 150WX2 Bluetooth Audio Power Amplifier Board Module 2.0 Dual Channel Stereo TDA7498E


Features

1: Wide range of applications

2: Using TDA7498E chip solution

3: The output has a filter, HIFlI sound quality

4: Heat sink for heat dissipation, super power.

5: Undervoltage, overheating, overcurrent, short circuit protection


Product parameters

Product name: 2.0 channel bluetooth audio power amplifier module

Bluetooth version: 5.0 (unblocked, 15 meters)

Input method: AUX+Bluetooth

Number of channels: 2.0 channels (left channel + right channel)

Power amplifier chip: TDA7498E

Adapter power supply: DC 12~32V (under-voltage protection below 9V, can also support 12V power supply)

Adapter speaker: 30-200W, 4-8Ω

Output power: left and right channels ≤ 150W

Protection mechanism: under voltage, over temperature, over current, short circuit protection

Product size: 110*58*25mm

Product weight: net weight 109g, including packaging 143g

Tip: Only when the audio signal input is large enough and the power supply voltage/current is large enough will there be enough

Output Power!

The higher the power supply voltage, the greater the output power, and the smaller the speaker impedance, the greater the output power! Please ensure that the power of the adapted power supply is greater than the actual working power of the power amplifier!



list

1*Amplifier board module
