Ziqqucu 0.28 Inch 3-Wire Ultra-Small Digital Display Dc Voltmeter Head Dc0-100V 3-Digit Led Digital Display Battery Vol

Ziqqucu 0.28 Inch 3-Wire Ultra-Small Digital Display Dc Voltmeter Head Dc0-100V 3-Digit Led Digital Display Battery Vol

$21.95
2/7
description
product reviews


5 Color Available Mini LED Digital Voltmeter DC 4-30V 0.28 Inch 3 Wire DC 0-100V Volt Voltage Meter Gauge Tester LED Display


Feature:
High precision
Reverse connection protection
Able to adjustable voltage resistance-Turn clockwise to lower voltage, it can work directly in 5v, 9v, 12v, 24v.

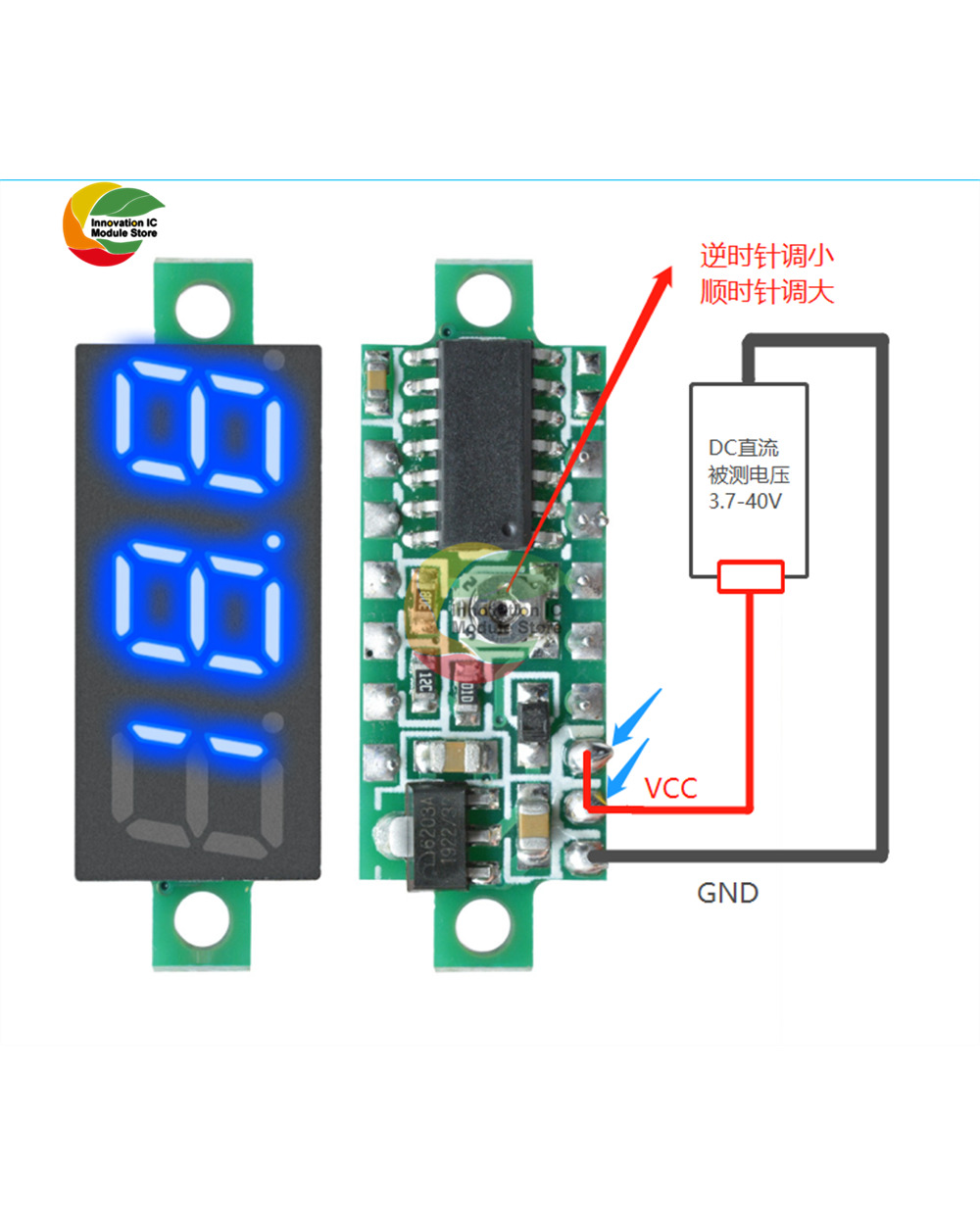

Three-wire connection, but it can also change three lines to 2-wire connection.

Specification:
Operating Voltage: 4.0-30V
Detecting Voltage: 0-100V
Working Current: <20 mA
Detection Rate: ≥ 200 mS/Times
Install the hole: 23 * 10 mm
Measurement Accuracy: 3 %

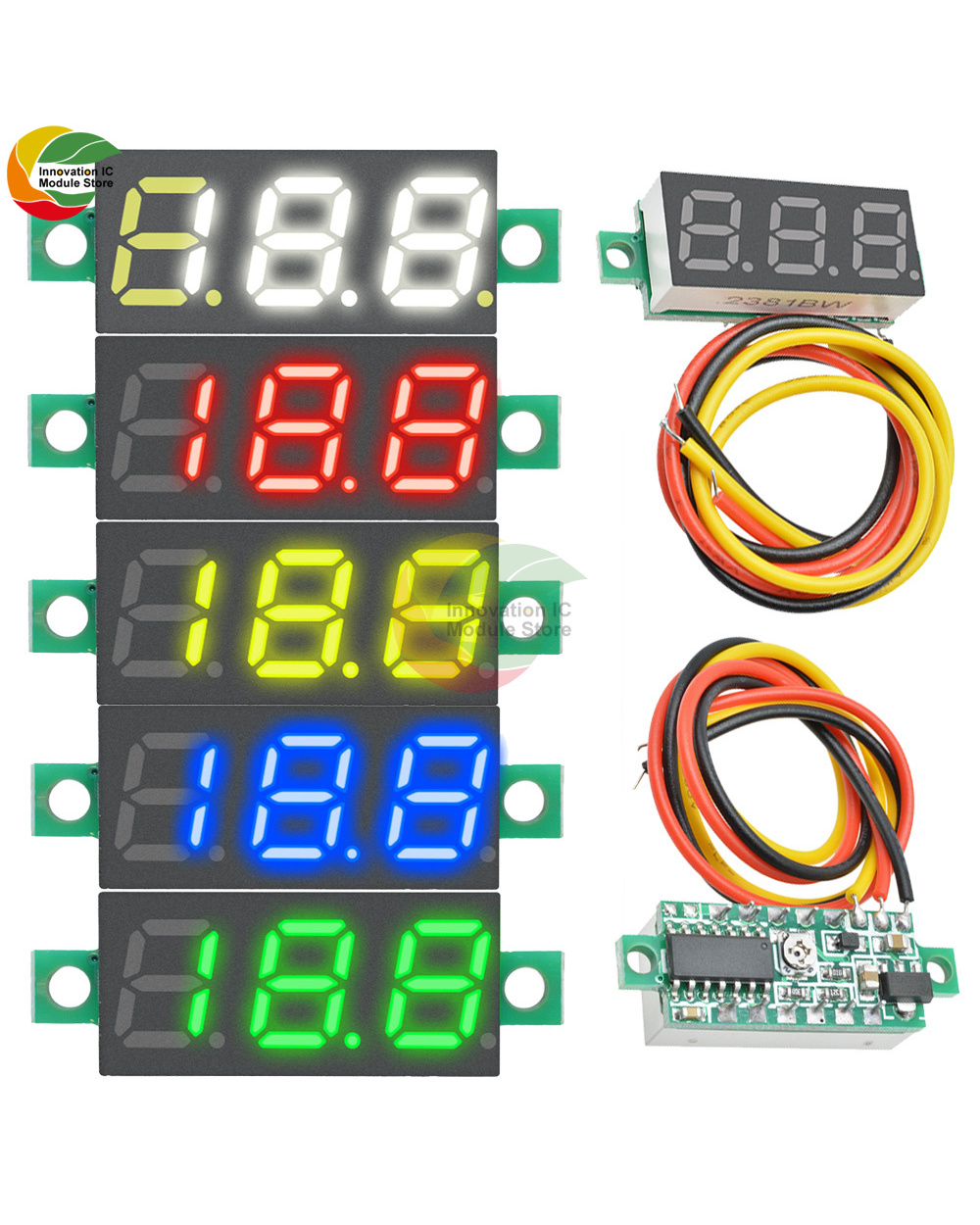

LED Color: Blue, Green, Red, White, Yellow(Option)
The minimum working voltage: +4 V
The maximum working voltage: +30 v
Working temperature:-10 ~ +65 ℃
Working humidity: 10~80% (No condensation)
Working pressure: 80~106kpa
Dimensions: 22.5 * 10 * 7 mm





2/7

Ziqqucu 0.28 Inch 3-Wire Ultra-Small Digital Display Dc Voltmeter Head Dc0-100V 3-Digit Led Digital Display Battery Vol

$21.95
