Zhiyitech Upgrade For Arduino Project Kids Self-Building Programming Kit Smart Car Education Robot Diy Electronics +Tut

Zhiyitech Upgrade For Arduino Project Kids Self-Building Programming Kit Smart Car Education Robot Diy Electronics +Tut

$74.95
2/7
description
product reviews



EMPOWER SCIENTISTS AND ARTISTS OF THE FUTURE

For Arduino Education creates the next generation of STEM programs that empower students on their learning journey through middle school, high school, and university and help them thrive.


WE PROVIDE DROPSHIP AND CUSTOMIZED SERVICES

Zhiyitech provides all necessary high-quality made hardware with each of our products, so teachers, students, and beginners can focus on the learning experiences.


LEARN TODAY, FOR TOMORROW

Bring STEM lessons to the real world with Zhiyitech hands-on kits built for blended learning. Take you on a fun and inspiring journey through the world of programming and electronics.


Products Description

  • ZYBOT3.0 Car is a microcontroller learning and application development system with a development board ATmega328P as the core.

  • With Line Tracking, Obstacle Avoidance, Infrared Remote Control, and Wireless BLE functions.

  • The kit contains a large number of interesting Graphical Programs, which can expand external circuit modules, thereby enhancing the fun of developing MCU systems and staying away from the boring theoretical knowledge of learning Programming.

NOTE:

  • Due to the shipping reason, We'll ship the kit in pieces, not an assembled set, and doesn't contain batteries.

  • It is used the 18650 3.7v battery.

  • We can provide tutorials, programming code, and instructions. PLEASE LEAVE YOUR EMAIL ADDRESS TO US!


  • Motor parameters: voltage range: 6-9V, the reduction ratio of 48:1.

  • Motor control adopts the L298N drive module, which is truly isolated from MCU.

  • The integrated three-way tracking module is used to detect black and white lines with higher accuracy and can also be used to control anti-fall.

  • Use the function-integrated ZYBOT3.0 expansion board to make an intelligent vehicle control system.

  • Ultrasonic module manufactures automobile obstacle avoidance systems.

  • The BLE wireless module can match the BLE remote control smart car of the Android mobile phone.

  • Burn our latest BLE integrated mode code, which can realize the BLE APP and infrared remote control at the same time to control the operation of the smart car and switch between obstacle avoidance mode, tracking mode and music mode.

  • It can be connected to the external voltage of 7~12V. At the same time, we reserve some I/O interfaces to facilitate the secondary development and carry various sensor modules and realize various functions according to your imagination.

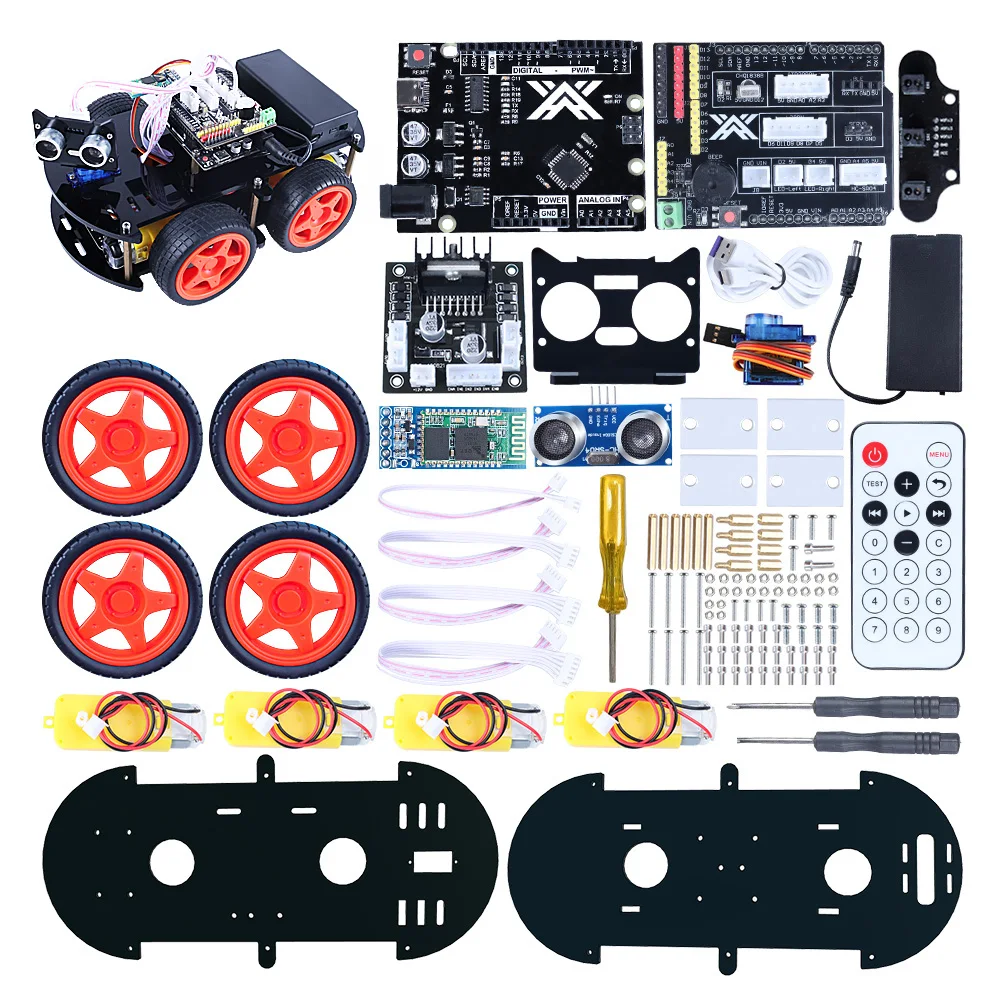

Kits Contain:


  • 1 × ATmega328 control board

  • 1 × Expansion board

  • 1 × G90 Servo

  • 1 × L298N Motor drive board with terminal

  • 1 × Ultrasonic module with holder

  • 1 × HC-06 module

  • 1 × Three-way tracking module

  • 4 × Motor with 2P terminal line

  • 4 × TT motor color wheel (red)

  • 1 × Ultrasonic fixing bracket kit

  • 1 × TYPE-C data cable white

  • 1 × Bot3.0 car bottom plate (black acrylic)

  • 1 × Bot3.0 car roof panel (black acrylic)

  • 1 × 18650 battery box with switch

  • 1 × Slotted screwdriver

  • 1 × Phillips screwdriver

  • 1 × Small screwdriver 85 hex socket (black)

  • 1 × Infrared remote control-1

  • 1 × XH2.54 red and white cable 2P double-head reverse connection cable 20cm

  • 1 × XH2.54 red and white cable 4P double-head reverse connection cable 20cm

  • 1 × XH2.54 red and white cable 5P double-head reverse connection cable 20cm

  • 1 × XH2.54 red and white cable 6P double-head reverse connection cable 20cm

  • 4 × M1.6 nut

  • 4 × M1.6*8 round head screws

  • 4 × M2 nut

  • 2 × M2*10 round head screws

  • 2 × M2*6 round head screws

  • 36 × M3*8 hexagon socket screw

  • 4 × M3*12 flat head screws

  • 20 × M3 nut

  • 2 × M3*12 hexagon socket screws

  • 8 × M3*30 round head screws

  • 6 × M3*40 copper pillar

  • 4 × TT motor fixing bracket motor frame aluminum alloy full enclosure

  • 4 × M3*10+6 copper pillar

  • 5 × M3*12 copper pillar

  • 1 × The CD or PDF tutorial

  • 1 × The color box
