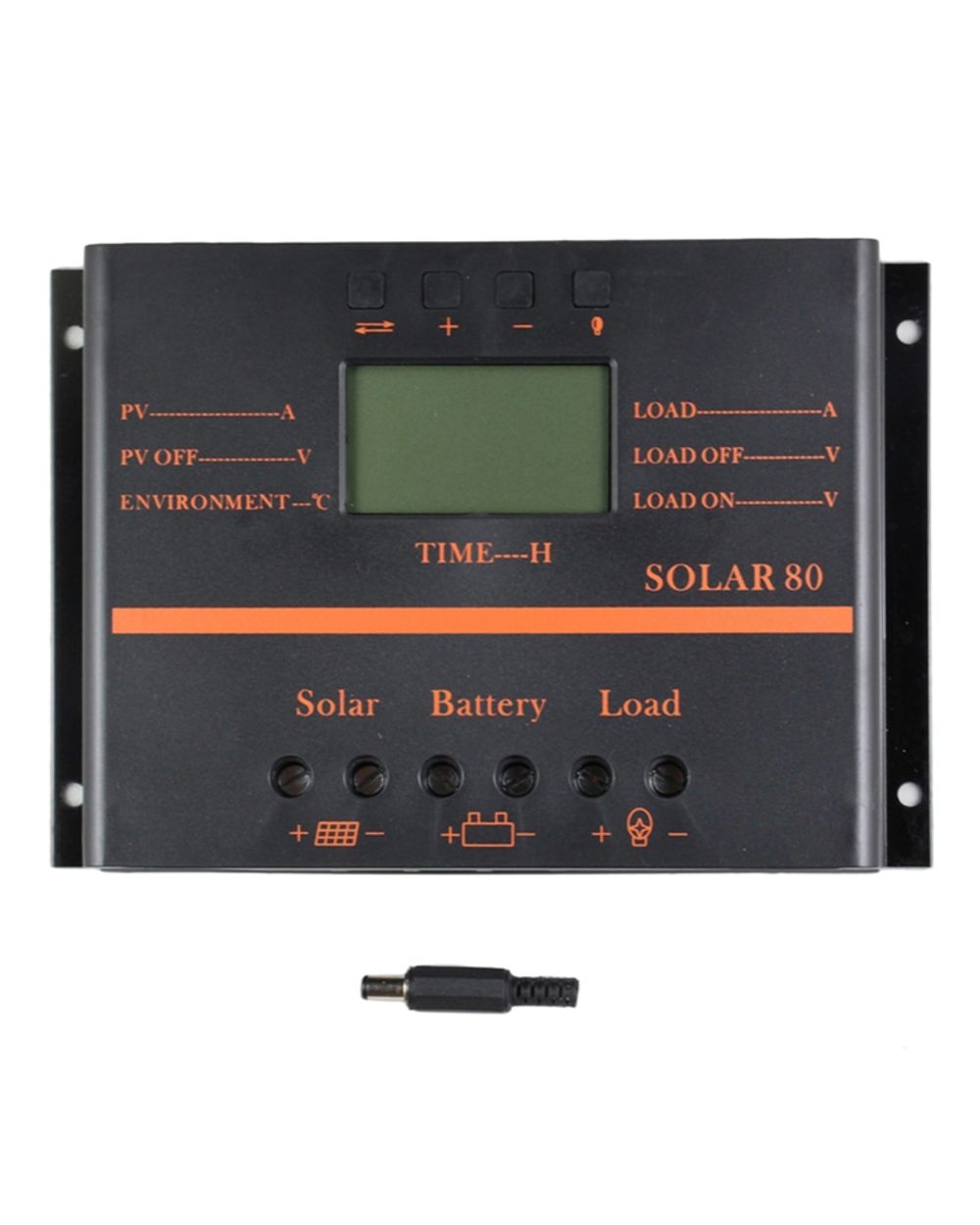

80A Solar Panel Charge Controller 12V 24V Auto LCD USB Solar Battery Charger High Efficiency Solar 80 PWM Regulator
Buyer notice:
Our shop directly cooperates with the manufacturer, so we have perfect after-sales service, please rest assured to buy, I wish all buyers a happy shopping!
Overview:
About Solar60 60A , if your battery is 12V , you can use max 720W 25V Solar Panel ;
Multipurpose solar charge and discharge controller
LCD screen display
Easy operation interface
PWM charging mode
Parameter user can reset,
A key to open and close the load,
A key to restore the factory settings,
Battery reverse discharge protection,
Battery reverse polarity protection
Battery under voltage protection,
Overload, short-circuit protection,
Automatic temperature compensation function,
USB 5V charging for mobile phone
Protection:
PV Over Current Protection
PV Short Circuit Protection
PV Reverse Polarity Protection
Battery Over Voltage Protection
Battery Over Discharge Protection
Battery Overheating Protection
Load Short Circuit Protection
Load Overload Protection
Controller Overheating Protection
Model | Solar60 | Solar80 |
Rated working current | 60A | 80A |
Rated working voltage | 12V 24V Auto | |
Solar panels voltage | 48V(24V battery);24V(12V battery) | |
Float charging voltage(settable) | 13.8V/27.6V | |
Low voltage protection(settable) | 10.7V/21.4V | |
Low voltage recovery(settable) | 12.5V/25.0V | |
No-load loss | ≤25mA | |
Loop pressure | ≤160mV | |
Charging mode | PWM mode | |
Cable | (20mm 2 ) | (25mm 2 ) |
Working temperature | -10°C~60°C | |
Storage temperature | -30°C~70°C | |
Humidity requirements | ≤90％ | |
Dimension | 128 mm×188mm×61mm | |
Mounting hole spacing | 98 mm×178 mm --Φ5 | |
Temperature compensation | -4mV/Cell/°C |
Package Included:
1X Solar Controller
1X Users Manual
1X Temp Sensor
Display:
