Xgzp6847 Electronic Sphygmomanometer Gas Pressure Sensor Transmitter Module Barometer 0-40Kpa

Xgzp6847 Electronic Sphygmomanometer Gas Pressure Sensor Transmitter Module Barometer 0-40Kpa

$22.95
2/5
description
product reviews

prompt:
1, unit conversion: 100kPa = 1bar ≈14.5PSI ≈750mmHg.
2, if there are special requirements on the performance parameters and functionality of the product, please negotiate with the company. 3, note that the medium to be measured in contact with the medium when the product is compatible with selection portion

Gas pressure transmitter module XGZP6847

Feature

Measurement range -100kPa .. * 0 ~ 10kPa ... 1000kPa gauge form

● for non-corrosive gases

Standard signal output, wide temperature compensation ● Temperature Range: -20 ~ 100C

Outline

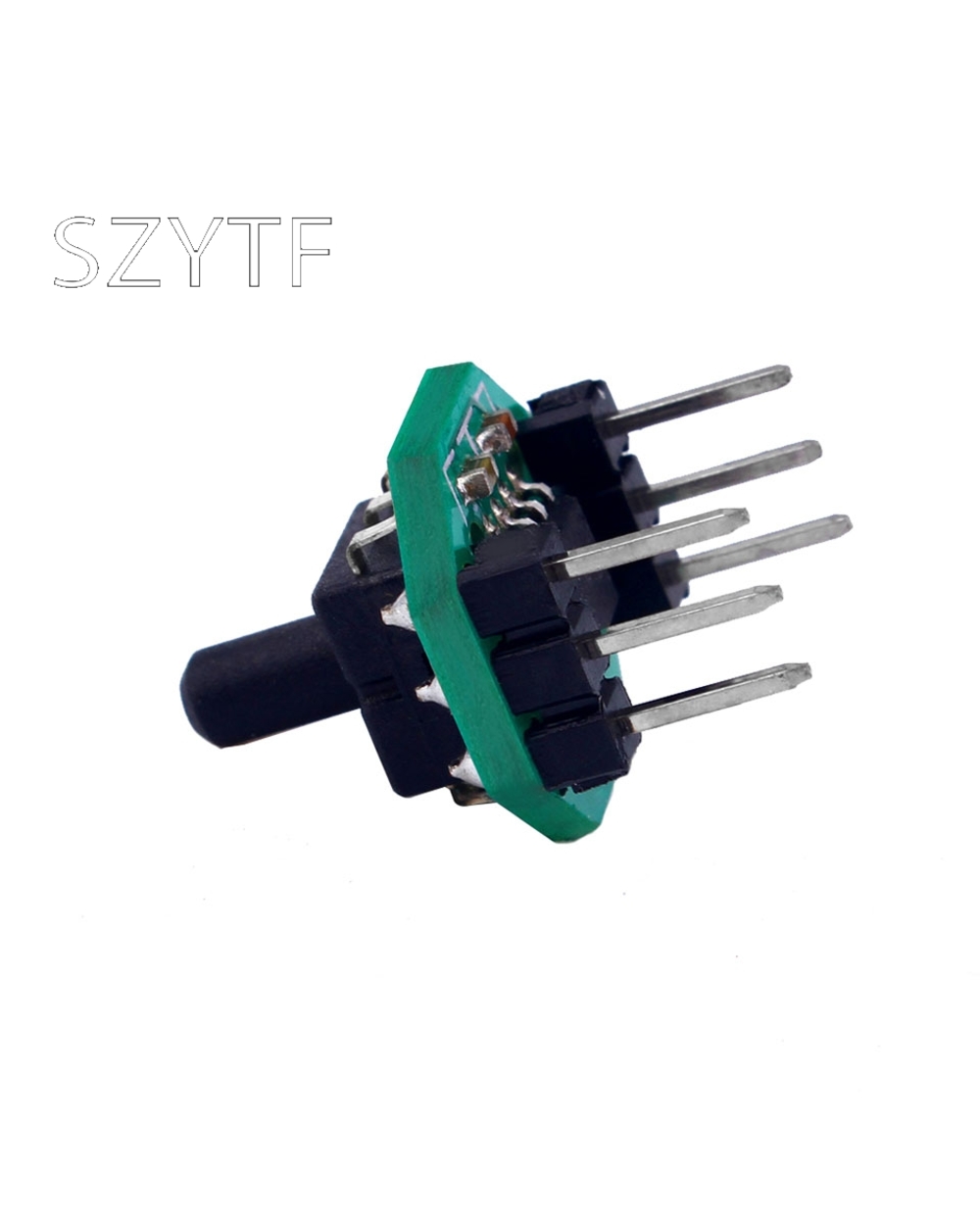

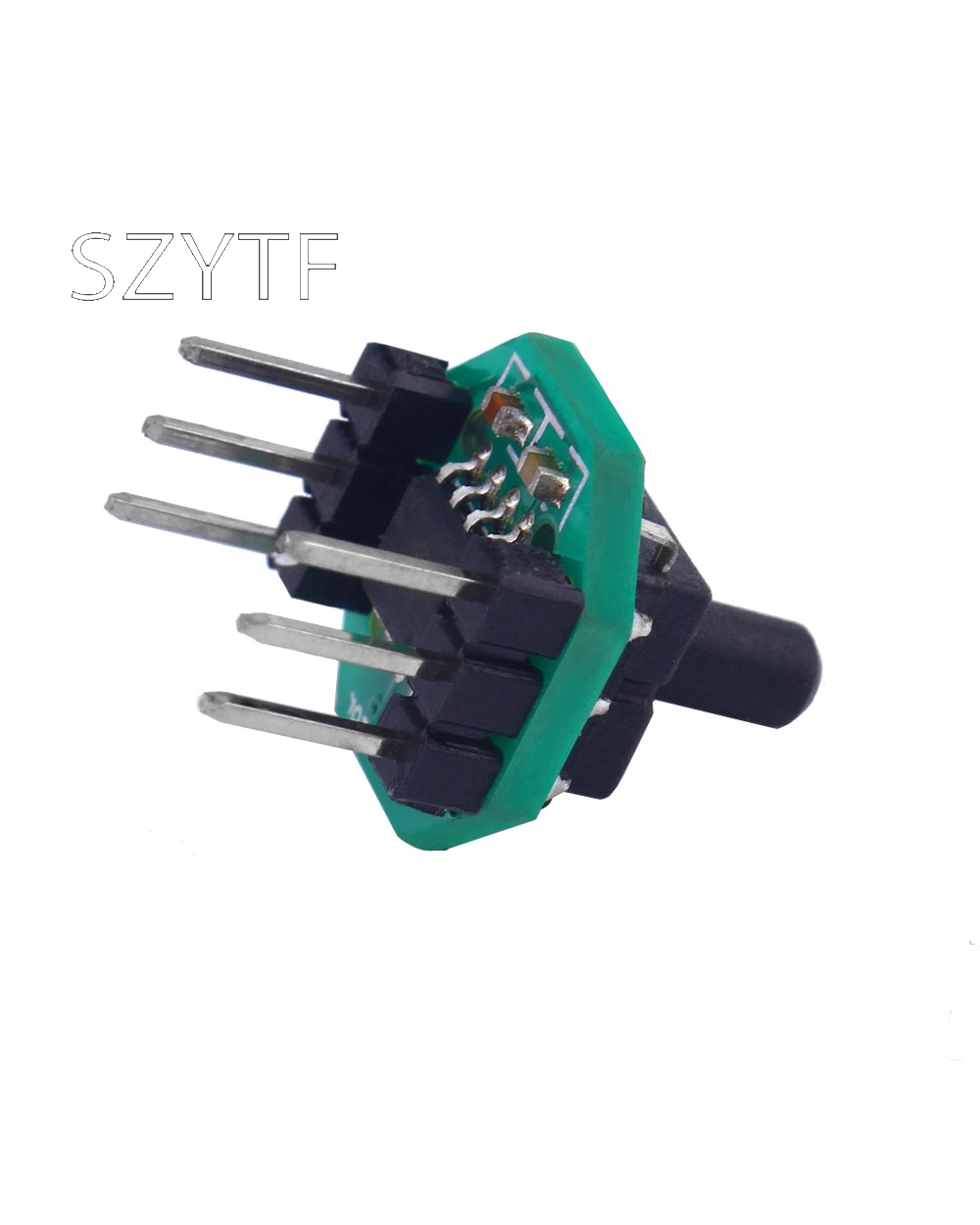

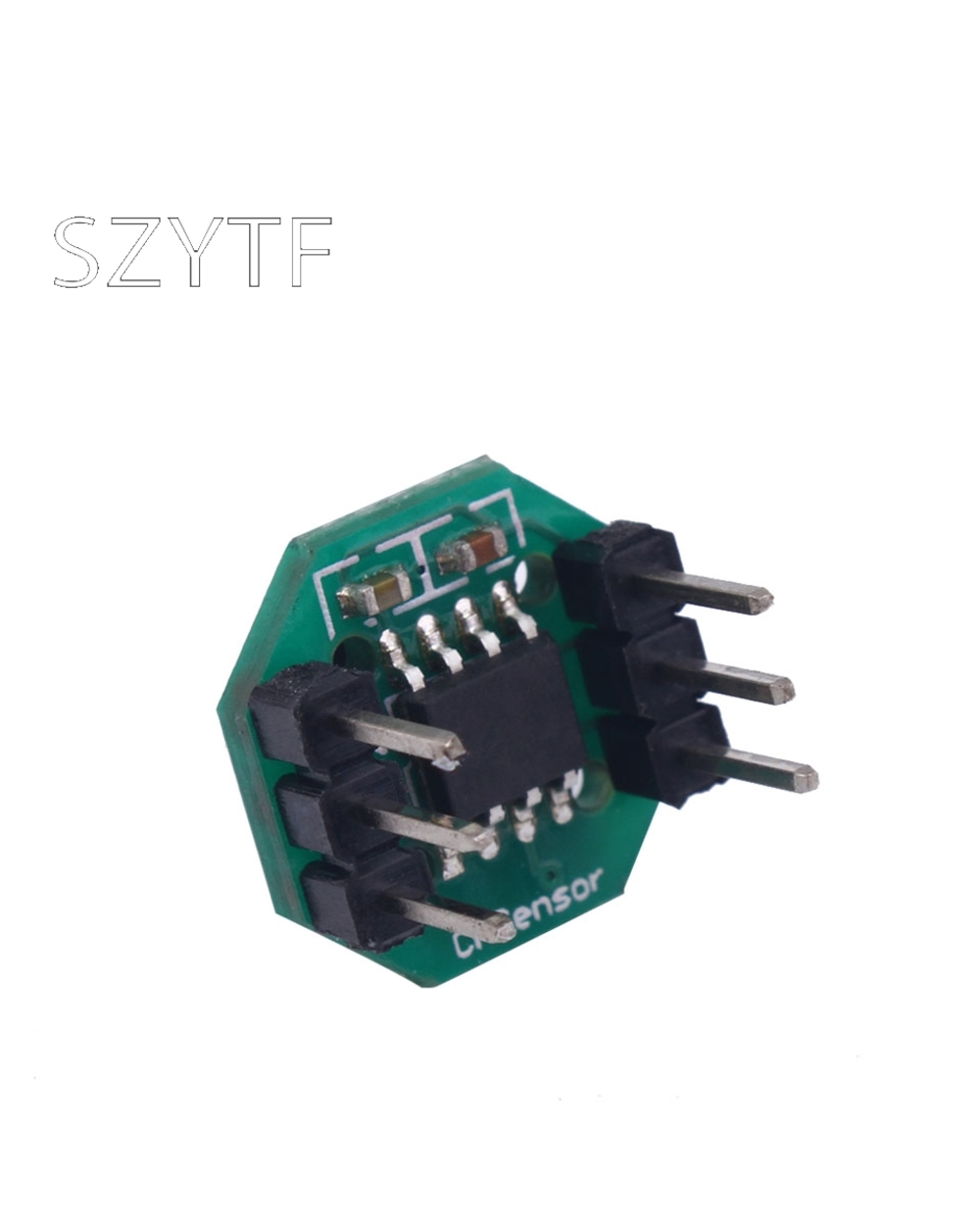

XGZP6847 Gas Pressure transmitter module in DIP package, as a pressure-sensitive sensor element and an integrated number of sheets, the second surface of the PCB are attached a pressure sensor and a signal processing circuit chip SOP package, sensor offset, temperature Nonlinear digital compensation for drift and to supply the reference voltage, a voltage signal is generated after a standard calibrated temperature compensated

XGZP6847 Gas Pressure transmitter module of small size, easy to install, according to user requirements scaled output signal, widely used promoter, automotive, sports and fitness equipment, and other fields. Applications

● electronic blood pressure monitors, ventilators, oxygen machines, alcohol testers, monitors and other medical fields

Massage, massage chairs, air beds and other areas of sports and fitness equipment

Washing machines, water heaters, Oxygen Water, beer, coffee machines and other fields

● placement machine, pump, pressure gauge, electric breast pump, emergency lights, vacuum cleaners, and other fields pneumatic components
