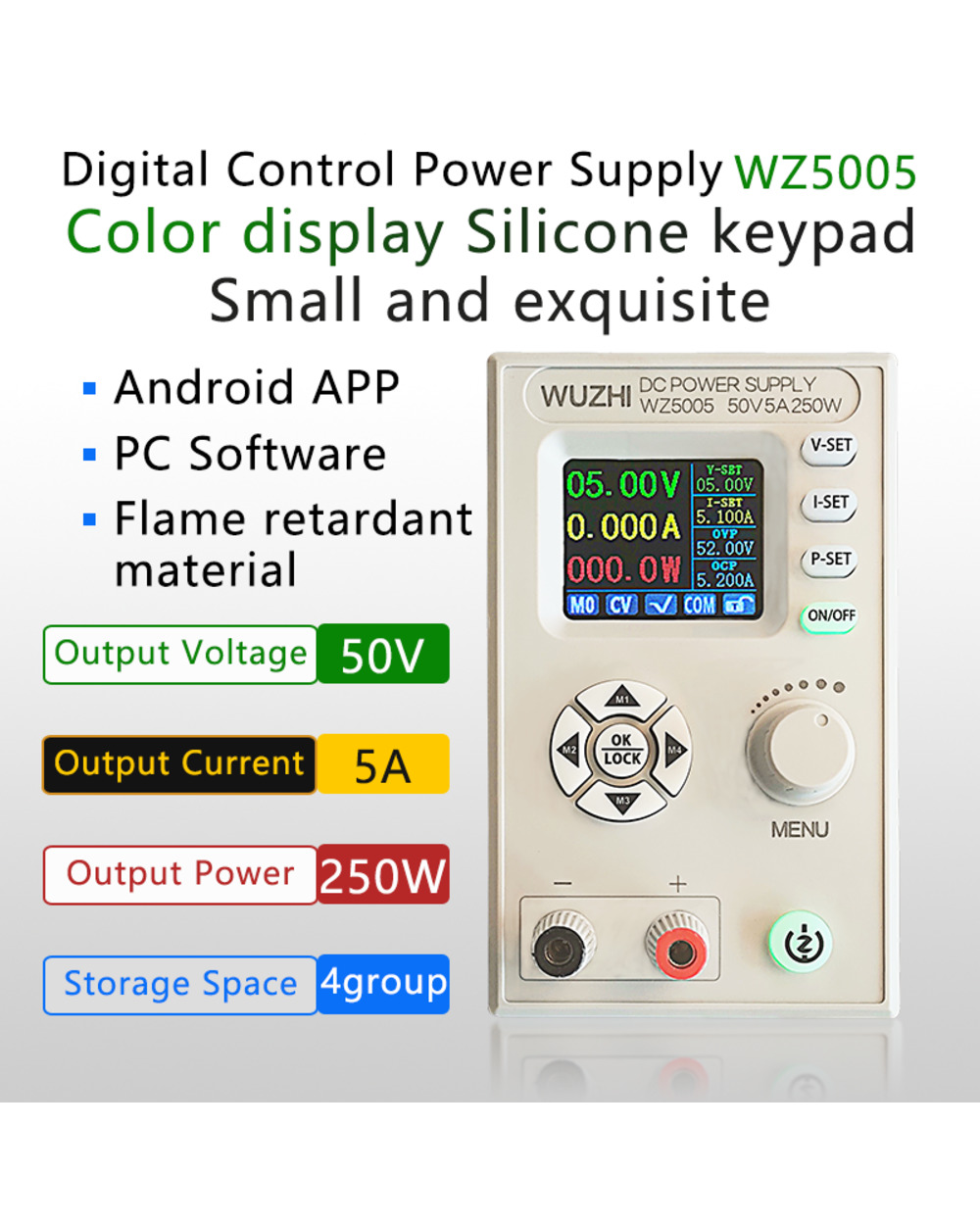

Wz5005 Dc Dc-Buck Converter Cc Cv 50V 5A Power Module Adjustable Regulated Laboratory Power Supply 5V 12V 24V Communica

Wz5005 Dc Dc-Buck Converter Cc Cv 50V 5A Power Module Adjustable Regulated Laboratory Power Supply 5V 12V 24V Communica

$53.95
2/7
description
product reviews

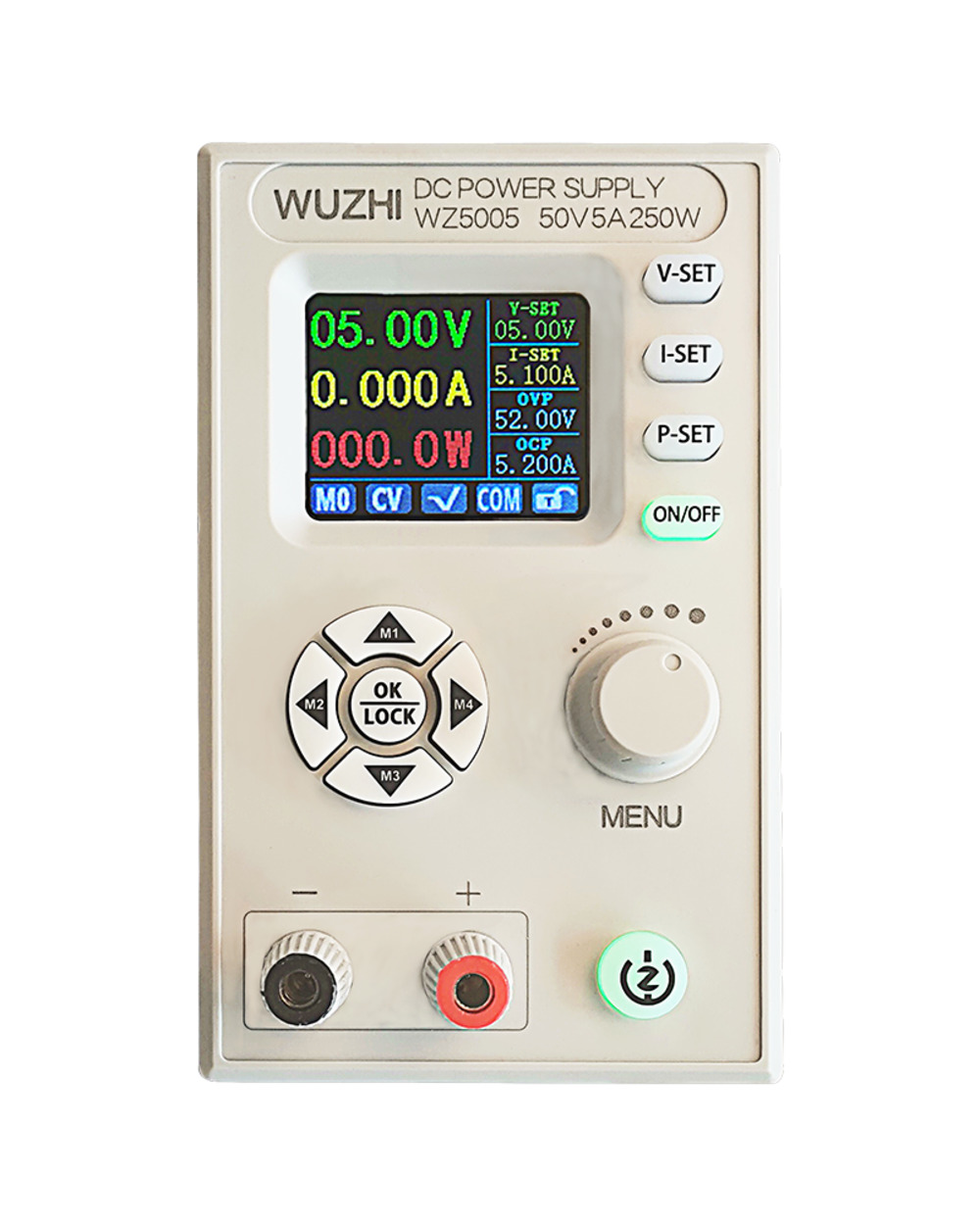

WZ5005 DC DC-Buck Converter CC CV 50V 5A Power Module Adjustable Regulated laboratory power supply 5V 12V 24V communication

Parameter:
Model: WZ5005
Display: 1.8 inch LCD
Input voltage range: 6-55.00V
Input voltage resolution: 0.01V
Output voltage range: 0-50.00V
Output voltage resolution: 0.01V
output current range: 0-5.000A
Output current resolution: 0.001A
Output power range: 0-250.0W
Input voltage accuracy: +(1%+5)
Output voltage accuracy: +(0.3%+3
Output current accuracy: +(0.5%+5)
output ripple: 150mV
Temperature: 10C~40C
Time range: 0-100hour(unit: S)
Energy range: 0-9999.99WH
Capacity range 0-9999.99AH
Capacity energy error: +2%
Screen brightness: 0-6 7 levels
Buck-Mode: >0.05%+1V

Functions:
CV-CC output
OVP/OCP Protection
OTP/LVP Protection
Silicone buttons
High precision
1.8-inch LCD displa
Four digit value

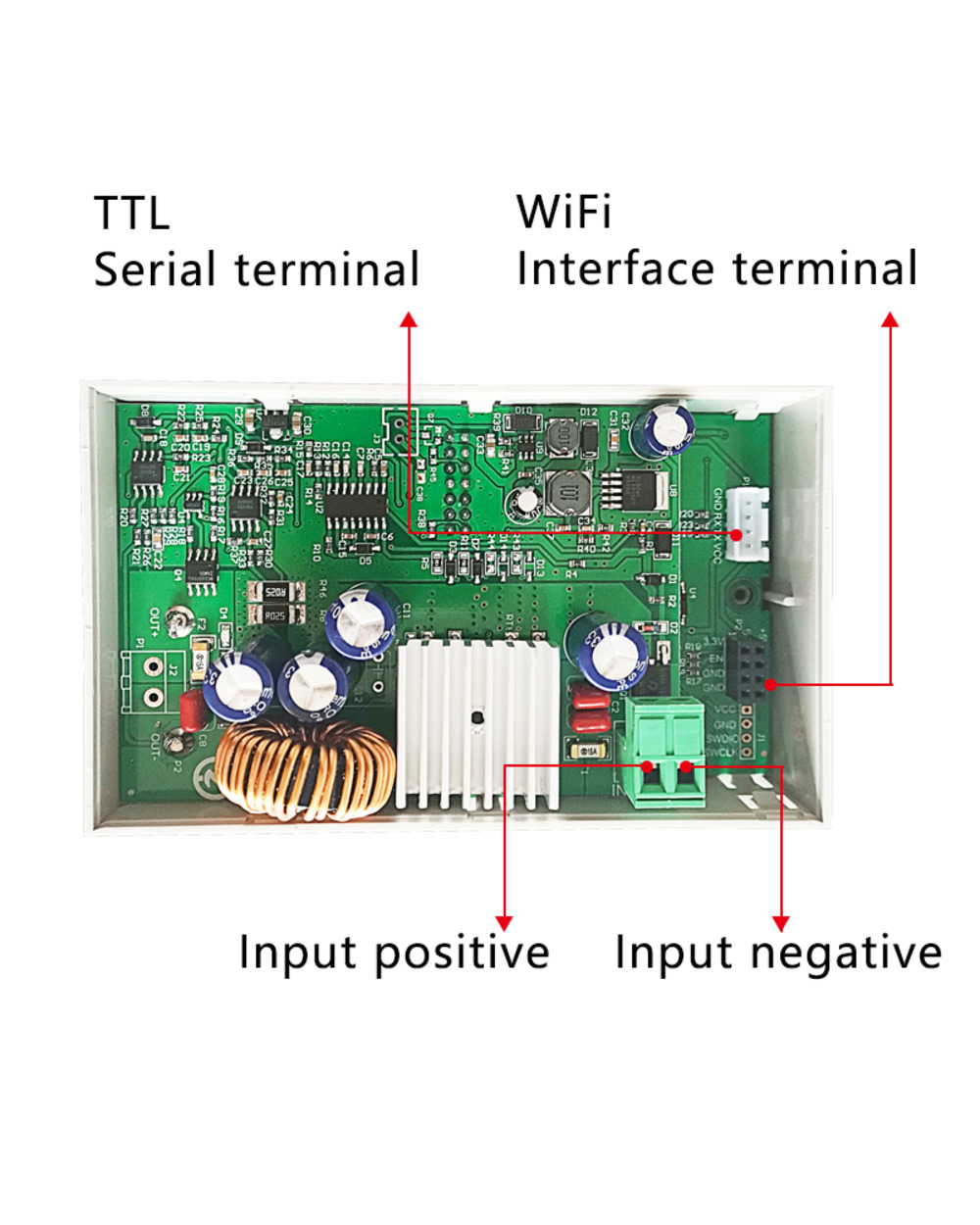

RS485/USB/WIF
extended
PC Software
Android-APP

Software & Manual download link:
https://drive.googlecom/file/d/125fOoEs3ppLBsvNsymcTwIYierVIQpAO/view?usp=sharing
(If you cannot download, please add "." before the link "com", or contact us to send)

Note:
The standard version does not include RS485 module. USB module WIFI module, optional if necessary.
This product is a DC step-down adjustable power supply. Please read the instructions before using. Do not connect AC and exceed the allowable input voltage range

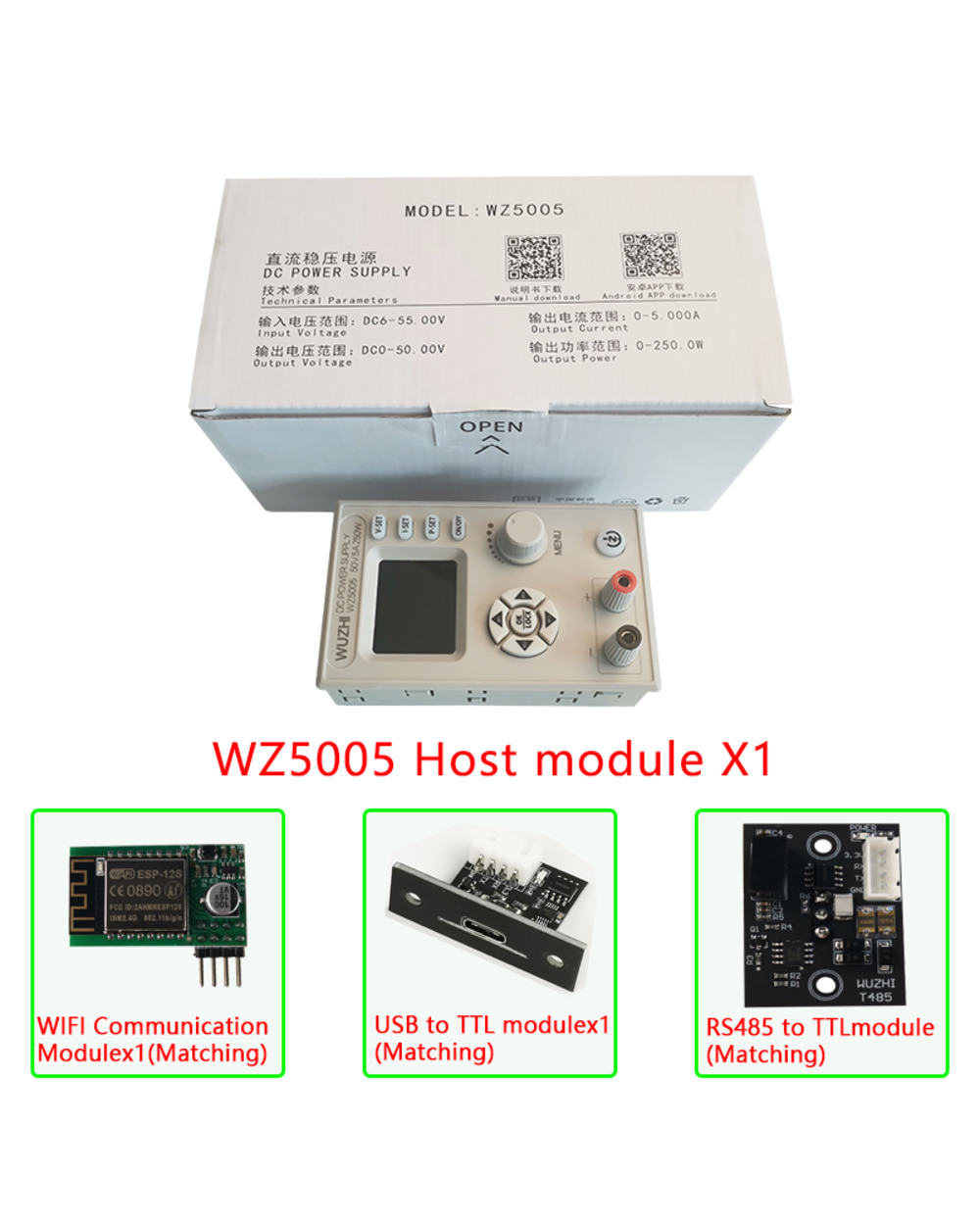

Package included:
1 * W5005 DC Converter Power Supply
1 * USB/485/WIFI Module (Optional)
