Waterproof Ultrasonic Module Jsn-Sr04t / Aj-Sr04m Water Proof Integrated Distance Measuring Transducer Sensor For Ardui

Waterproof Ultrasonic Module Jsn-Sr04t / Aj-Sr04m Water Proof Integrated Distance Measuring Transducer Sensor For Ardui

$22.95
2/7
description
product reviews

Electrical properties





1.Electrical parameters:  JSN-SR04T


2.Operating voltage:  DC 5V


3.Quiescent current:  5mA


4.Total current work:  30mA


5.Acoustic emission frequency:  40khz


6.Farthest distance:  4.5m


7.Blind: 25cm

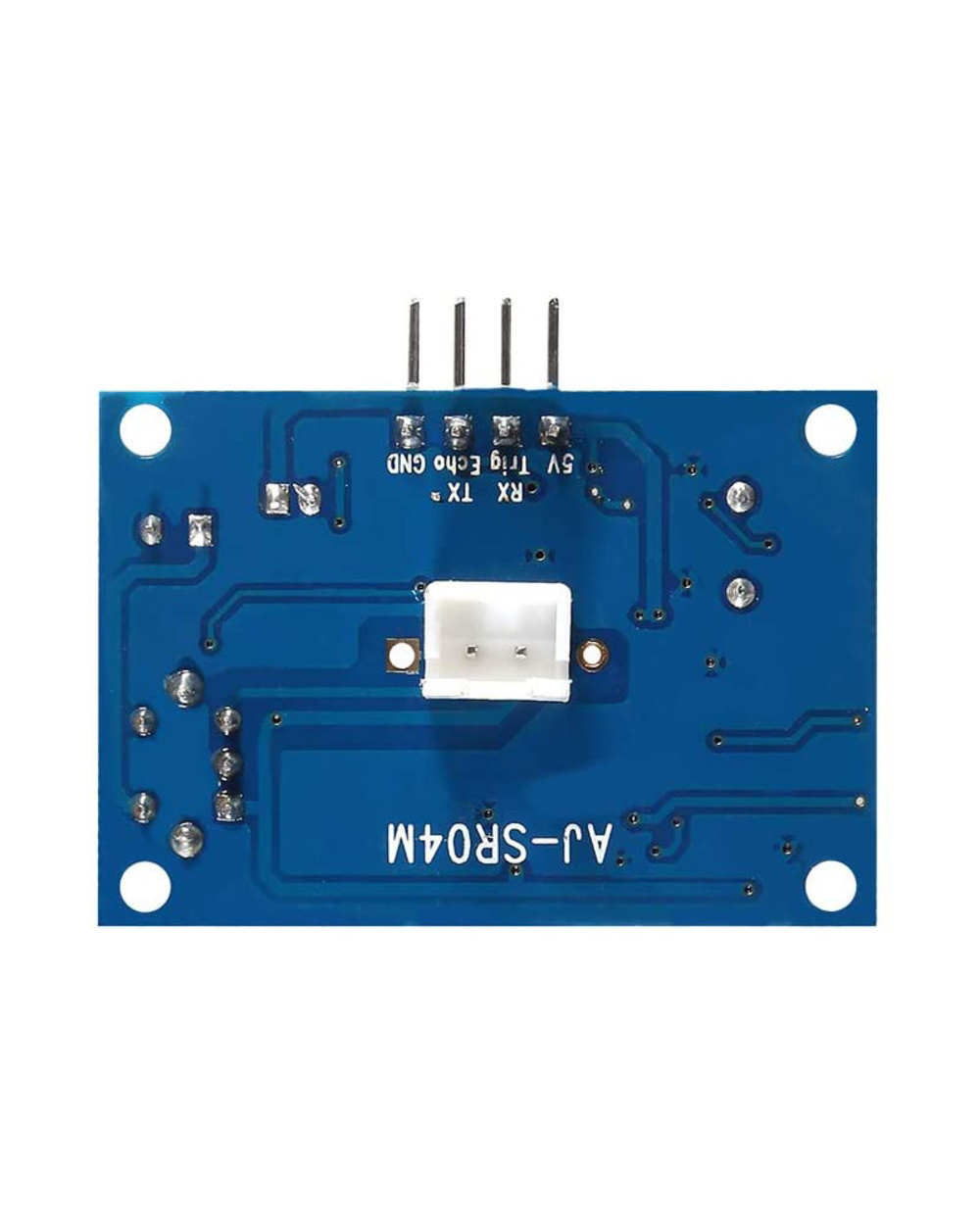

8.Wiring:   + 5V (positive power supply)


                Trig (control side) RX


                 Echo (the receiver) TX


                GND (negative)


9.Resolution:  about 0.5cm


10.Angle:  less than 50 degrees


11.Working temperature:  -10 ~ 70 Celsuis


12.Storage temperature:  -20 ~ 80 Celsuis





Product Features





1.Small size, easy to use


2.Low voltage, low power consumption


3.High accuracy


4.Strong anti-jamming

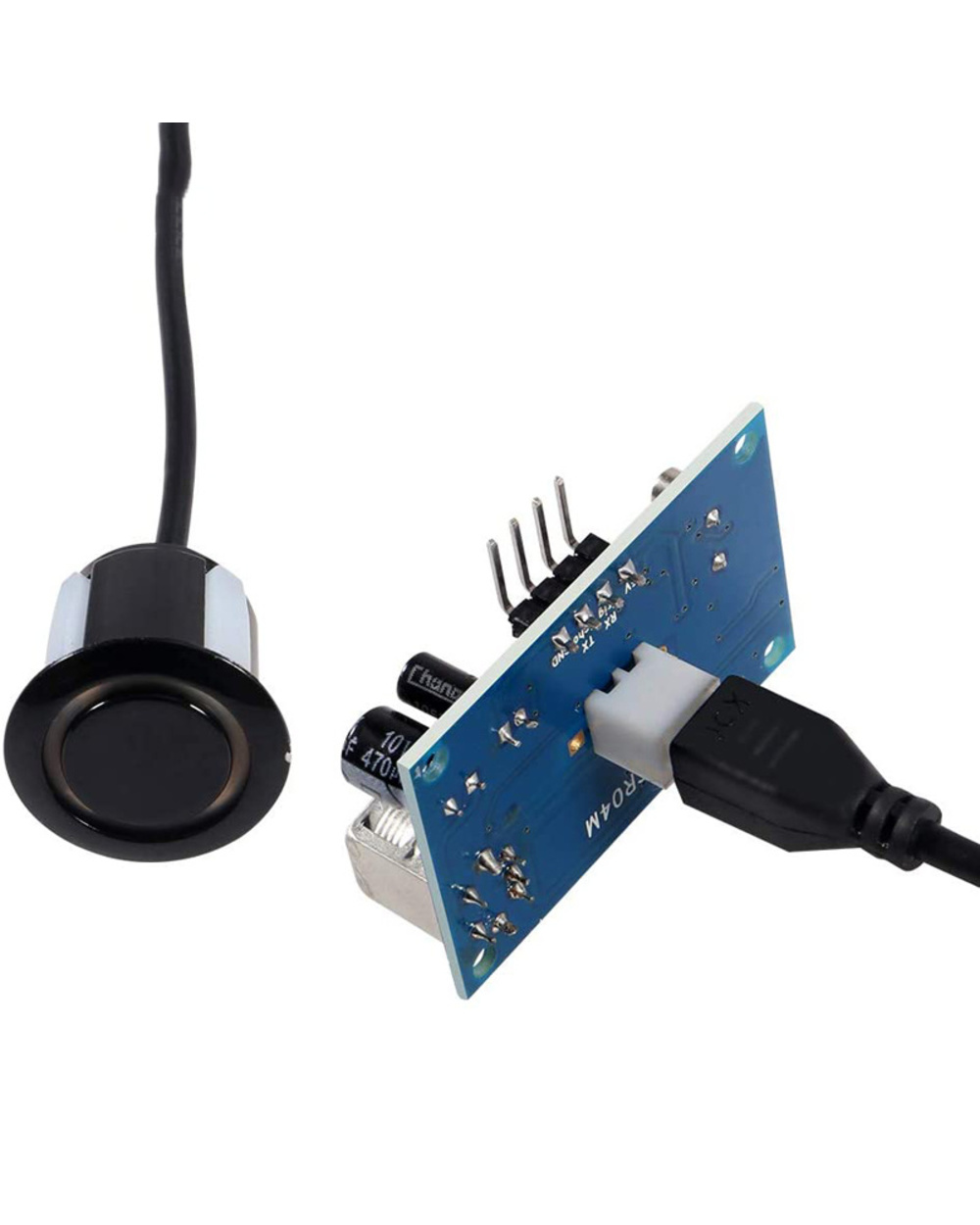

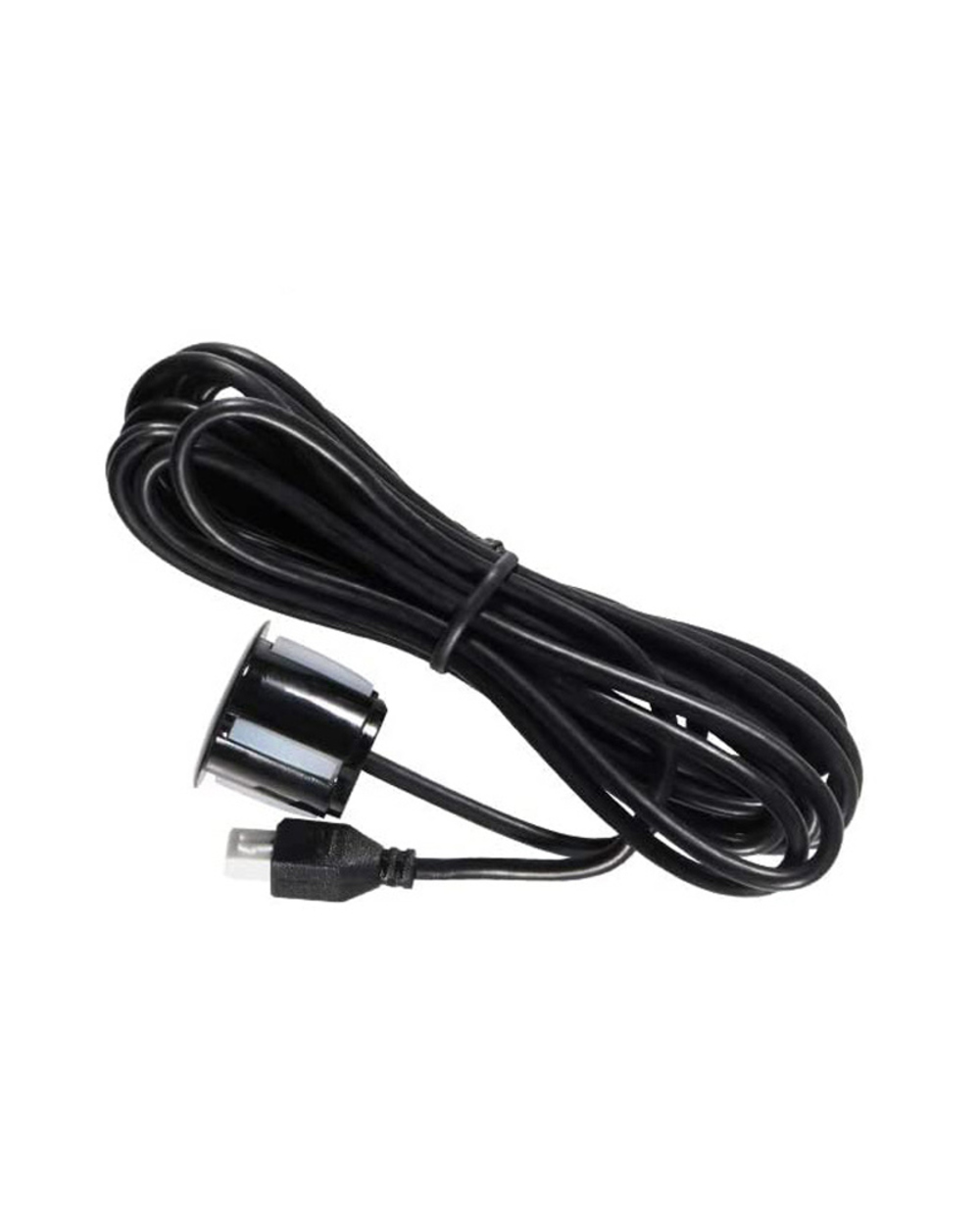

5.Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions





Application





1.Horizontal distance;


2.Obstacle avoidance, automatic control;


3.The object approaches, there is a perceived


4.Traffic control;


5.Security, industrial control;


6.Artificial intelligence, and research
