Usbdm Emulator Usb-Bdm Bdm Kines Arm Osbdm 8/16/32 Dsp Usb2.0

Usbdm Emulator Usb-Bdm Bdm Kines Arm Osbdm 8/16/32 Dsp Usb2.0

$28.95
2/5
description
product reviews













1. The target board manual selection 3.3V / 5.0V supply (target board power supply: 3.3V 500mA / 5.0V 500mA;);

2. online download, single-step debugging and simulation, observe the value of all registers and global variables;

3.CPU using 48MHz clock speed, USB2.0 interface;

4. Support chips:

   16-bit microcontroller:

1, HCS12 (including those without SYNC feature (eg 9S12DP256B) series;

8-bit MCU:

     HCS08 whole series;

32:

1, Coldfire V1 microcontrollers

5.USBDM support three of breakpoints;

6, can be developed under the following software development IDE:

   Compatible IDEs

Codewarrior V10.2 (Eclipse version)

Tested onWindows-XP-32bit,

         Windows-7-64bit

Tested onUbuntu-32-bit

Codewarrior V10.x (Eclipse version)

Tested onWindows-XP-32bit,

         Windows-7-64bit

Tested onUbuntu-32-bit

CodeWarriorLegacy versions

Codewarrior Development Studio for HCS12 (X) V5.1 &

CW for Microcontrollers V6.3 (RS08 is not supported)

Tested on Windows-XP-32bit, Windows-Vista-32bit

Initial support for CodeSourcery Lite forColdfire

Tested on Windows-XP-32bit

    NOTE: For older versions Codewarrior Development Studio for HCS12 (X) V5.0 & CW for Microcontrollers V6.2 customers can contact me, you need to downgrade to use, customers can own operation, you can tell me seal the deal, (USB even the computer, click on two buttons buttoned, convenient and practical)

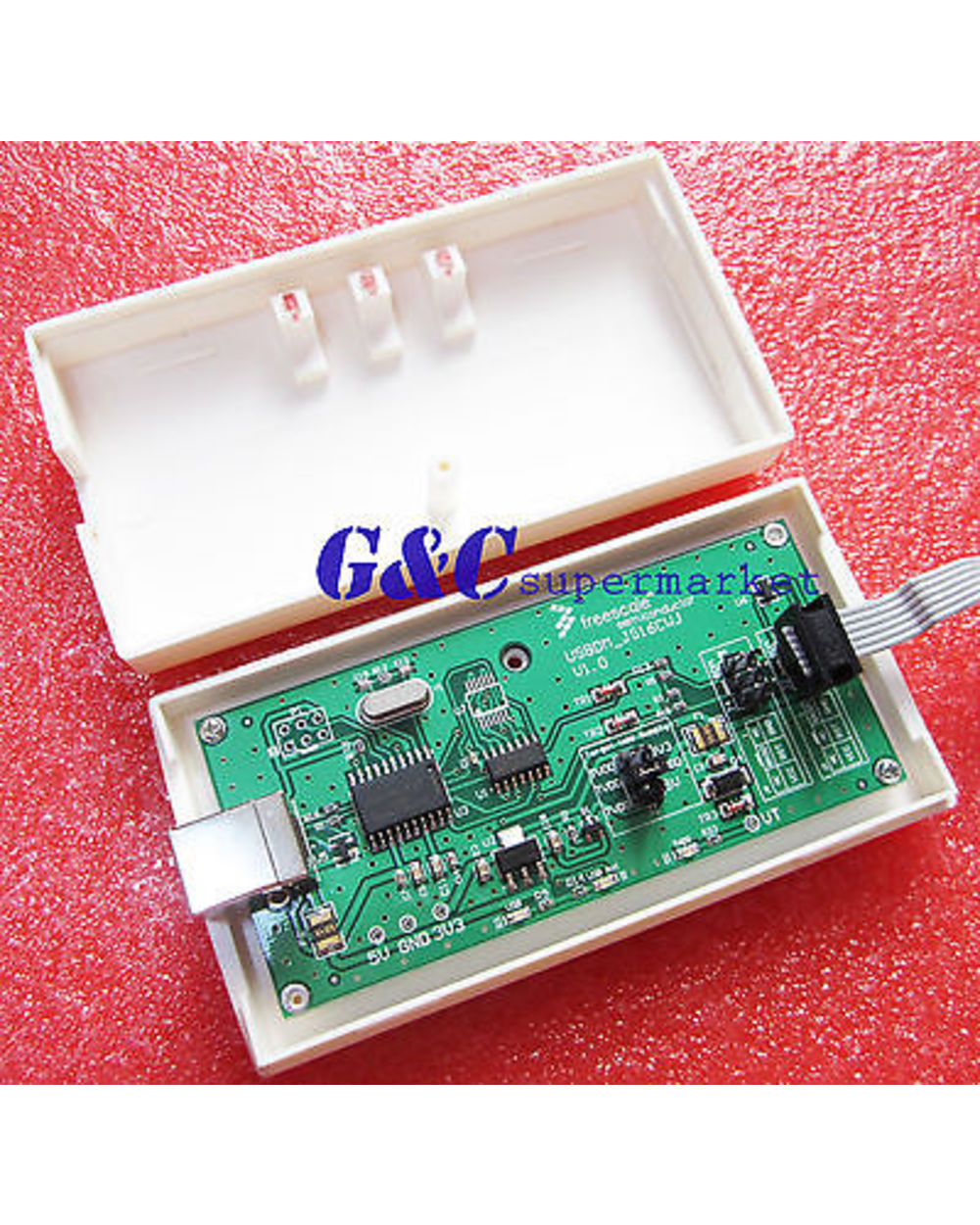

 7, the protection circuit emulator:

    USB port with ESD protection circuitry, 500mA resettable fuse;

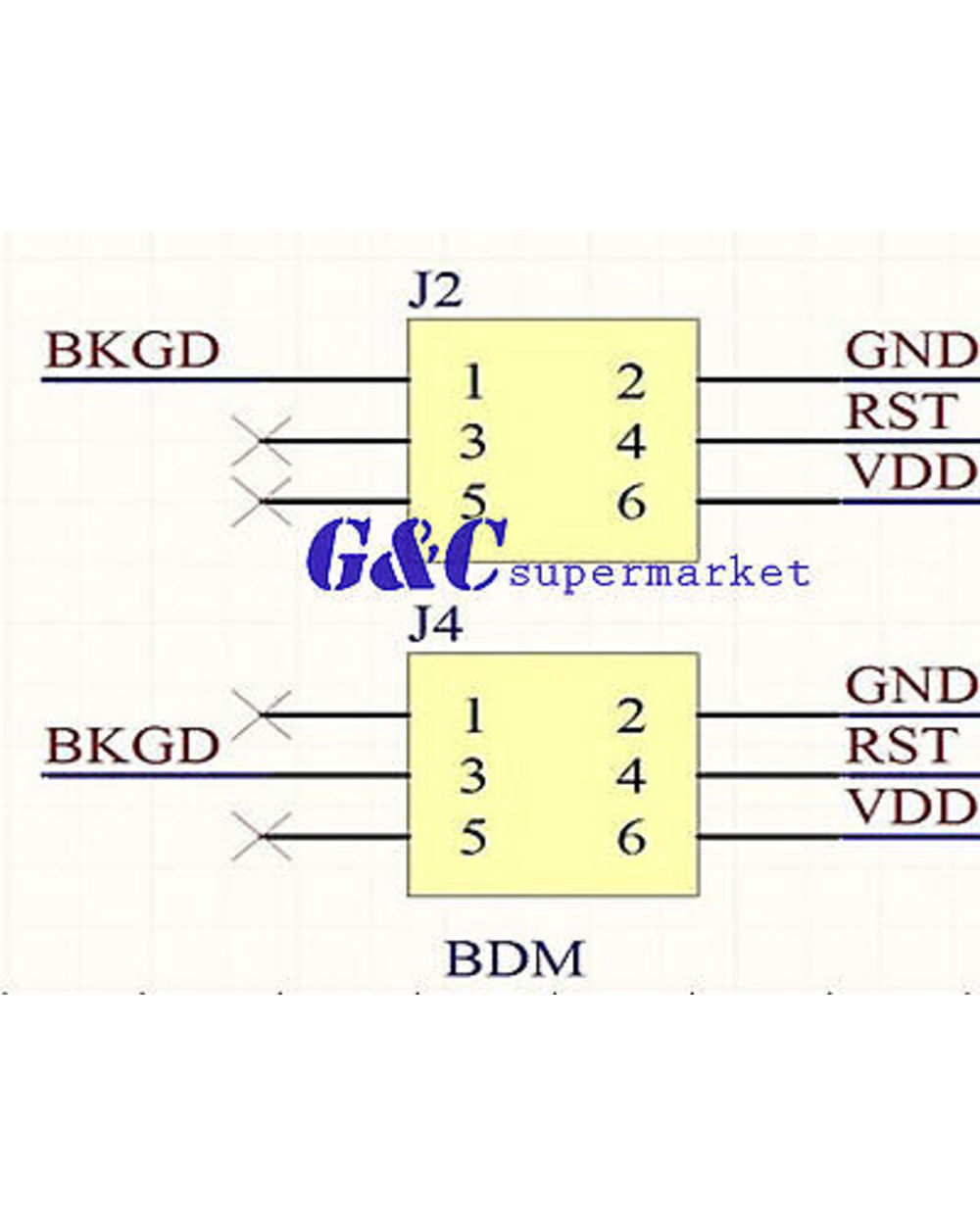

    BDM output port, data cable plus over-voltage protection ESD protection each;

    BDM output supply pins plus TVS, over-voltage protection;

Self-powered using 500mA resettable fuse;



mulator supports chip list:

MC9S08AC128.MC9S08AC16.MC9S08AC32.MC9S08AC48.MC9S08AC60.MC9S08AC8.MC9S08AC96.MC9S08AW16.MC9S08AW16A.MC9S08AW32.MC9S08AW48.MC9S08AW60.MC9S08AW8A

MC9S08DE32.MC9S08DE60.MC9S08DN16.MC9S08DN32.MC9S08DN48.MC9S08DN60.MC9S08DV128.MC9S08DV16.MC9S08DV32.MC9S08DV48.MC9S08DV60.MC9S08DV96.MC9S08DZ128.MC9S08DZ16.MC9S08DZ32.MC9S08DZ48.MC9S08DZ60.MC9S08DZ96

MC9S08EN16.MC9S08EN32

MC9S08EL16.MC9S08EL32

MC9S08GB32.MC9S08GB32A.MC9S08GB60.MC9S08GB60A.MC9S08GT16.MC9S08GT16A.MC9S08GT32.MC9S08GT32A.MC9S08GT60.MC9S08GT60A.MC9S08GT8A

MC9S08JM16.MC9S08JM32.MC9S08JM60.MC9S08JM8

MC9S08JR12

MC9S08LC36.MC9S08LC60

MC9S08QA4.MC9S08QD2.MC9S08QD4.MC9S08QE128.MC9S08QE16.MC9S08QE32.MC9S08QE32.MC9S08QE4.MC9S08QE64.MC9S08QE8.MC9S08QE96.MC9S08QG4.MC9S08QG8

MC9S08RC16.MC9S08RC32.MC9S08RC60.MC9S08RC8.MC9S08RD16.MC9S08RD32.MC9S08RD60.MC9S08RD8.MC9S08RE16.MC9S08RE32.MC9S08RE60.MC9S08RE8.MC9S08RG32.MC9S08RG60

MC9S08SG16.MC9S08SG32.MC9S08SG4.MC9S08SG8

MC9S08SH16.MC9S08SH32.MC9S08SH4.MC9S08SH8

MC9S08SL16.MC9S08SL8

MC9S08PA4



2,16:



MC9S12A128B.MC9S12A256B.MC9S12A32.MC9S12A64.MC9S12A512

MC9S12B64.MC9S12B128

MC9S12C32.MC9S12C64.MC9S12C96

MC9S12D32.MC9S12D64.MC9S12DB128A.MC9S12DB128B.MC9S12DG128B.MC9S12DG256B.MC9S12DJ128B.MC9S12DJ256B.MC9S12DJ64.MC9S12DP256B.MC9S12DJ64.MC9S12DP256B.MC9S12DP512.MC9S12DT128B.MC9S12DT256.MC9S12DT256B

MC9S12E32.MC9S12E64.MC9S12E128.MC9S12E256

MC9S12G96.MC9S12G128

MC9S12GC16.MC9S12GC32.MC9S12GC128

MC9S12H128.MC9S12H256.MC9S12HN64.MC9S12HZ64.MC9S12HZ128.MC9S12HZ256

MC9S12HA32.MC9S12HA48.MC9S12HZ64

MC9S12HY32.MC9S12HY48.MC9S12HY64

MC9S12I32.MC9S12I128

MC9S12KC64.MC9S12KC128.MC9S12KG64.MC9S12KG128.MC9S12KG256.MC9S12KL64.MC9S12KL128.MC9S12KT128.MC9S12KT256

MC9S12NE64

MC9S12P32.MC9S12P64.MC9S12P96.MC9S12P128

MC9S12Q32.MC9S12Q64.MC9S12Q96.MC9S12Q128

MC9S12T64

MC9S12UF32

MC9S12XA128.MC9S12XA256.MC9S12XA512

MC9S12XB128.MC9S12XB256

MC9S12XD64.MC9S12XD128.MC9S12XD256.MC9S12XDG128.MC9S12XDP512.MC9S12XDQ256.MC9S12XDT256.MC9S12XDT384.MC9S12XDT512

MC9S12XEG128.MC9S12XEP100.MC9S12XEP768.MC9S12XEQ384.MC9S12XEQ512.MC9S12XET256

MC9S12XFR128

MC9S12XHY128.MC9S12XHY256

MC9S12XS64.MC9S12XS128.MC9S12XS256

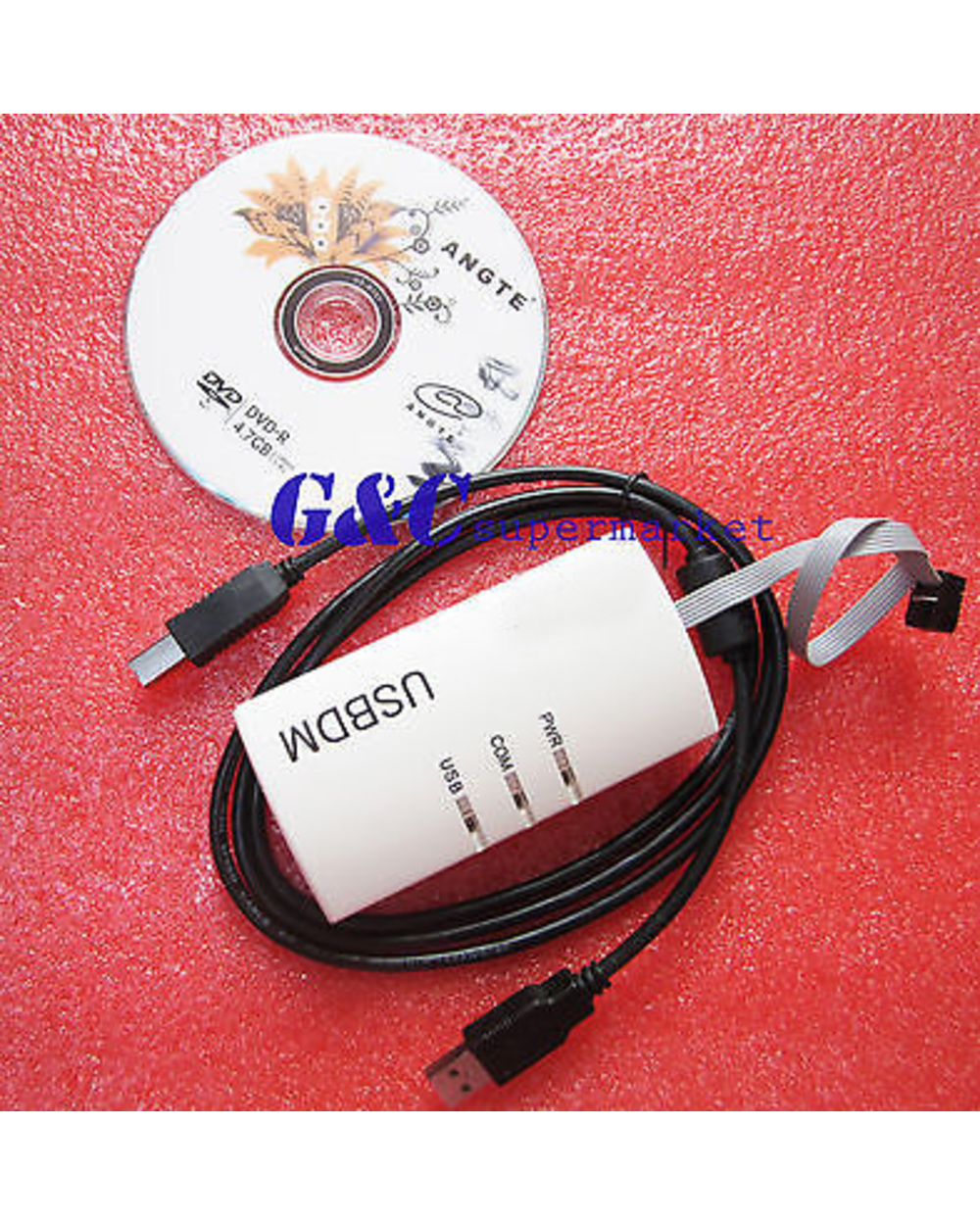

shipping list :

USB-BDM ;

USB Print line;

6p discharge line;

Software CD (including USB drive, manual, CW6.3, 5.1,10.2 software) ;,




























PLEASE BUY WITH CONFIDENCE












  •











NEW,  GOOD QUALITY,  ORIGINAL PACKAGE




  • LARGE STORE AND THE LOWEST PRICE




  • NO-QUESTION-REFUND,




  • FOR LARGE QUANTITY ,OFFER  BETTER PRICE,ORIGINAL PACKING(TAPE REEL/TUBE/TRAY)
