Sx1278 433Mhz Ra-02 Lora Module 10Km Wireless Spread Spectrum Transmission Electronic Diy Kit For Smart Home Meter Read

Sx1278 433Mhz Ra-02 Lora Module 10Km Wireless Spread Spectrum Transmission Electronic Diy Kit For Smart Home Meter Read

$22.95
2/7
description
product reviews

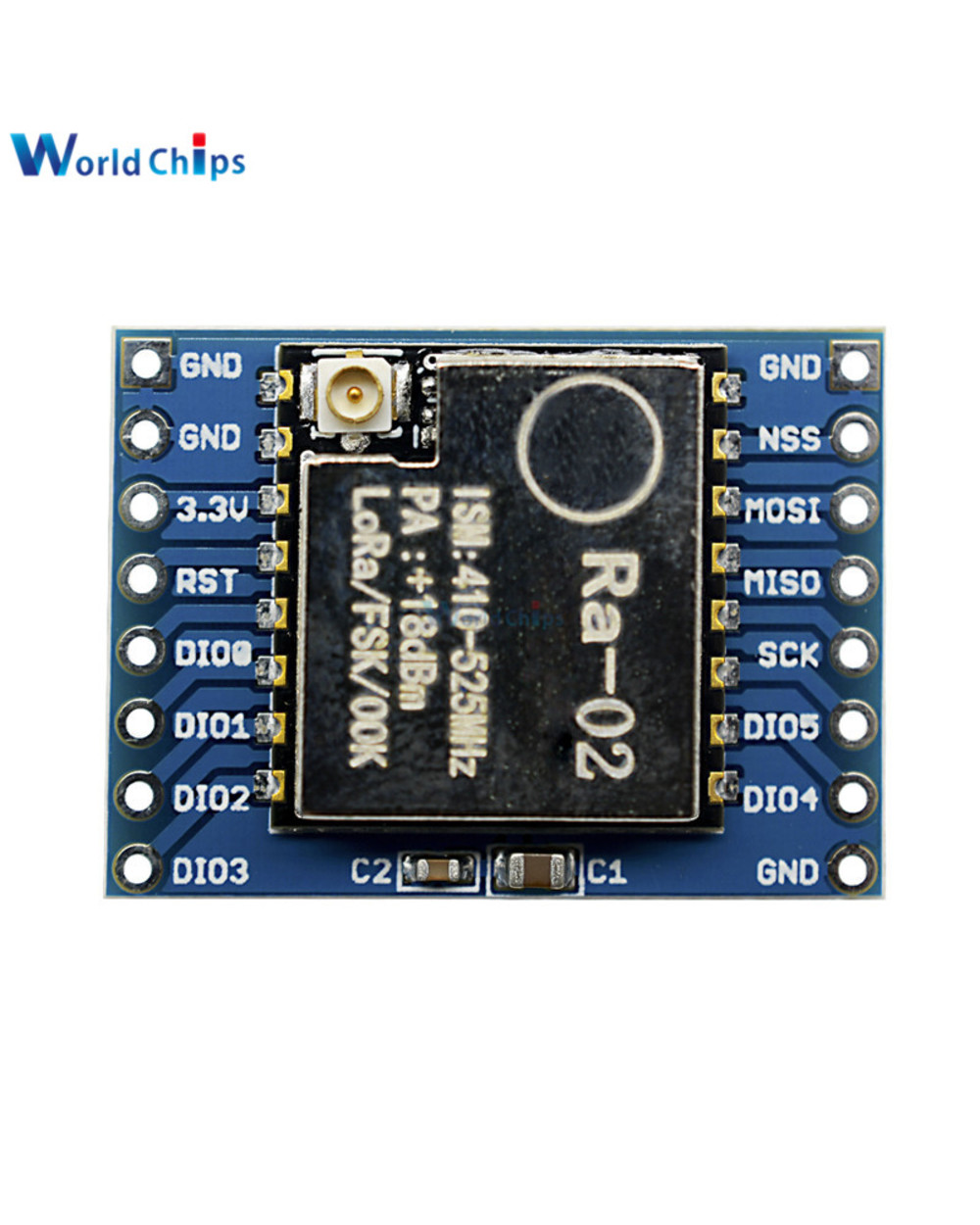

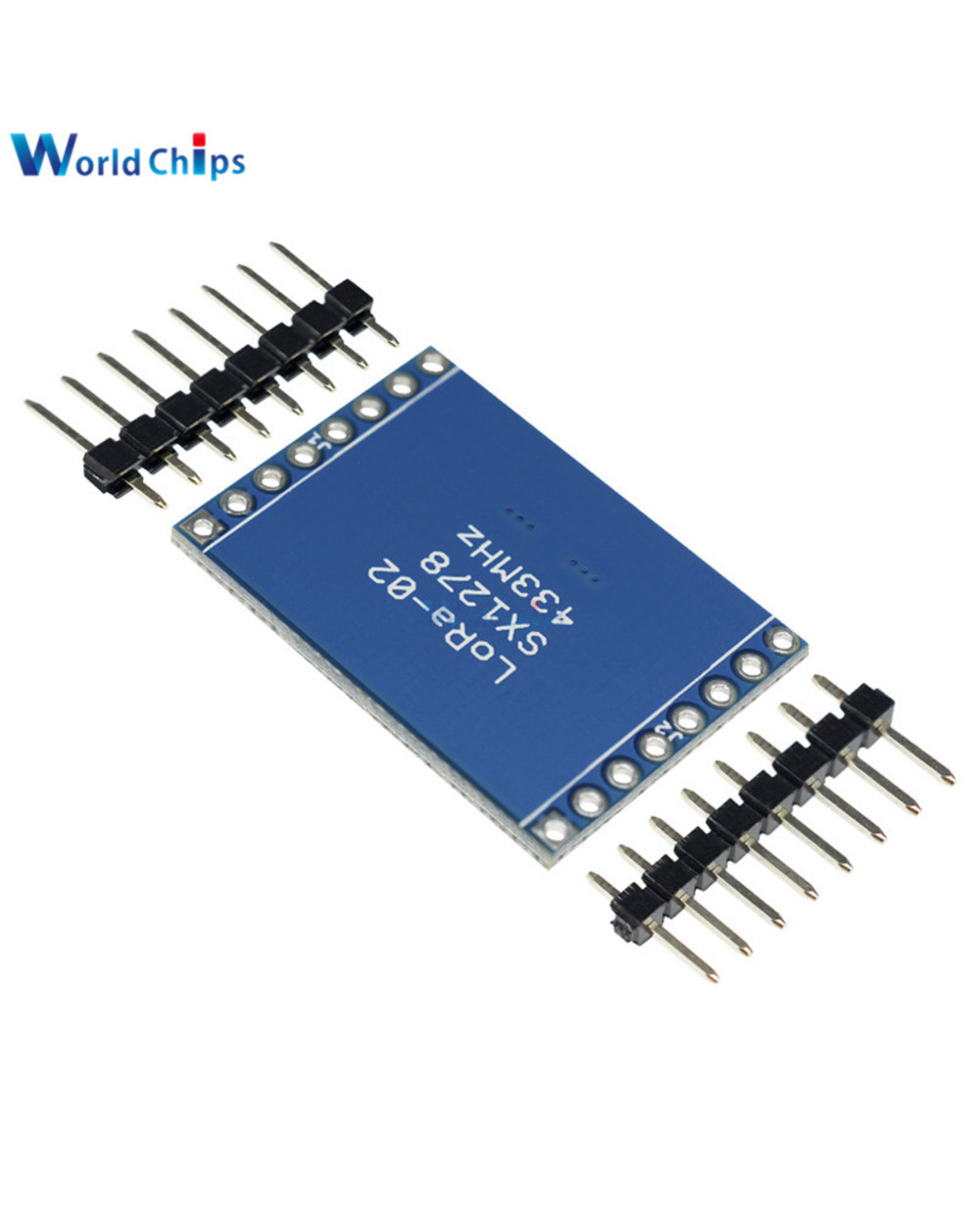

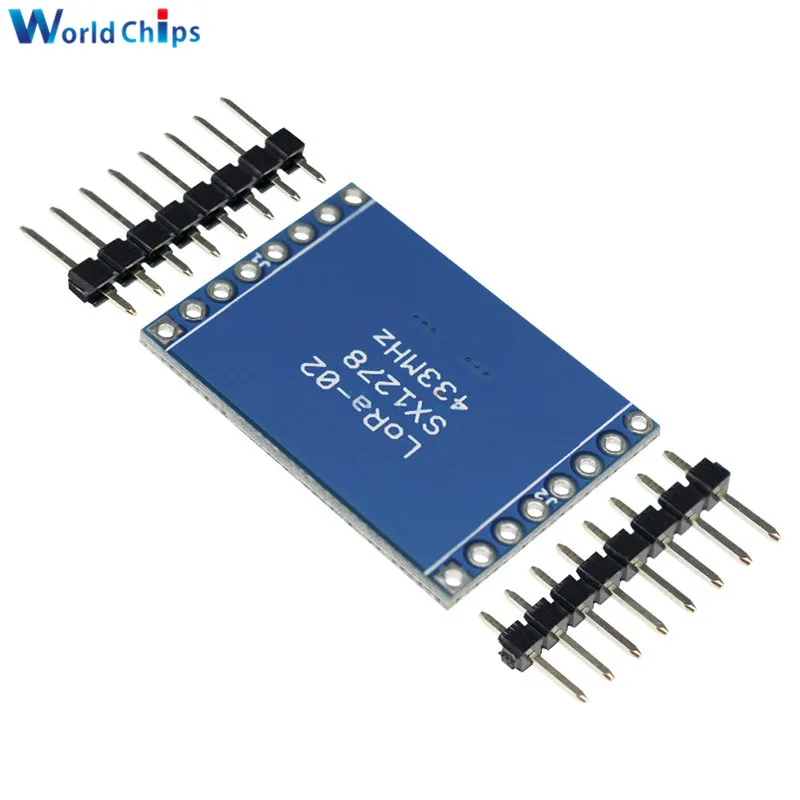

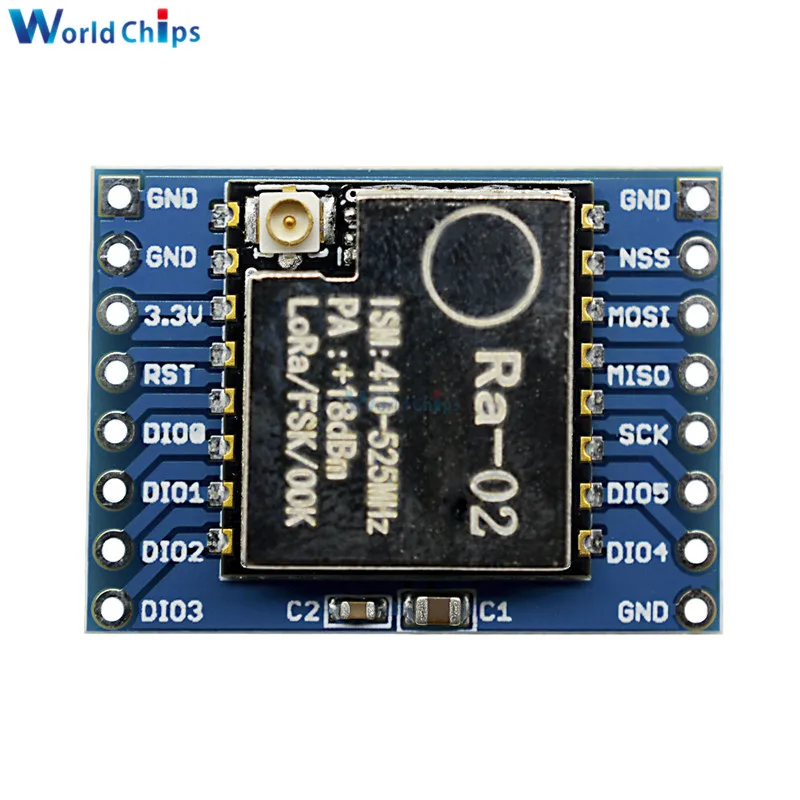

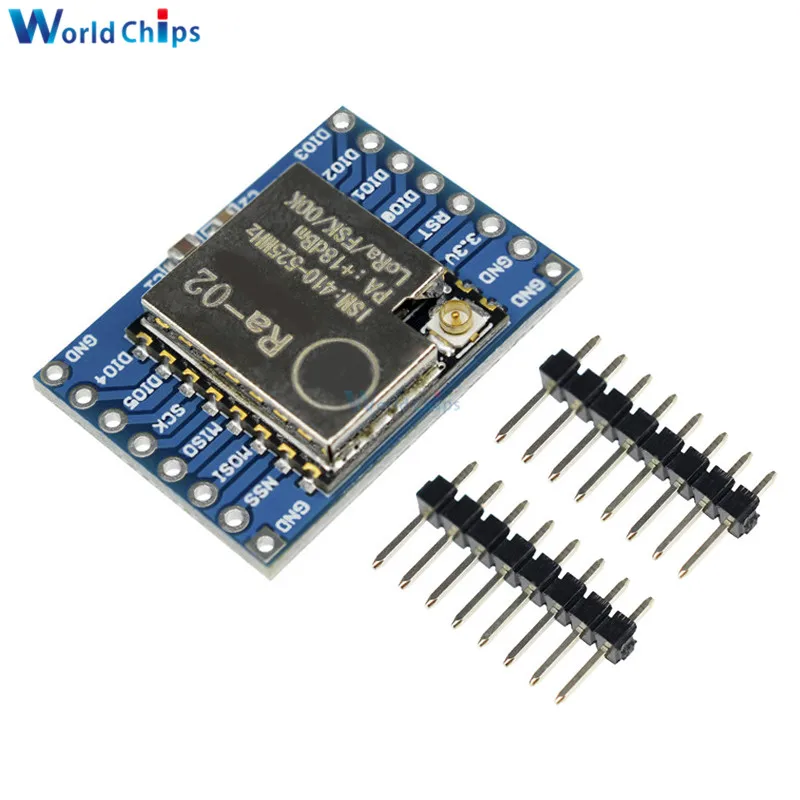

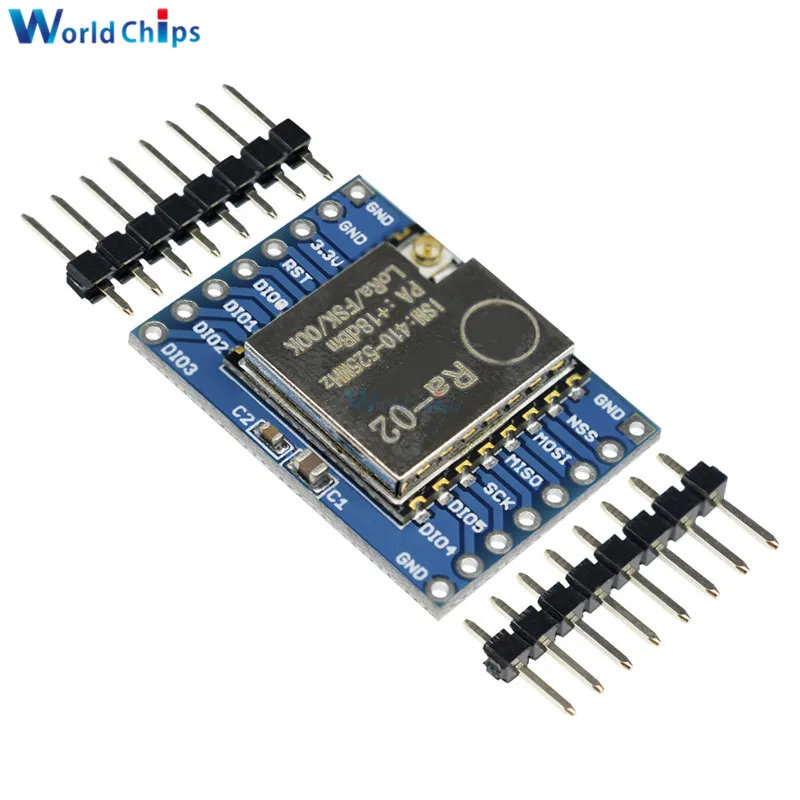

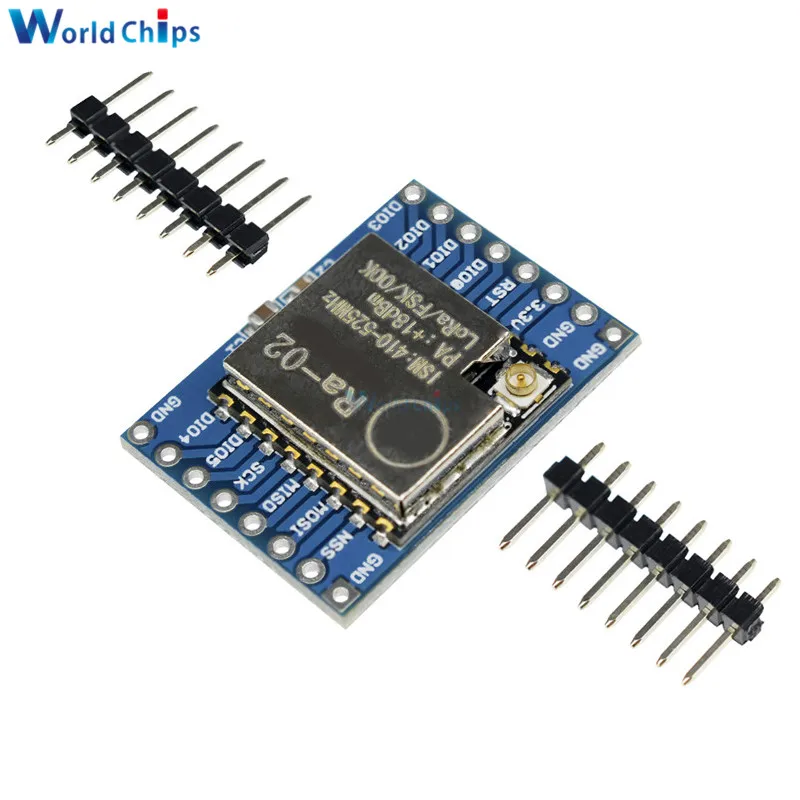

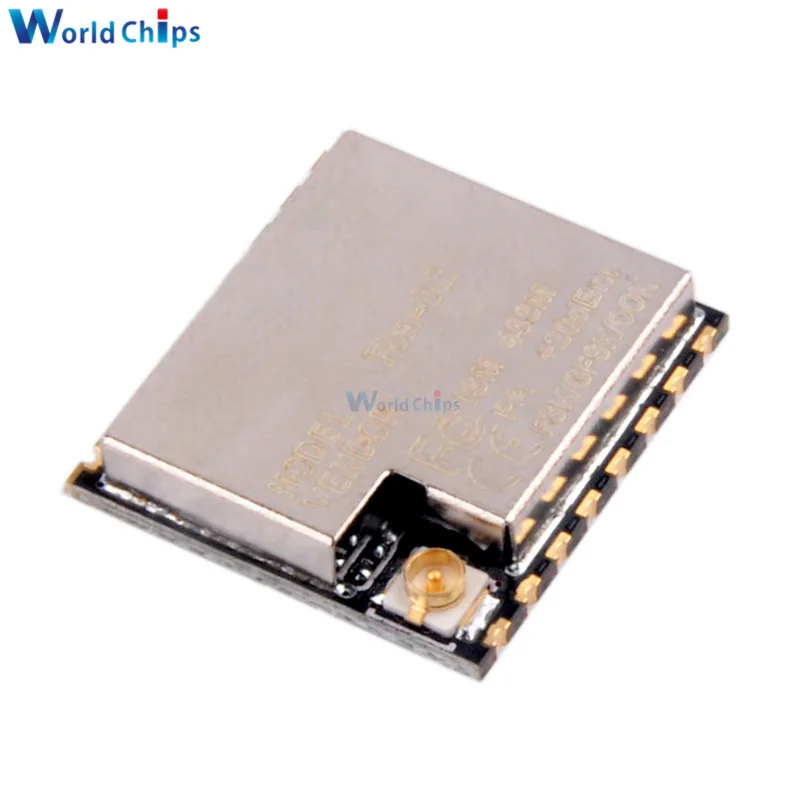

Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.

The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa  modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa  modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.



Features



LoRa  Spread Spectrum modulation technology

Constant RF power output at + 20dBm-100mW voltage change

High sensitivity: down to -148dBm

Half-duplex SPI communication

Programmable bit rates up to 300kbps

Supports FSK, GFSK, MSK, GMSK, LoRa  and OOK modulation modes

127dB RSSI dynamic range

Automatic RF signal detection, CAD mode and very high speed AFC

Packet engine with CRC up to 256 bytes

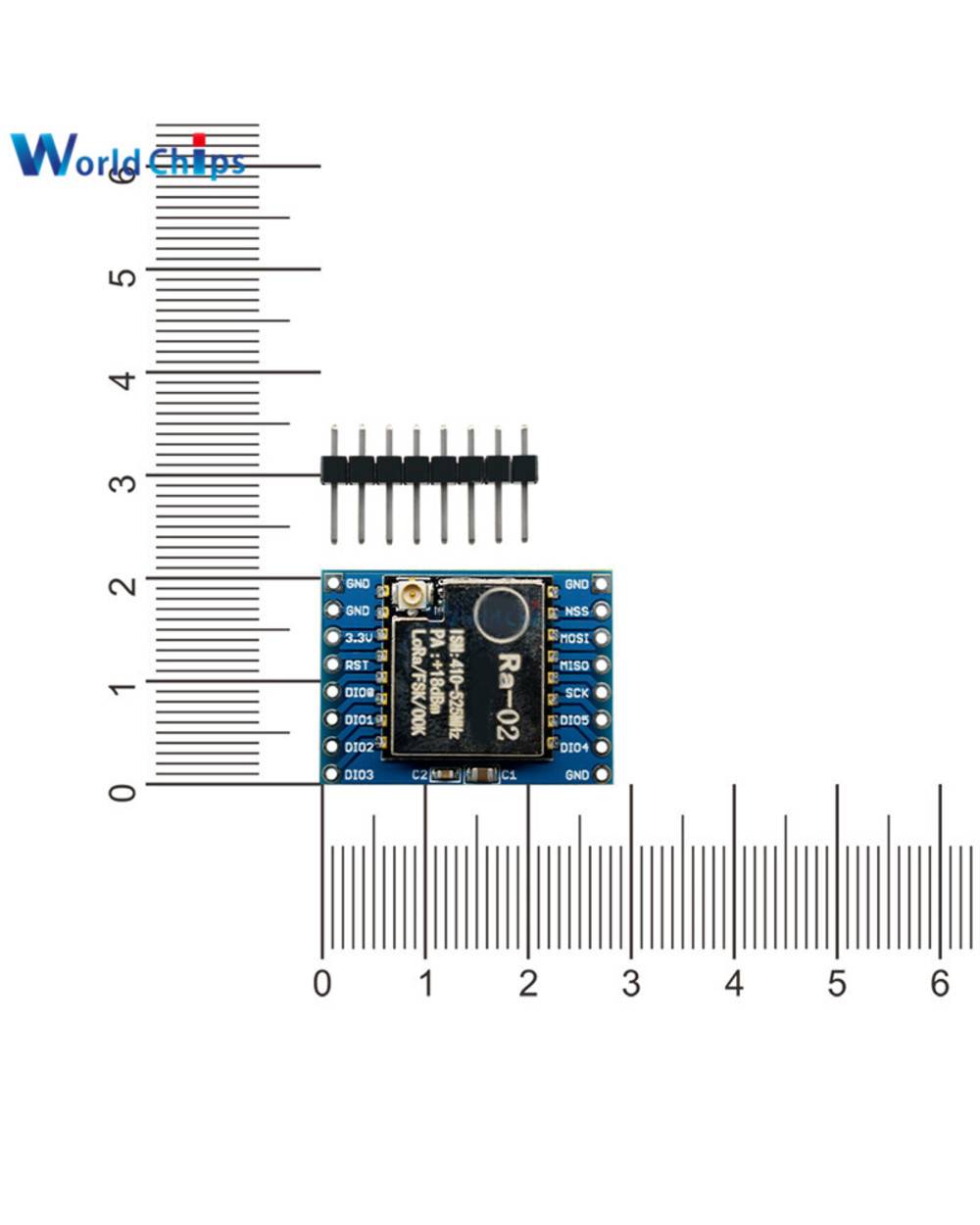

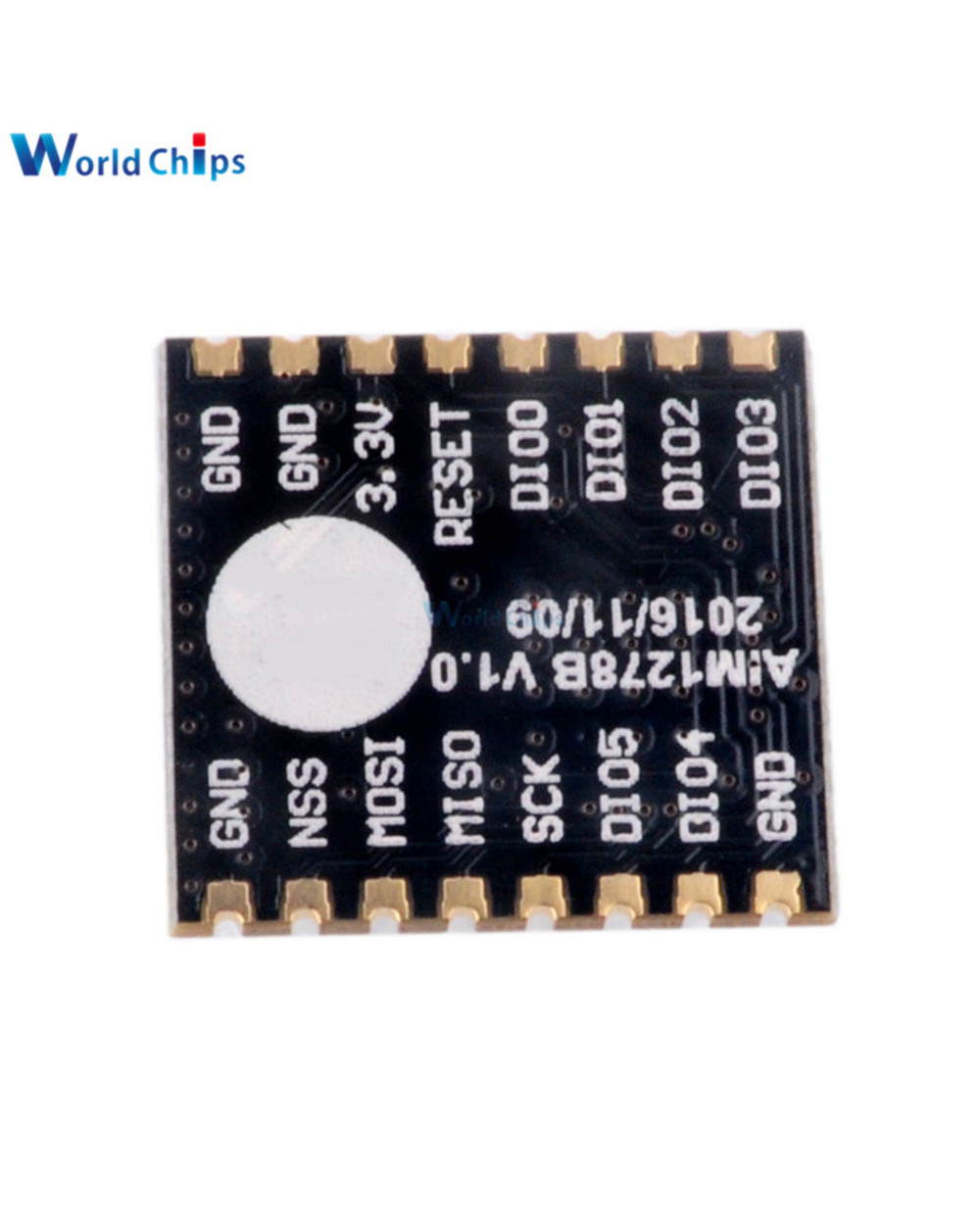

Small footprint dual-row stamp-hole patch package

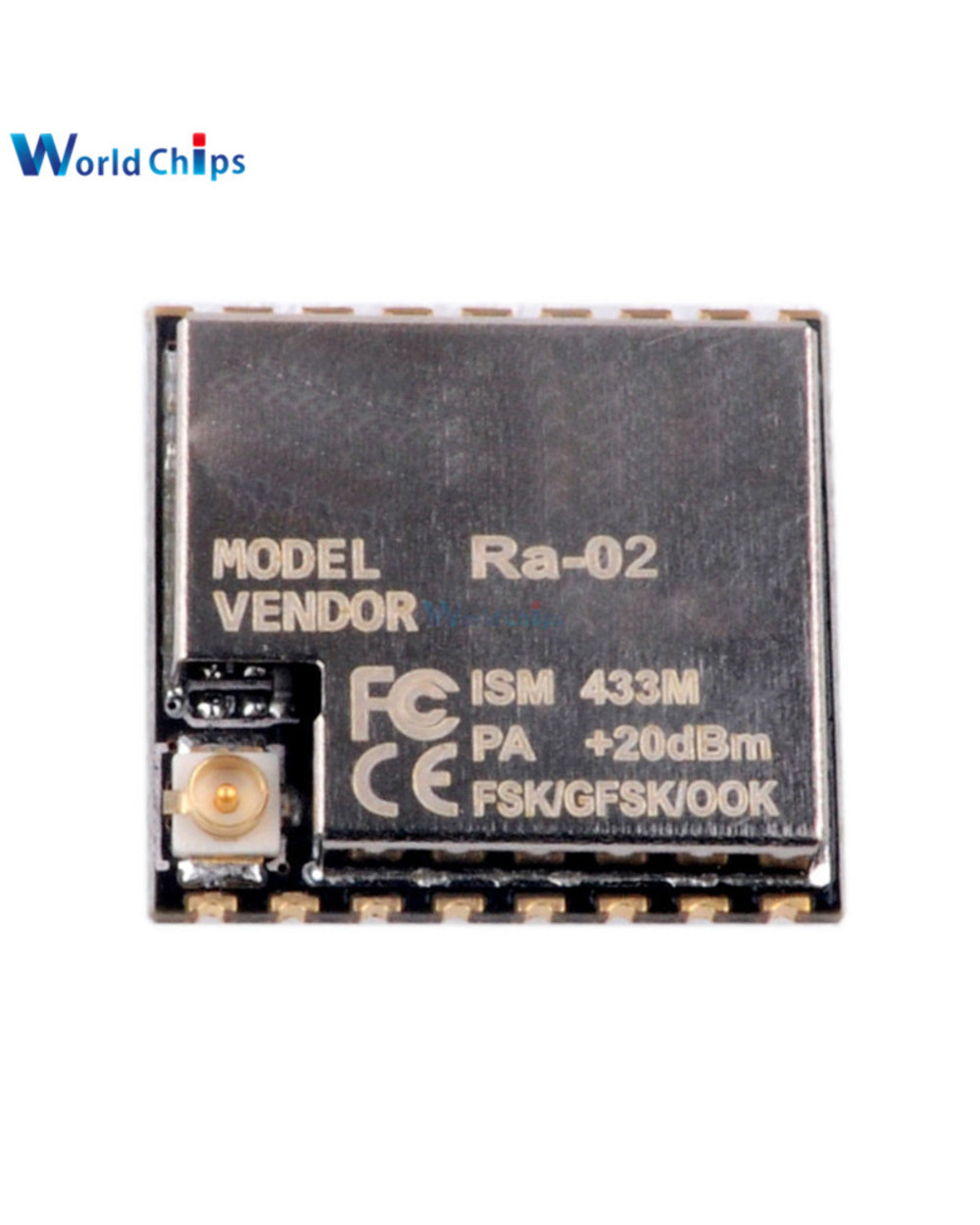

Shielded housing

Spring Antenna



Package:



According your choice
