Switching Power Supply Power Supply Module Ac-Dc Isolated Dc Regulated Power Supply Module

Switching Power Supply Power Supply Module Ac-Dc Isolated Dc Regulated Power Supply Module

$20.95
2/7
description
product reviews

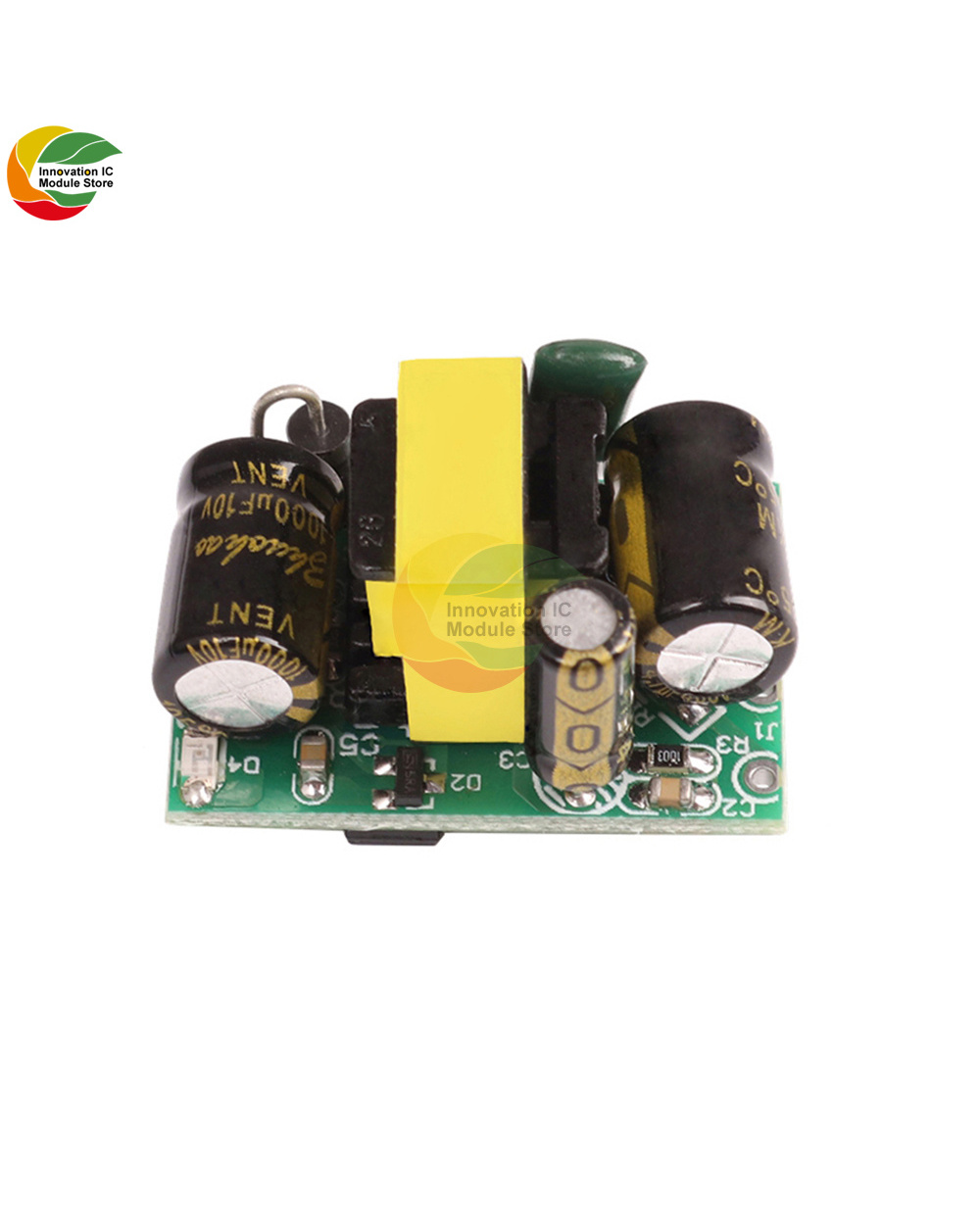

5V1A/12V 500mA/24V 200MA switching power supply module AC-DC constant voltage step-down power supply module




Product selling point




1: Wide input voltage range

2: With overload, short circuit, and over temperature protection functions

3: Ultra small size, high efficiency

4: Ultra-low ripple output

5: Lateral oblique insertion installation


5V output characteristics


Output voltage: 5V

Rated current: 1000mA

Current range: 0-1000mA

Ripple: <50mVp-p

Output accuracy: ±3%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.2%

Rated power: 5w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 80ms, 80ms /220VAC



12V output characteristics


Output voltage: 12V

Rated current: 500mA

Current range: 0-500mA

Ripple: <100mVp-p

Output accuracy: ±3%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.2%

Rated power: 6w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 80ms, 80ms /220VAC



24V output characteristics


Output voltage: 24V

Rated current: 250mA

Current range: 0-260mA

Ripple: <120mVp-p

Output accuracy: ±3%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.2%

Rated power: 6w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 80ms, 80ms /220VAC



Checklist

1*power module

24V150mA 3W/12V 300mA 3W /5V 600mA 3W Isolated Switching Power Supply Bare Board Built-in Step-Down Regulated DC Power Supply Module


Product selling point

1: Wide input voltage range

2: With overload, short circuit, and over temperature protection functions

3: Small size, high efficiency

4: Full load aging test

5: Ultra-low standby noise


5V output characteristics


Output voltage: 5V

Rated current: 500mA

Current range: 0-600mA

Ripple: <350mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 2.5w

Output adjustable range: not adjustable

Setup, rise, hold time: 500ms, 80ms, 80ms /220VAC


12V output characteristics


Output voltage: 12V

Rated current: 250mA

Current range: 0-280mA

Ripple: <200mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 3w

Output adjustable range: not adjustable

Setup, rise, hold time: 500ms, 80ms, 80ms /220VAC


24V output characteristics


Output voltage: 24V

Rated current: 150mA

Current range: 0-180mA

Ripple: <100mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 3.6w

Output adjustable range: not adjustable

Setup, rise, hold time: 500ms, 80ms, 80ms /220VAC


Checklist

1*power module

12V 800mA/24V 400mA Switching Power Supply Module AC to DC Constant Voltage Regulated Power Supply Template


Product selling point

1: Wide input voltage range

2: With overload, short circuit, and over temperature protection functions

3: Small size, high efficiency

4: Full load aging test

5: Widely used


12V output characteristics


Output voltage: 12V

Rated current: 800mA

Current range: 0-900mA

Ripple: <100mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.2%

Rated power: 9.6w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 30ms /220VAC


24V output characteristics


Output voltage: 24V

Rated current: 400mA

Current range: 0-450mA

Ripple: <120mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.2%

Rated power: 9.6w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 30ms /220VAC


Checklist

1*power module.

24V1A/5V3A Isolated DC Switching Power Supply Module AC-DC Step-down Regulated Power Supply Module


Product selling point

1: Wide input voltage range

2: With overload, short circuit, and over temperature protection functions:

3: Small size, high efficiency

4: Full load aging test

5: Ultra-low output ripple


5V output characteristics


Output voltage: 5V

Rated current: 3A

Current range: 0-3.5A

Ripple: <50mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.1%

Rated power: 15w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 30ms /220VAC


24V output characteristics


Output voltage: 24V

Rated current: 1A

Current range: 0-1.1A

Ripple: <180mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 24w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 30ms /220VAC


Checklist

1*power module

5V 5A/12V 3A/24V 1.5A Switching Power Supply Power Supply Module AC-DC Isolated DC Regulated Power Supply Module


Product selling point

1: Wide input voltage range

2: With overload, short circuit, and over temperature protection functions:

3: Small size, high efficiency

4: Full load aging test

5: Ultra-low output ripple


5V output characteristics


Output voltage: 5V

Rated current: 5A

Current range: 0-6A

Ripple: <120mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.2%

Rated power: 20w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC


12V output characteristics


Output voltage: 12V

Rated current: 3A

Current range: 0-3A

Ripple: <190mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 36w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC


24V output characteristics


Output voltage: 24V

Rated current: 1.5A

Current range: 0-1.5A

Ripple: <250mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 36w

Output adjustable range: not adjustable

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC


Checklist

1*power module

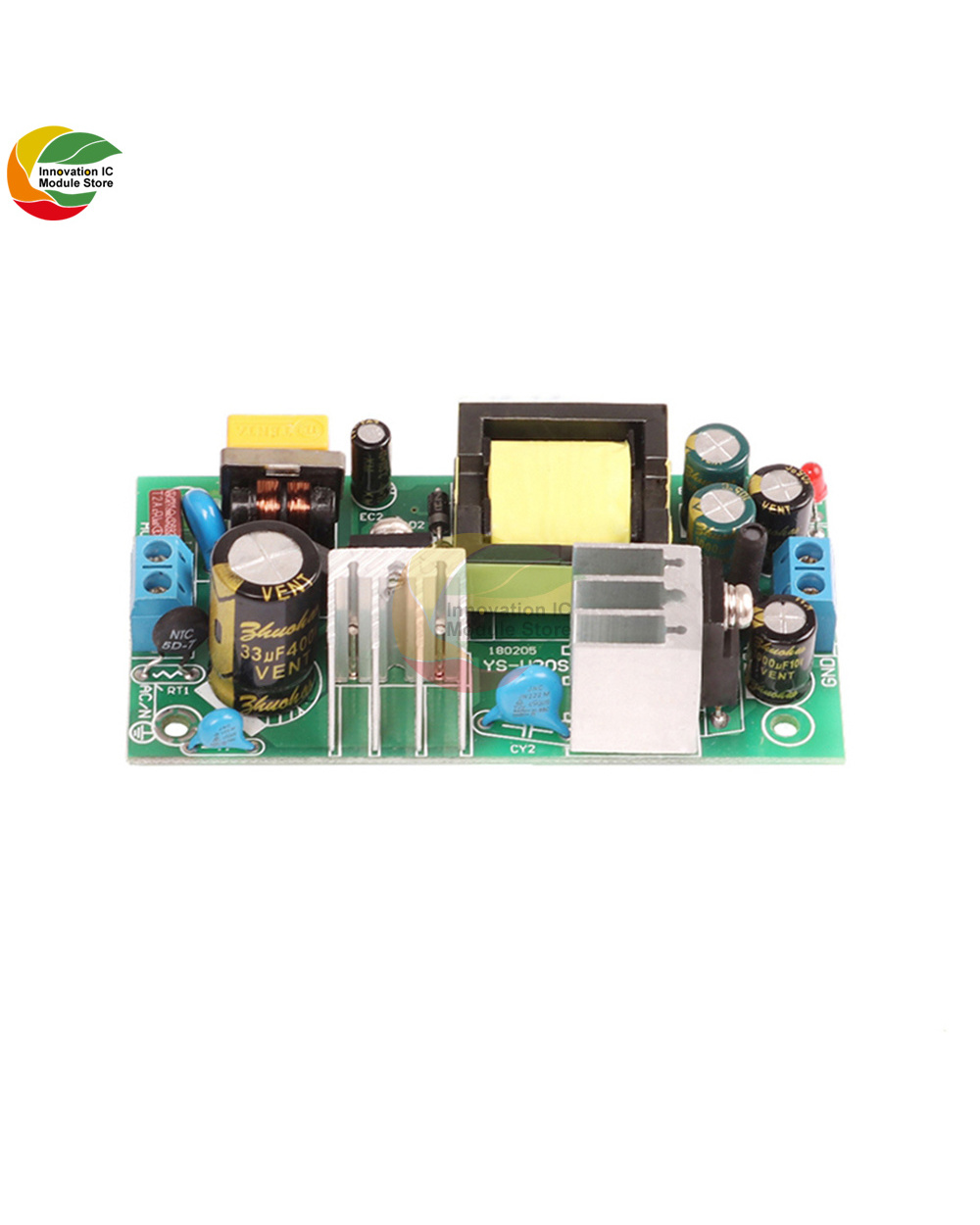

5V 10A/12V 5A/24V 3A Switching Power Supply Module AC-DC Step-Down Regulated DC Power Supply Module


Product selling point

1: Wide input voltage range

:2: With overload, short circuit, and over temperature protection functions

3: Small size, high efficiency

4: Full load aging test

5: Ultra-low output ripple


5V output characteristics


Output voltage: 5V

Rated current: 8A

Current range: 0-10A

Ripple: <100mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1.1%

Rated power: 40w

Adjustable output range: adjustable or fixed constant voltage and constant current can be selected

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC



12V output characteristics


Output voltage: 12V

Rated current: 5A

Current range: 0-5.5A

Ripple: <100mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 60w

Adjustable output range: adjustable or fixed constant voltage and constant current can be selected

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC


24V output characteristics


Output voltage: 24V

Rated current: 2.5A

Current range: 0-3A

Ripple: <130mVp-p

Output accuracy: ±1%

Voltage adjustment rate: ±1%

Load regulation rate: ±1%

Rated power: 60w

Adjustable output range: adjustable or fixed constant voltage and constant current can be selected

Setup, rise, hold time: 300ms, 50ms, 50ms /220VAC


Checklist

1*power module
