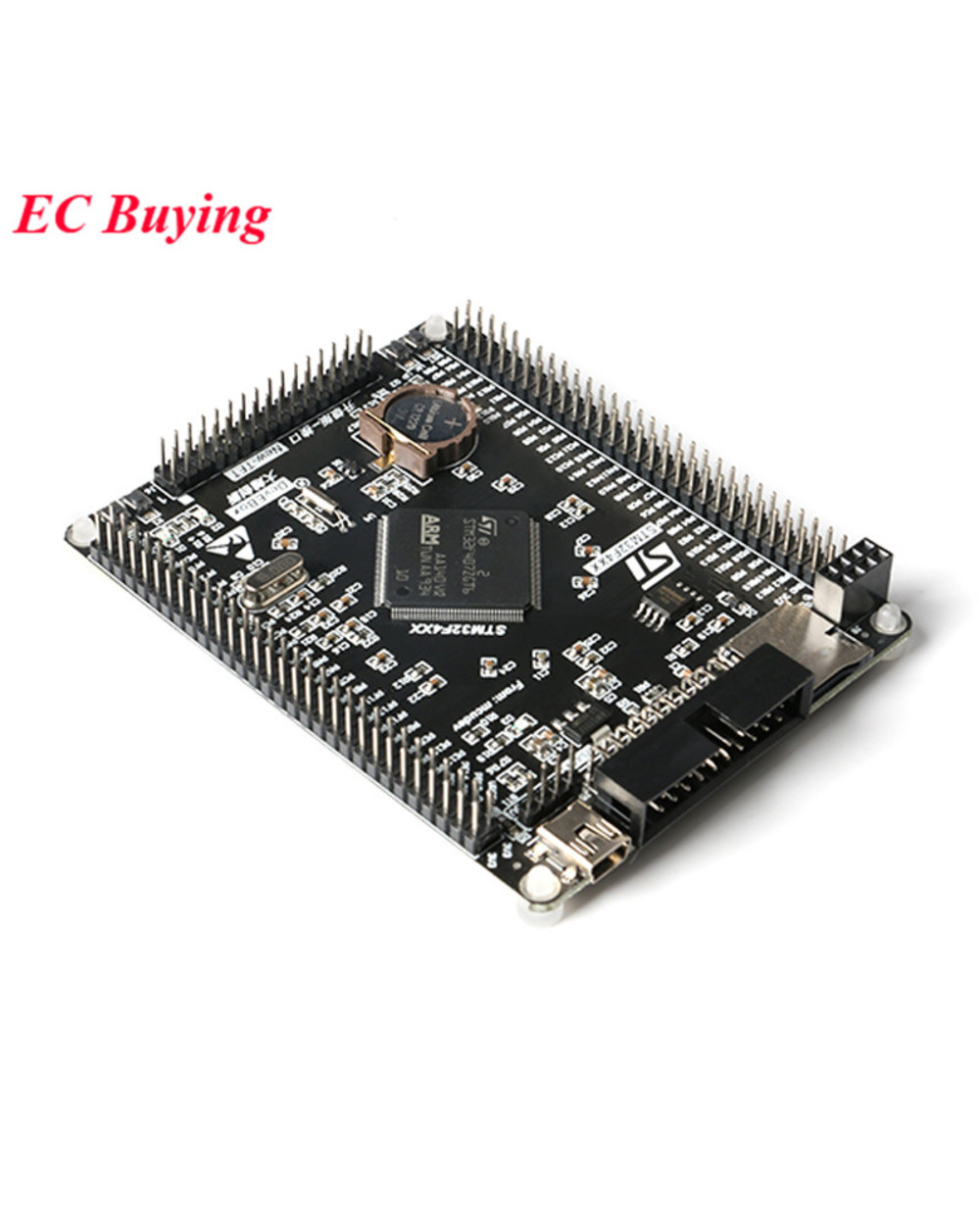

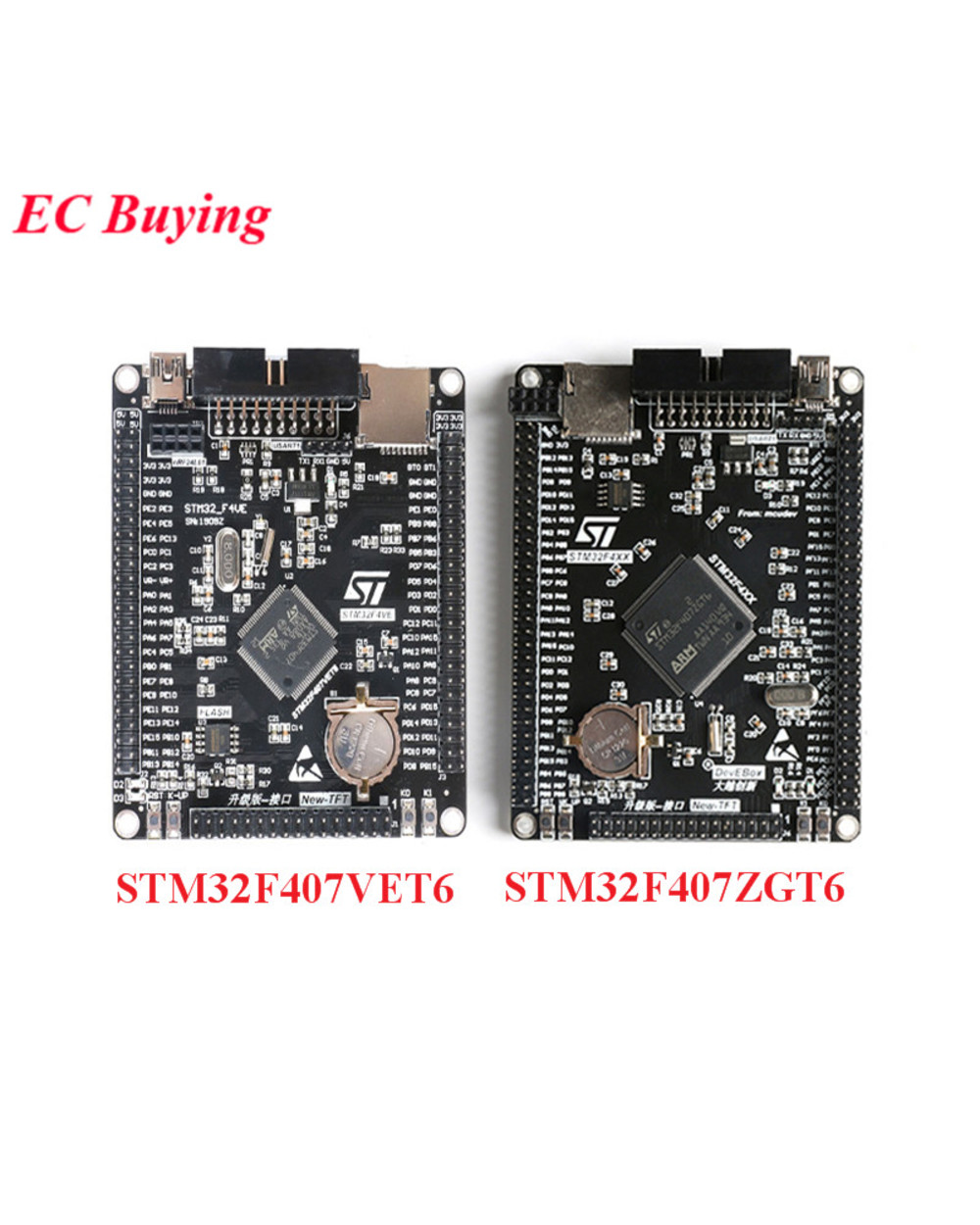

Stm32f407vet6 Stm32f407zgt6 Stm32f407 Stm32 System Arm Core Board Development Board F407 Cortex-M4 Single-Chip Learning

Stm32f407vet6 Stm32f407zgt6 Stm32f407 Stm32 System Arm Core Board Development Board F407 Cortex-M4 Single-Chip Learning

$37.95
2/7
description
product reviews

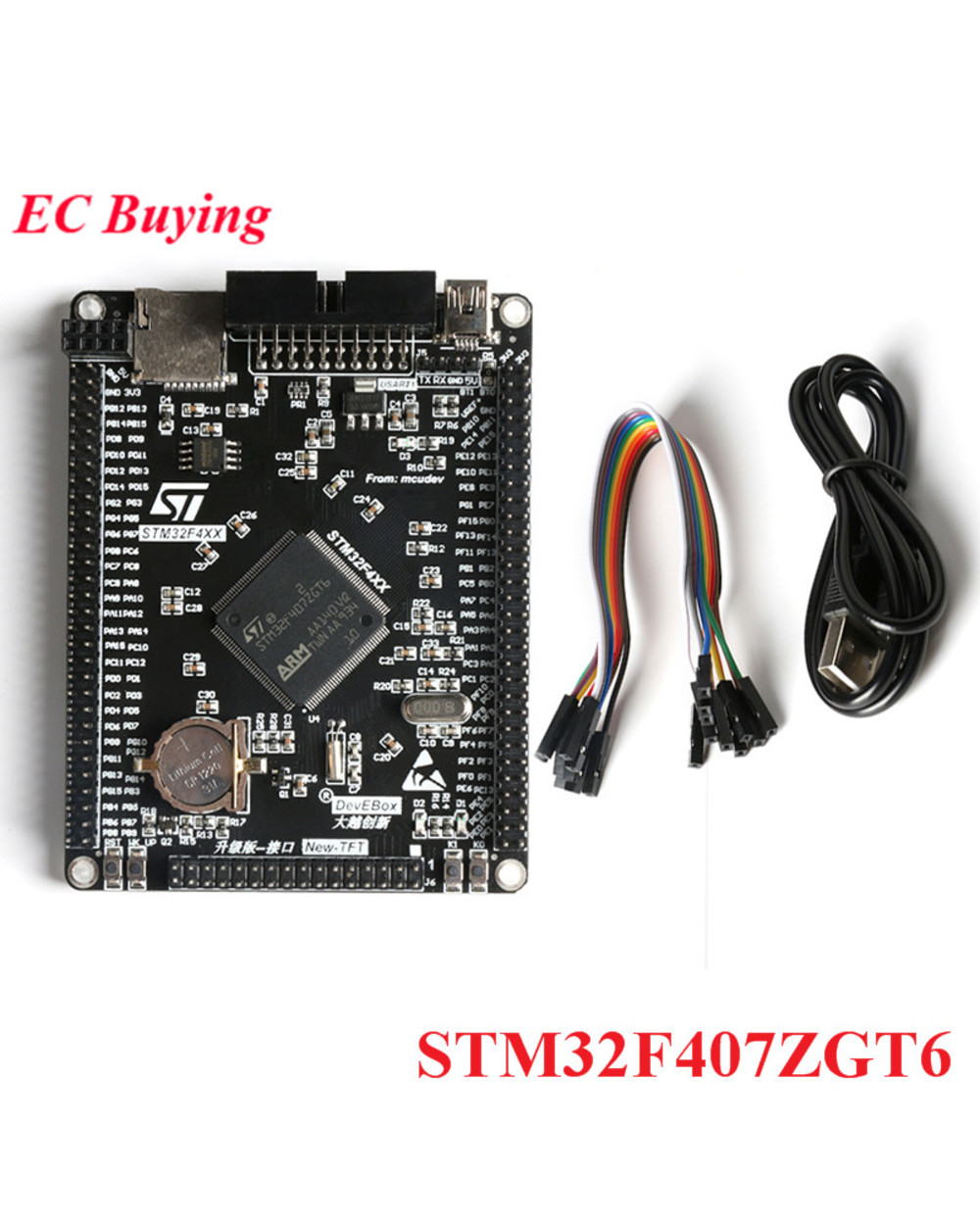

STM32F407ZGT6

 A development board (demo board) is a circuit board used for embedded system development, including a series of hardware components such as a central processor, memory, input devices, output devices, data paths / buses, and external resource interfaces. The development board is generally customized by the embedded system developer according to the development needs, and can also be researched and designed by the user. The development board is for beginners to understand and learn the hardware and software of the system. At the same time, some development boards also provide a basic integrated development environment and software source code and hardware schematics. Common development boards include 51, ARM, FPGA, and DSP development boards.


Product parameters:

Chip model: STM32F407ZGT6
Core: Cortex-M4 / 32bit RISC
Features: Single cycle DSP instructions
Working frequency: 168MHz
Working pressure: 1.8 ~ 3.6V

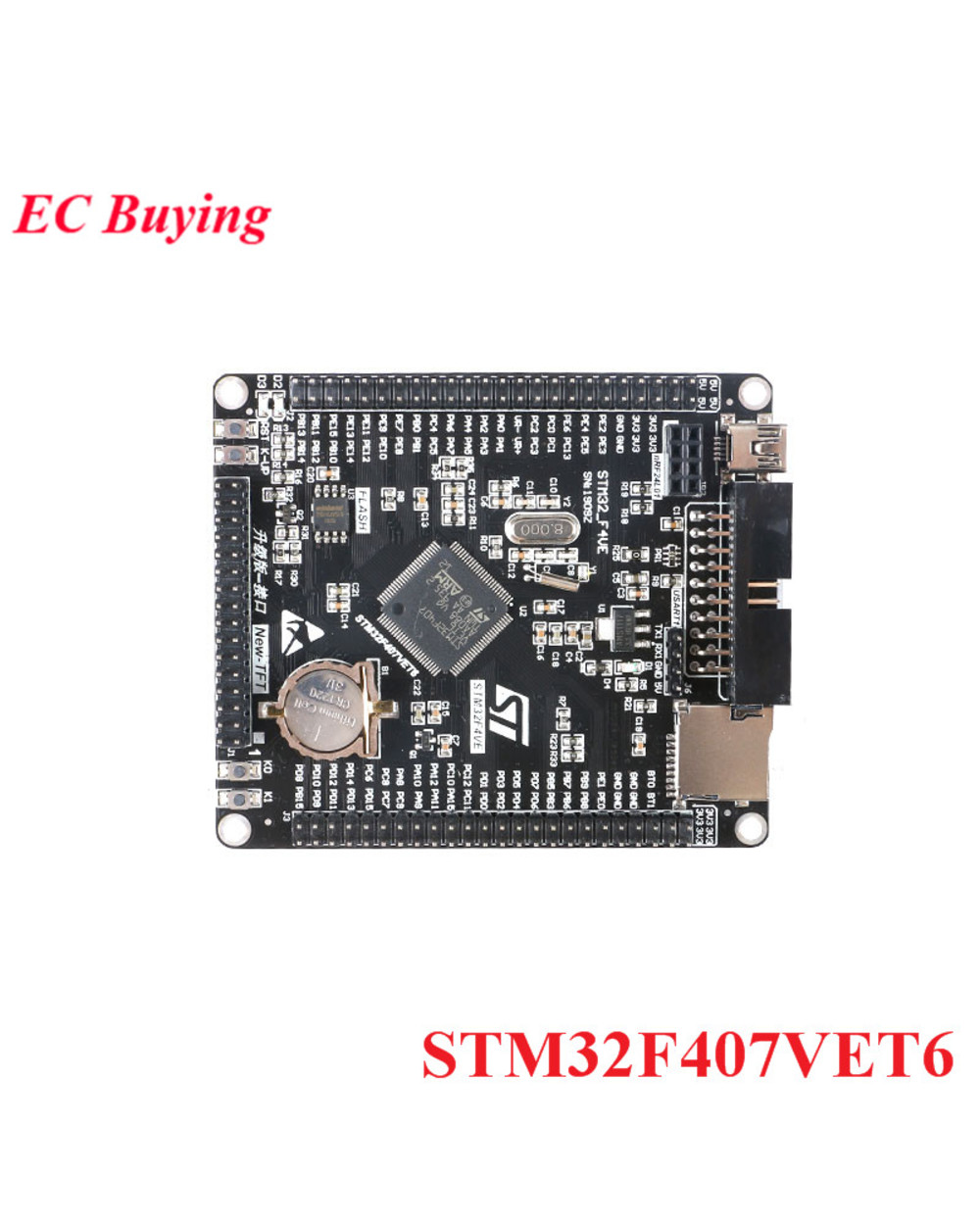

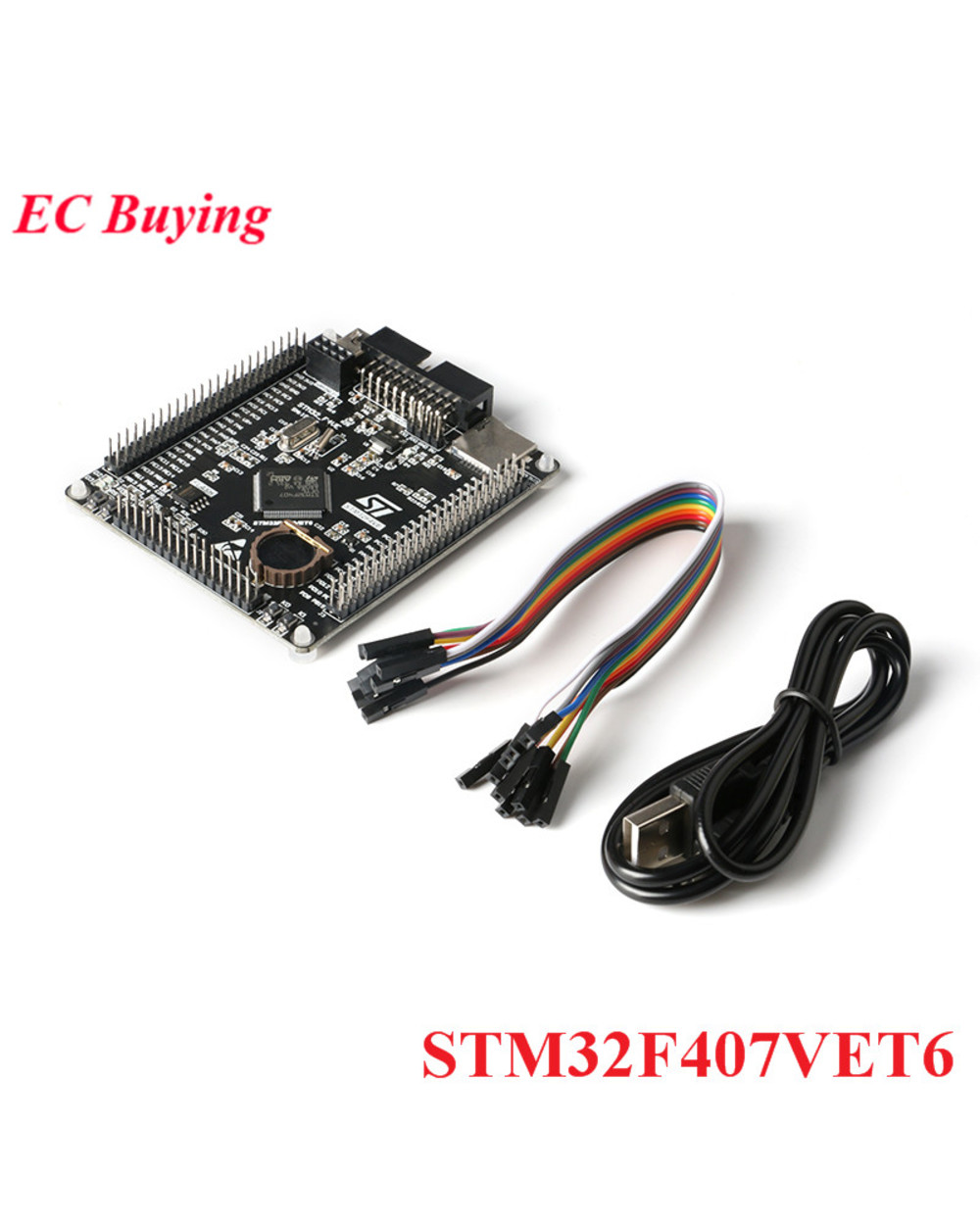

STM32F407VET6
STM32F407VET6 chip main parameters:
Kernel: Cortex-M4 32-bit RISC;
Features: single-cycle DSP instructions
Operating frequency: 168MHz
210DMIPS / 1025 DMIPS / MHZ
Operating voltage: 1.8-3.6V
Package: LQFP144
Storage resources: 512kB Flash/192 + 4kb SRAM
Resources:
3 X SPI, 3 X USART
2 X UART
2 X I2S, 3 X I2C
1 X FSMC, 1 X SDIO, 2 X CAN
1 X USB 2.0 FS / HS controller (with dedicated DMA)
1 X USB HS ULPI (for external USB HS PHY)
1 X 10/100 Ethernet for MAC
1 X 8 to 12-bit parallel camera interface
3 X AD (12 Wei, 1us, sharing 24), 2 X DA (12-bit)
