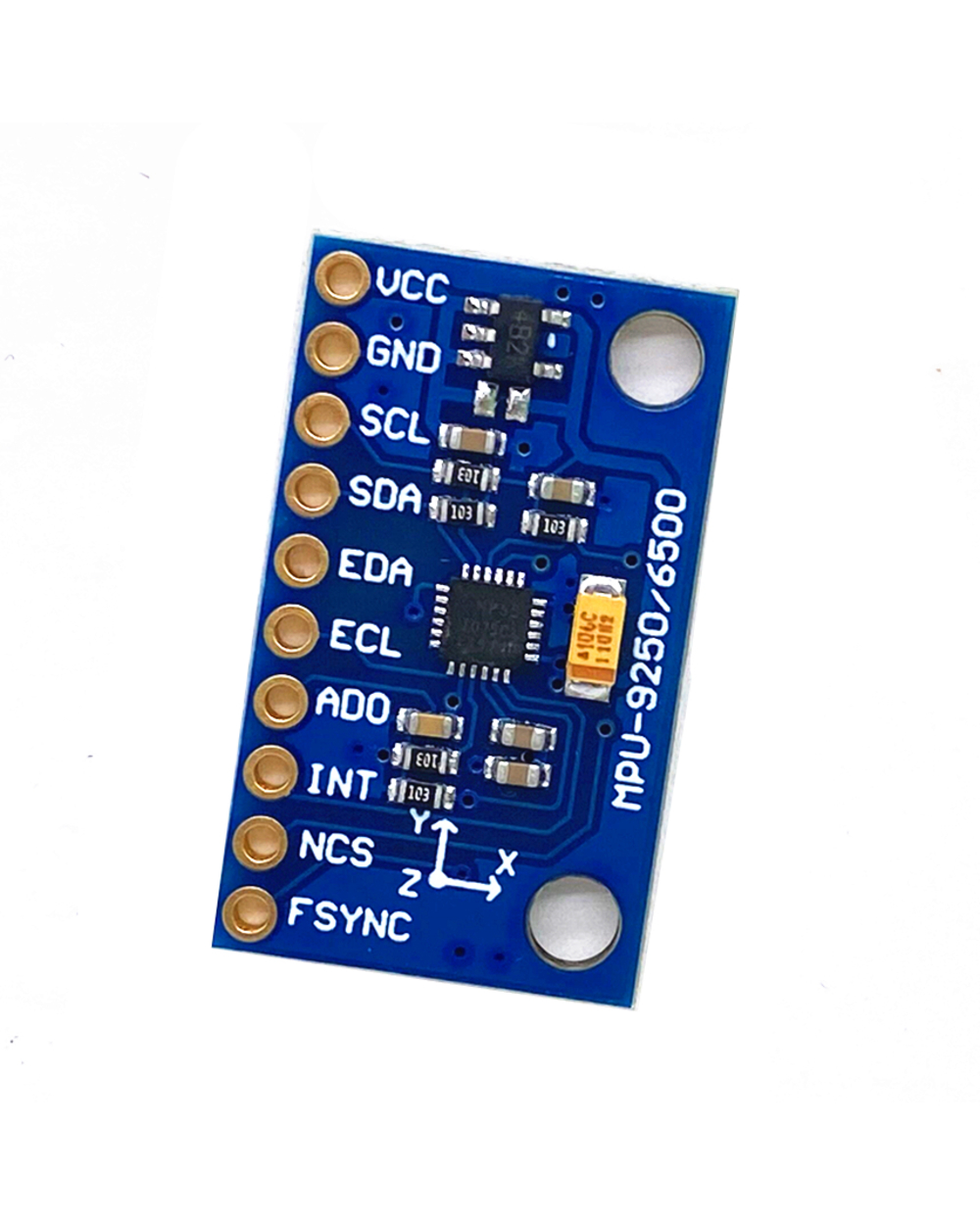

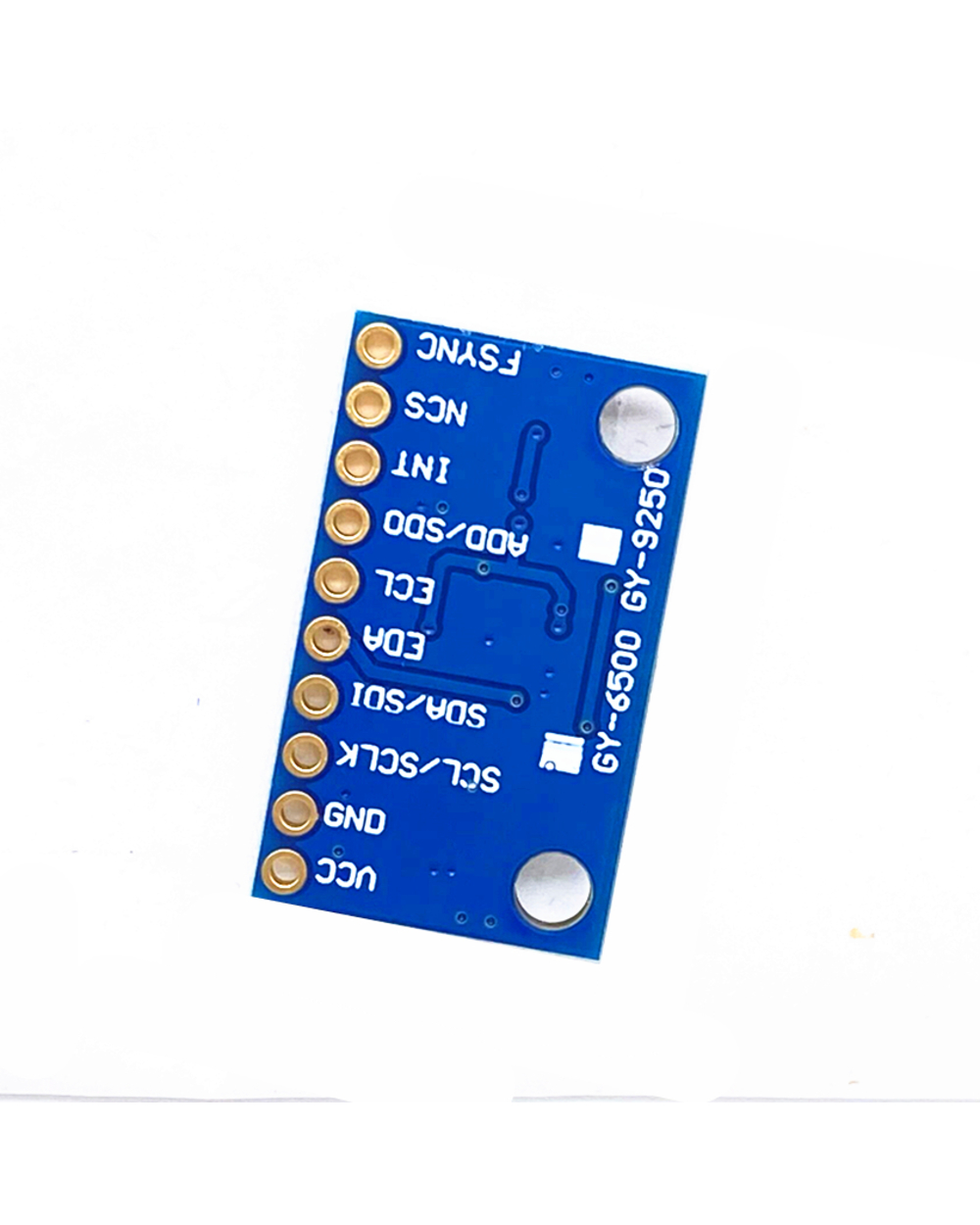

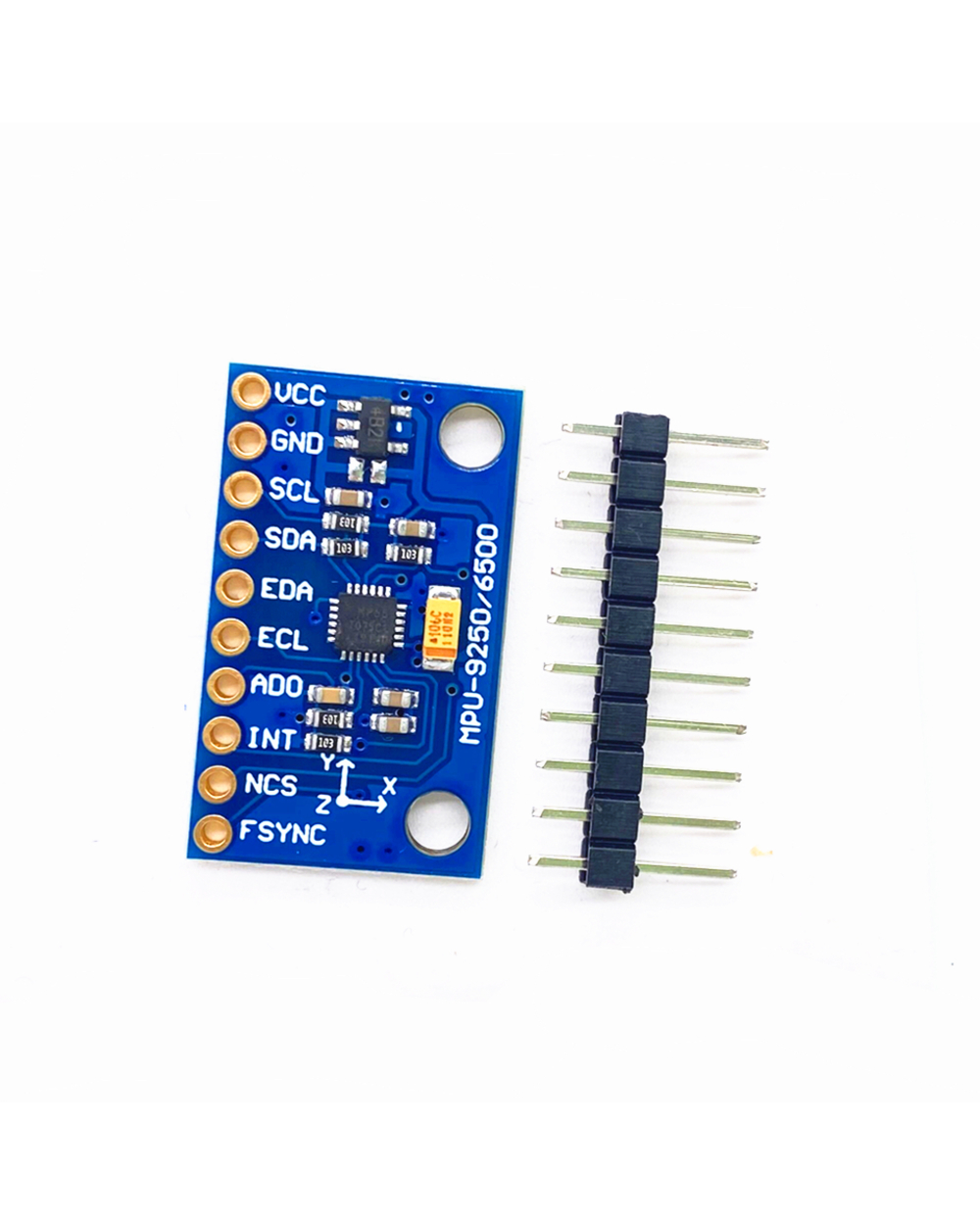

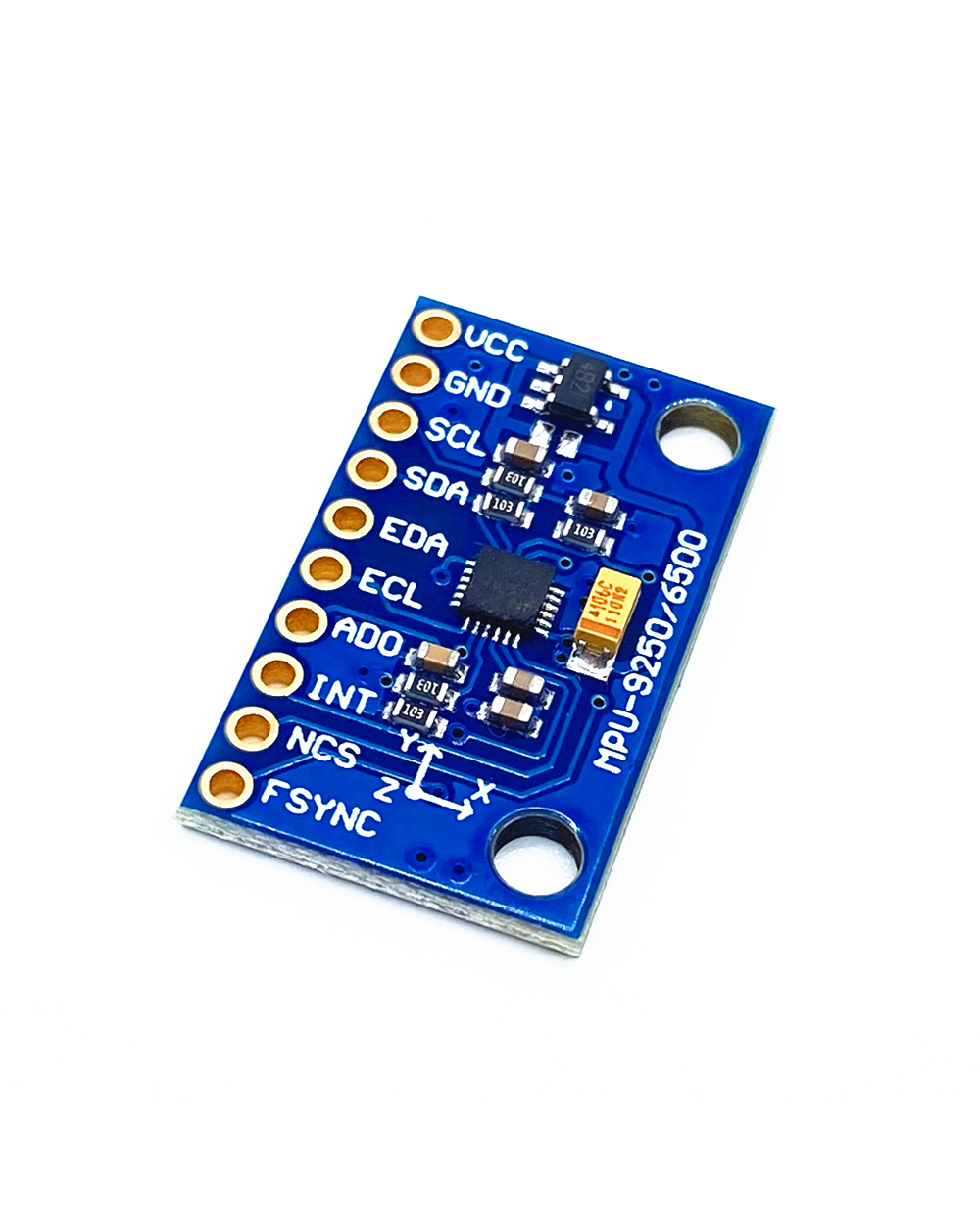

Spi Iic/I2c Gy-9250 Gy-Mpu6500 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Board Module Mpu9250 3-5V Power
Spi Iic/I2c Gy-9250 Gy-Mpu6500 9-Axis Attitude +Gyro+Accelerator+Magnetometer Sensor Board Module Mpu9250 3-5V Power
$21.95






2/6
description
product reviews
Mpu-9250 module (three axis gyroscope + three axis acceleration + three axis magnetic field)
Product model: gy-9250
Chip used: mpu-9250
Gyroscope range: ± 250 500 1000 2000 ° / S
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Magnetic field range: ± 4800ut
Power supply: 3-5v (internal low voltage differential voltage stabilizing)
Communication mode: Standard IIC / SPI communication protocol (chip built-in 16 bit AD converter, 16 bit data output)
Pin spacing: 2.54mm
Product size: 15mm * 25MM, using gold plated PCB, machine welding process to ensure quality
Mpu-6500 module (three axis gyroscope + three axis acceleration)
Module model: gy-6500
Chip used: mpu-6500
Power supply: 3-5v (internal low voltage differential voltage stabilizing)
Communication mode: Standard IIC / SPI communication protocol
Chip built-in 16 bit AD converter, 16 bit data output
Gyroscope range: ± 250 500 1000 2000 ° / S
Acceleration range: ± 2 ± 4 ± 8 ± 16g
The quality is guaranteed by the machine welding process
Pin spacing 2.54mm
Module size 15mm * 25MM





Product model: gy-9250
Chip used: mpu-9250
Gyroscope range: ± 250 500 1000 2000 ° / S
Acceleration range: ± 2 ± 4 ± 8 ± 16g
Magnetic field range: ± 4800ut
Power supply: 3-5v (internal low voltage differential voltage stabilizing)
Communication mode: Standard IIC / SPI communication protocol (chip built-in 16 bit AD converter, 16 bit data output)
Pin spacing: 2.54mm
Product size: 15mm * 25MM, using gold plated PCB, machine welding process to ensure quality
Mpu-6500 module (three axis gyroscope + three axis acceleration)
Module model: gy-6500
Chip used: mpu-6500
Power supply: 3-5v (internal low voltage differential voltage stabilizing)
Communication mode: Standard IIC / SPI communication protocol
Chip built-in 16 bit AD converter, 16 bit data output
Gyroscope range: ± 250 500 1000 2000 ° / S
Acceleration range: ± 2 ± 4 ± 8 ± 16g
The quality is guaranteed by the machine welding process
Pin spacing 2.54mm
Module size 15mm * 25MM
