Remote Control Car Engine Start Stop Button Remotly Ignition System Autostart Central Locking Kit Ranged Phone Keyless
This product is a general-purpose product, regardless of car model, but it is not suitable for cars that originally have engine start-stop buttons. Installation needs to be operated by professionals.
They have the functions of remote start and stop of the engine, keyless start, and button start of the engine, and phone control the car.
Manual cars and diesel cars can be installed, but the remote start function may not be available.
[K001A Product Features]:
1. Use the mobile app to control the lock/unlock of the car
2. Use mobile app to control engine start/stop
3. One-button start/stop
4. Remote start and stop
Compatible with the original car remote control, enabling the original car remote control to have a remote start function.
5. Smart handbrake detection
6. Intelligent oil pump startup detection
7. Motor engine lock function (the engine cannot be started in the car after the door is locked)
8. Central control lock automation (after starting, step on the brake to automatically lock the door, and automatically unlock when the flame is turned off)
9. Power off memory
10. After 10 minutes of remote start, the flame will be automatically turned off if there is no operation
Specification:
Ambient temperature: -40c-+ 80c; 86-106 kpa atmospheric pressure
Relative humidity: 10% -95%
Working voltage: DC12V +/- 3V
*This product connects the APP and the car through Bluetooth.
Configuration details:
1*Host
2*Install the wiring harness
1*Bluetooth module
1*Bluetooth module cable
1*One-touch start button
1*Instruction
By connecting this product, the remote control can be used to start the engine, and the original handheld remote control of your car is used. This kit does not include the remote control.
** K001LY is an upgraded version of K001A.In order to improve product performance and ease of installation and use. We upgraded the product, built the Bluetooth module into the main module, and added a remote control, and the APP was updated and adjusted again.
[K001LY Product Features]:
1. Use mobile app to control car locking/unlocking
2. Use mobile app to control engine start/stop
3. One-button start / stop
4. Remote start / stop
Compatible with the original car remote control, enabling the original car remote control to have a remote start function.
5. Intelligent handbrake detection
6. Smart oil pump start detection
7. Motor engine lock function (the vehicle cannot be started in the car after the door is locked)
8. Automatically lock the door by stepping on the foot brake after starting, and automatically unlock when the flame is turned off
9. Power-off memory
10. The remote control is turned on for 10 minutes and the flame is turned off regularly
Specifications:
Ambient temperature: -40c— + 80c; atmospheric pressure 86-106KPa
Relative humidity: 10% -95%
Working voltage: DC12V +/- 3V
Features: One-button start system, Control the car remotely using a mobile app
Applicable to models: 12V car
*This product connects the APP and the car through Bluetooth.
Packing List:
1* Ignition system controller
2* Install wiring harness
1* Remote Control
1* Start stop button
1 * instruction
Battery Model：2* CR-2016

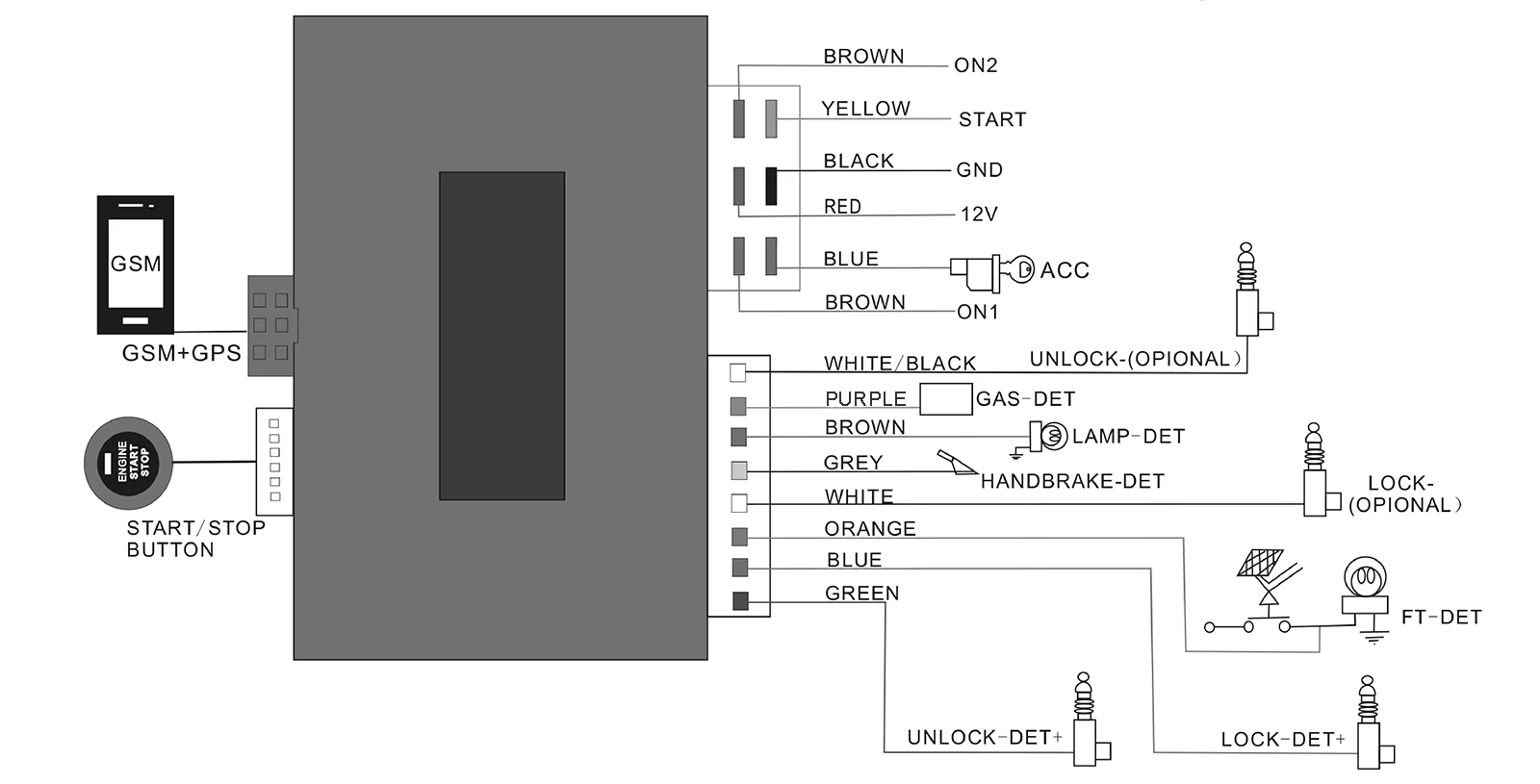

GAS-DET: Oil pump detection (input signal)
LAMP-DET: Turn signal detection (input signal)
HANDBRAKE-DET: Handbrake detection (input signal)
FT-DET: Foot brake detection (input signal)
Q&A about the product:
1. What types of cars can be installed in this product?
It fits most 12V cars and will not be installed if your car already has a button start,
In addition, if it is a luxury car with a lot of electronic auxiliary equipment, then this product may not be fully compatible, you can consult the seller, we have a better and more compatible product
2. Will my car become unsafe if I install this product? because it will lose its original anti-theft capability
This product has the function of anti-theft, after the correct installation, when the vehicle is locked, it is impossible to use the button to start the engine in the car.
Bluetooth Connection Type APP Operation Guide：
Model - K002LY main function:
1. Use mobile APP to control car central lock/unlock
2. Use mobile APP to control engine start/stop
3. Engine button start /stop
4. Remote start and stop
5. Smart hand brake detection
6. Intelligent oil pump startup detection
7. Open the trunk remotely (requires the original car to have a trunk motor)
8. Remote car search (the horn sounds and the direction light flashes to prompt)
9. Remote control unlock/lock
10. Anti-theft alarm function (Illegal door opening alarm, stepping on the brake triggers the alarm prompt)
11. Motor engine lock function (the car cannot be started after the door is locked)
12. Central control lock automation (after starting, step on the brake to automatically lock, turn off and automatically unlock)
13. The original car horn alarm notification (requires the original car to have a control line, and an alarm horn can be added)
14. Power off memory
15. Emergency reset function
16. The flame will be automatically turned off if there is no operation within 10 minutes from the remote start
Specification:
Ambient temperature: -40c-+ 80c; 86-106 kpa atmospheric pressure
Relative humidity: 10% -95%
Working voltage: DC12V +/- 3V
High frequency: 433.92 mhz
*This product connects the APP and the car through Bluetooth.
Configuration details:
2*remote controls
1*Host
2*Install the wiring harness
1*Bluetooth module
1*Bluetooth module cable
1*One key start button
1*Instruction

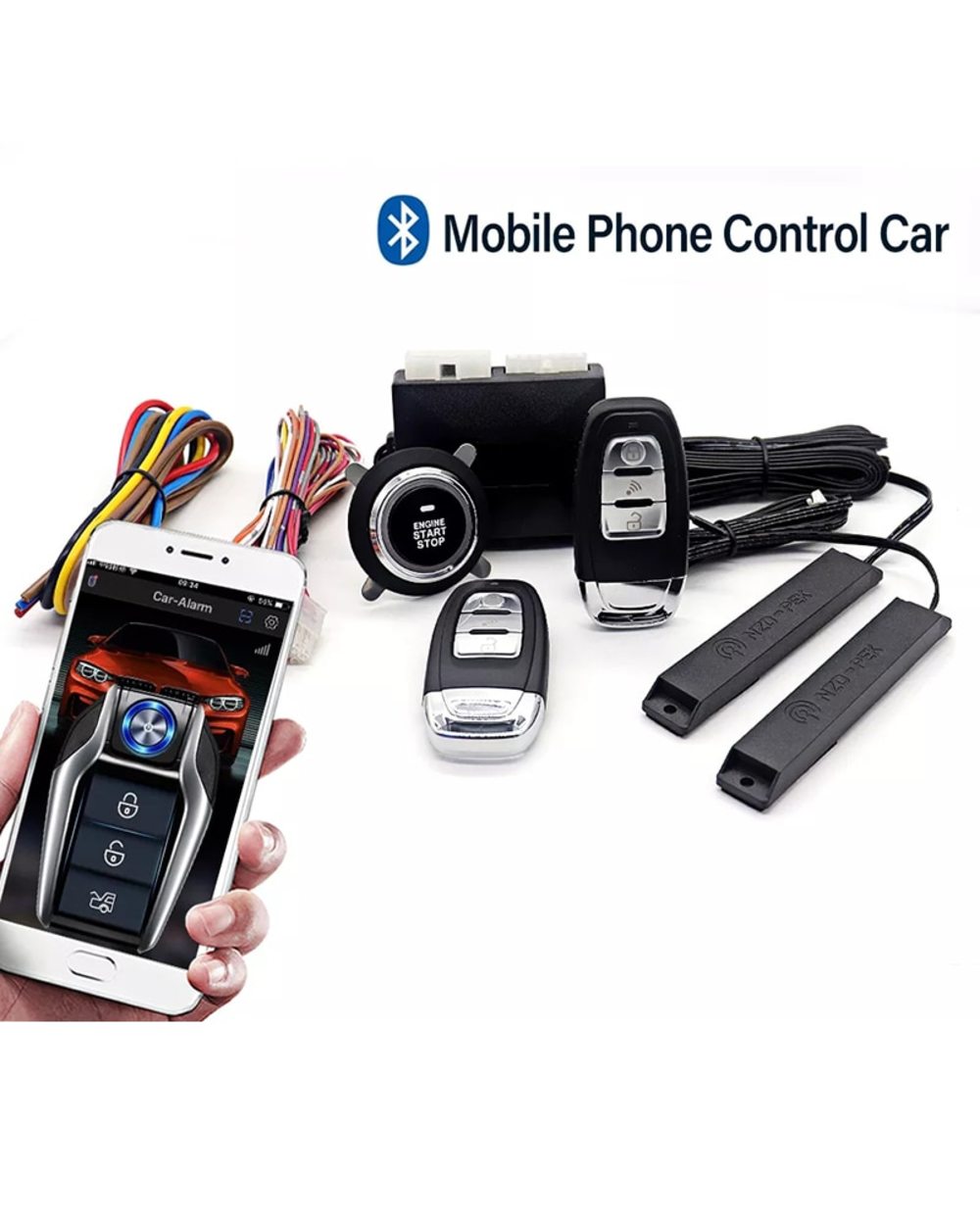

Model - K003LY main function:
1. Use mobile APP to control car lock/unlock
2. Use mobile phone APP to control engine start/stop
3. Engine lock function (if the remote control is out of range, the engine cannot be started)
4. Engine button start/stop
5. Remote start and stop
6. Smart hand brake detection
7. Intelligent oil pump start detection
8. Remote opening of the trunk (requires the original car to bring its own trunk motor)
9. Remote car search (the horn sounds and the direction light flashes to prompt)
10. Remote unlock/lock
11. PKE keyless entry function, automatically unlock at a place 1.5-3 meters away from the car, and automatically lock at a place 3-5 meters away from the car
12. PKE temporarily closed
13. RFID identification
14. Anti-theft alarm function (Illegal door opening alarm, stepping on the brake to trigger an alarm prompt)
15. Central control lock automation (automatically lock by stepping on the brake after starting, and automatically unlock after flameout)
16. The original car horn alarm notification (the original car is required to have a control line, and an alarm horn can be added)
17. Power-off memory
18. Emergency reset function
19. Remote start for 10 minutes without other operations, then automatically turn off
Specification:
Ambient temperature: -40c-+ 80c; 86-106 kpa atmospheric pressure
Relative humidity: 10% -95%
Working voltage: DC12V +/- 3V
High frequency: 433.92MHZ, low frequency: 125KHZ
*This product connects the APP and the car through Bluetooth.
Configuration details:
2*remote controls
1*Host
2*Install the wiring harness
1*One key start button
2*Induction antenna
1*Instruction
Matters Needing Attention （1）
Matters Needing Attention （2）
Please place the PKE induction antenna as follows
Q&A about installation:
1. How to choose between ON1 and ON2?
ON1 and ON2 are the same. If the original car has 2 ON, connect ON1 and ON2 respectively, regardless of the order.
If there is only one ON in the original car, connect ON1 or ON2.
2. How to connect the blue ACC startup instant power off?
The blue line is ACC, which is also the start power off.If your car ACC power, ON power.So divide the product blue line in two.
One is connected to ACC power off, and the other is connected in parallel to ON1 or ON2 and connected to ON power off.
If your car does not have ACC, but only ON, and the ON power is disconnected, connect the product blue line in parallel to ON1
or ON2 and then connect to ON power.
3. How to connect the oil pump testing line and the hand brake line?
The oil pump detection line is connected to the original vehicle oil line,You can connect to ON1 or ON2.
This line must be connected
The handbrake line can be connected to GND, this line must be connected, otherwise you cannot remotely start the engine.
How to start and stop?
start 1:when the brake is pressed the light of the start button will flash,at this time,press the button to start the engine,if the button is pressed continuously the engine will continue to start;
start 2:start the engine by holding the button for more than 5 seconds without pressing the brake
stop 1:press the brake and then press the button to shut off the engine
stop 2:hold the button for more than 5 seconds without applying the brake to shut off the engine
How to use APP
1.Scan the QR code and select Android or Apple to download the APP
2.Turn on your phone’s Bluetooth, then open the APP, and click to enter the Settings Center;Click the learning key for about 2 seconds, and then press the lock and unlock buttons on the remote control key three times within 10 seconds (Note: press the lock and unlock buttons together);Return to the control center of APP. If you can control the car, it means that you have learned successfully.If you cannot control the car, follow the steps above and try againNote: The above operation should be performed within 10 meters of the vehicle
3.Make sure your phone's Bluetooth is turned on, and you have performed the steps (2) to successfully learn the key. Now, you can use the APP to control the car to lock, unlock, open the trunk, mute mode, and start the engine.
Note: 1. When the car exceeds a certain range, it cannot receive the signal sent by the APP;2. Please press each button on the APP for about 2 seconds to send the control command
4.The system can only allow one mobile phone to learn the key, that is to say, when you use the new mobile phone successfully learn the key, the old mobile phone will not be able to control the system;
5. If you want to use multiple mobile control at the same time, the system can be implemented by means of authorization, using the new mobile phone to download the APP in the licensing options after input has been learning the authorization code in the key old mobile phone Numbers; authorized by the method can be used unlimited number of new and unlimited time;if you want to terminate the authorization,Simply modify the authorization number in an old phone that has already learned code.
