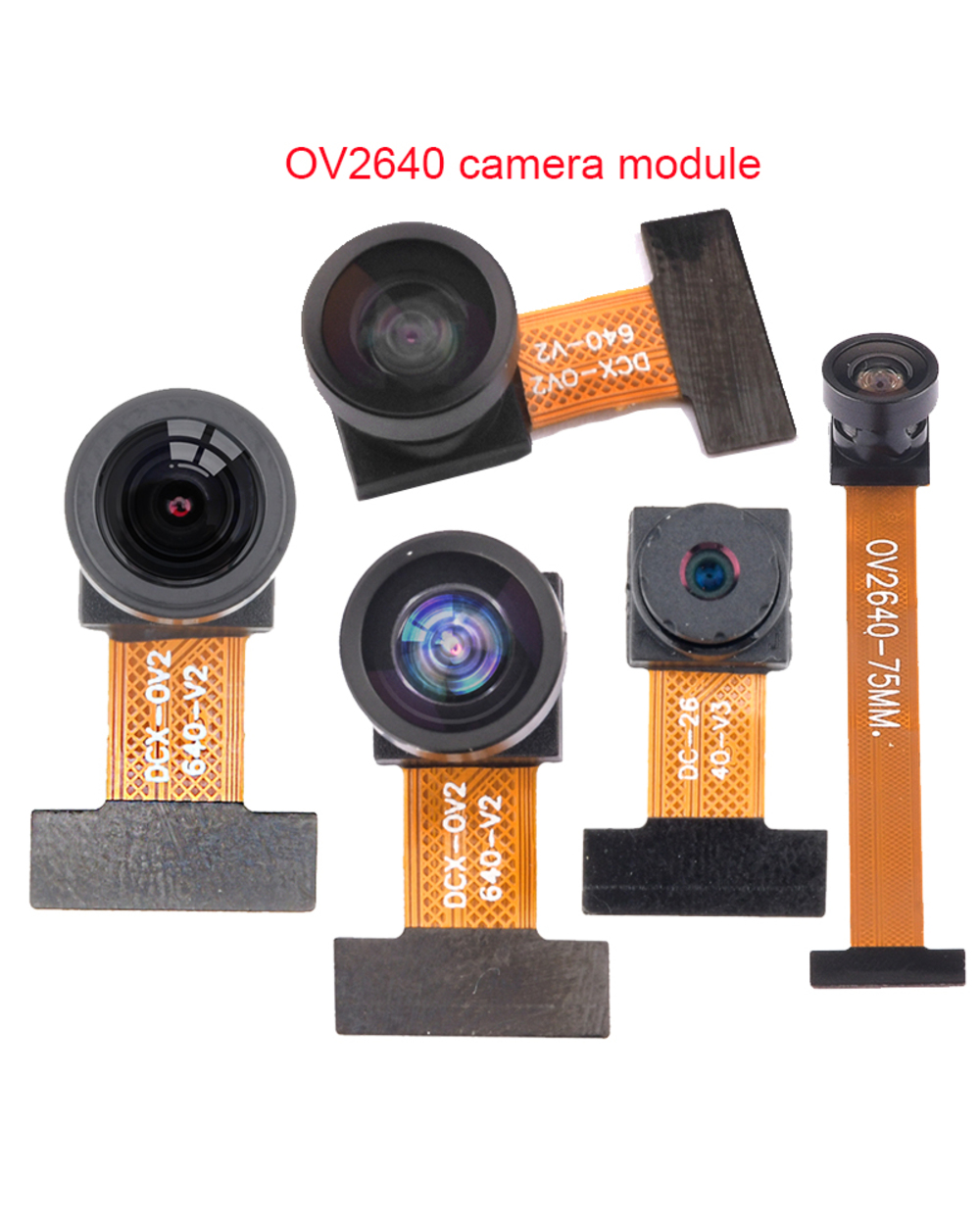

Ov2640 Camera Module 2 Million Pixels Dvp Interface Esp32 Mcu Camera 66/160 Degrees 21/75Mm 24Pin0.5Mm Spacing Wide-Ang

Ov2640 Camera Module 2 Million Pixels Dvp Interface Esp32 Mcu Camera 66/160 Degrees 21/75Mm 24Pin0.5Mm Spacing Wide-Ang

$21.95
2/7
description
product reviews

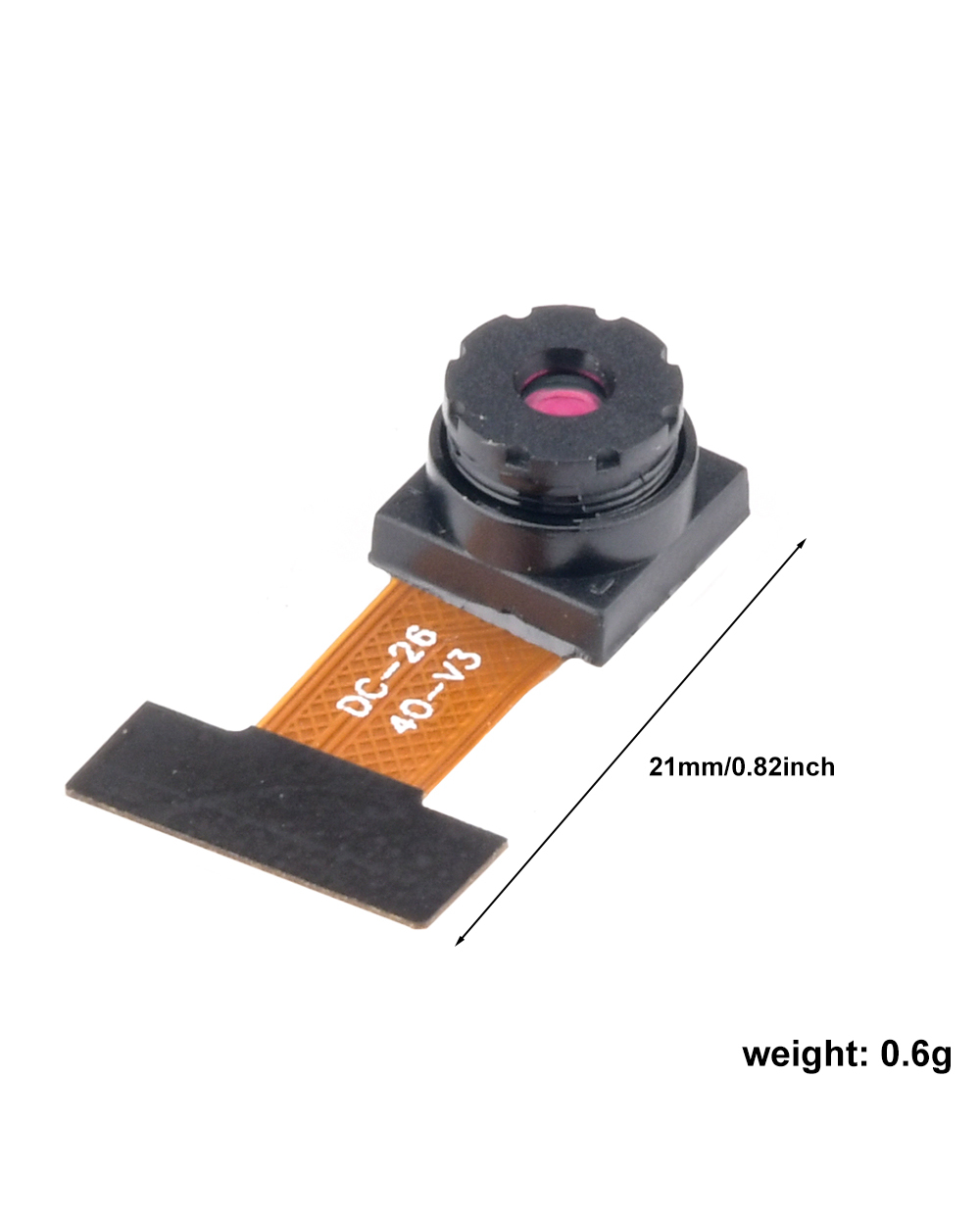

OV2640 camera module 2 million pixels DVP interface ESP32 single-chip microcomputer camera 160 degrees 21mm

product description:

1. 100% brand new and high-quality products.

2. Made of high-quality materials, durable and practical.

3. Applicable to a variety of intelligent development boards.

4. With its small size and low working voltage, it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second. The user can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc.

5. High sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications

6. Standard SCCB interface, compatible with I2C interface


Technical aspects:

Length: 21mm

Pixel: 2 million

Field of view: 160°

Interface: DVP

Lens: 1/4""

Pixel: 1600*1200

Aperture: 2.4


Package list:

OV2640 camera 160 degree normal version / night version 21mm*1

Electrostatic bag packaging*1

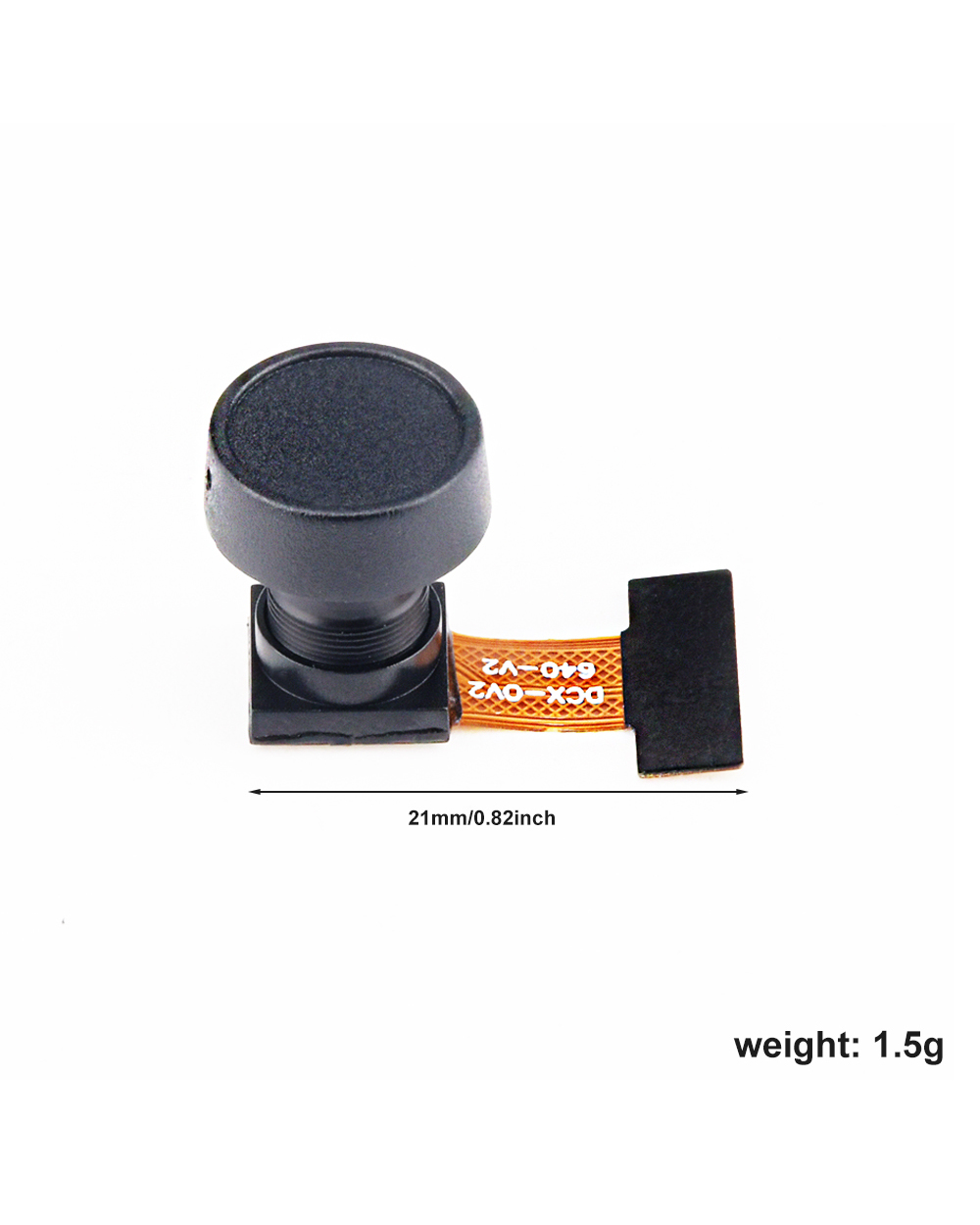

OV2640 camera module/module 2 million pixels DVP interface ESP32 single-chip microcomputer camera


product information:

1. 100% brand new and high-quality products.

2. Made of high-quality materials, durable and practical.

3. Applicable to a variety of intelligent development boards.

4. With its small size and low working voltage, it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second. The user can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc.

5. High sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications

6. Standard SCCB interface, compatible with I2C interface


Technical aspects:

Length: 21mm

Pixel: 2 million

Field of view: 66°

Interface: DVP

Lens: 1/4""

Pixel: 1600*1200

Aperture: 2.4


Package list:

OV2640 camera 66 degrees 21mm*1

Electrostatic bag packaging*1




OV2640 camera module 2 million pixels DVP interface ESP32 single-chip microcomputer camera 120 degrees 21mm

product description:

1. 100% brand new and high-quality products.

2. Made of high-quality materials, durable and practical.

3. Applicable to a variety of intelligent development boards.

4. With its small size and low working voltage, it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second. The user can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc.

5. High sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications

6. Standard SCCB interface, compatible with I2C interface


Technical aspects:

Length: 21mm

Pixel: 2 million

Field of view: 120°

Interface: DVP

Lens: 1/4""

Pixel: 1600*1200

Aperture: 2.4


Package list:

OV2640 camera 120 degrees 21mm*1

Electrostatic bag packaging*1

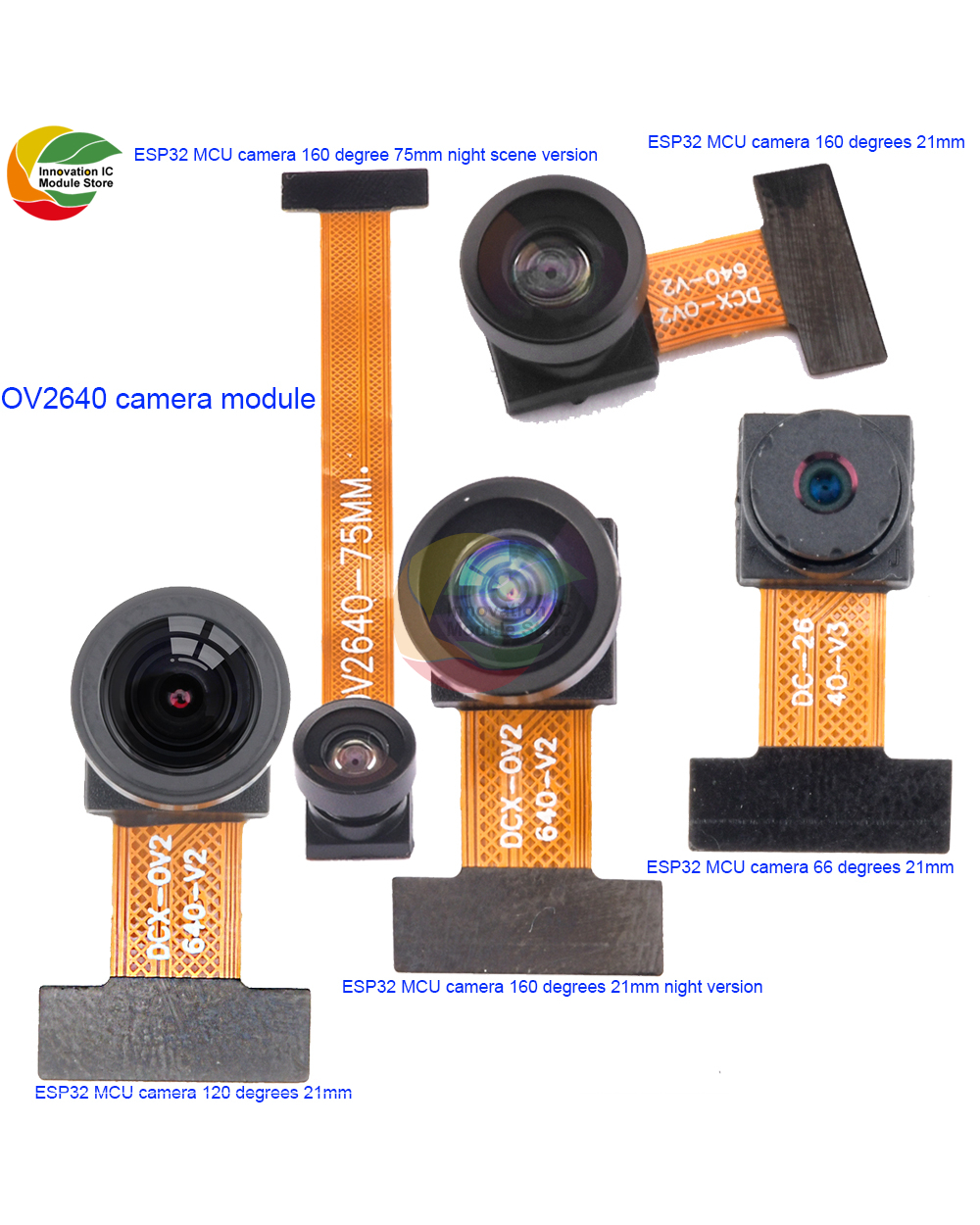

OV2640 camera module 2 million pixels DVP interface ESP32 MCU camera 160 degrees 21mmOV2640 camera module 2 million pixels DVP interface ESP32 MCU camera 160 degrees 75mm night view version
