Ov2640 2 Million Pixel Camera Module Esp32 Module 66/120/160 Degree 24Pin Can Use For Esp32-Cam Wifi+Bluetooth Module

Ov2640 2 Million Pixel Camera Module Esp32 Module 66/120/160 Degree 24Pin Can Use For Esp32-Cam Wifi+Bluetooth Module

$20.95
2/7
description
product reviews



ESP32 module 66/120 degree OV2640 2 million pixel camera module 24pin can use for ESP32-CAM WiFi+Bluetooth module

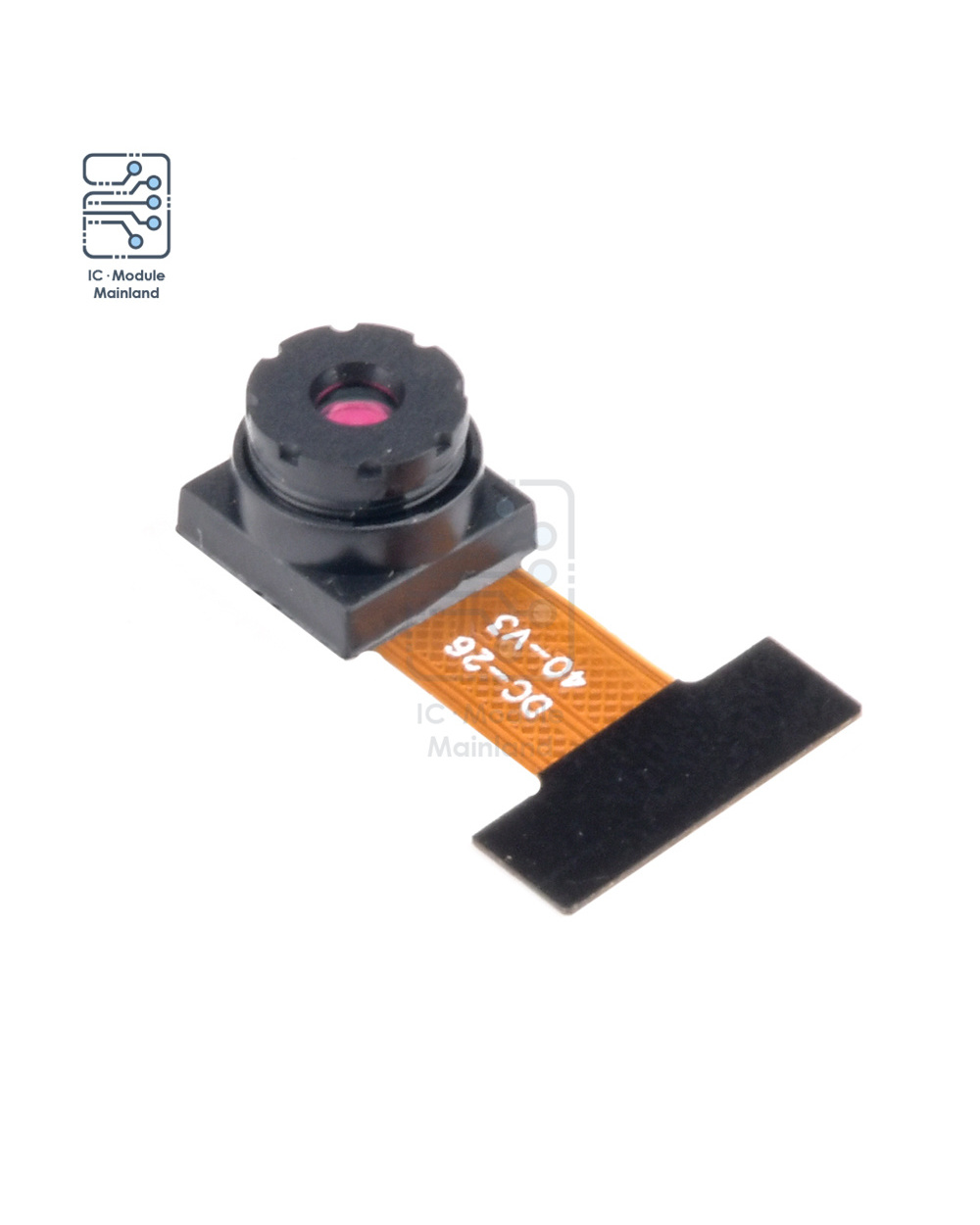

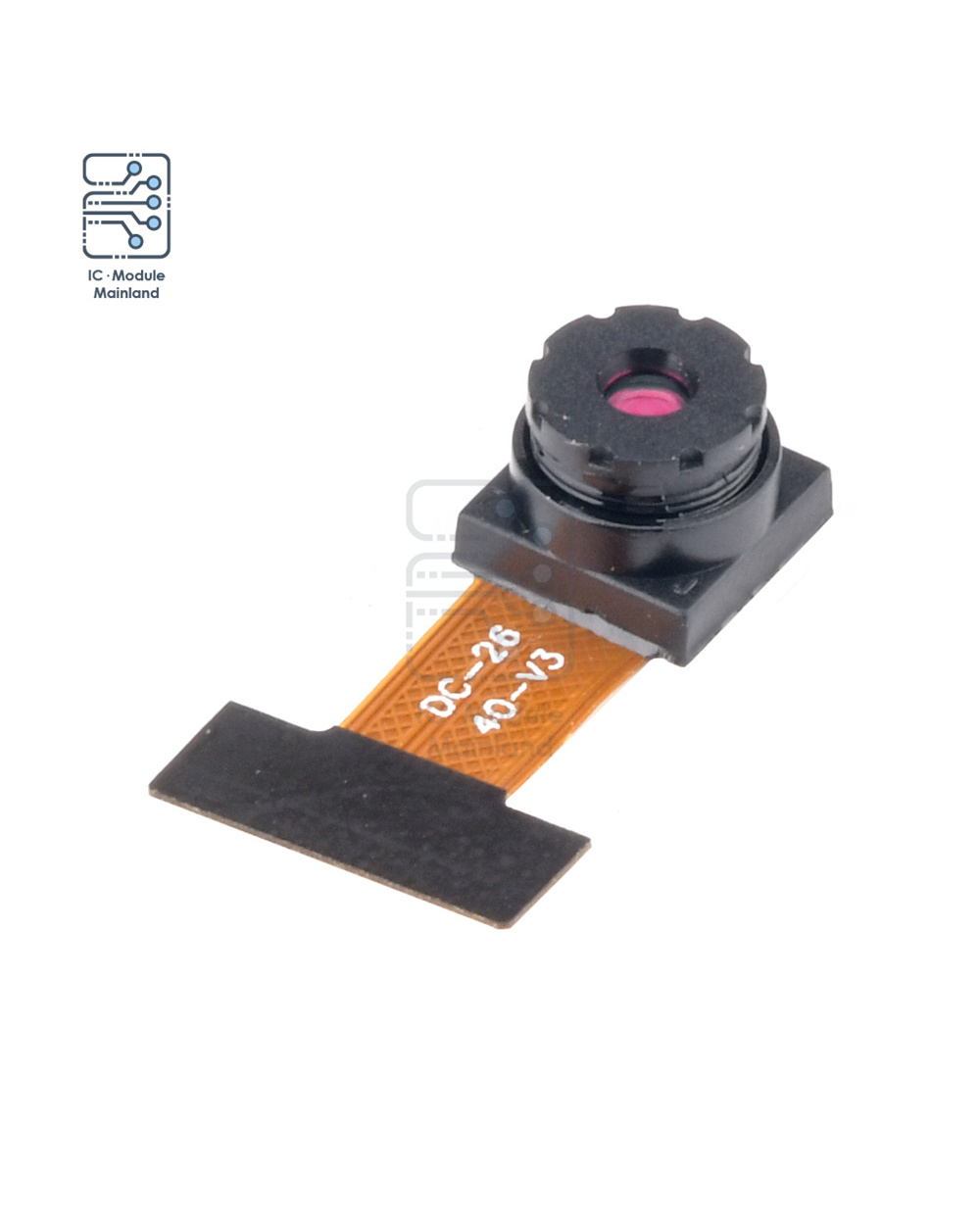

2.1cm 66 degree:


Product selling points:

1. 100% brand new and high-quality products.

2. Made of high-quality materials, durable and practical.

3. Applicable to a variety of intelligent development boards.

4. With its small size and low working voltage, it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second. The user can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc.

5. High sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications

6. Standard SCCB interface, compatible with I2C interface


Technical aspects:

Length: 21mm

Pixel: 2 million

Field of view: 66°

Interface: DVP

Lens: 1/4"

Pixel: 1600*1200

Aperture: 2.4


Package list:

OV2640 camera 66 degrees 21mm*1

Electrostatic bag packaging*1

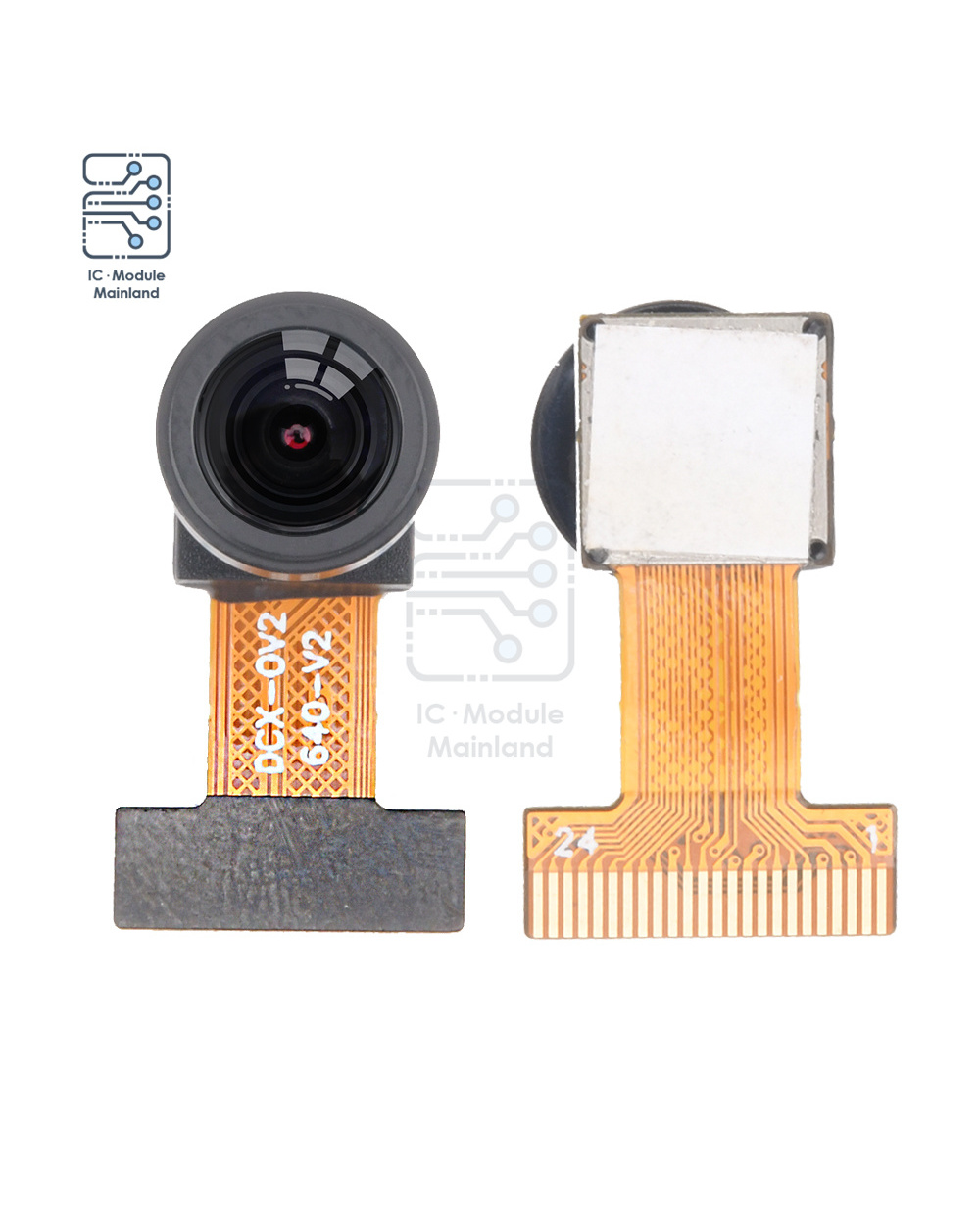

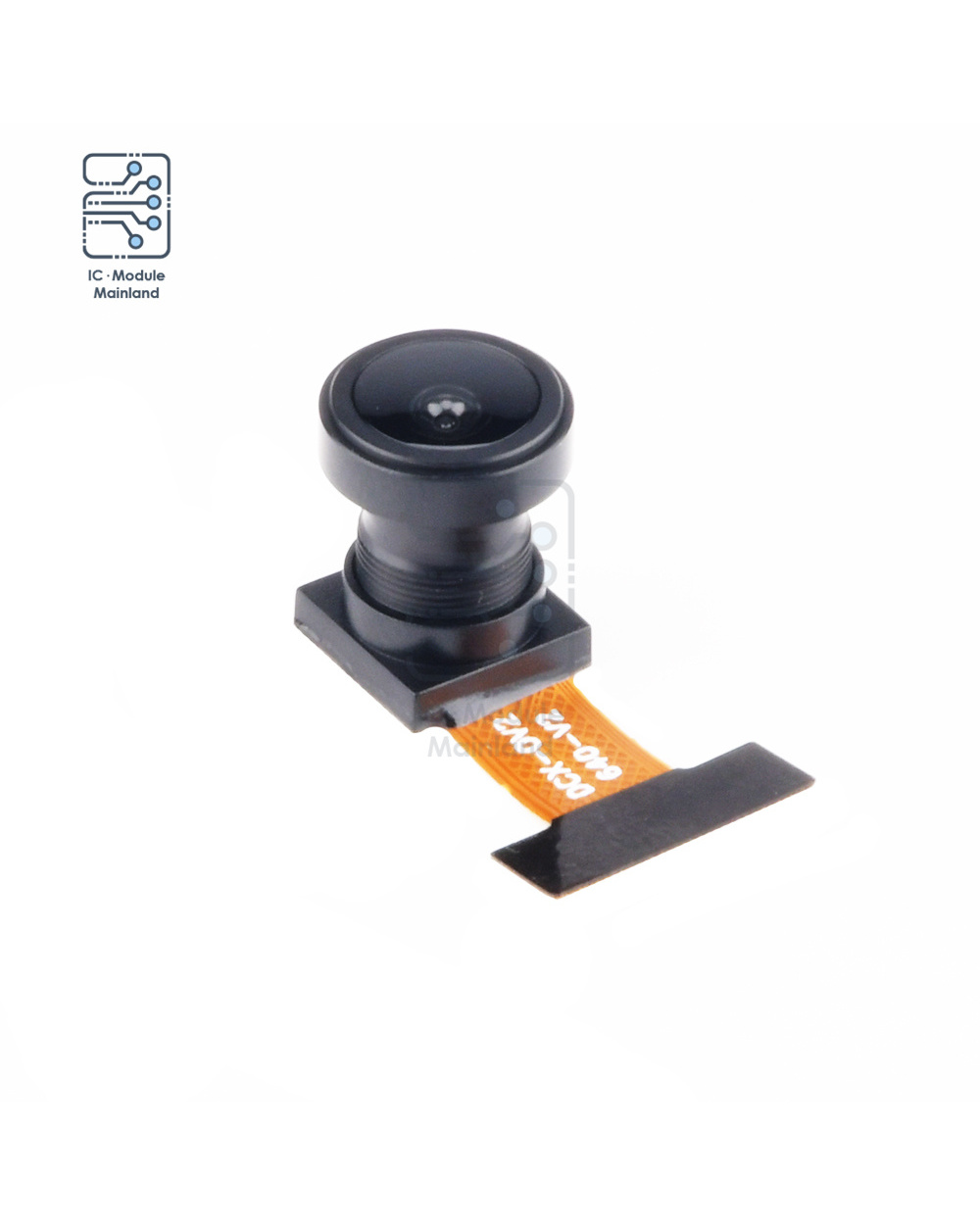

2.1cm 120 degree:


Description:

1. 100% brand new and high-quality products.

2. Made of high-quality materials, durable and practical.

3. Applicable to a variety of intelligent development boards.

4. With its small size and low working voltage, it provides all the functions of a single-chip UXGA camera and image processor. Through SCCB bus control, it can output 10-bit sampling data of various resolutions in the form of whole frame, sub-sampling, windowing, etc. The maximum UXGA image of this product is 15 frames per second. The user can fully control the image quality, data format and transmission method. All image processing functions including gamma curve, white balance, saturation, chroma, etc. can be programmed through the SCCB interface. OmmiVision image sensor uses unique sensor technology to improve image quality and obtain clear and stable color images by reducing or eliminating optical or electronic defects such as fixed pattern noise, tailing, floating, etc.

5. High sensitivity is suitable for low illumination applications, and low voltage is suitable for embedded applications

6. Standard SCCB interface, compatible with I2C interface


Technical aspects:

Length: 21mm

Pixel: 2 million

Field of view: 120°

Interface: DVP

Lens: 1/4"

Pixel: 1600*1200

Aperture: 2.4


Package list:

OV2640 camera 120 degrees 21mm*1

Electrostatic bag packaging*1





2/7

Ov2640 2 Million Pixel Camera Module Esp32 Module 66/120/160 Degree 24Pin Can Use For Esp32-Cam Wifi+Bluetooth Module

$20.95
Shipping info

Shipments will deliver in 10 to 20 business days.


Learn more about our shipping rates here and our returns, refunds, and exchanges policy here.
