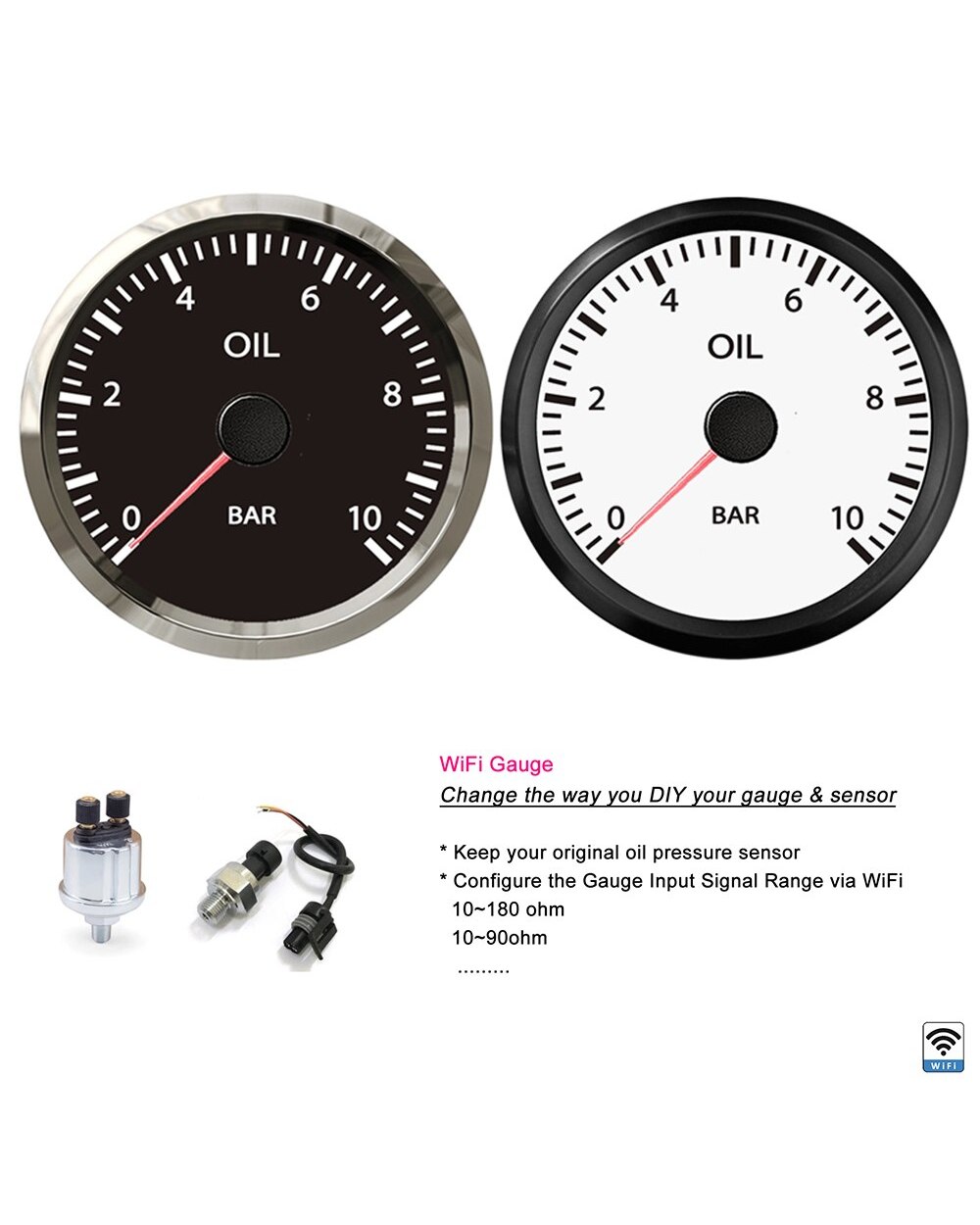

WiFi Oil Pressure Meter 0-10 Bar New Oil Press Gauge 52mm For Motorcycle Car Marine Boat Support Mobile Phone WiFi Connection

Feature:

- Waterproof Rating: IP67
- Working Current: <120mA
- Working Voltage: 9-32VDC
- Working Temperature: -30-+70℃
- Storage Temperature: -40-+85℃
- Programmable Needle Running Speed
- SUS 316 Anti-Crossion Stainless Steel Bezel
- Electrical Fuel Gauge with Stepper Motor 270 degrees
- Compatible with all types and ranges Ohm Signal Sensor
- Support PC/Laptop/Mobile Phone WiFi connection Configuration
- Support internal WiFi connection to configure fuel sensor ohm signal input range

User Guide for 52mm Gauge with WiFi

1.Cut a 52mm (2 1/16 ) diameter panel hole (II).
You will need a minimum clearance of 55mm (2 3/16 )behind the panel to fit the gauge.
2.Remove fastening ring (I).
There is an alignment tab on the gauge body (III), place the gauge in the panel hole and mark the position of this tab to correctly align the gauge.
3.Insert gauge through panel from the front, fit and tighten fastening ring (I) from the rear.
4.Power on the WiFi Gauge, and then search WiFI SSID as below from your PC or Mobile Phone:
WiFi SSID: S051A-xxxxxx(It Starts with S0151A)
Default WiFi Password: 12345678
5.Scan the code or input IP address to browser after connect wifi:192.168.4.1
Then you can see the setting menu:
6.Setting Menu:
“Signal” , “Angle”, “Resistance”,“Hand Speed”“Voltage”“PASS WORD”“OLD PASSWORD”“NEW PASSWORD”“CONFIRM NEW PASSWORD”
1)“ Signal” sets Resistance Ohm Signal Range
Range: 0~2000Ω , and you must set all the 5 signal value
2) “Angle” sets the Needle Running Angle, range: 0-290 Degrees
3) “ Resistance”: You must keep it selected as default if it is:
Fuel Gague, Water Level Gauge, Oil Pressure Gauge, Water Temperature Gauge
“Voltage” : not selected
4) “Hand Speed” sets the time the needle runs from min to max value，default: 30s
5) “PASSWORD” default is 00000000
6) “OLD PASSWORD”
7) “NEW PASSWORD”
9) “CONFIRM NEW PASSWORD”

Package:

1x 52mm Wifi Gauge(no sensor)
1x Wire cable
1x Installation Instruction
