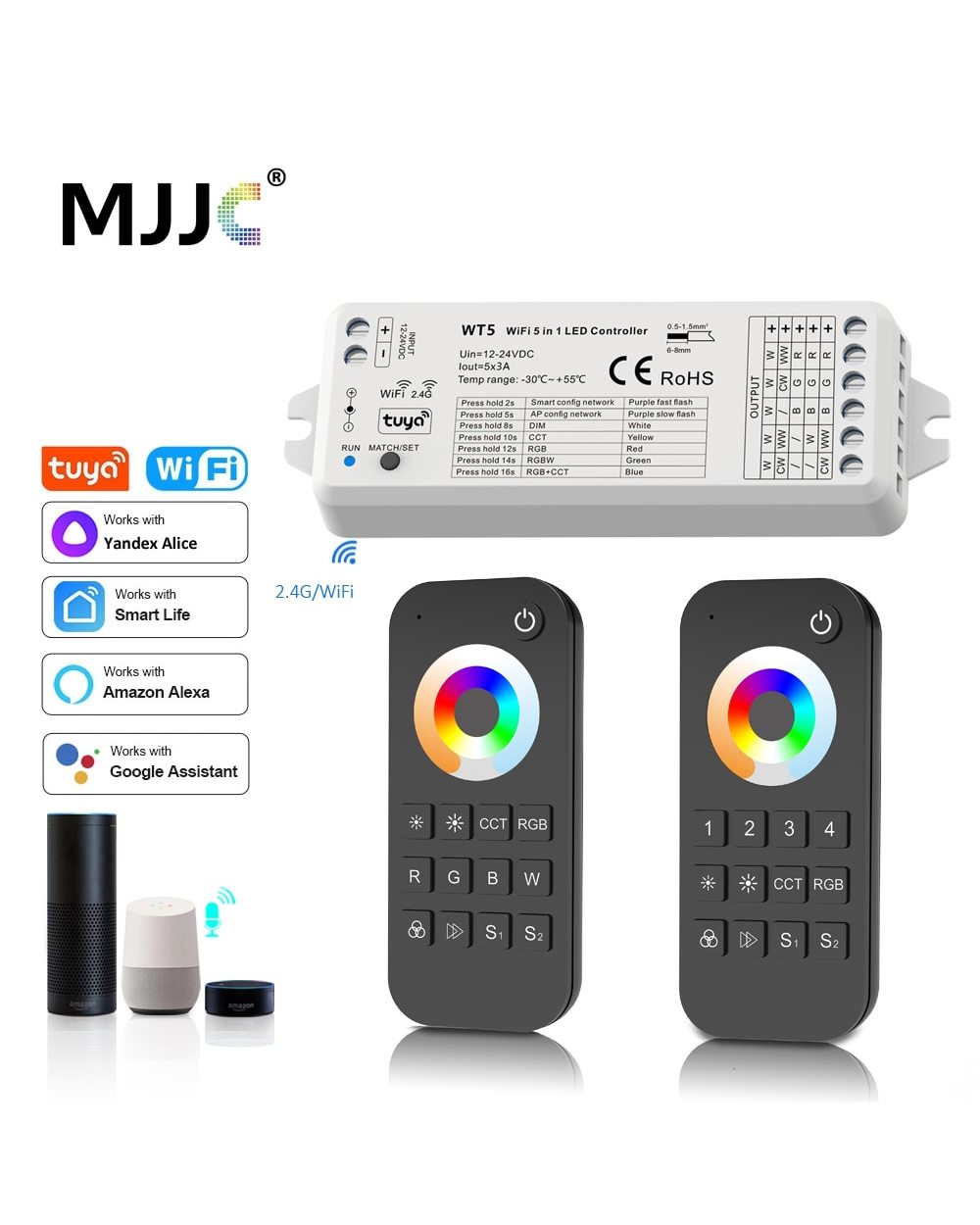

Mjjc Tuya Smart Life Led Rgbcct Controller Dc 12V 24V 5 In 1 Dimmer 2.4G Rf Wireless Remote Led Strip Light Work With A
● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
● DC power socket input and 5 channel constant voltage output.
● Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.
● Voice control, support Amazon ECHO and TmallGenie, Yandex Alice smart speaker.
● Match with RF 2.4G remote control optional.
● User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
● Each WT5 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously
Input voltage: 12-24V DC
Output voltage: 12-24V DC
Output current: 5CH,3A/CH
Input signal: Tuya APP + RF 2.4GHz
Dimming range:0 -100%
Dimming range scale: 4096 (2^12) levels
PWM Frequency:500Hz (default)
Protection:Reverse polarity Over-heat
Depends on Which you selected.
1 X WT5 Tuya LED Controller only
or 1 X Remote Only ( Battery not included)
or 1 X RGBCCT LED Strip Only
1 X User Manaul (English version)
Work with 2.4G RF Wireless Remote:
● Apply to RGB+CCT LED controller
● Working voltage 3VDC(AAAx2 )
● Remote distance 30m(Barrier-free space)
● Battery not included
Note: It can be used for 5 kinds of different led strip light, - Single Color, CCT, RGB, RGBW, RGBCCT led strip light.
Before using, kindly make sure match/set according to your led strip light model. so that the led strip can work properly.
Buy RGBCCT LED Strip Light together If you need ?
New products with high quality and high brightness.
Easy to install, IP20 and IP65 have 3M adhensive in the backside(IP67 do not have 3M adhensive)
Energy-saving and environmentally friendly, green products
Low heat consumption, no UV or IR light radiation
safe and stable, reliable
Applications: Home lighting, Festival decorations, activities, venue set, exhibition decoration, hall decoration, Hotels and other entertainment decorated KTV
LED Type: SMD 5050 + SMD2835 LED
Quantity: 90LEDs/M(30pcs 5050 RGB + 30pcs 2835 Warm White + 30pcs 2835 Cool White)
LED Color: RGBCCT ( RGB+WW+CW)
View angle: 120 °
Working Voltage: DC12V / DC24V
Working Temperature: -20 ° ~ 60 °
Long life:> 50,000 hours
Waterproof level: IP65 Silicon Waterproof , IP20 Not waterproof, IP67 Silicon Tube Waterproof
PCB Width: 12mm
Cloudy Control & Voice Control
1. Cloudy control realize remote control, even if you are away from your home,you can also turn ON/OFF the lights in the house.
2. Compatiable with amazon alexa echo,google assistant
