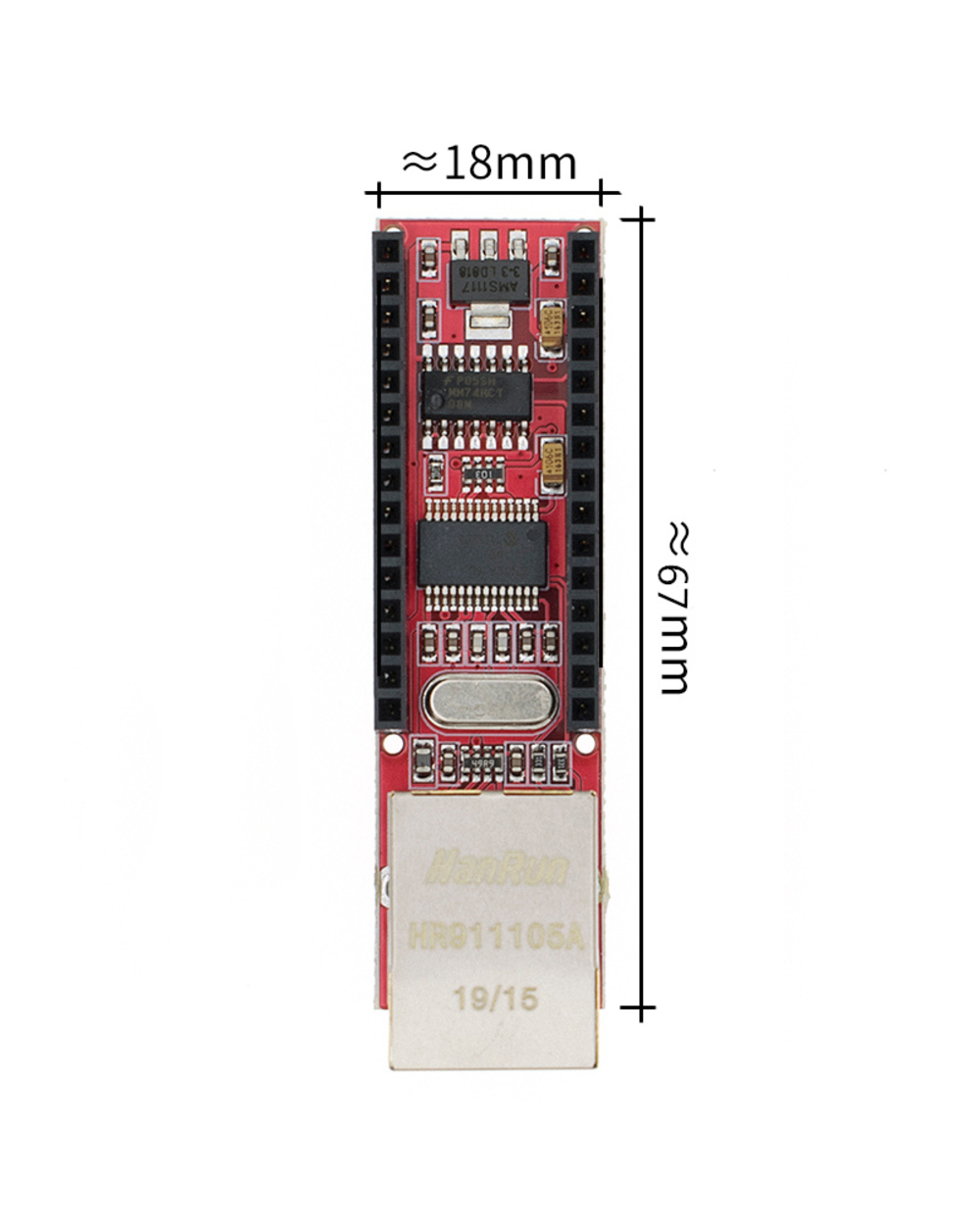

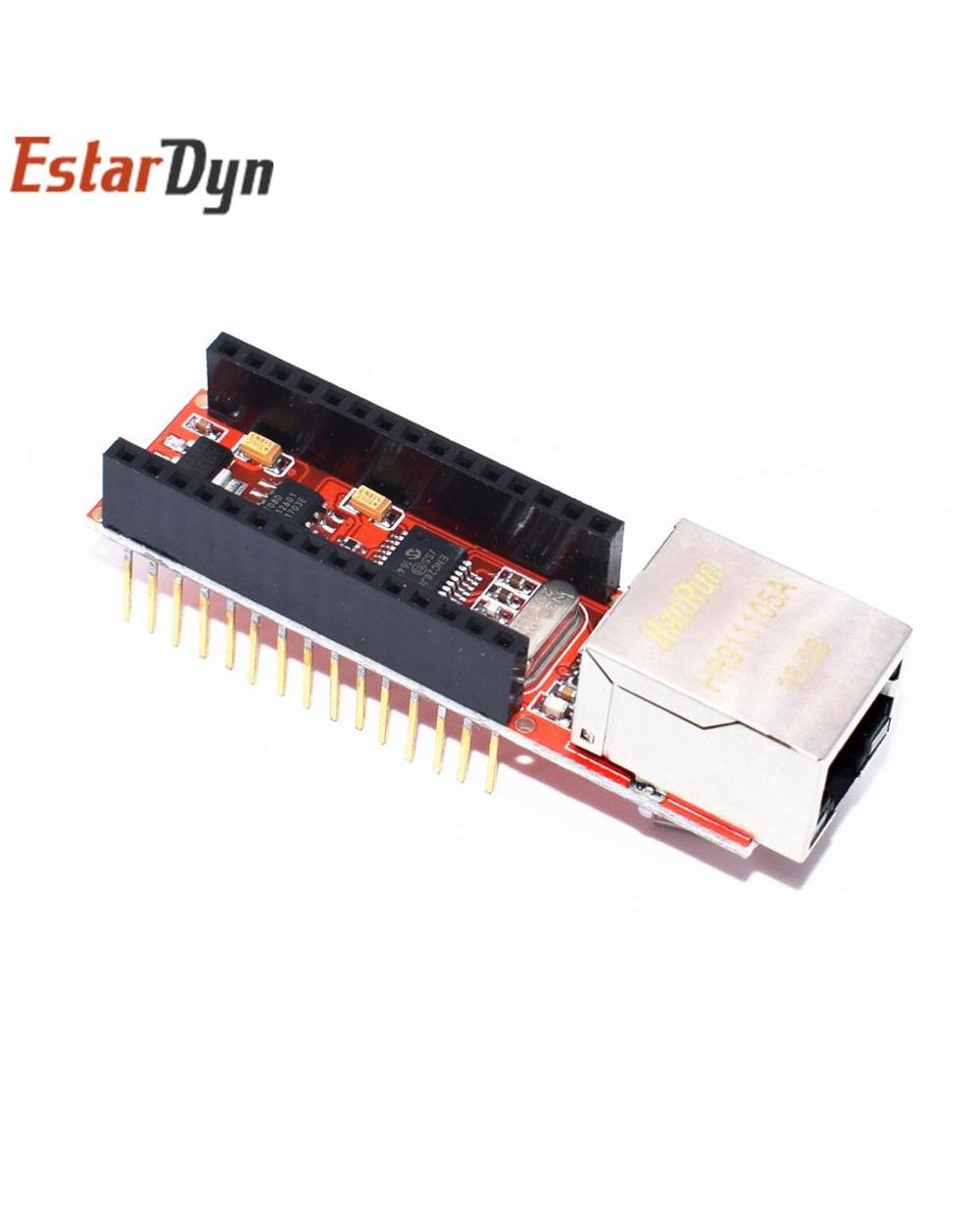

Mini Enc28j60 Ethernet Shield/Ethernet Shield For Nano Spi Interface Lan Network Module Ethernet Module

Mini Enc28j60 Ethernet Shield/Ethernet Shield For Nano Spi Interface Lan Network Module Ethernet Module

$22.95
2/7
description
product reviews
ENC28J60 LAN Product Description:


Brand new and high quality.

chip board ENC28J60-I/SO.

the board 25MHZ crystal.

the network interface board HR911105A.

3.3 V power supply pin.

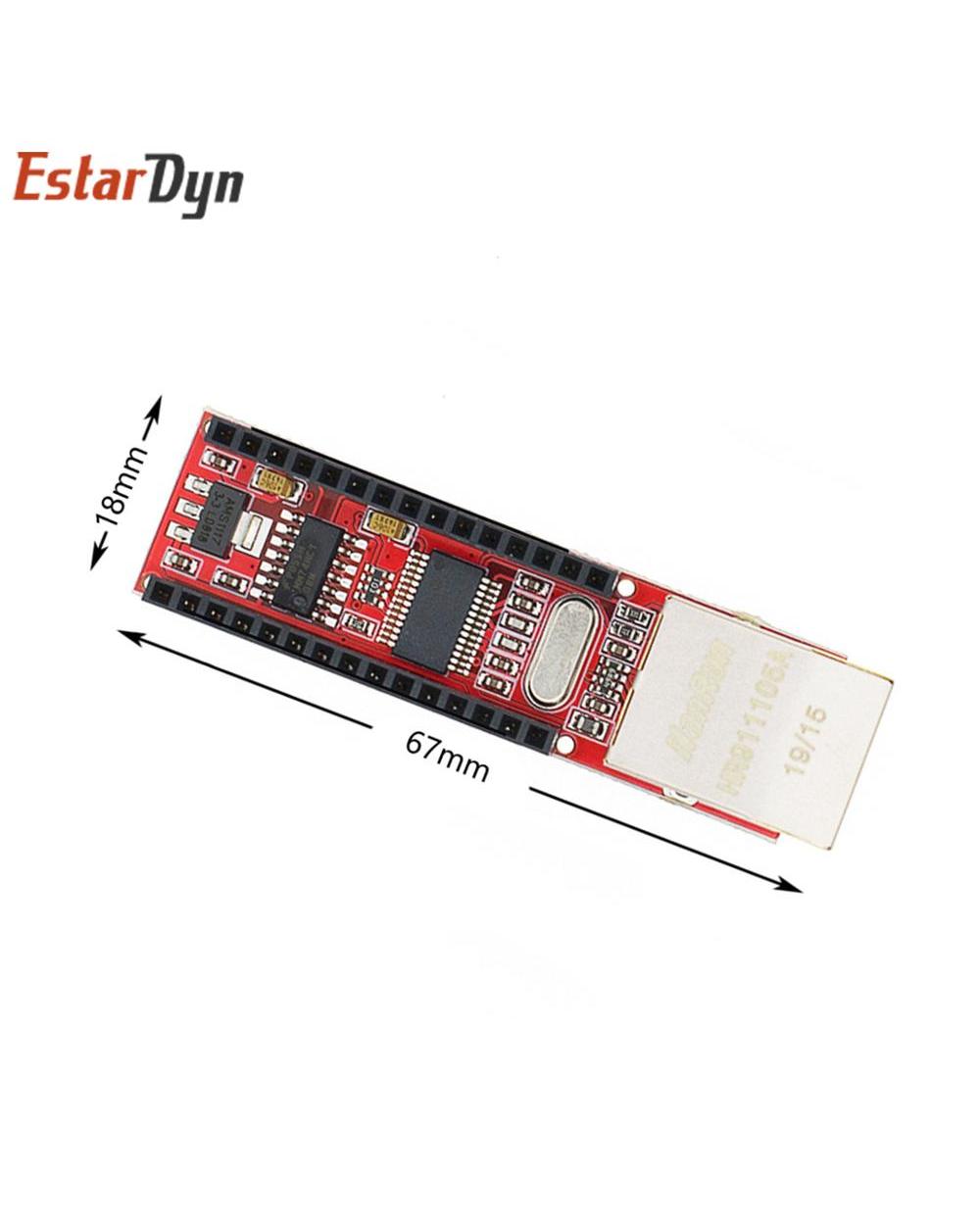

Size:5.9cm x 3.5cm - 2.32inch x 1.38inch.


Debug reminder:

1, the IP address of the computer to a network segment and module such as IP module 192.168.1.2, IP computer set: 192.168.1.3; 192.168.1 is the 3 section;

2, cross the network cable connected to the mouth of the computer network module and mouth; (that is, the cable network 1 3,2 cross, and then do not understand that there are pictures Baidu);

3, the module and the MCU connection should pay attention to the connection of each line is reliable (the surface is not even connected to the good);

4, and the MCU port IO to confirm that is right;

5, the program recompile, download, confirm whether to download! STM32 and 51 IO

Wiring instructions:

############STM32 connection ##########

STM32f103VBT6 ENC28J60 module or other stm32

PC10----------- RESET

PC12--------- CS //PC12 pull-up output mode

//SPI1-

PA5----------- SCK / / output mode

PA6----------- SO / / input mode

PA7----------- SI / / output mode

######51 microcontroller ########### //---------------------------------

Change IP address and MAC address in uipopt.h

192.168.1.100

//--------------------------------- port configuration in spi.h.

STC12C5A60S2 DIP OSC:18.432Msbit CSN = P1^0; / / 28J60-- CS (SS)

Sbit SIN = P1^1; / / MOSI

Sbit SON = P1^2; / / MISO

Sbit SCKN = P1^3; / / SCK

Sbit RSTN = P1^4; / / RST

Sbit INTN = P3^3; / / INT

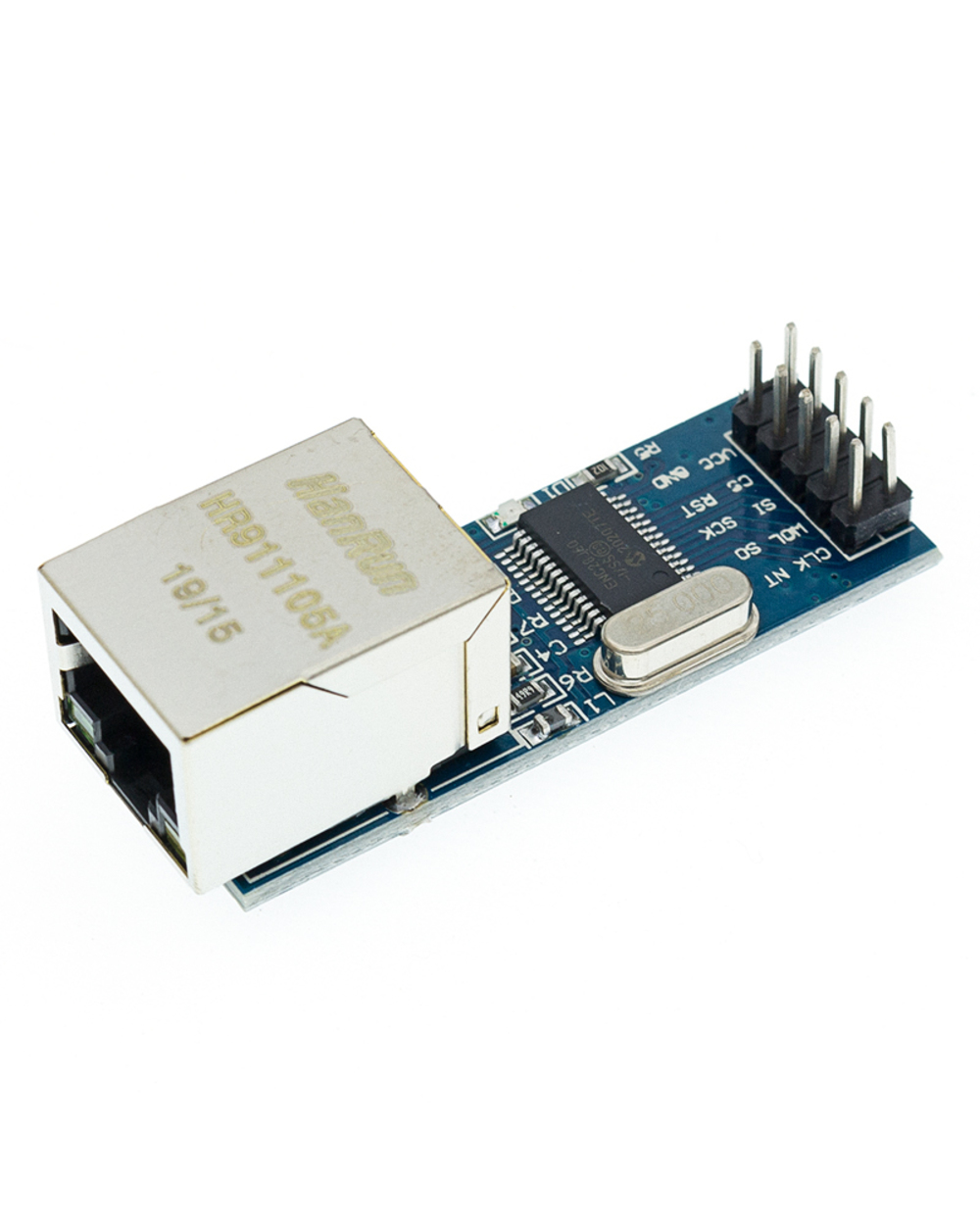

ENC28J60 Mini Product Description:


1. Chip board ENC28J60/SS.
2. The board 25MHZ crystal.
3. The network interface board HR911105A.
4. 3.3V power supply pin.



2/7

Mini Enc28j60 Ethernet Shield/Ethernet Shield For Nano Spi Interface Lan Network Module Ethernet Module

$22.95
