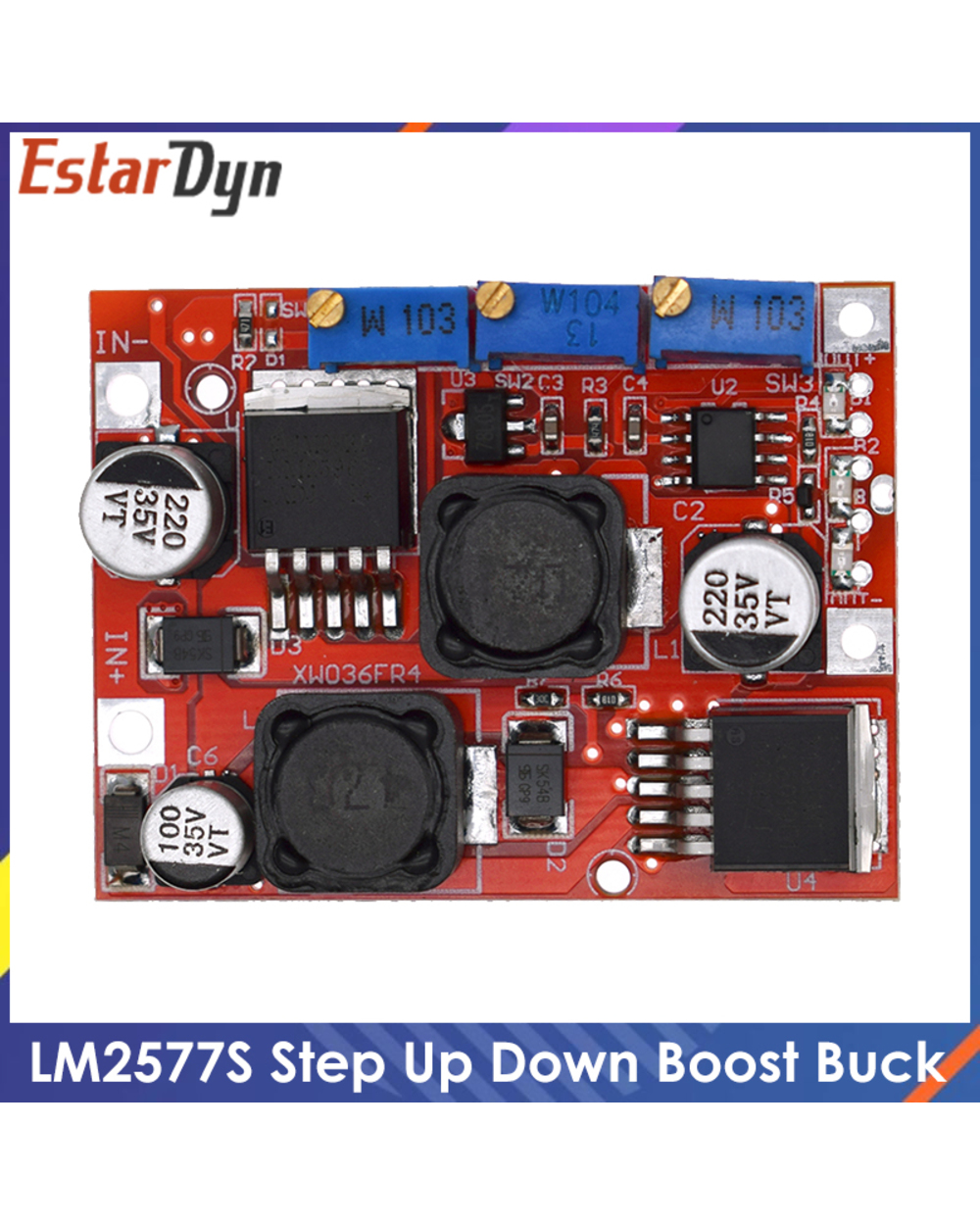

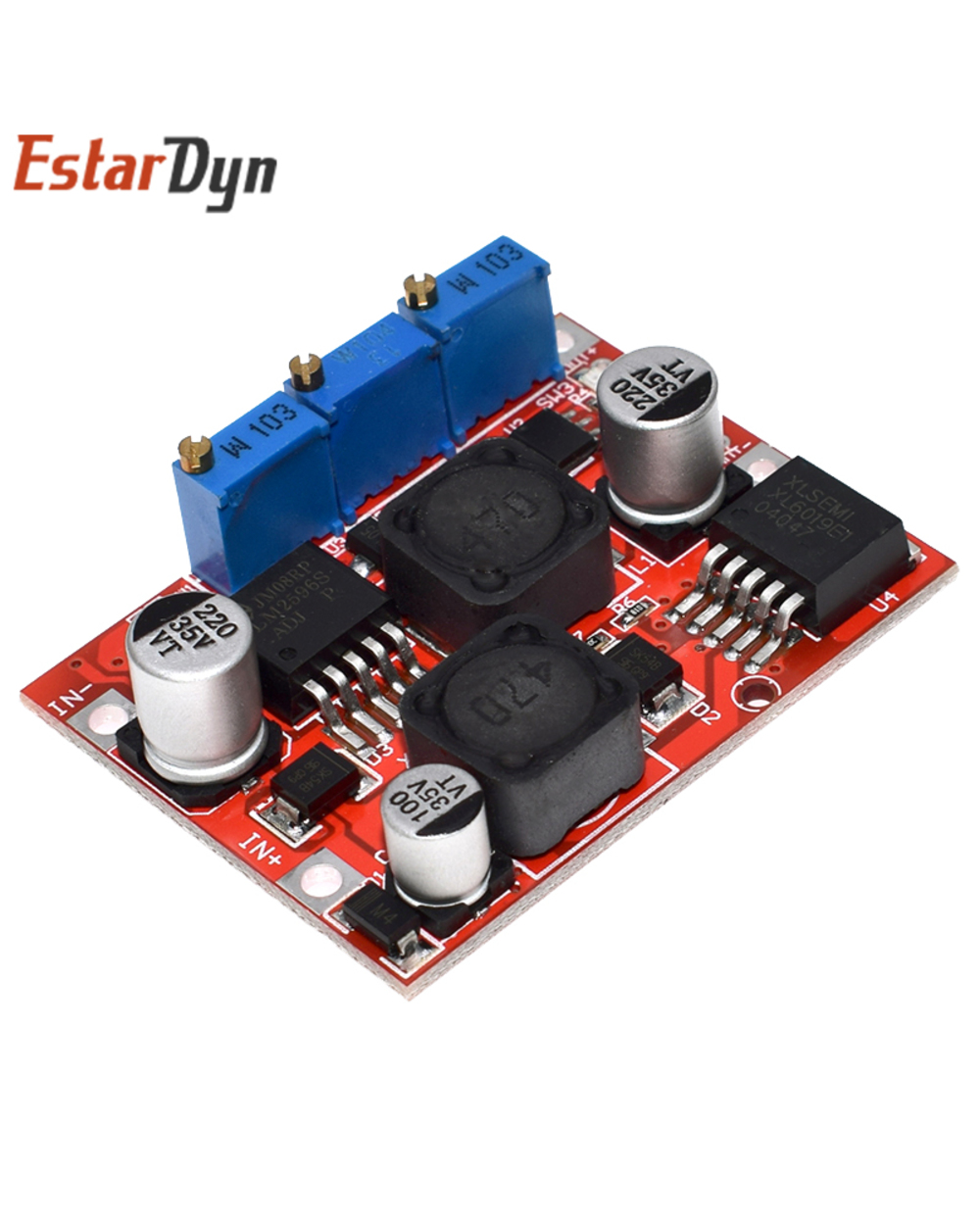

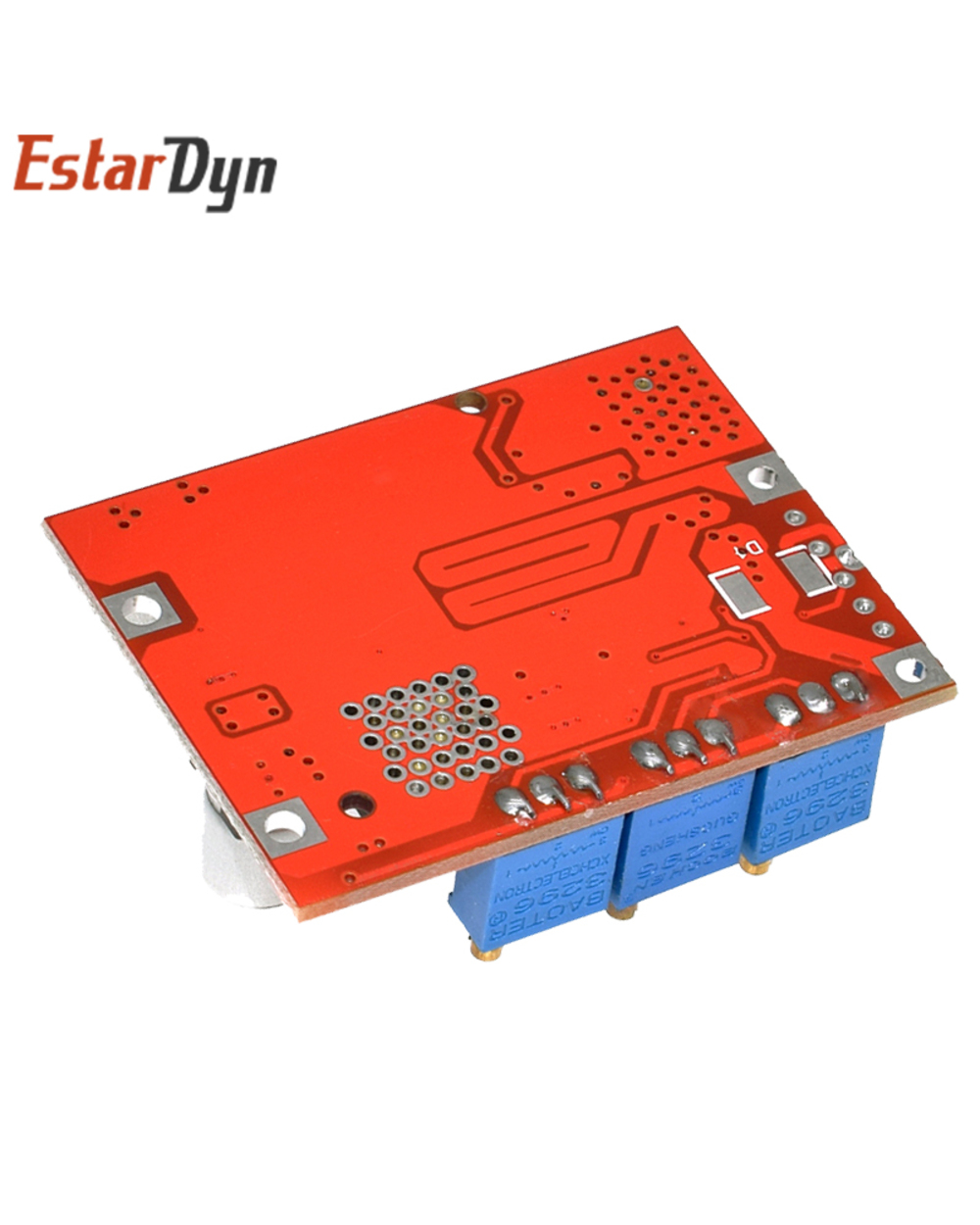

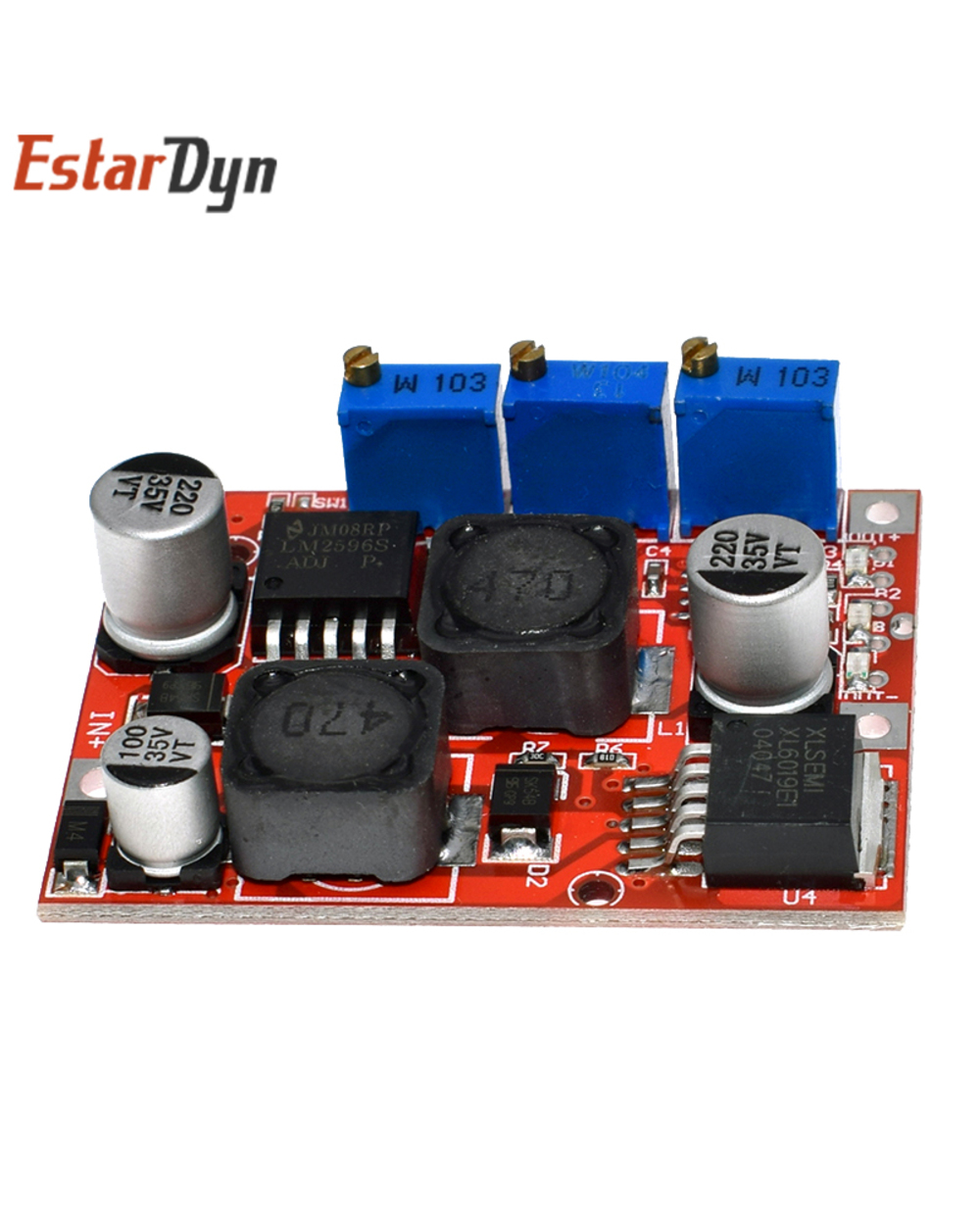

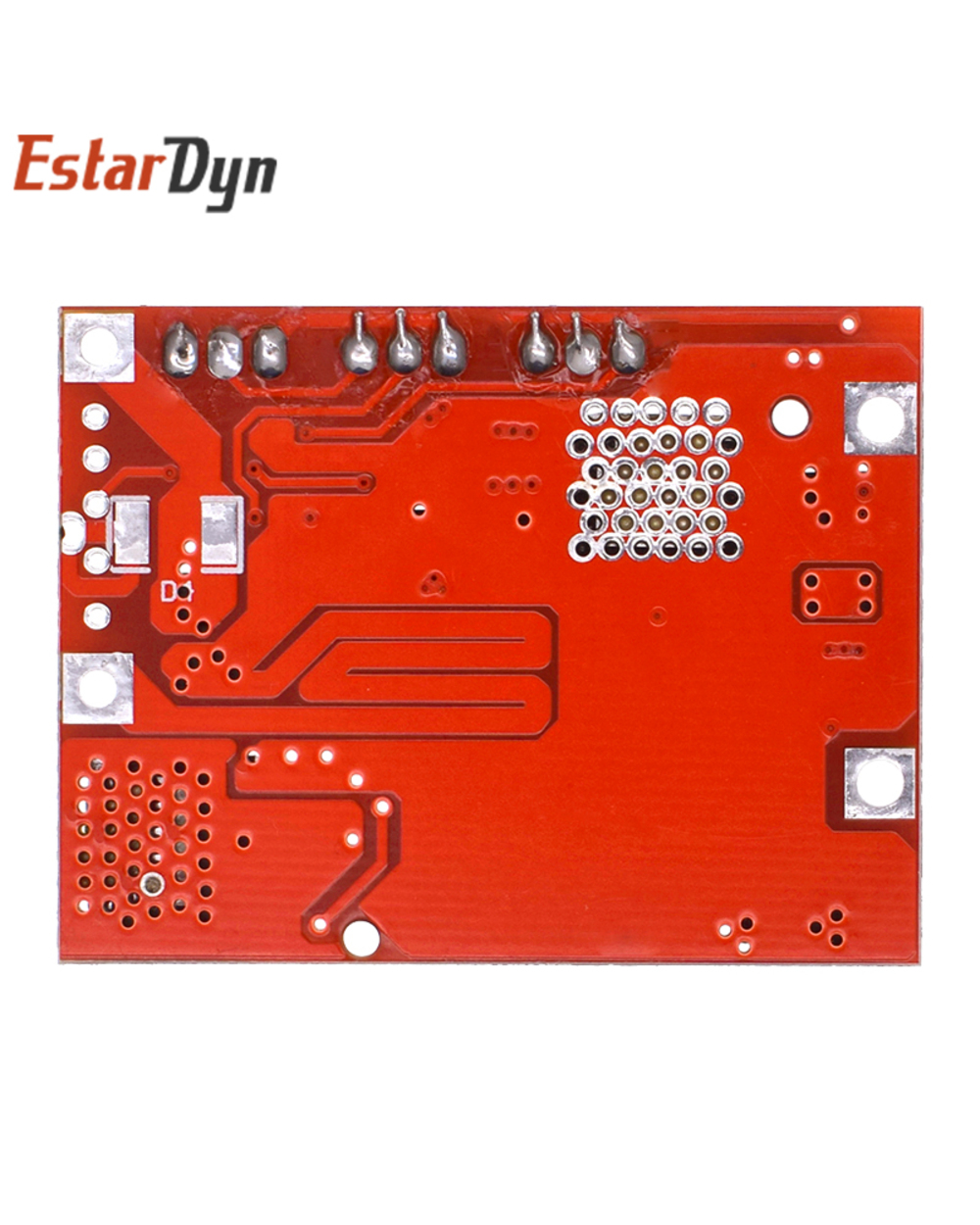

Lm2596 Lm2577 Dc Auto Boost Buck Converter 4-35V To 1-25V 5V 12V 19V 24V 4A Step Up / Down Voltage Regulator Cc Cv Char

Lm2596 Lm2577 Dc Auto Boost Buck Converter 4-35V To 1-25V 5V 12V 19V 24V 4A Step Up / Down Voltage Regulator Cc Cv Char

$21.95
2/7
description
product reviews
  • Features:

    This module power output is affect by the module itself-capacity and pre-and post-class load and other factors; the following data for professional equipment measured results, without considering other factors.
    Power supply module is a kind of electronic components, please don't buy the item if you have no electronic expertise.
    This Module Properties: It is non-isolated step-down constant current, constant voltage module (CC CV) charging module
    Specification:

    Input Voltage :4-35V
    Output voltage: Continuously adjustable(1.25-25V unload adjust)
    Output current: 3A Max(If more than 15W, please install the heat sink)
    CC range :0-2A (adjustable)
    Revolving light current: CC value * (1%-100%), default is 0.1 times
    Minimum voltage difference: 2V
    Output power: natural cooling 15W
    Conversion efficiency: 80% (the higher the output voltage, the higher the efficiency)
    Operating Temperature: Industrial (-40  to +85 ) (ambient temperature more than 40, lower power use, or add heat sink)
    Full load temperature rise: 45
    Indicator: CC indicator is Red, charging indicator is Red, charging completed the indicator is Blue.
    Output short circuit protection: Yes, constant current.
    Connect method: Can solder on the PCB with wire directly
    Input: IN+ input Positive is, IN- input negative
    Output: OUT+ output is positive, OUT- output negative
    Module Size: 50 x 37 x 13mm

    Some Applications:

    High-power LED constant current driver.
    Lithium batteries (including ferroelectric), 4V, 6V, 12V, 14V, 24V battery charging, nickel-cadmium nickel-metal hydride batteries (battery) charge.
    Solar panels, wind generator voltage regulator circuit board power supply, such as automatic buck regulator circuit.




  • Package Contents

    100% Brand New
