Lcd Module Blue Screen 10-Bit 16-Segment Lcd Display Module Panel Dm8ba10 Dc 5V Tm1622 Chip

Lcd Module Blue Screen 10-Bit 16-Segment Lcd Display Module Panel Dm8ba10 Dc 5V Tm1622 Chip

$24.95
2/7
description
product reviews
Features:

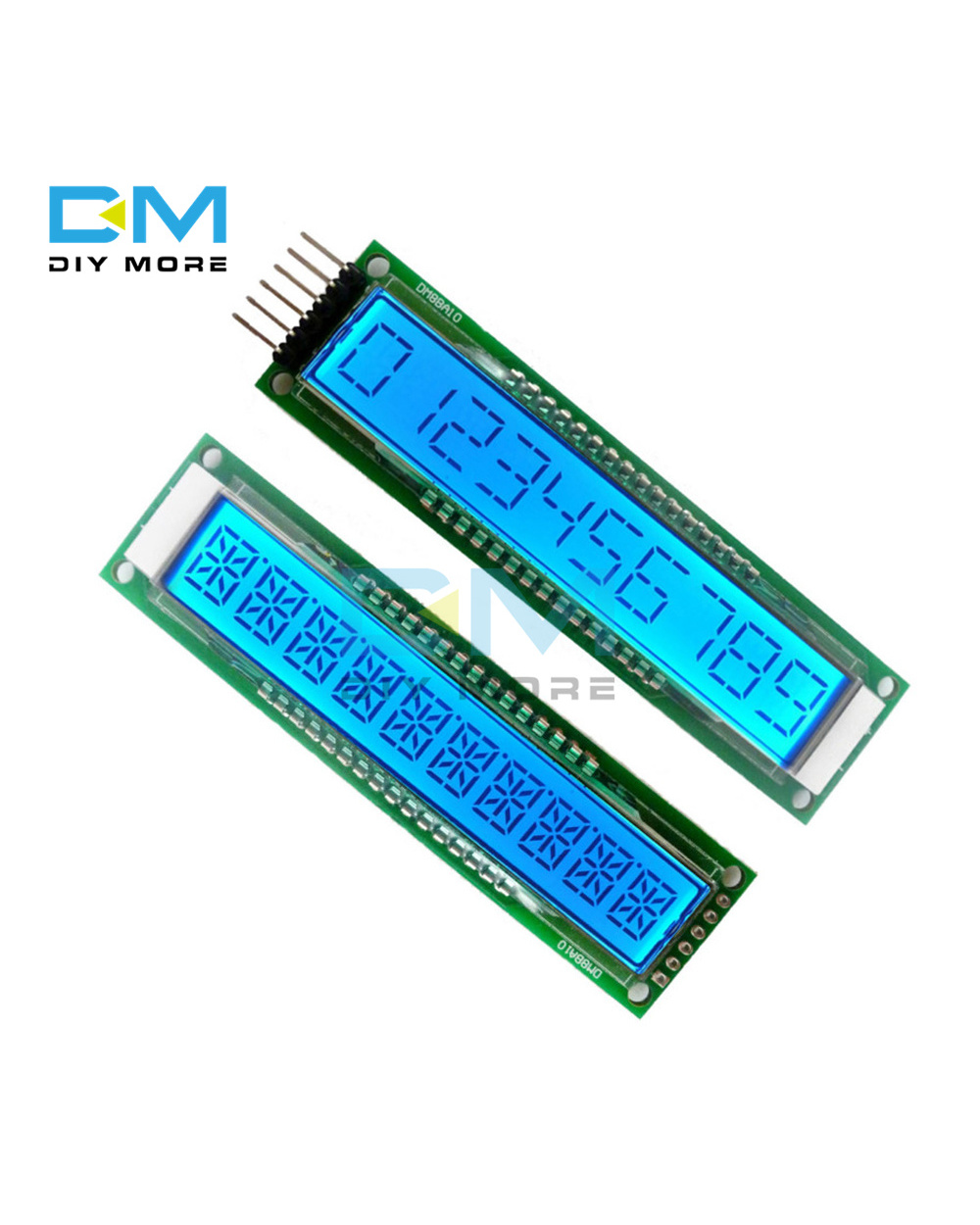

1. LCD screen, 10-digit display.

2. The driver chip is TM1622, compatible with HT1622

3. The background light is blue, which is clearer and more accurate.

4. Easy installation, simple operation and stable performance.

5. Multiple characters can be displayed.

6. Two options, if the customer wants to change the direction of the pin, no pin is optional, and if the customer does not have a special welding tool, the pin is optional.

7. Application Field: For MEGA2560 LEONARDO MICRO NANO ADAPTER Pro Mini ZERO DUE For raspberry pi 3 B + 4 For MCU AVR PIC ARM For FPGA / CPLD For toy car For instrumentation For electronic hobby DIY.



Specification:

Item Type: 10-bit 16-segment SPI LCD display module

Model: DM8BA10

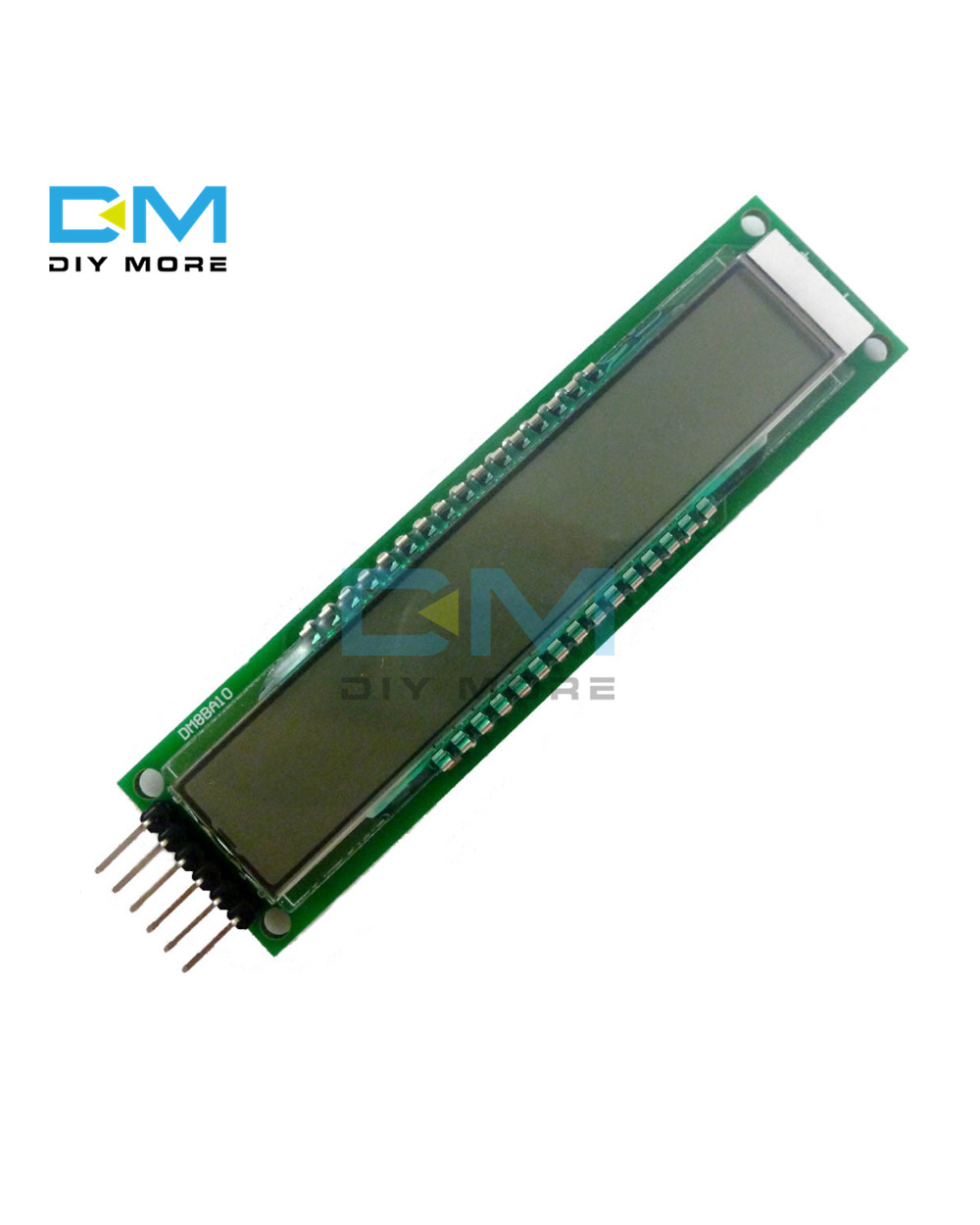

Wiring Method: With Pin / No Pin (optional)

Backlight: blue

Voltage: DC 5V

Driver chip: TM1622 (compatible with HT1622)

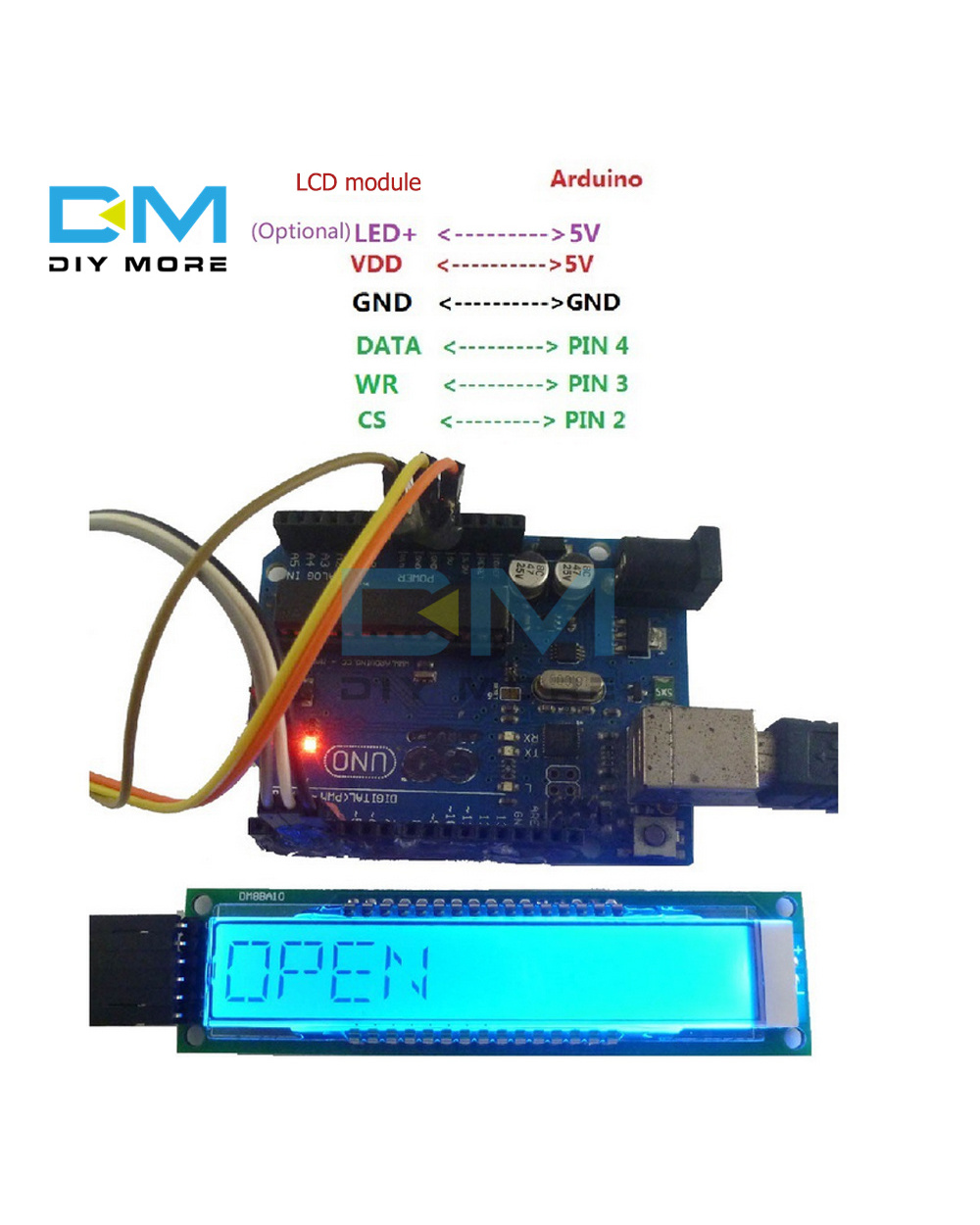

Interface: SPI (CS WR DATA)

Characters that Can Be Displayed:

0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, b, C, c, d, E, e, F, f, g, H, h, I , i, J, k, L, M, m, N, n, O, o, P, q, R, S, T, t, , ,V, W, w, X, Y, y, Z , -, *

Size: 92mm x 24mm x 9mm

Weight: 20 grams



Note:

We only provide the ARDUINO code (C language), please modify the code of other platforms such as MCU.
