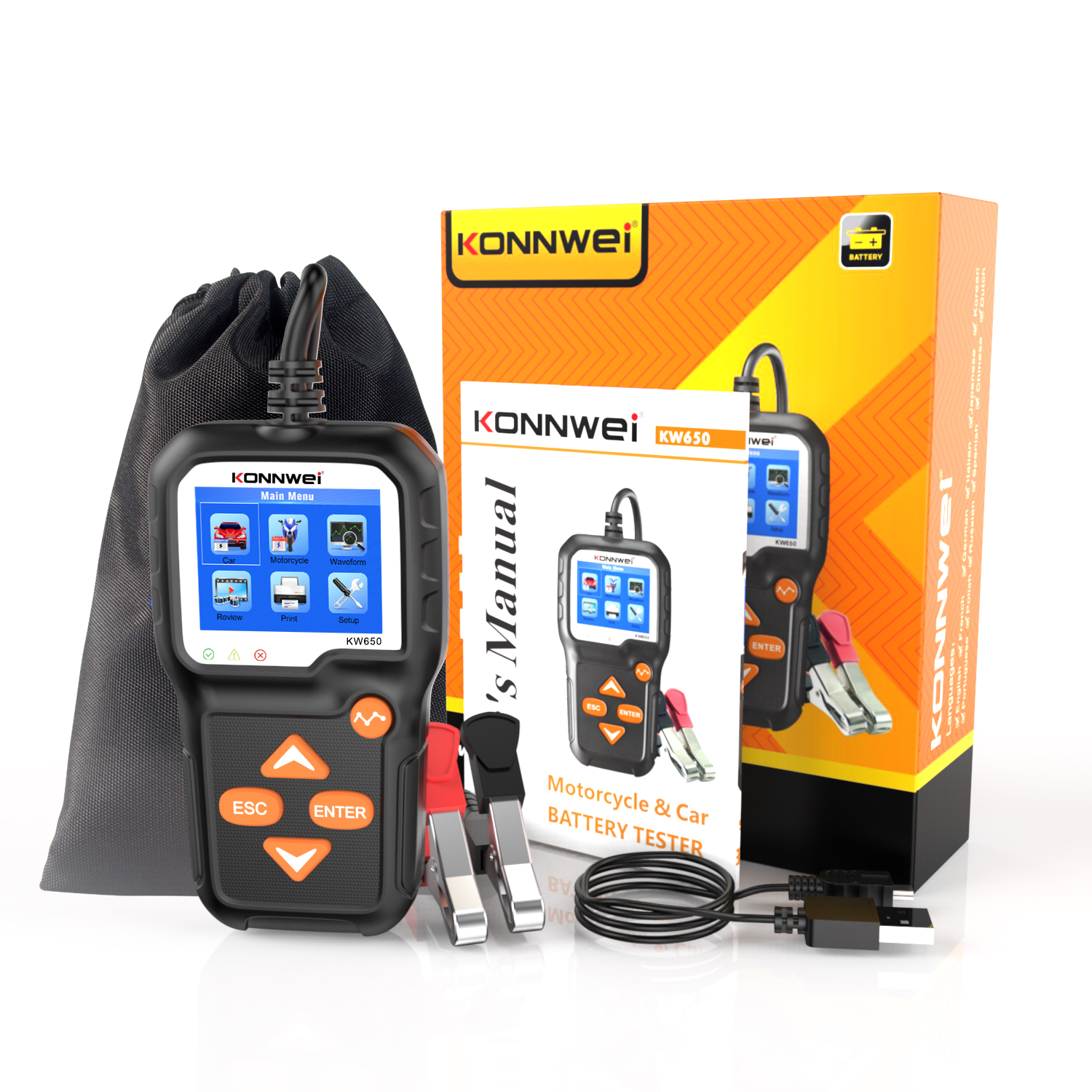

Model : KW650 Motorcycle & Car Battery tester

Application :Apply for all 6- 16V battery include battery from motorcycle ,gasoline, diesel, hybrid electric vehicles. And emergency batteries included.

Description:

KONNWEI KW650 battery tester is the newest battery tester upgraded from the black white screen tester, in order to check battery health faster and more accurate, including check the alternator working status. Not only support Battery Health Test, but also Battery Cranking Test, Battery Charging Test.It's a professional automotive diagnostic tools for your battery issues by the graphing voltage monitoring tool, with its 2.4 inch color screen and unique pattern design,

the KONNWEI KW650 is a perfect battery testing tool for you.



Advantages:

• TOP 1 battery tester on


• The first color screen battery tester


• Imported STM32103VCT6 Chip.


• Graphical battery test results.


• U-I waveform, also can be printed out


• Test results storage and review.


• Battery report can be printed out on PC.


• Support free update online life time.

Support battery type: Regular flooded battery, will support AGM flat plate battery, AGM spiral battery, GEL and EFB battery in the future after updating.



Cover 9 Measure Standards:



CCA:100-2000 / BCI:100-2000 / CA:100-2000 / MCA:100-2000.

JIS:26A17-245H52 / DIN:100-1400 / IEC:100-1400 / EN:100-2000 /SAE:100-2000.



Functions:

1, System voltage 6-16 Volts and Voltage test in waveform

2, Test Result Good, Recharge or Replace

3, Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

4, Internal resistance value (mΩ) and Life in percentage (%)

5, Cranking system and Charging system

6, Record and re-play battery data, Life-time free update service

7, Battery test, cranking test, charging test and other additional functions.



13 Languages: Chinese, English, German, French, Japanese, Korean, Dutch, Russian, Spanish, Italian, Portuguese, Polish, Persian



Specification:

System Voltage: 6-16 Volts.

Input Voltage Range: 6V-16V.

No internal batteries required.

Operating Temperatuer: 0℃-50℃.

Storage Temperature: -20℃-70℃.



Package includes:

1*KONNWEI KW650 vehicle battery Scanner

1*Mini USB cable

1*User's Manual

1*Nylon bag

1*Packing box



Packing information:

Item size( cm): 14.2*8*2

Package size cm): 18.3*15.2*5.3

Item Net weight(kgs): 0.3

Package G.weight(Kg): 0.4

Qty/ctn: 50pcs/ctn,

Carton size: 51*49*39CM

Carton weight: 21KGS/carton

Professional 12V Car Battery Tester 100 to 2000CCA 12 Volt Battery tools for the car Quick Cranking Charging Diagnostic

KONNWEI KW600 is the newest battery tester upgraded from the old classic backlit tester in the market, aiming at check battery health fast and accurately, as well as check the alternator working status. It's a professional vehicle diagnostic tool for checking your battery system issues by using the graphing voltage monitoring tool, with its color screen and unique pattern design, life time free update service, the KONNWEI KW600 is a perfect battery testing tool for your job and the family.

KONNWEI KW600 Description

KONNWEI KW600 is mainly targeted to analyze the battery healthy status to calculate the actual cold cranking, capability of the battery and the aging extent, which provide reliable analysis evidence for the test and maintenance of the battery. KW600 notifies the users to replace battery in advance when the battery getting aged



1. Identify battery status Good or Replace

2. Check Battery Capacity - Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating.

3. Check Internal resistance value (Ohm)

4. Display battery life in percentage (%)

5. Battery Cranking Test, load test

6. Battery Charging Test, Ripple Test

7. Graphing voltage real time monitoring & review

8. All test results storage and review

9. Print/upload all test results and battery report on PC for deep analysis.

10. Life time update online Free

KW600 Support Languages

English, Japanese, French, German, Russian, Dutch, Spanish, Portuguese, Polish, Italian,Persian

KW600 12V Battery Tester Features

1. Fast and smooth running speed with STM-32 chip set hardware

2. Accurate test results, using high precision amplifier and calibrated by professional battery testing tool, KW600 reading accuracy up to 99%.

3. Wide testing range cover from CCA 100- 2000 , 30- 220 AH, best in the market.

4.Industry initiative graphical Battery Voltage real time monitoring, can be uploaded to PC for analysis.

5. Unique battery results display in percentage and meter mode.

6.Test all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery, AGM spiral battery, and Gel battery, etc.

7. Polarity reverse connection protection, reverse connection will not damage the tester or affect the vehicle and battery.

8. Directly test the battery with loss of electricity, no need to full charge before testing.

9. Testing standards include currently the world's majority of battery standards, CCA, BCI, CA, MCA, JIS, DIN, IEC, EN, SAE, GB.

10. Data Storage and upload to PC for printing

11. Life time upgrade free by one-click smart cloud update

12. Large color screen LCD display, pattern design

KONNWEI KW600 Specification

Display: 2.4'' Color TFT screen

Operating Temperature : -20 to 70 ℃ (-4 to 158 ℉)

Power: 9 to 16 V provided via vehicle

Supported Battery type: CCA, ICE, EN, DIN, CA, BCI, MCA, SAE, GB, JIS

Device Dimensions: 16.5cm x 6cm x 2.5cm

Weight: 450 g

Package List

1* KONNWEI KW600 Battery Tester Unit

1* User's Manual

1* USB Cable for upgrade and print

1* Safe packing box (plastic protection inside)
