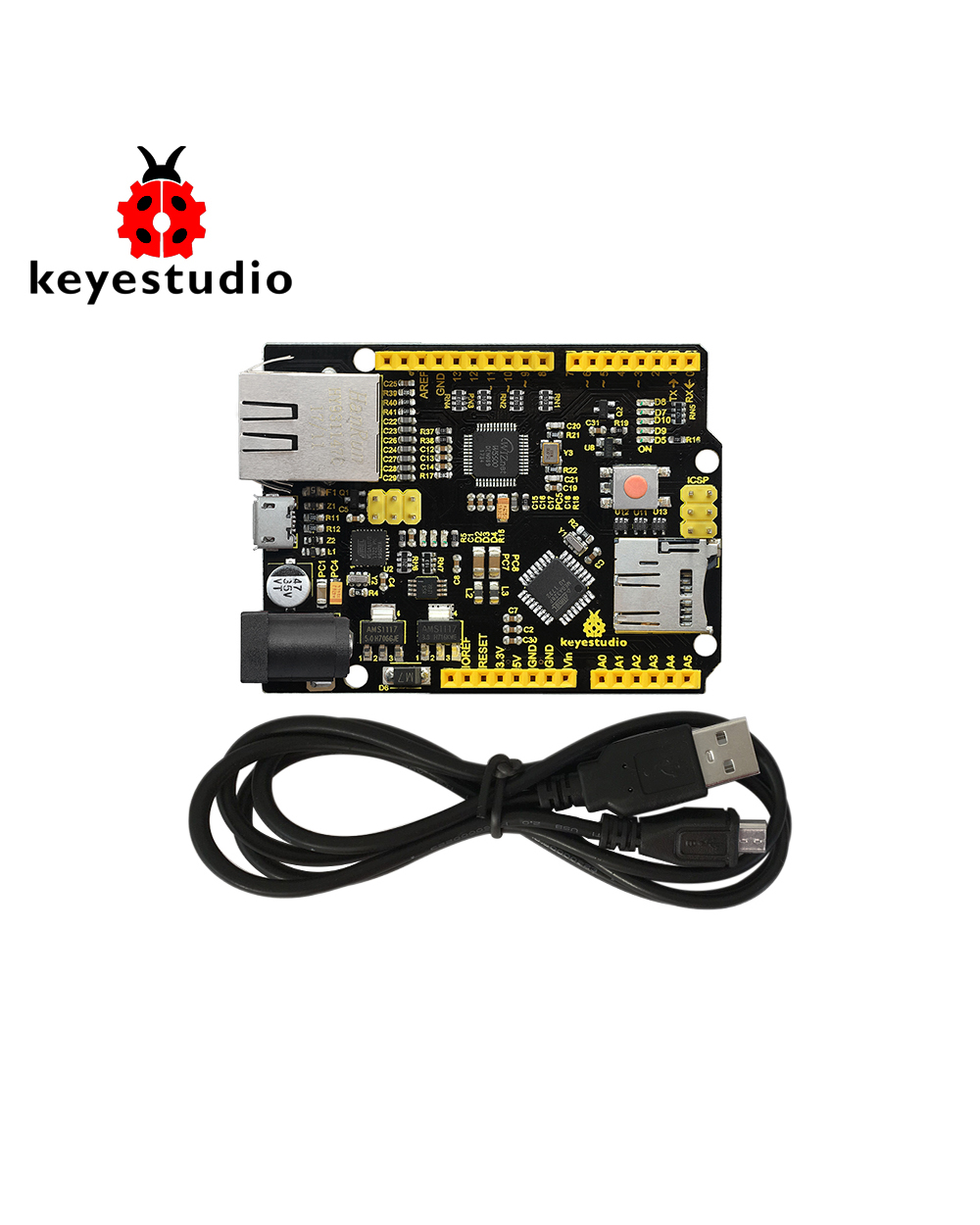

Keyestudio W5500 Ethernet Development Board For Arduino Diy Project (Without Poe)

Keyestudio W5500 Ethernet Development Board For Arduino Diy Project (Without Poe)

$34.95
2/6
description
product reviews


Related Introduction

About Chip:

1.  ATMEGA328P-AU

2.  Atmega16U2

USB to serial chip

3.  AMS1117

4.  5V and 3.3V stabilivolt chip

5.  W5500 network chip


About Interface:

1. ICSP interface

Program firmware to ATMEGA328P-AU

2. Digital interface D0-D13

Serial communication:D0(RX) and D1(TX)

External interruption:D2(interrupt 0)、 D3(interrupt 1)

PWM interface:D3、D5、D6、D9、D10 、D11

SPI communication:D10(SS)、D11(MOSI)、D12(MISO)、D13(SCK)

3. ICSP interface

Program firmware to Atmega16U2

4. USB port

For program download or serial debugging

5. DC power connector

Access to 7V-12V voltage

6. Power output port

Output 3.3V or 5V,for external power supply or common ground handle

7. Analog interface A0-A5

IIC communication:A4(SDA) and A5(SCL)

Also can be used as digital interface:A0(D14)、A1(D15)、A2(D16)、A3(D17)、A4(D18)、A5(D19)

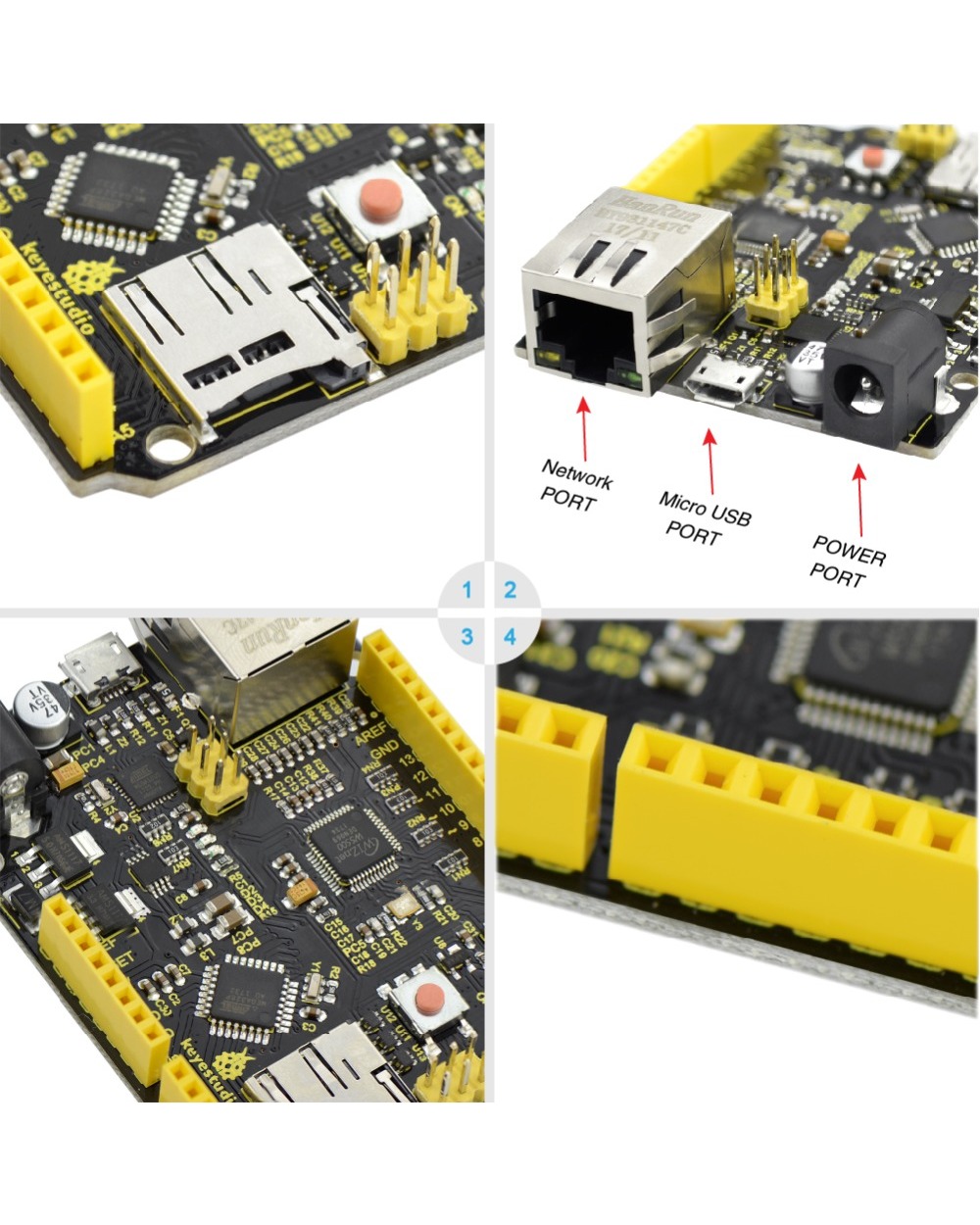

8. Network connector

  RJ-45 network port

About Component:

1. reset button

2. 16MHz crystal oscillator

3. 25MHz crystal oscillator
