Keyestudio Raspberry Pi  Pico IO Shield Expansion Board For Raspberry Pi Pico Development Board  DIY Kit  Electronic Projects

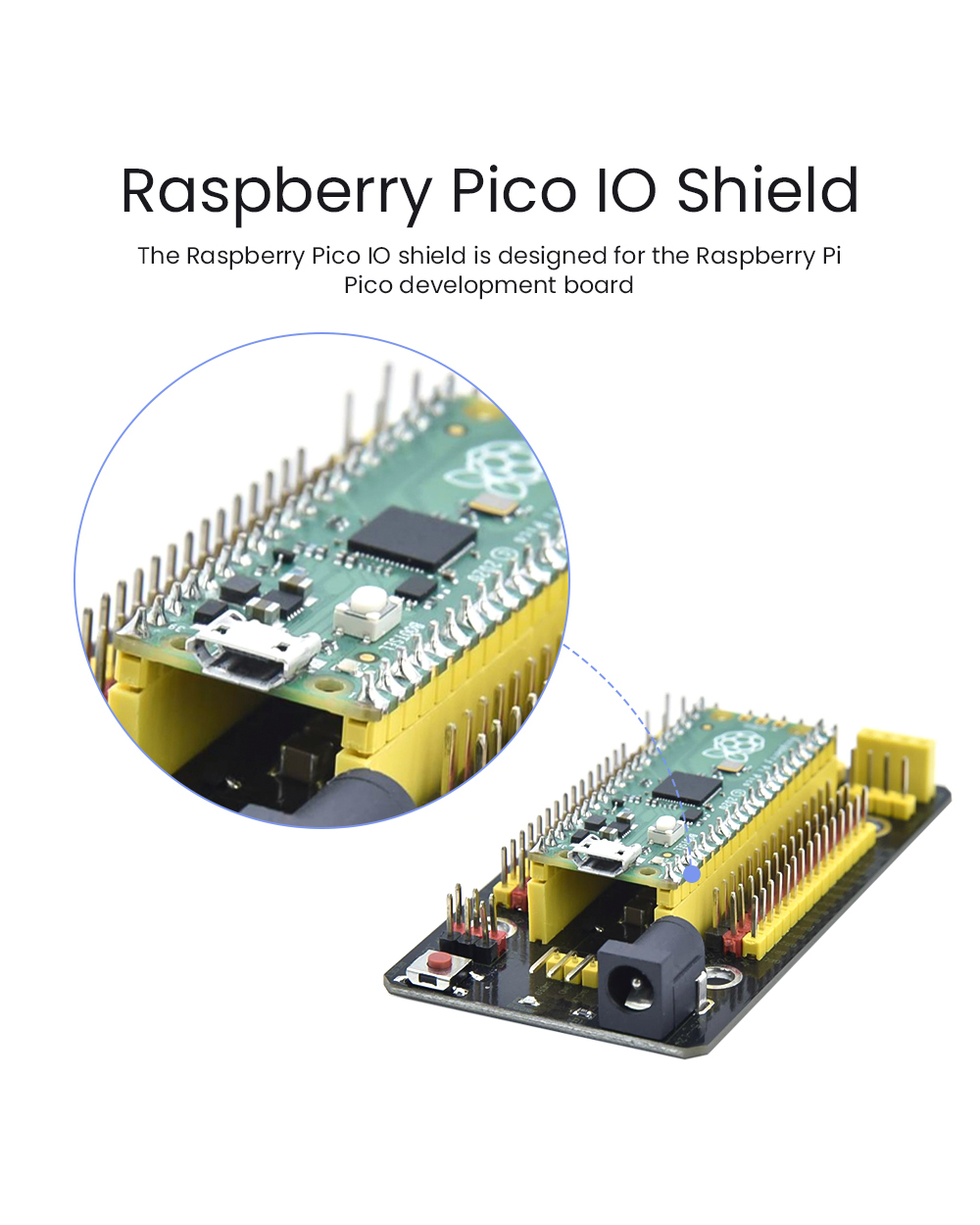

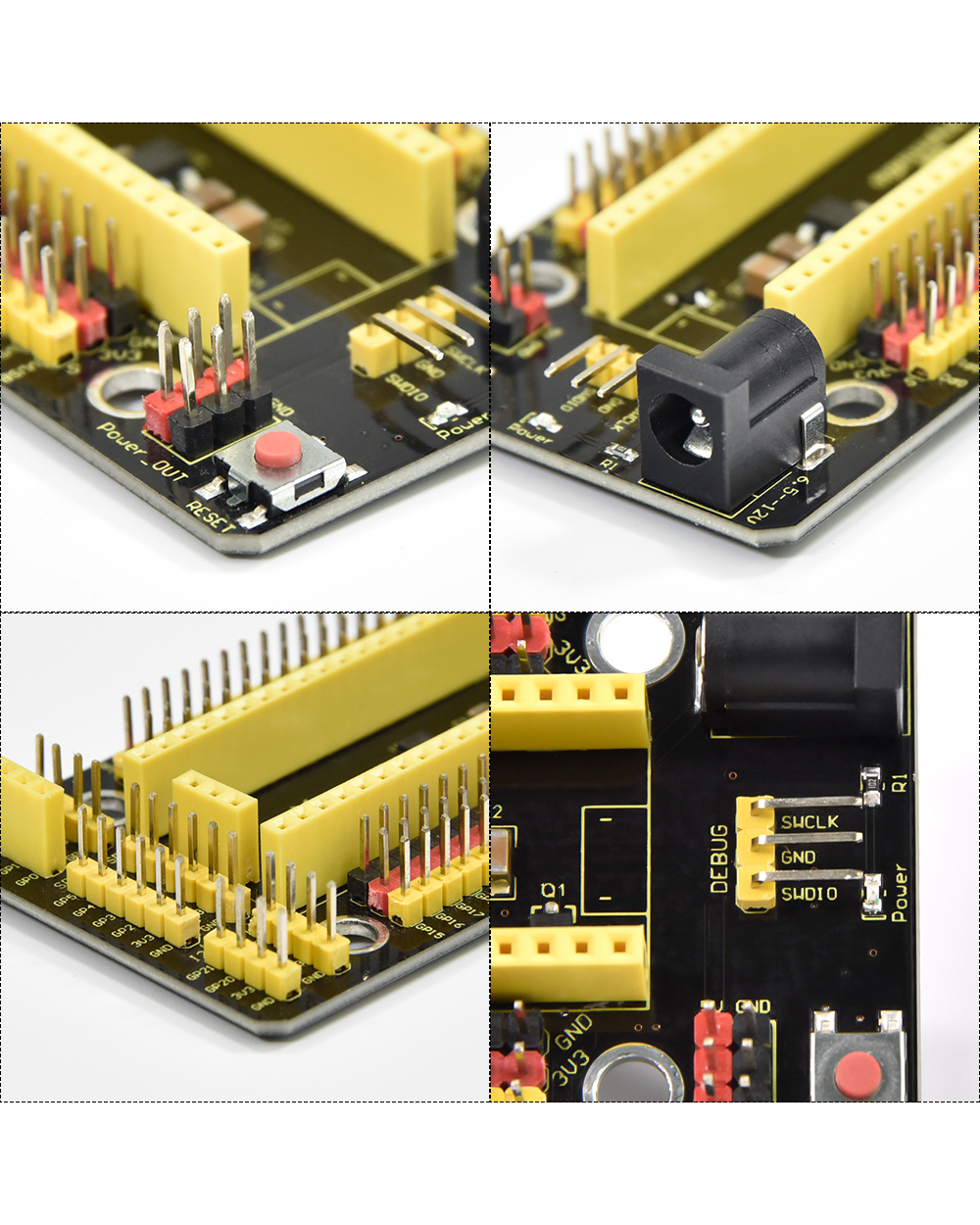

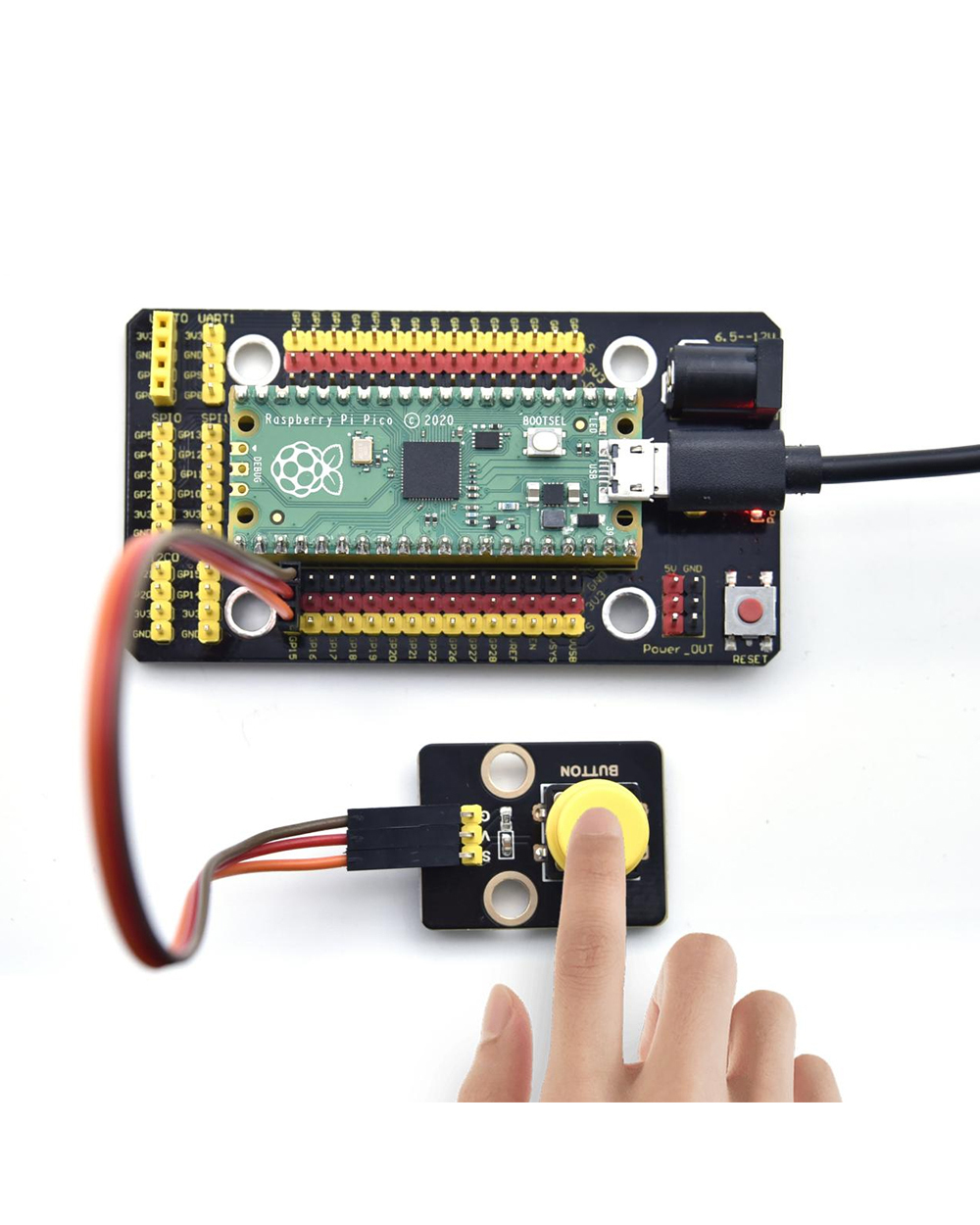

The Raspberry Pico IO shield is designed for the Raspberry Pi Pico development board, without soldering. It also incorporates communications ports like 2 x I2C, 2 x UART, 2 x SPI, 3 x analog IO and 13 x digital IO as well as a 6.5-12V power interface. The integrated Lego position holes can assist to wire up multiple sensors or modules, which exceedingly increase more functions.


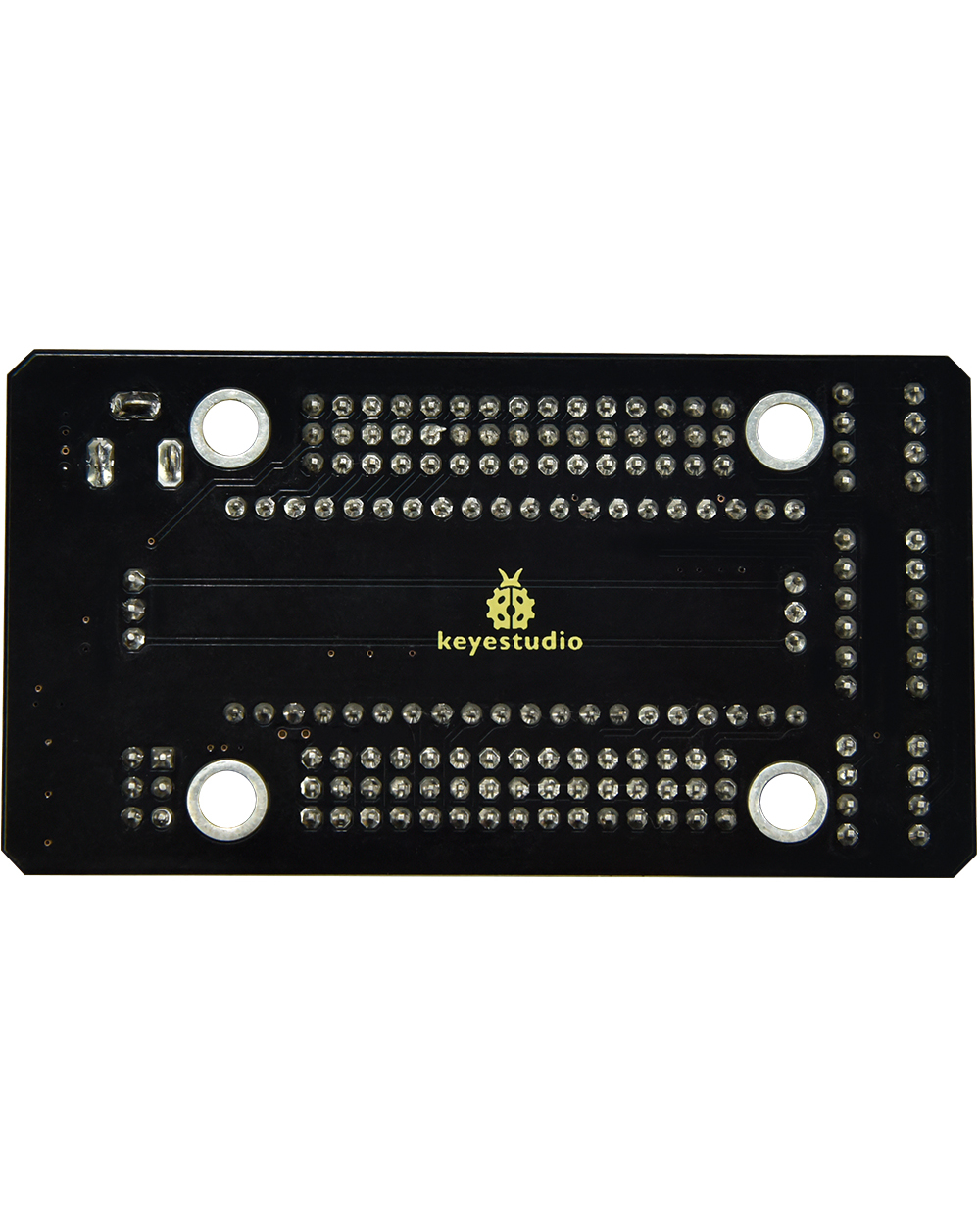

Parameters

Power supply: 5V

Output current: ≦500mA

DC input voltage: 6.5-12V

Output voltage: DC3.3V/5V

Recommended ambient temperature: -10°C ~ 50°C

Size:45.33MM *83.61MM

Spacing of pin headers: 2.54mm

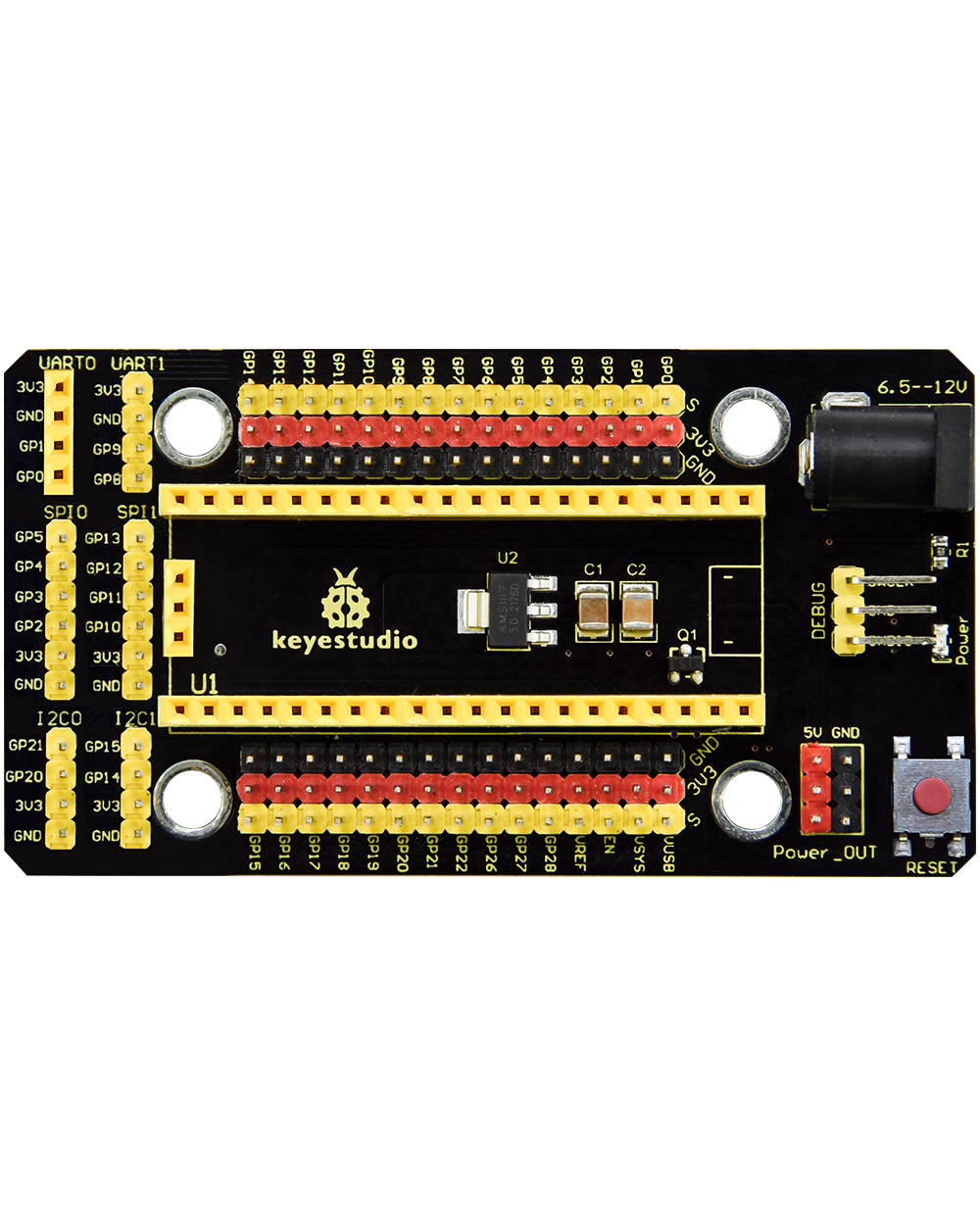

Pin instructions:

Digital IO x 13:GP2, GP3, GP12 ~ GP22

Analog IO x 3: GP26, GP27, GP28

UART x 2: UART0, UART1

I2C x 2: I2C0, I2C1

SPI x 2: SPI0, SPI1

Power interface: 6.5V - 12V

GPIO pins, are used for the RP2040 chip of the Pico development board, as shown below;

GPIO29: for ADC mode(ADC3) measure VSYS/3

GPIO25: connected to LEDs of users

GPIO24: VBUS sensing-if VBUS exists, it is the high level, in contrast, it is the ow level

GPIO23: on-board SMPS chip control pin

In addition to 26 GPIO pins(GP0~GP22, GP26_A0, GP27_A1, GP28_A2) and 7 GND pins, the Pico board has 7 physic pins as follows

PIN40: VBUS(5V)

PIN39: VSYS(2~5V)

PIN37: 3V3_EN(on-board SMPS chip Enable)

PIN36: 3V3(3.3V)

PIN35: ADC_VREF(ADC)

PIN33: AGND(analog)

PIN30: RUN(boot/forbid Pico)
