Keyestudio High Sensitivity Sr01 Cs100a Chip Ultrasonic Module Distance Sensor Detector Ranging Module For Arduino Diye

Keyestudio High Sensitivity Sr01 Cs100a Chip Ultrasonic Module Distance Sensor Detector Ranging Module For Arduino Diye

$23.95
2/6
description
product reviews

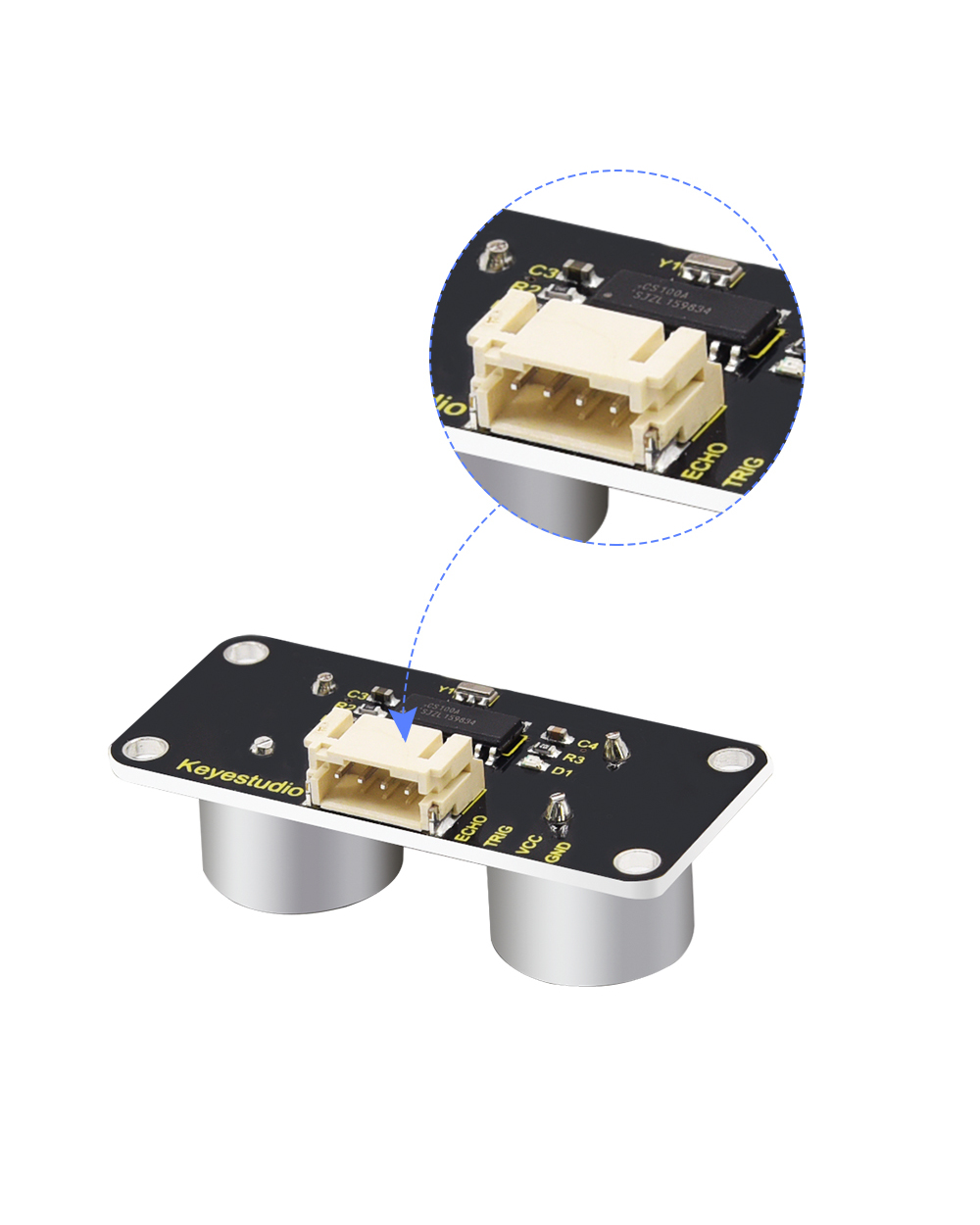

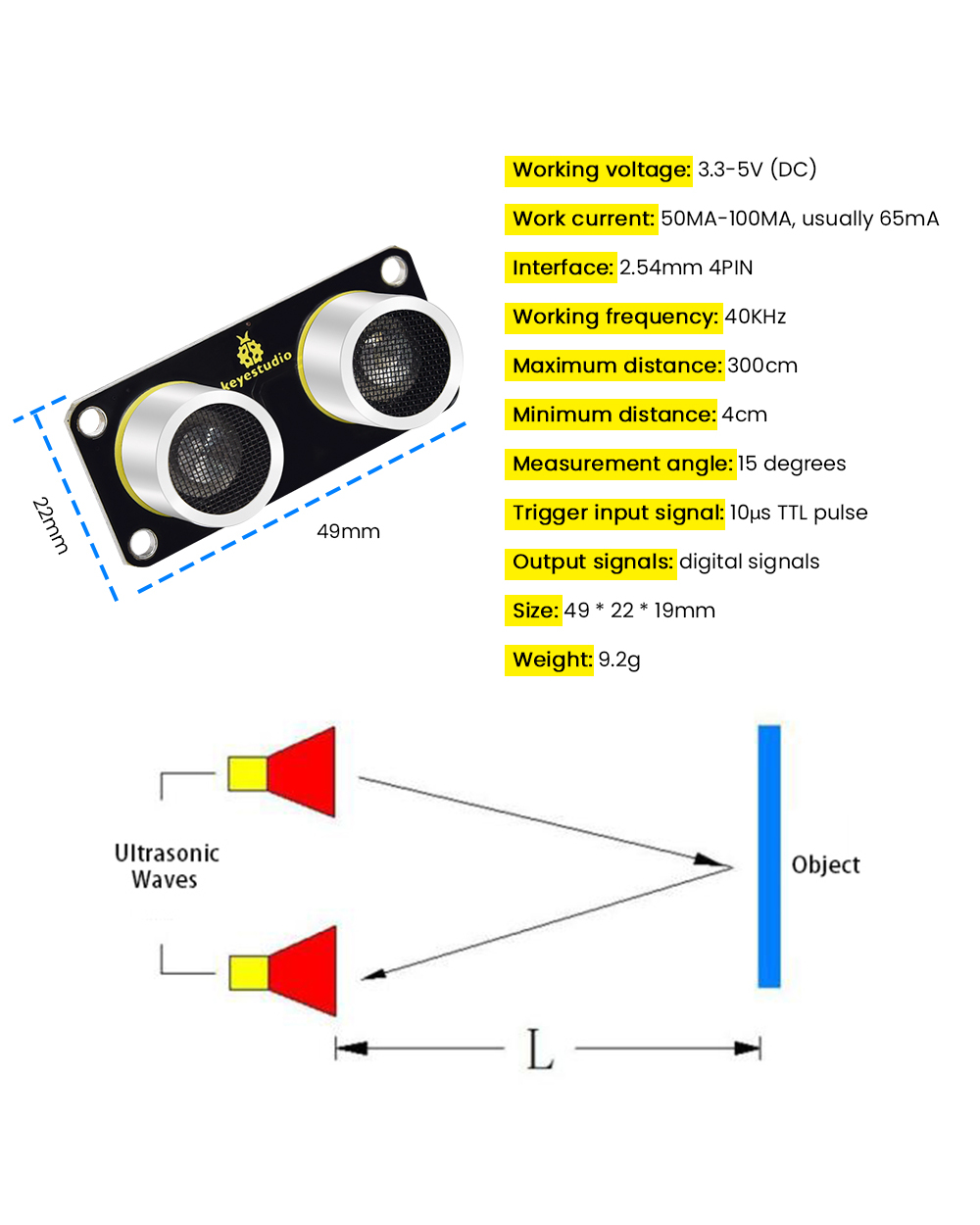

PH2.0 4P Port:

  • Working voltage: 3.3-5V (DC)

  • Work current: 50MA-100MA,usually 65mA

  • Interface: 2.54mm 4PIN

  • Working frequency: 40KHz

  • Maximum distance: 300cm

  • Minimum distance: 4cm

  • Measurement angle: 15 degrees

  • Trigger input signal: 10μs TTL pulse

  • Output signals: digital signals

  • Size: 49 * 22 * 19mm

  • Weight: 9.2g

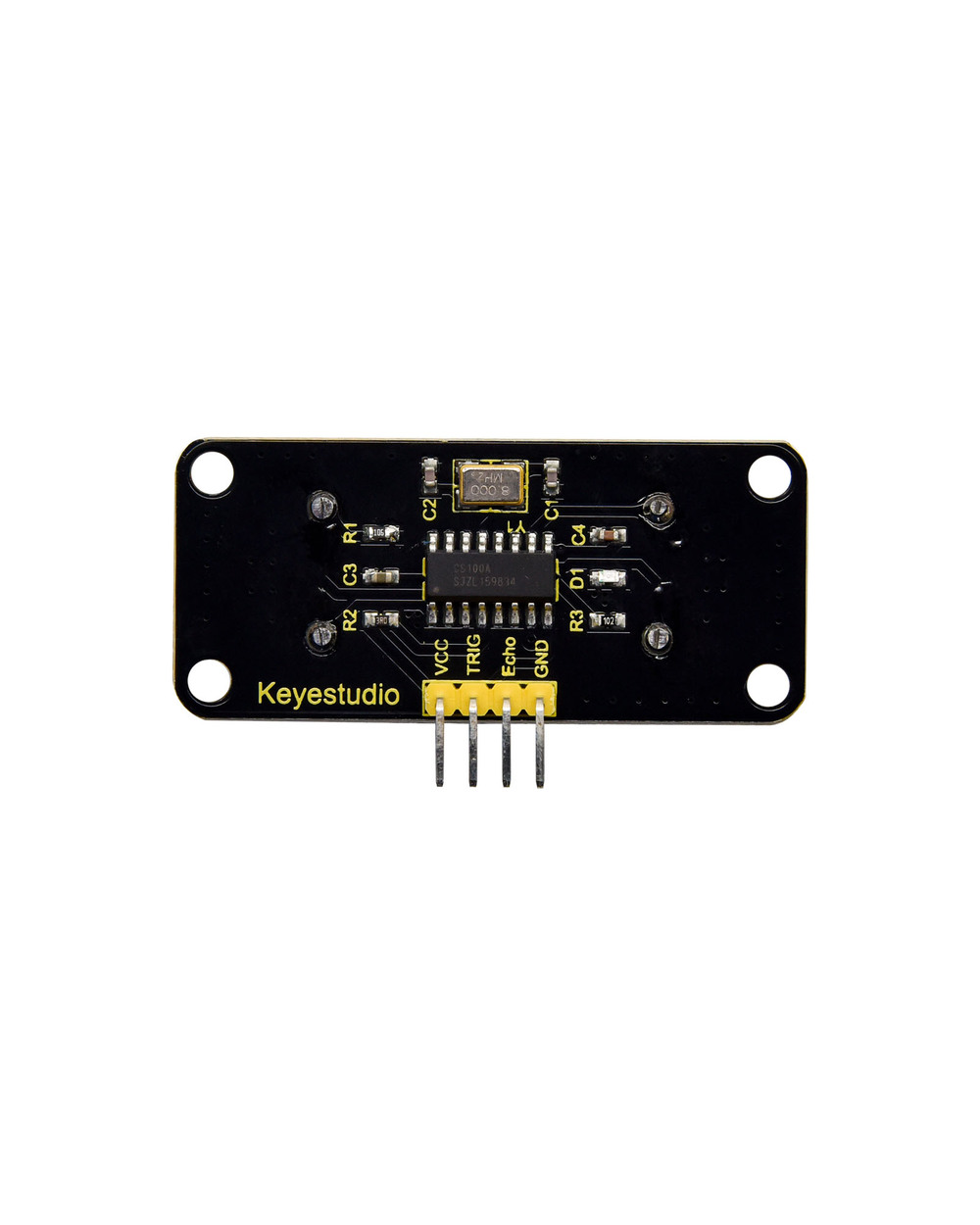

Pin Header Port:


  • Working Voltage: DC 3.3V-5V

  • Working Current: 50mA-100mA

  • Working Frequency: 40KHz

  • Max Power: 0.5W

  • Max Range: 3m

  • Min Range: less than 4cm

  • Measuring Angle: less than 15 degree

  • Trigger Input Signal: 10µS TTL pulse

  • Interface:4 pin port with 2.54mm space

  • Position Holes:the diameter is 3mm

  • Working Temperature: -10℃ - +60℃

  • Size:49mm*22mm*19mm

  • Environmental attributes: ROHS

RJ11 Port:

  • Working voltage: 3.3-5V (DC)

  • Work current: 65mA

  • Working frequency: 40KHz

  • Maximum distance: 300cm

  • Minimum distance: 4cm

  • Measurement angle: 15 degrees

  • Trigger input signal: 10μs TTL pulse

  • Interface: RJ11 interface

  • Size: 49 * 22 * 19mm

  • Weight: 9.2g
