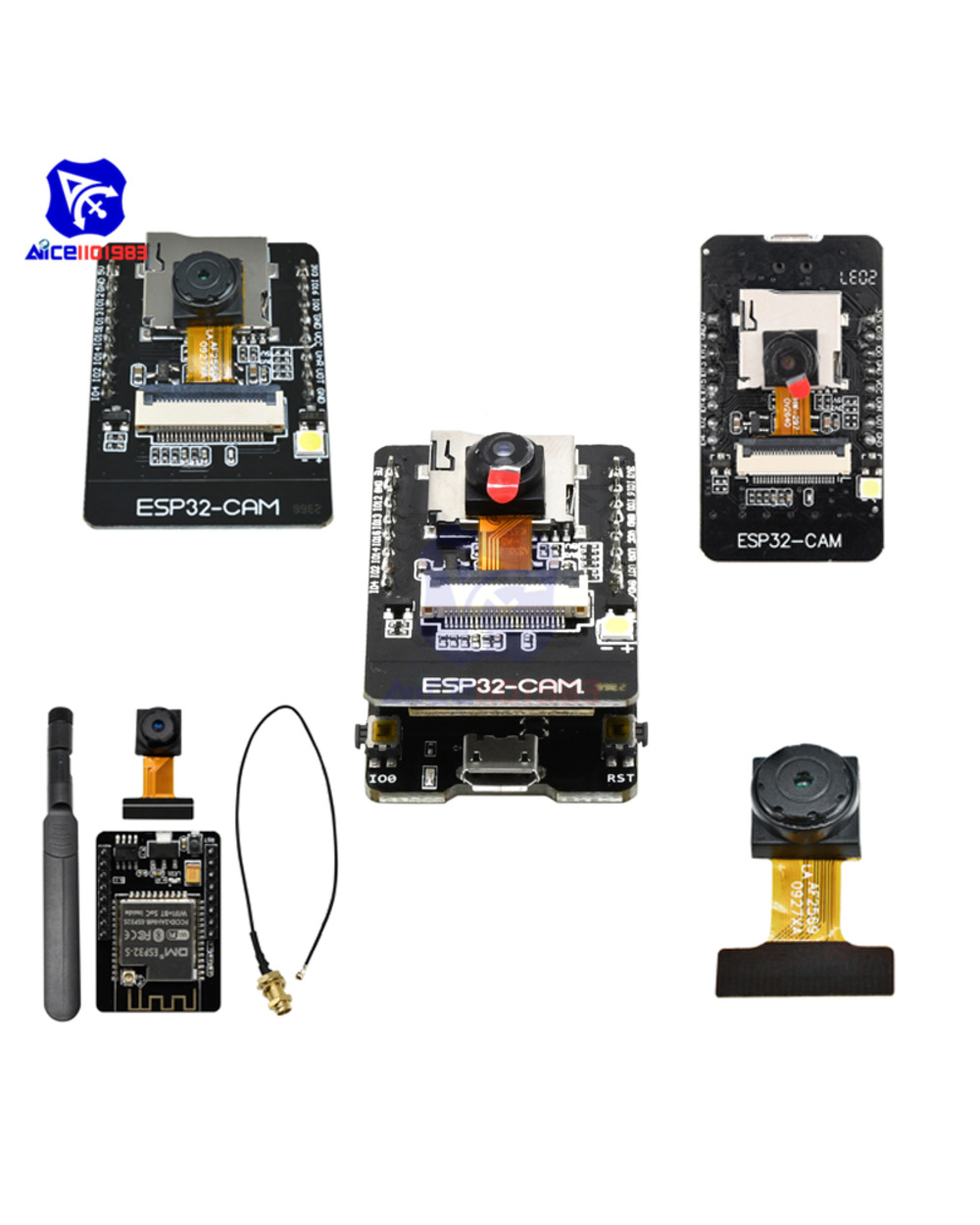

ESP32 Camera ESP32-S Cam Mb/Ch340 Antenna Camera Module Development Kit Board 5v Bluetooth Serial Micro Usb Ov2640 Camera Module



Description

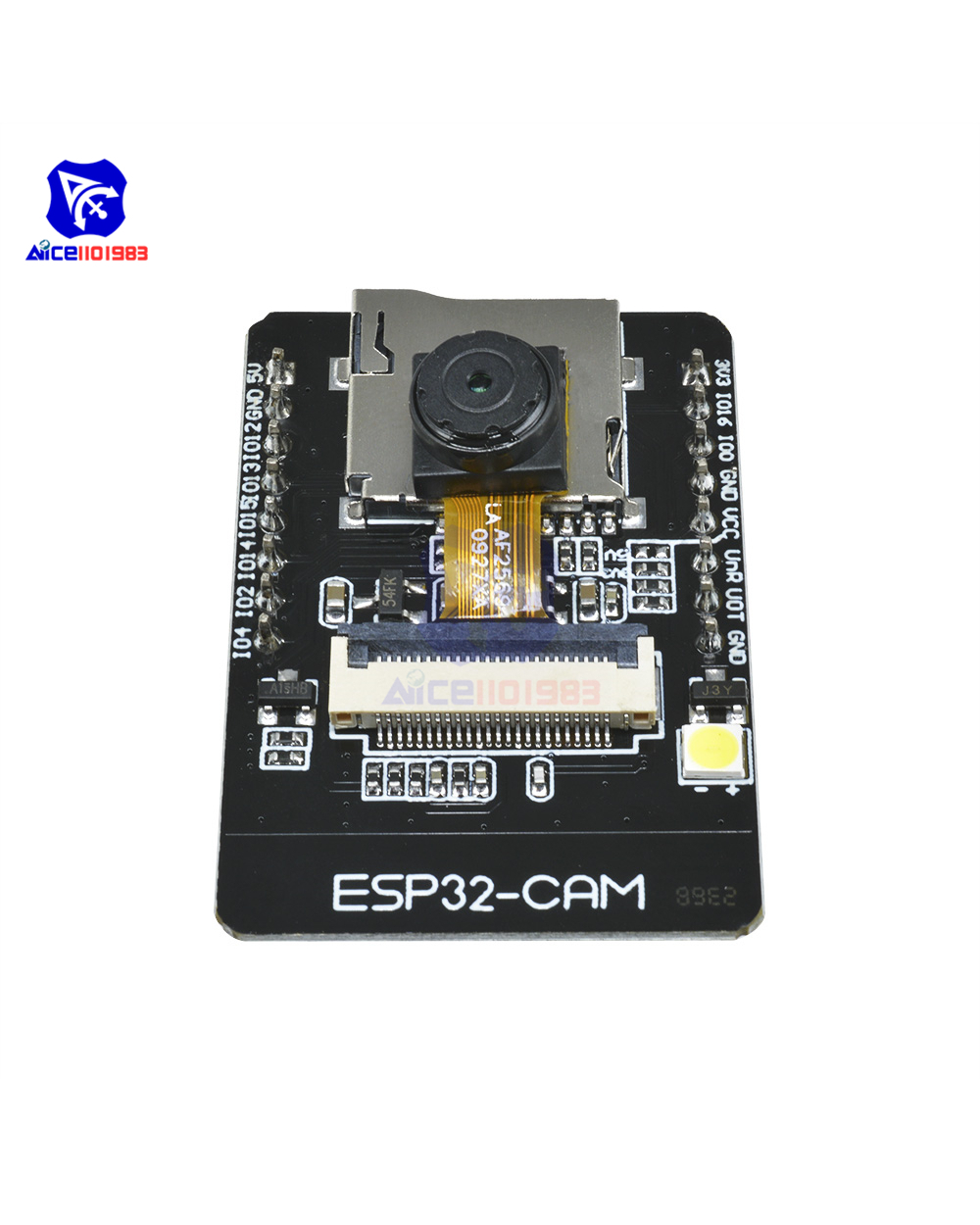

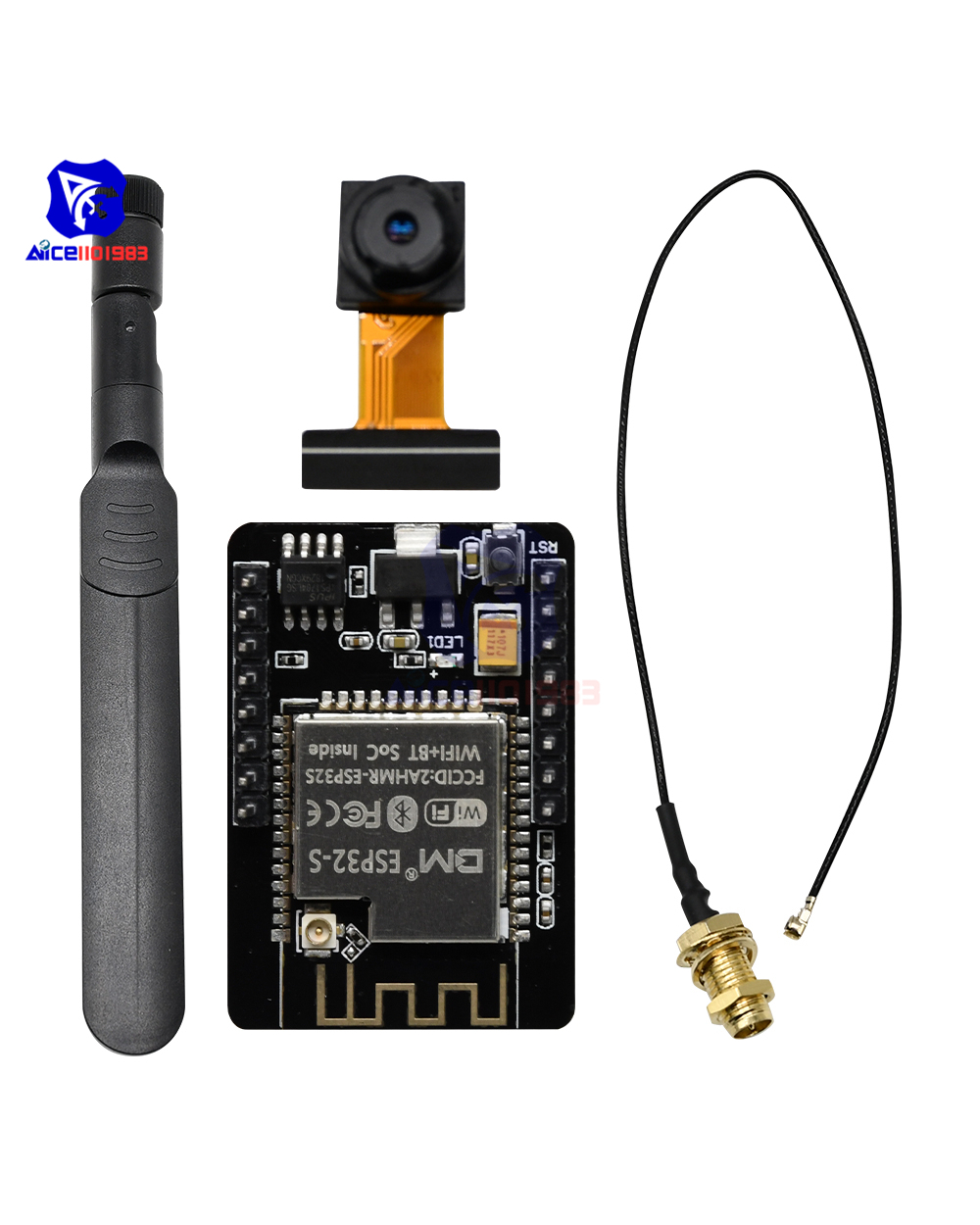

The HK-ESP32-CAM-MB module is a small camera module with a size of 39.8*27*. This module can work independently as the smallest system. A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz. Ultra-low power consumption, deep sleep current is as low as 6mA. It is an ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
HK-ESP32-CAM-MB adopts Micro USB interface, which is convenient and reliable connection method, which is convenient to apply to various IoT hardware terminal occasions.

Performance parameter
1. Adopt low-power dual-core 32-bit CPU, which can be used as an application processor
2. The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
3. Built-in 520 KB SRAM, external 8MB PSRAM
4. Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces

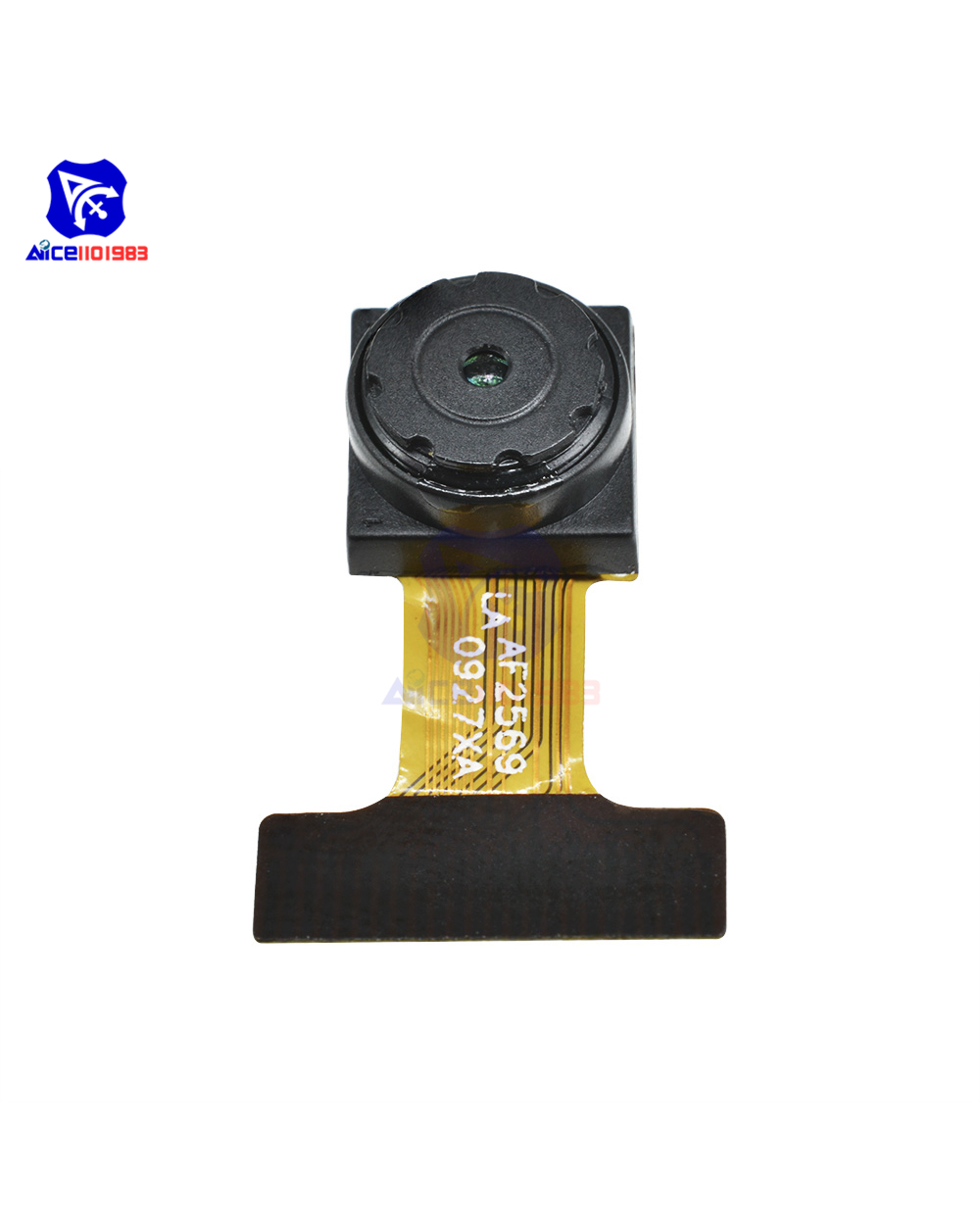

5. Support OV2640 and OV7670 cameras, built-in flash
6. Support picture WiFI upload
7. Support TF card
8. Support multiple sleep modes.
9. Embedded Lwip and FreeRTOS
10. Support STA/AP/STA+AP working mode
11. Support Smart Config/AirKiss one-click network configuration
12. Support secondary development
13.Support for taking pictures
14.Support preview video

Working voltage: 4.75-5.25V
SPIFlash: default 32Mbit
RAM: internal 520KB + external 8MB PSRAM
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: Bluetooth 4.2BR/EDR and BLE standards
Support interface (2Mbps): UART, SPI, I2C, PWM
Support TF card: maximum support 4G
IO port: 9
Serial port speed: the default 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form: onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method: DIP-16
Transmit power: 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity: CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps(3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption: turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security: WPA/WPA2/WPA2-Enterprise/WPS
Working temperature: -20 ℃~ 70 ℃
Storage environment: -40 ℃~ 125 ℃, <90%RH
Weight: 15g

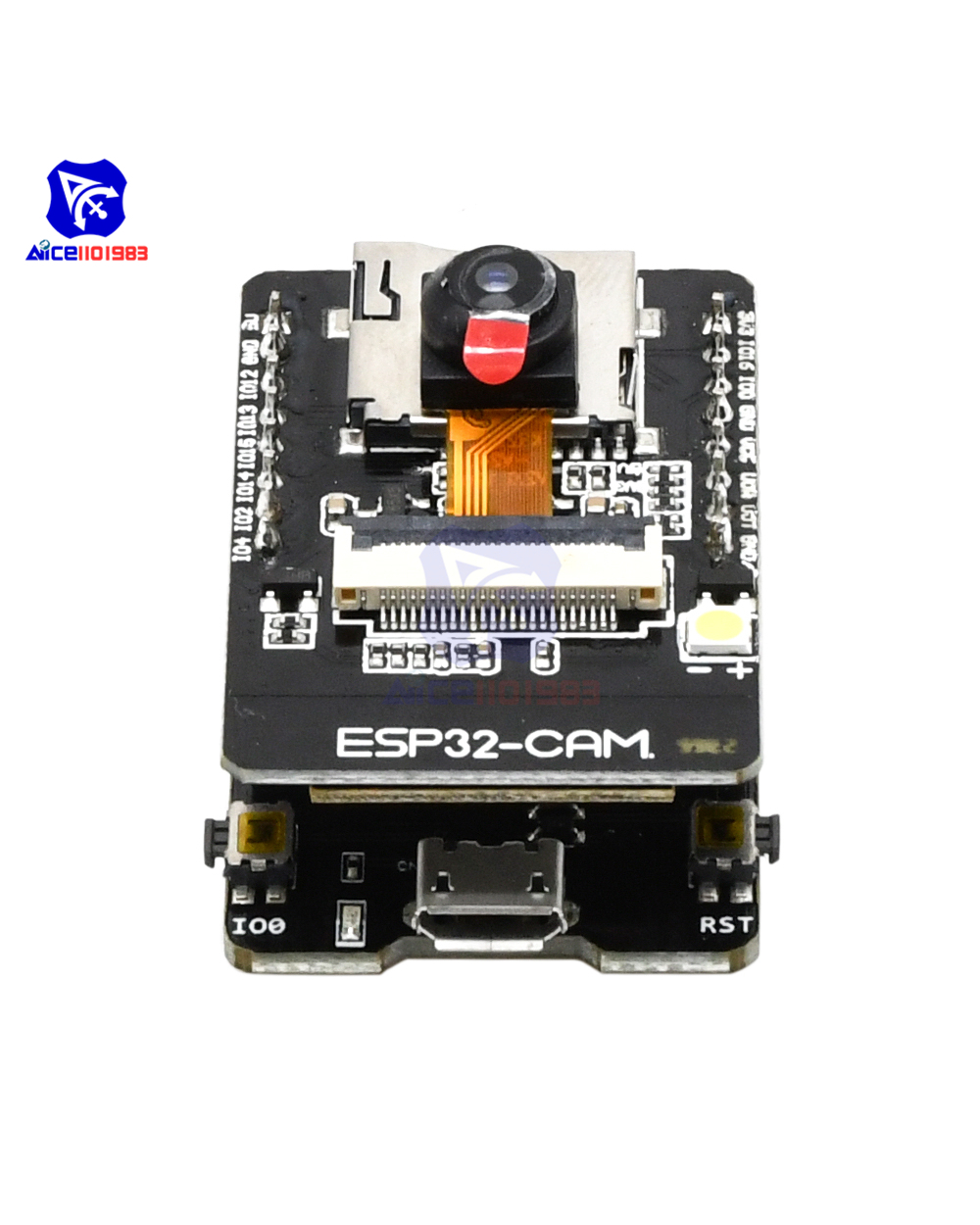

ESP32-CAM-CH340 camera module



This module Integrated ESP32-CAM + CH340 Module
