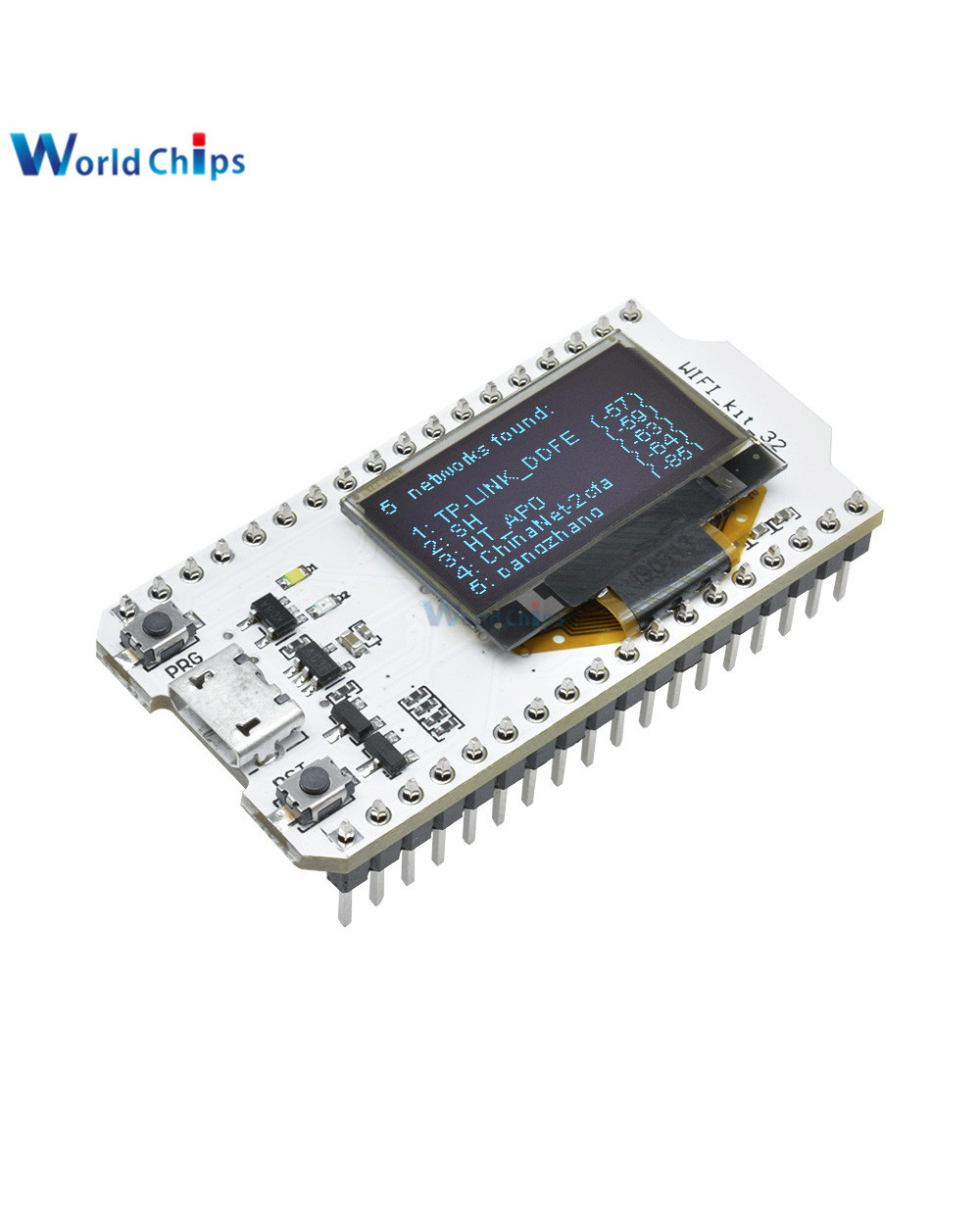

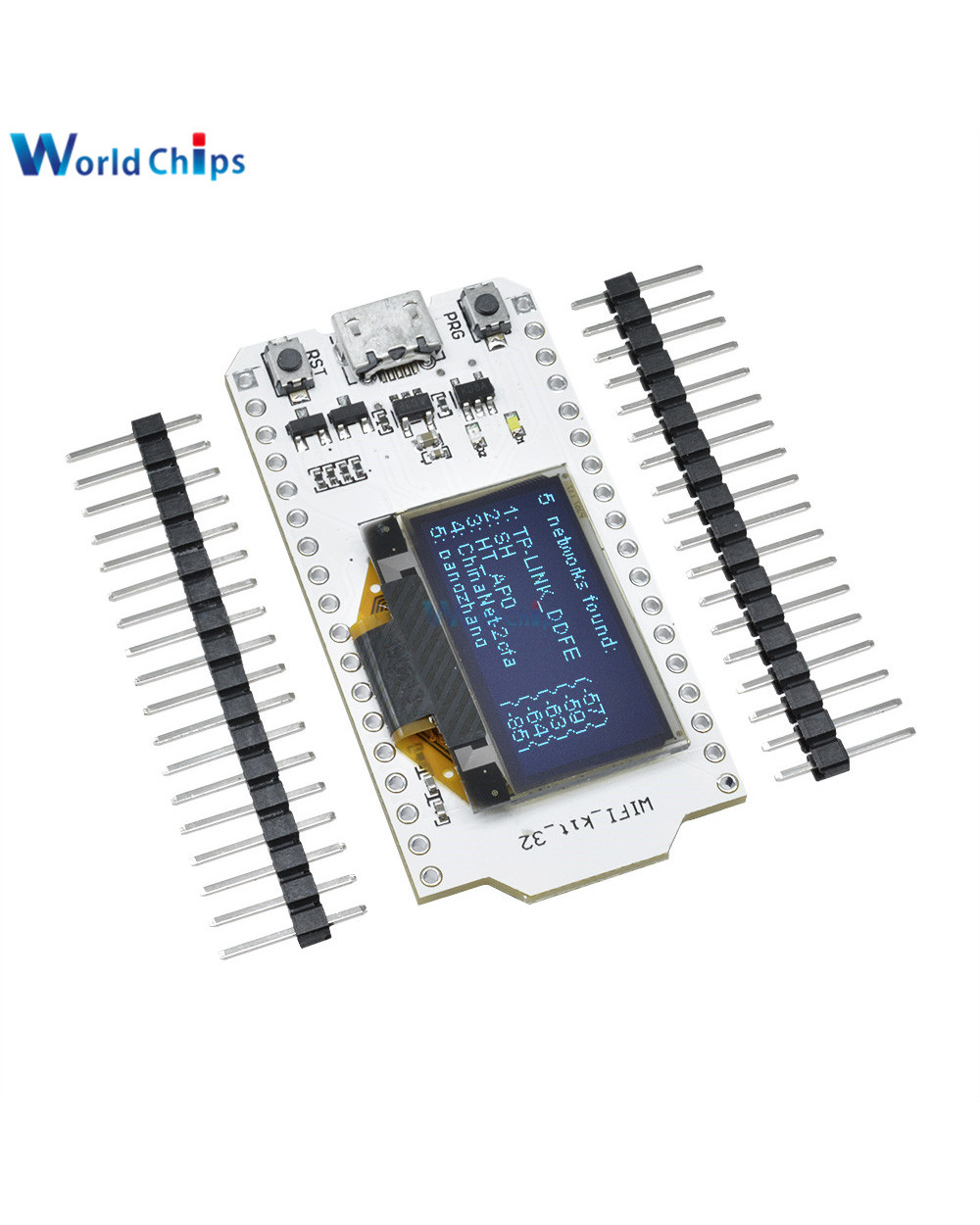

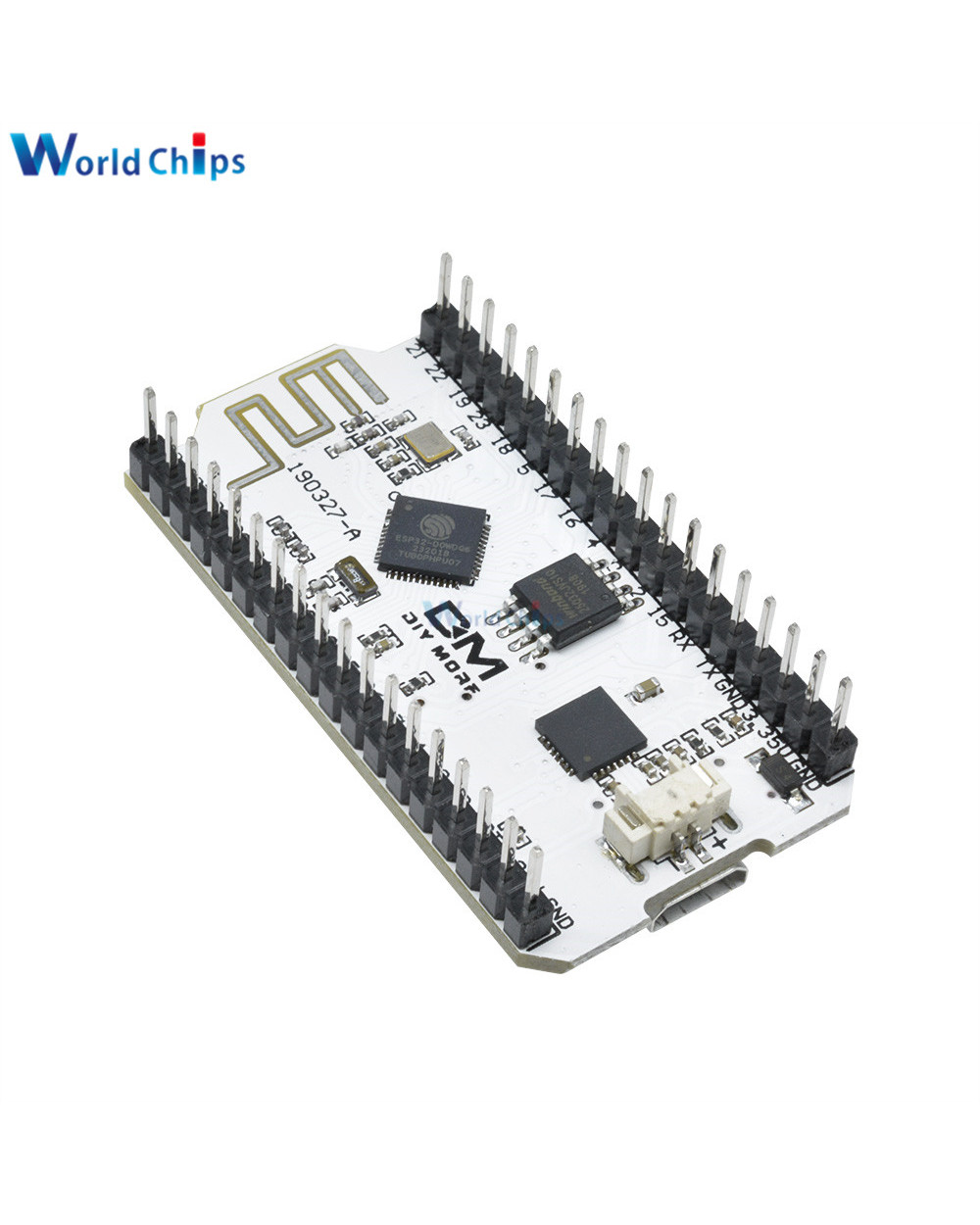

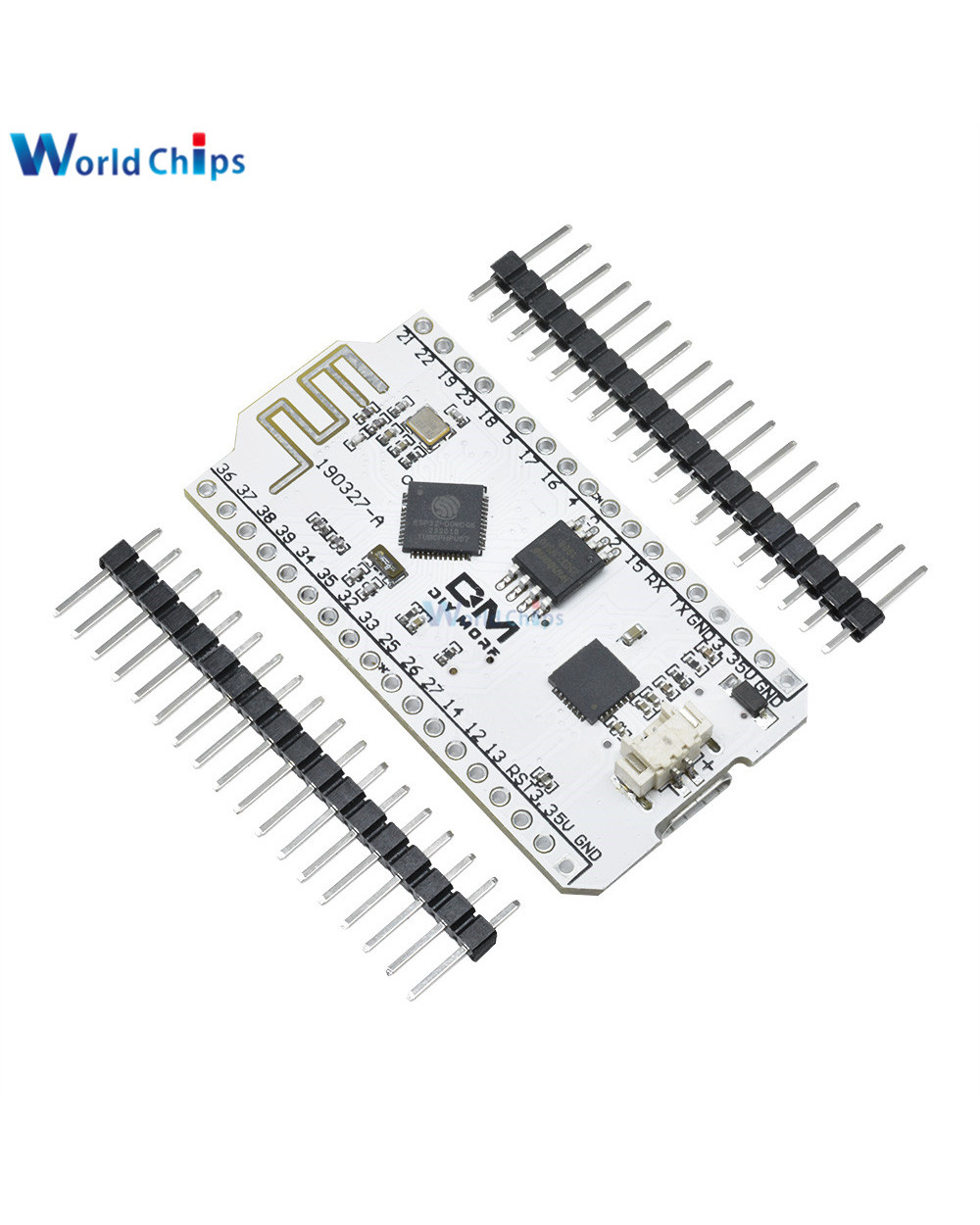

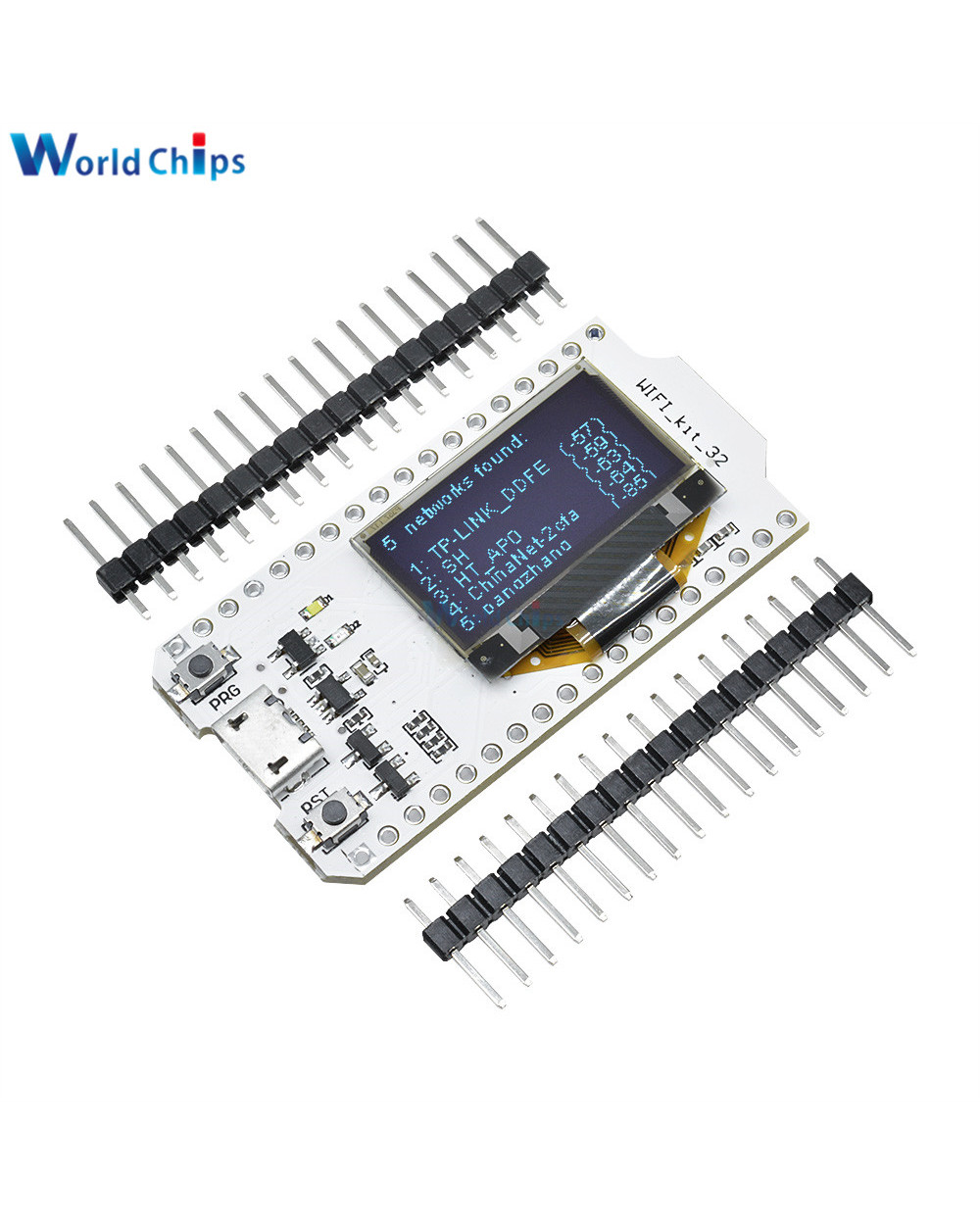

Esp32 Development Board 0.96 Inch Oled Digital Display Bluetooth Wifi Module Cp2102 32M Flash Internet Of Things For Ar

Esp32 Development Board 0.96 Inch Oled Digital Display Bluetooth Wifi Module Cp2102 32M Flash Internet Of Things For Ar

$31.95
2/7
description
product reviews


Description:

WIFI Kit series is the new development of the cost-effective networking program, the main chip using Lexin ESP32, Tensilica LX6 dual-core processor, clocked at 240MHz, computing power up to 600DMIPS, chip built-in 520 KB SRAM, 802.11 b / g / n HT40 Wi-Fi transceiver, baseband, protocol stack and LWIP, integrated dual-mode Bluetooth (traditional Bluetooth and BLE low power Bluetooth). Onboard 32MByte Flash, Wi-Fi antenna, 0.96-inch blue OLED display, lithium battery charging circuit and interface, CP2102 USB to serial chip, perfect support for Arduino development environment.

Operating voltage: 3.3V to 7V
Operating temperature range: -40 ° C to + 90 ° C
Supports Sniffer, Station, softAP and Wi-Fi Direct modes
Data rate: 150 Mbps @ 11n HT40,72 Mbps @ 11n HT20,54 Mbps @ 11g, 11 Mbps @ 11b
Transmit power: 19.5 dBm @ 11b, 16.5 dBm @ 11g, 15.5 dBm @ 11n
Receiver sensitivity up to - 98 dBm
UDP continues to throughput by 135 Mbps

Package Including:

1* ESP32 0.96 Inch Blue OLED Display Bluetooth WIFI CP2102 Module Internet Development Board for Arduino(not include Antenna)
