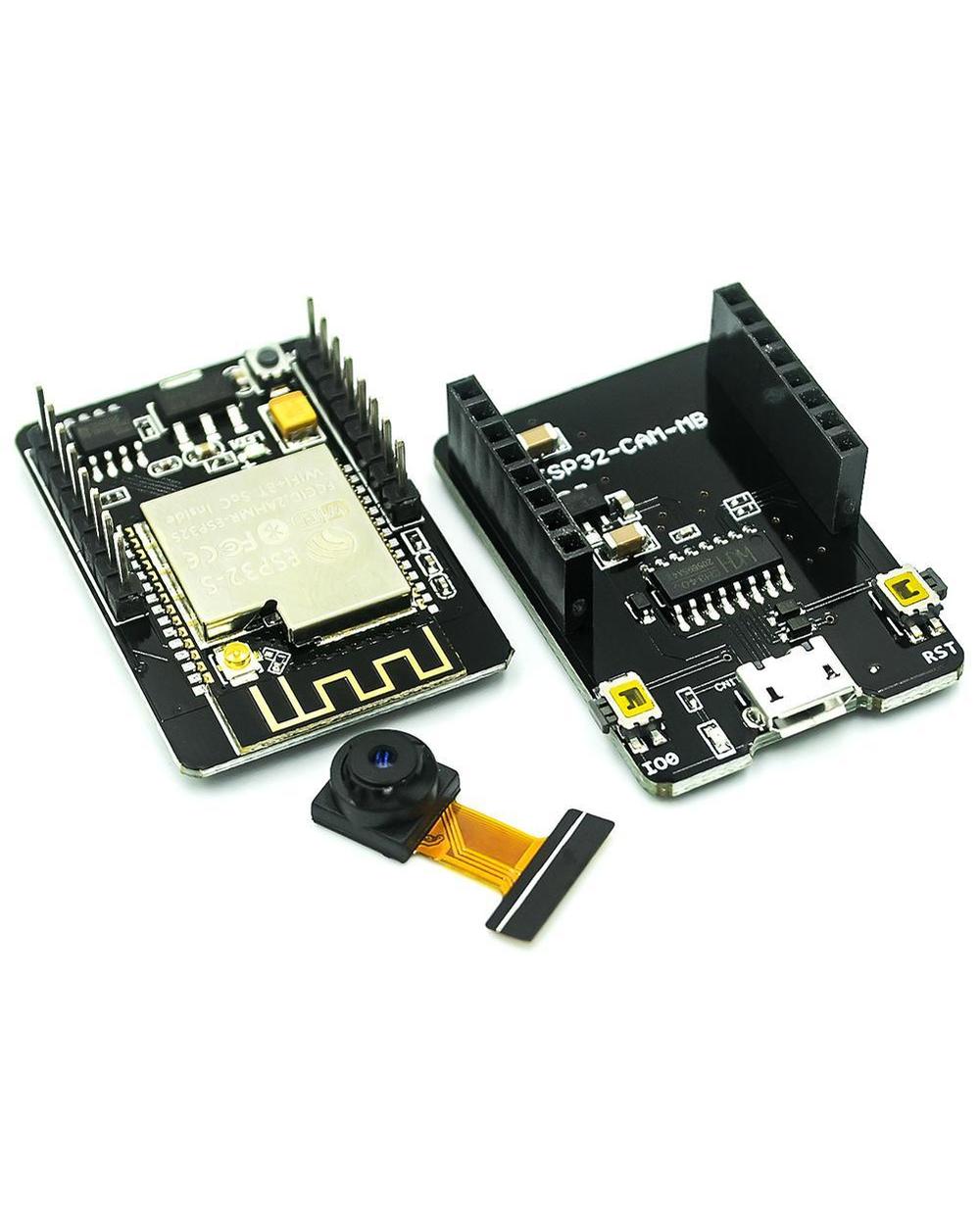

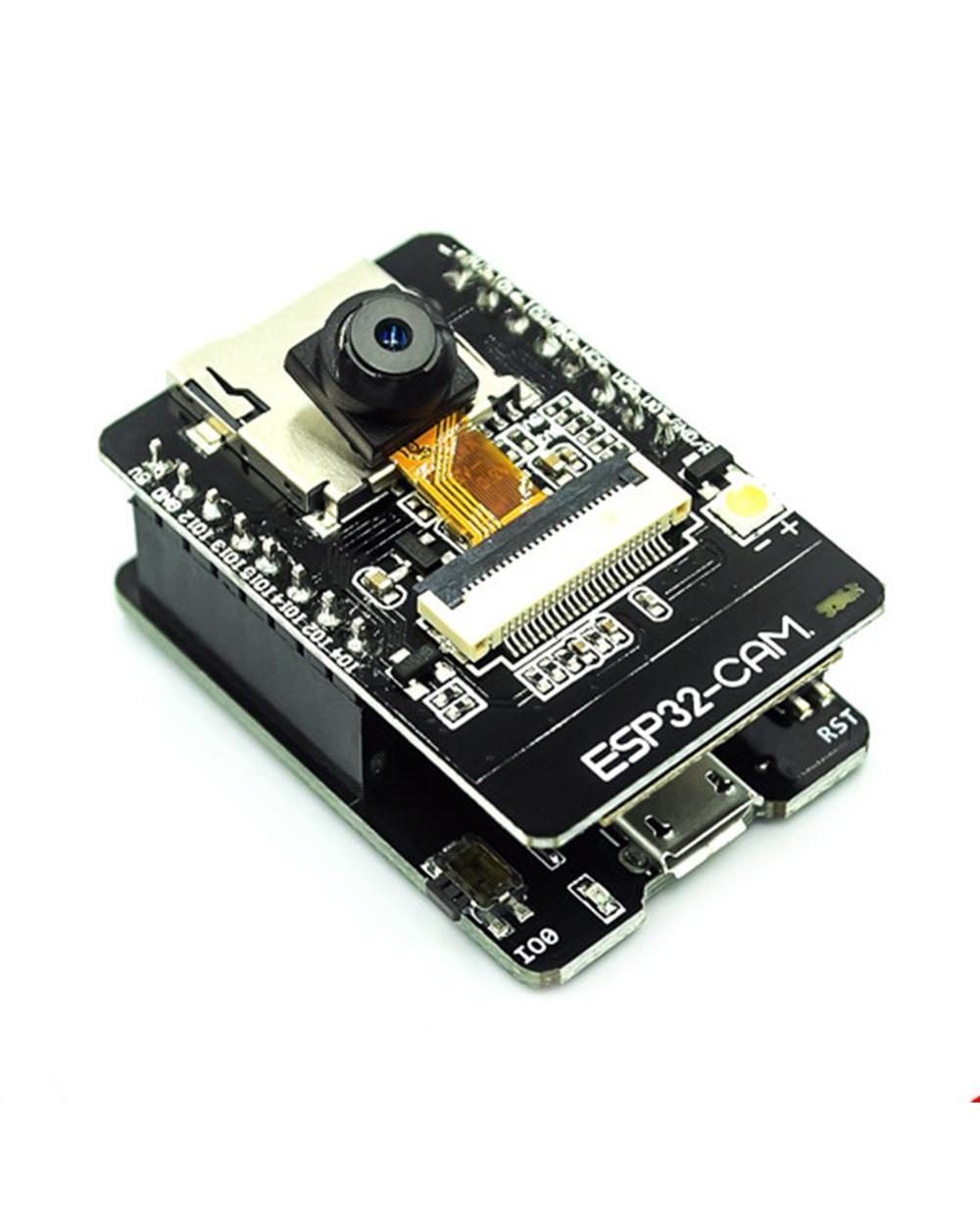

Esp32-Cam Mini Camera Esp32 Cam Mb Wifi Bluetooth-Compatible Development Board Diy Kit Micro Cam With Ov2640 Camera Mod

Esp32-Cam Mini Camera Esp32 Cam Mb Wifi Bluetooth-Compatible Development Board Diy Kit Micro Cam With Ov2640 Camera Mod

$28.95
2/7
description
product reviews

A Type:
Description:
Using low-power dual-core 32-bit CPU, it can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM, external 2MB PSRAM
Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Working voltage: 4.75-5.25V
SPIFlash: default 32Mbit
RAM: Internal 520KB + external 2MB PSRAM
Wi-Fi: 802.11b/g/n/e/i
Bluetooth: Bluetooth 4.2BR/EDR and BLE standard
Support interface (2Mbps): UART, SPI, I2C, PWM
Support TF card: maximum support 4G

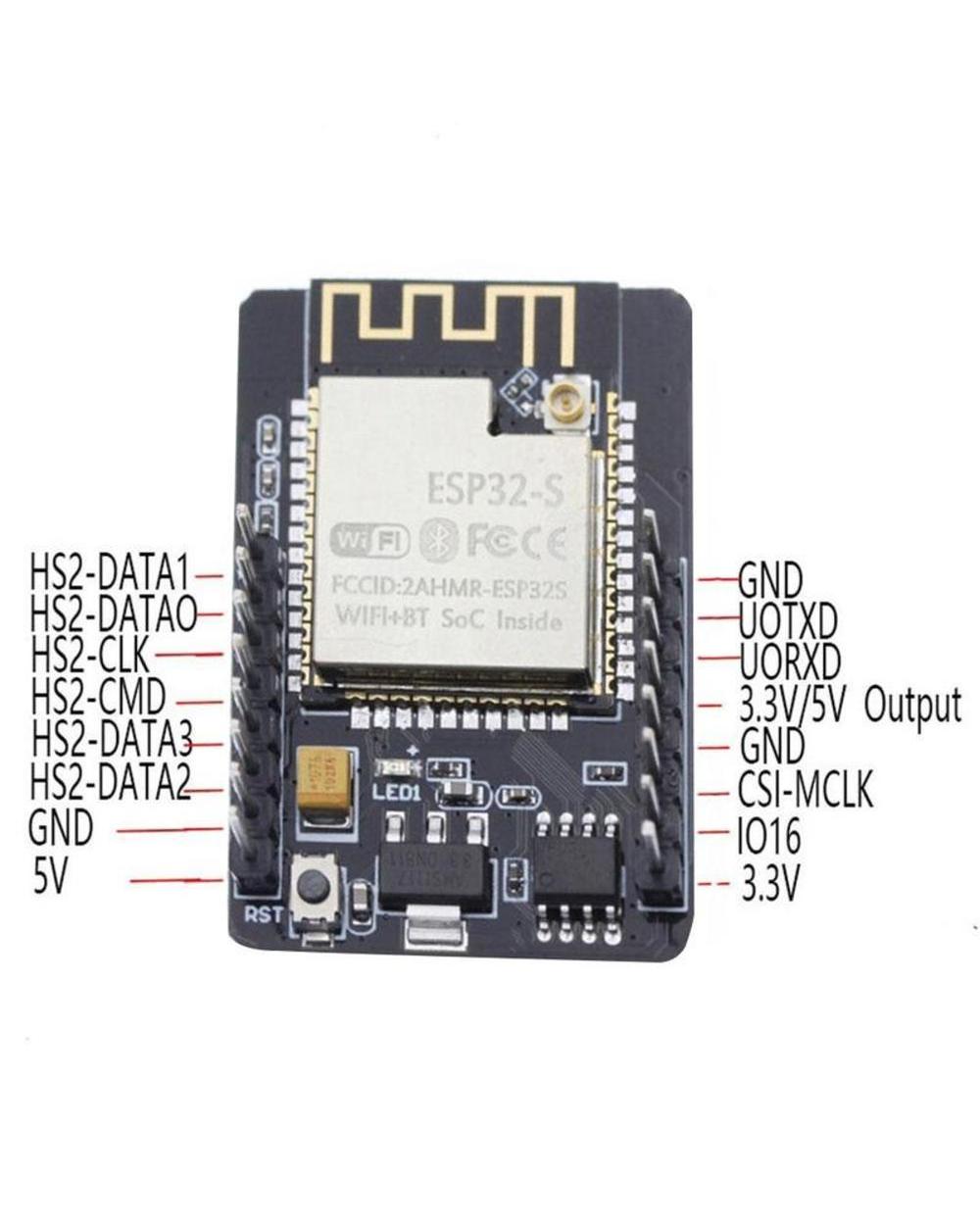

IO port: 9
Serial port rate: default 115200bps
Spectrum range: 2400 2483.5MHz
Antenna form: onboard PCB antenna, gain 2dBi
Image output format: JPEG (only supported by OV2640), BMP, GRAYSCALE
Package method: DIP-16
Transmit power: 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps(3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Moderm-sleep: the lowest can reach 20mA@5V
Light-sleep: The lowest can reach 6.7mA@5V
Security: WPA/WPA2/WPA2-Enterprise/WPS
Working temperature: -20 ℃ 70 ℃
Storage environment: -40 ℃ 125 ℃, 90%RH
Package contains
1pcs ESP32-CAM development board with OV2640 module


B Type:
Description:
100% Brand New and High Quality
Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
- Low-power dual-core 32-bit CPU for application processors
- Up to 240MHz, up to 600 DMIPS
- Built-in 520 KB SRAM, external 4M PSRAM
- Supports interfaces such as UART/SPI/I2C/PWM/ADC/DAC
- Support OV2640 and OV7670 cameras with built-in flash
- Support for images WiFI upload
-Support TF card
- Support multiple sleep modes
- Embedded Lwip and FreeRTOS
- Support STA/AP/STA+AP working mode
- Support Smart Config/AirKiss One-click distribution network
- Support for serial local upgrade and remote firmware upgrade (FOTA)
Specifications:
The ESP32-CAM has a very competitive small-size camera module that can operate independently as a minimum system, measuring only 27*40.5*4.5mm, with deep sleep current and a minimum of 6mA.
ESP-32CAM can be widely used in various IoT applications. It is suitable for home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, wireless positioning system signals and other IoT applications. It is an ideal solution for IoT applications.
ESP-32CAM is packaged in DIP and can be directly plugged into the backplane for quick production. It provides customers with a highly reliable connection method and is convenient for use in various IoT hardware terminals.
Package Included:
1 x ESP32-CAM Module
1 x Camera Module OV2640
Notes:
This product contains the OV2640 Camera Module. If you need to use the OV7670 camera, please purchase it separately.



C Type:
ESP32s development board module SUNLEPHANT wireless WiFi + Bluetooth 2 in 1 dual-core CPU
ESP32 integrates antenna switches, RF balun, power amplifiers, low noise amplifiers, filters and power management modules. The entire solution occupies a small printed circuit board area. 2.4 GHz Wi-Fi and Bluetooth dual-mode chip
Using TSMC low-power 40nm technology, power performance and radio frequency performance, safe and reliable, easy to extend to various applications.
Cost-effective
small volume. Easy to embed into any product
Powerful, support LWIP protocol, freertos
Support three modes: AP, STA, AP+STA coexistence mode
Lua programming makes your development easier
The package includes:
1*ESP32s development board module
