DSP PLL Digital Stereo FM Radio Receiver Module 76-108MHz Frequency Modulation Auto Storage Digital Noise Reduction DC 3-5V


Description:

1. Adopt DSP And FM PLL Technique

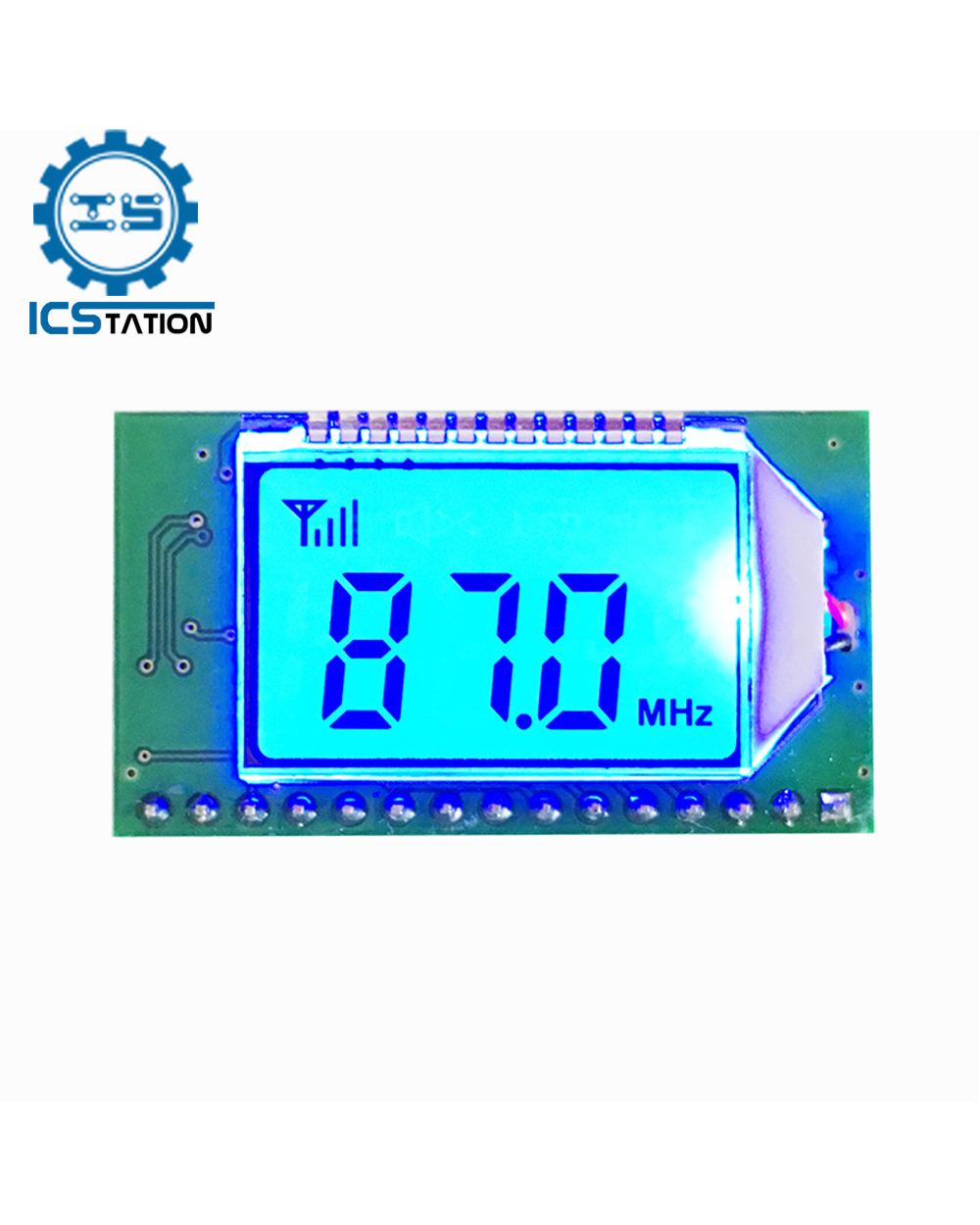

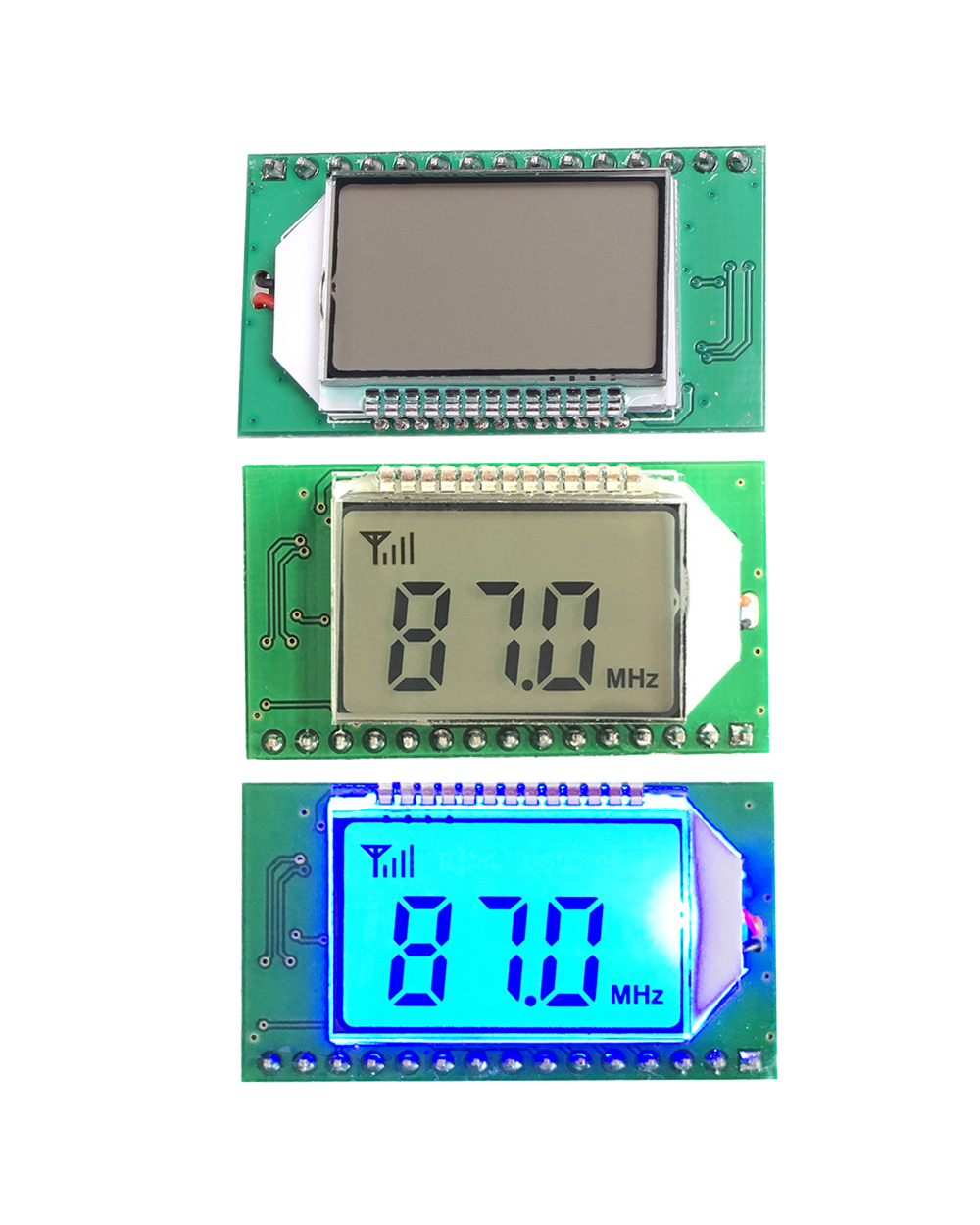

2. LCD Display
3. Automatic Radio Station Searching And Storage
4. Built-In 30 Levels Digital Volume Adjustment
5. Power Off Automatic Memory Previous Data
6. Support Serial Port AT Instruction Control
7. Adopt Quartz Crystal Stabilizing Frequency
8. Full-Frequency Band Automatic Searching Signal Frequency Band And Memory


Parameter:

1. Output power: 500mW (drive headphones)
2. Frequency range: 50Hz-18KHz
3. Channel: Stereo
4. Reception frequency adjustment range: 87.0-108.0MHz (campus radio off), 76.0-108.0MHz (campus radio on)
5. Equivalent noise: ≥30dB
6. Supply voltage: 3.0V-5.0V
7. Current: 40 mA

Receiver Frequency Setting:

- In the power-off state, press V +, V- at the same time, then connect to the power;

- If the screen display C1, it means the campus broadcast band is on, the reception frequency is 76.0MHz-108.0MHz;

- If the screen display C0, it means the campus broadcast band is off, the reception frequency is 87.0MHz-108.0MHz.

- Restart the power supply then the setting is effective
