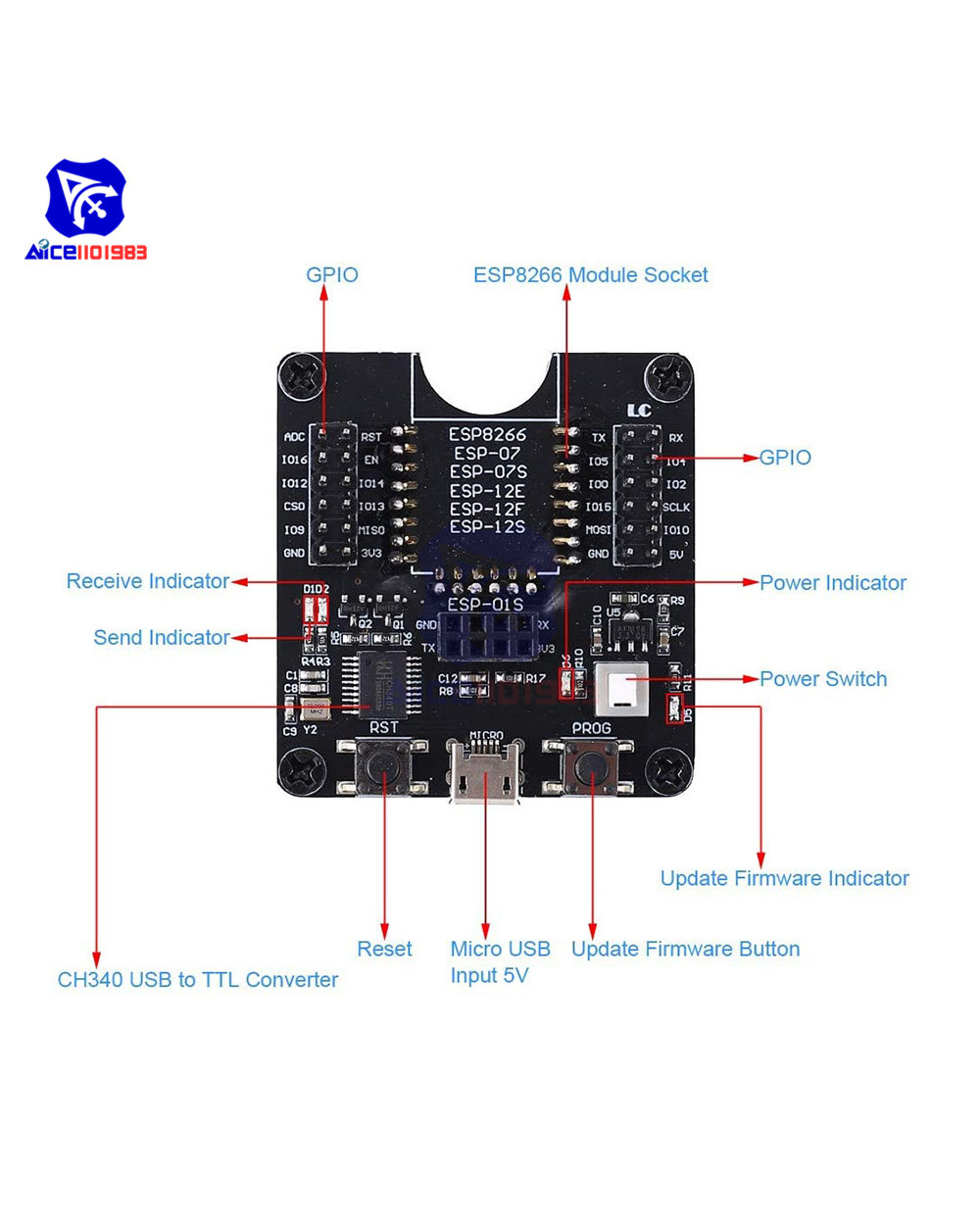

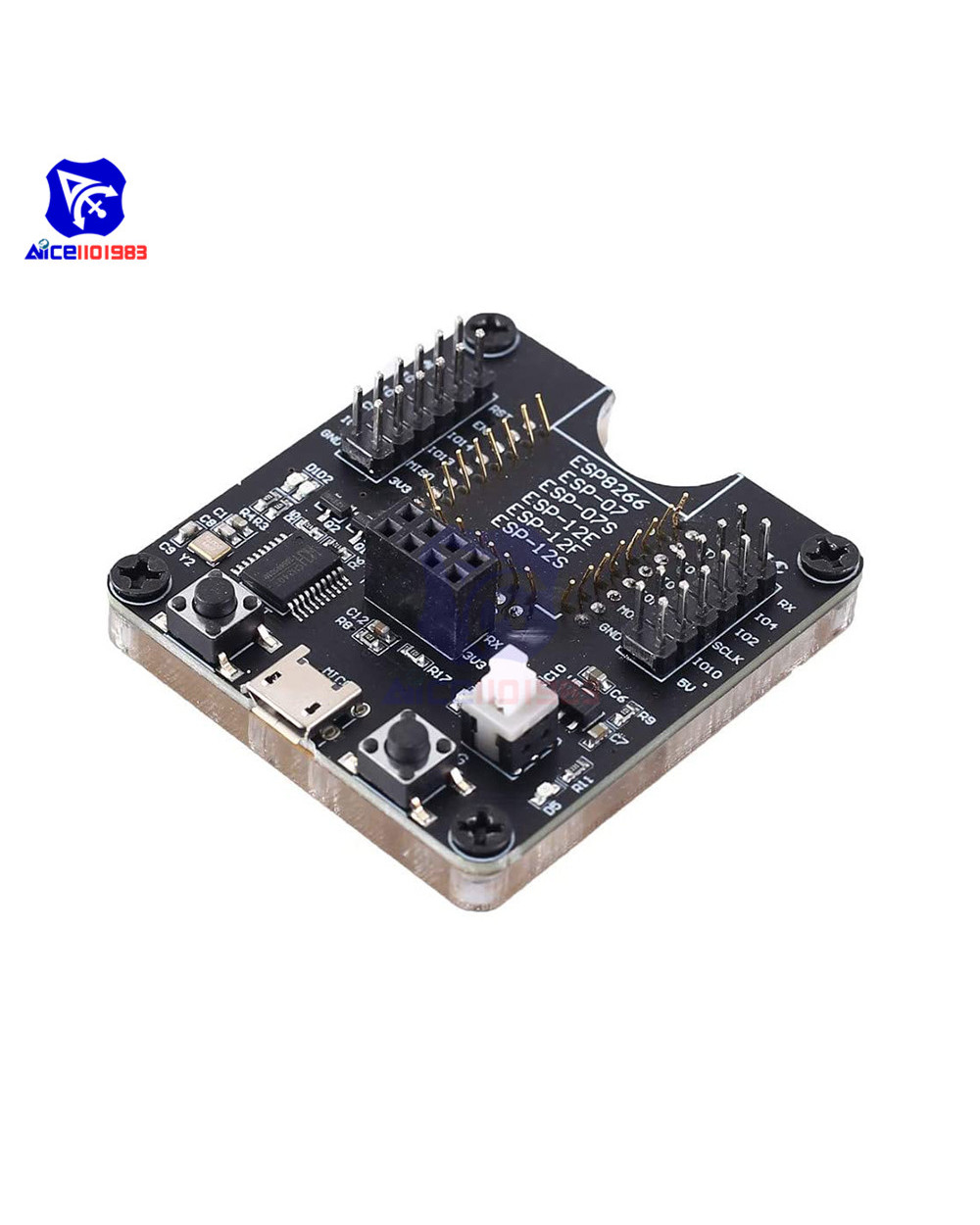

ESP-WROOM-32 ESP8266 Burning Fixture Development Board ESP-01/01S/07/07S/12E/12F/12S/18T Easy Programer for Arduino[ESP8266 Test Buring Development Board]

Description:
It is a Downloader for ESP-12S/12F/12E/07S/07S/01S/01 WIFI Wireless Module. It has output all GPIO ports for user debugging.
Install CH340 UART Driver Software on PC. Download FLASH tool 'ESP FLASH DOWN LOAD TOOL'. Insert ESP8266 module on Shiled.
Connect module to PC by USB cable.
Chip clip fixing, Super simple operation, Repeatedly used.
Feature:
Super simple operation
Repeatedly used
Chip clip fixing
Parameter:
Work Voltage: DC 5V
Receiver Indicator: Yes
Transmitter Indicator: Yes
Power Indicator: Yes
Downloading Indicator: Yes
Suitable model: ESP-12S/ESP-12F/ESP-12E/ESP-07S/ESP-07S/ESP-01S/ESP-01
Work Temperature: -25 -85℃
Download automatically:
Open FLASH download tool.
Set software parameters as shown.
Click START button on software to download firmware.
Manual download:
Open FLASH download tool.
Set software parameters as shown.
Keep press PROG button about 5second.
Then short press Reset button.
Click START button on software to download firmware.
Package Included:
1 * Downloader Tester Shield for ESP8266 ESP-12S/ESP-12F/ESP-12E/ESP-07S/ESP-07S/ESP-01S/ESP-01

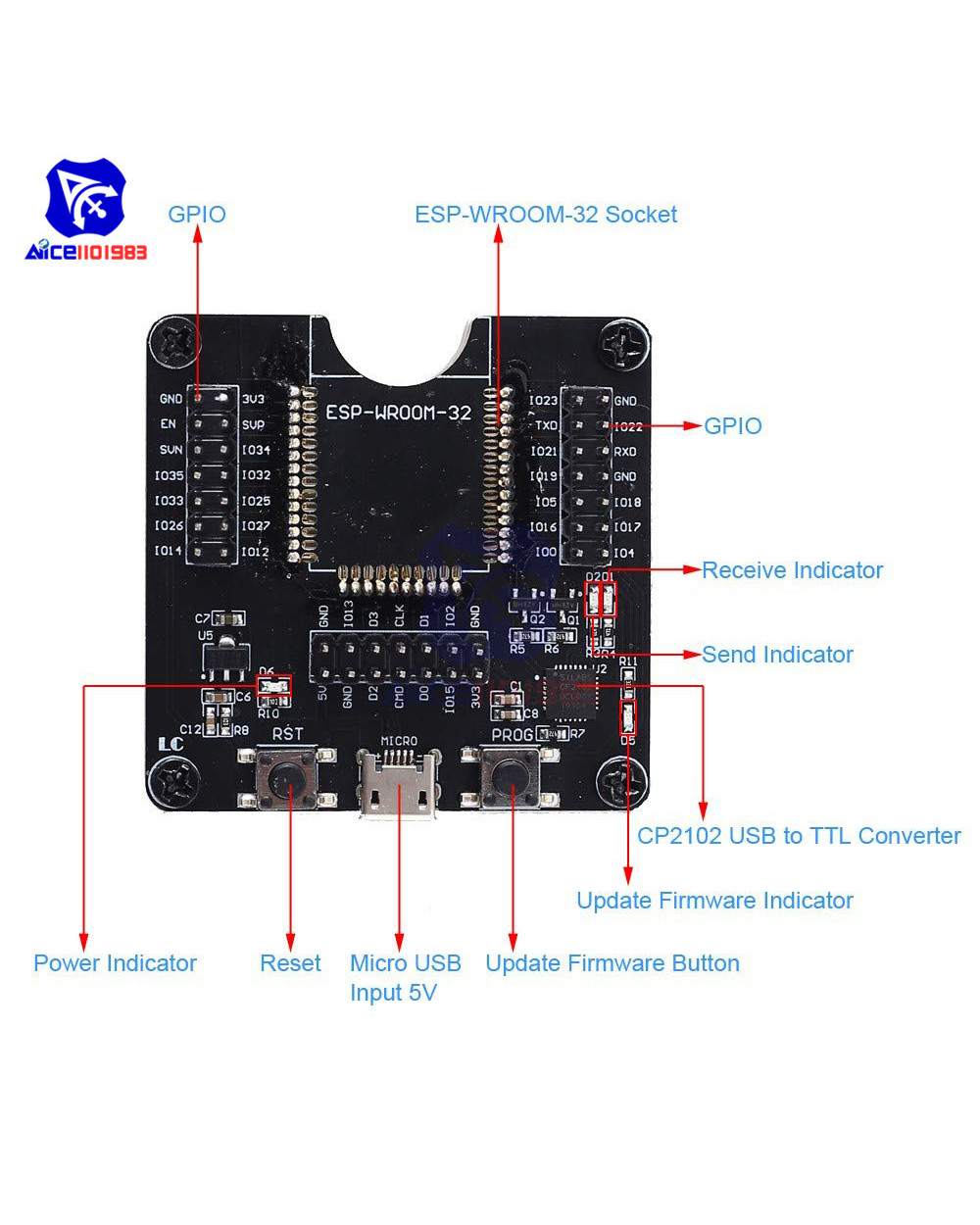

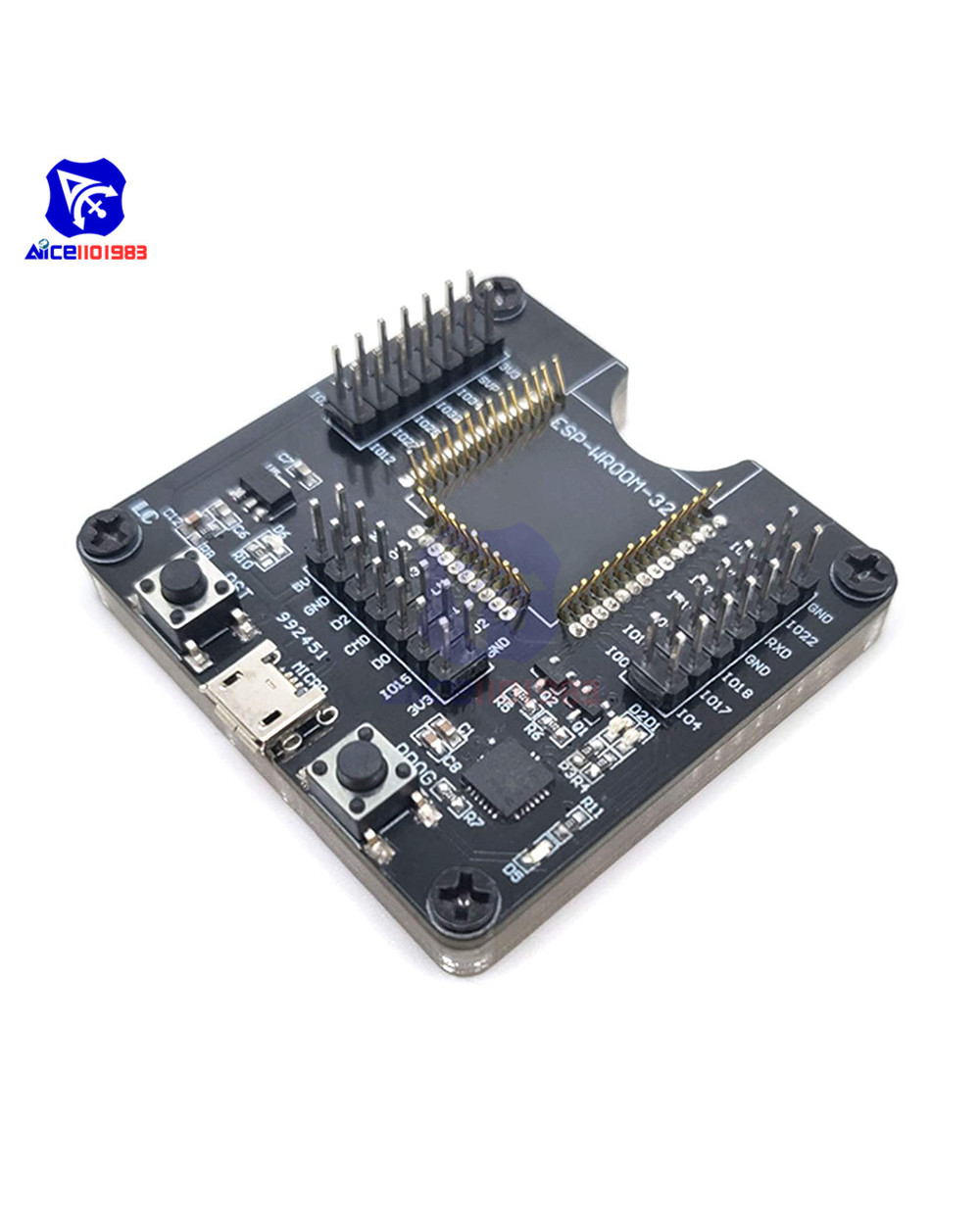

[ESP-WROOM-32 Test Burning Development Board]
Description:
It is a Downloader for ESP-WROOM-32 ESP-32 WIFI Wireless Module.It has output all GPIO ports for user debugging.
Feature:
Super simple operation
Repeatedly used
Chip clip fixing
Parameter:
Work Voltage: DC 5V
Receiver Indicator: Yes
Transmitter Indicator: Yes
Power Indicator: Yes
Downloading Indicator: Yes
Suitable model: ESP-WROOM-32, ESP-WROOM-32D, ESP-WROOM-32U, ESP32-SOLO-1
Work Temperature: -25 -85℃
Work Humidity: 5% -95%RH

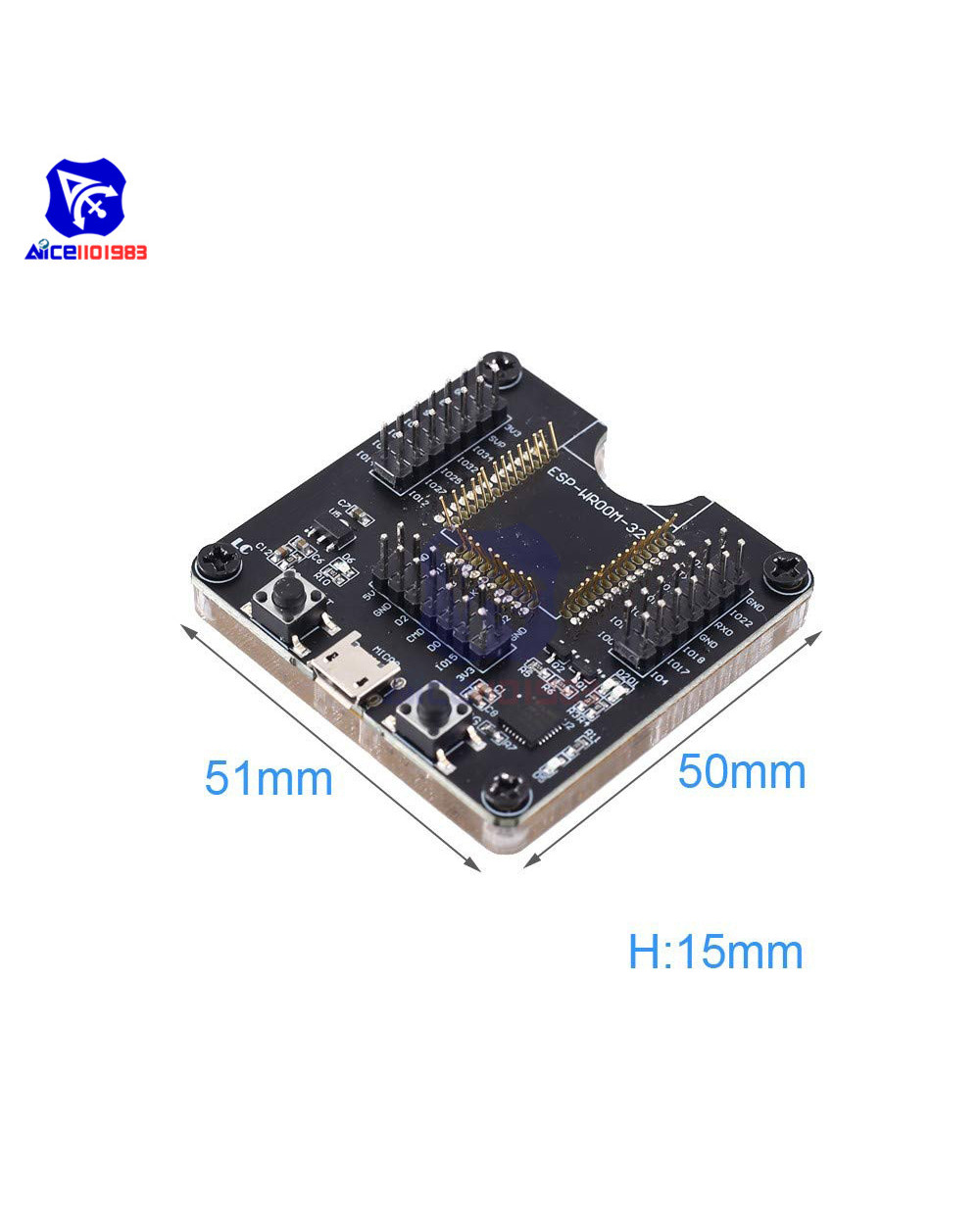

Size: 51*50*15mm
Use Step:
Install CP2102 UART Driver Software on PC.
Download FLASH tool 'ESP FLASH DOWN LOAD TOOL'.
Insert ESP-WROOM-32 or ESP-WROOM-32D or ESP-WROOM-32U orESP32-SOLO-1 on Module.
Connect module to PC by USB cable.
Download automatically:
Open FLASH download tool.
Set software parameters.
Click START button on software to download firmware.
Manual download:
Open FLASH download tool.
Set software parameters.
Keep press PROG button about 5second.
Package Included:
1 * Downloader Tester Shield for ESP-WROOM-32
