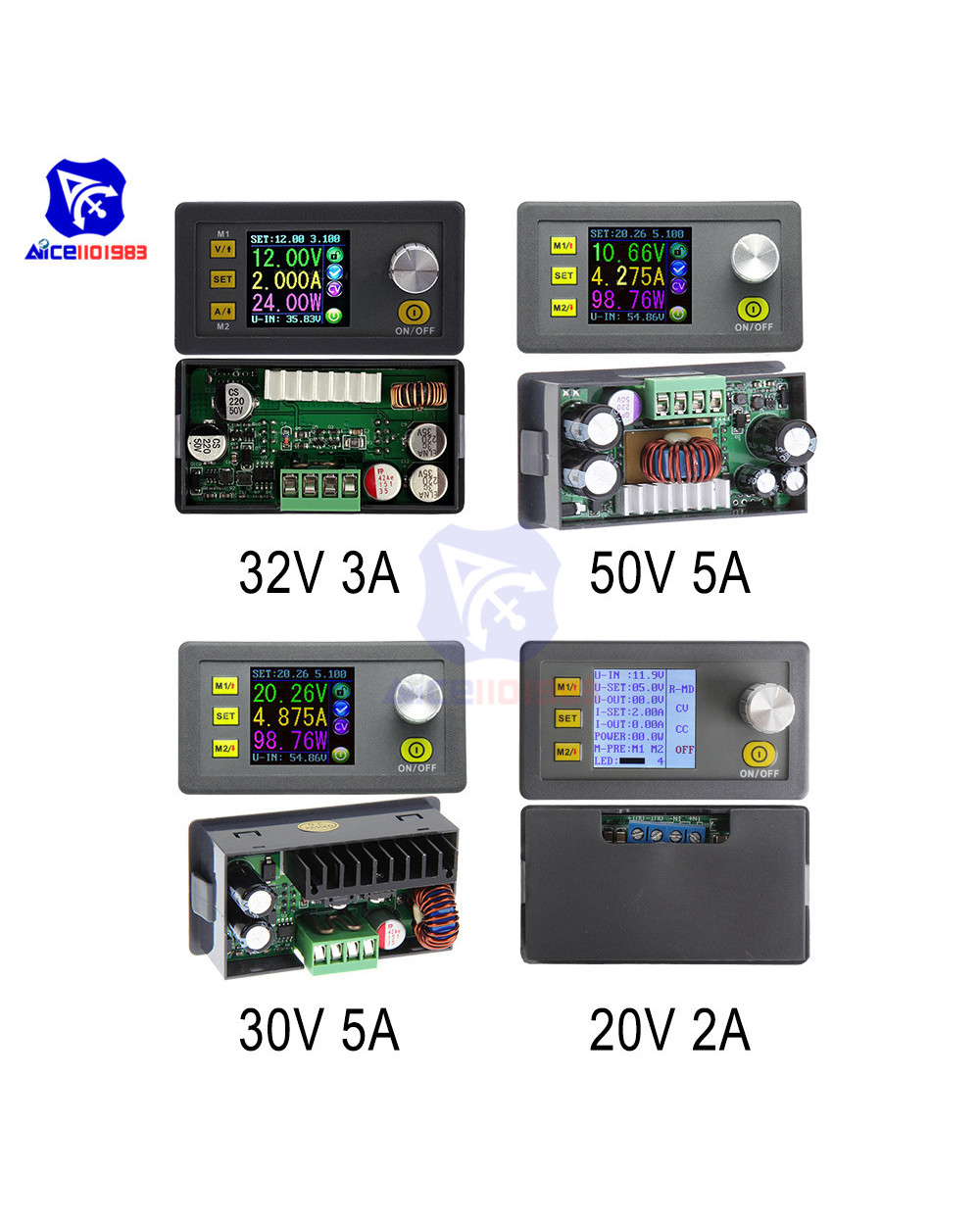

Diymore Dps5005/Dps3005/Dps3003/Dp50v5a/Dp20v2a Digital Adjustable Programmable Step-Down Buck Converter Power Supply M

Diymore Dps5005/Dps3005/Dps3003/Dp50v5a/Dp20v2a Digital Adjustable Programmable Step-Down Buck Converter Power Supply M

$53.95
2/7
description
product reviews

[DP20V2A]

Parameter:
Dimension: 79mm*42mm*26mm (L*W*H)
Open size: 71mm*39mm
Output current :0-2.00A
Output power : Max 40W
Ripple frequency: About 330 KHz
Input voltage range : 4.5-23V ( please make sure input voltage below 23V)
Output voltage range : 0V-20.0V( Step down mode, input voltage must be higher than 3V), the control button can fast display 2 sets data.
Ripple peak to peak value : 50mv (typical value)

Display introduction:
U-IN: input voltage
U-SET: preset voltage
U-OUT: output voltage
I-SET: Preset current
I-OUT: output current
POWER: output power
M-PRE: shortcut store
LED: background brightness
M1: shortcut store1
M2: shortcut store 2
S-MD: setting the mode
R-MD: normal operation
ON/0FF: open/shut down the module output

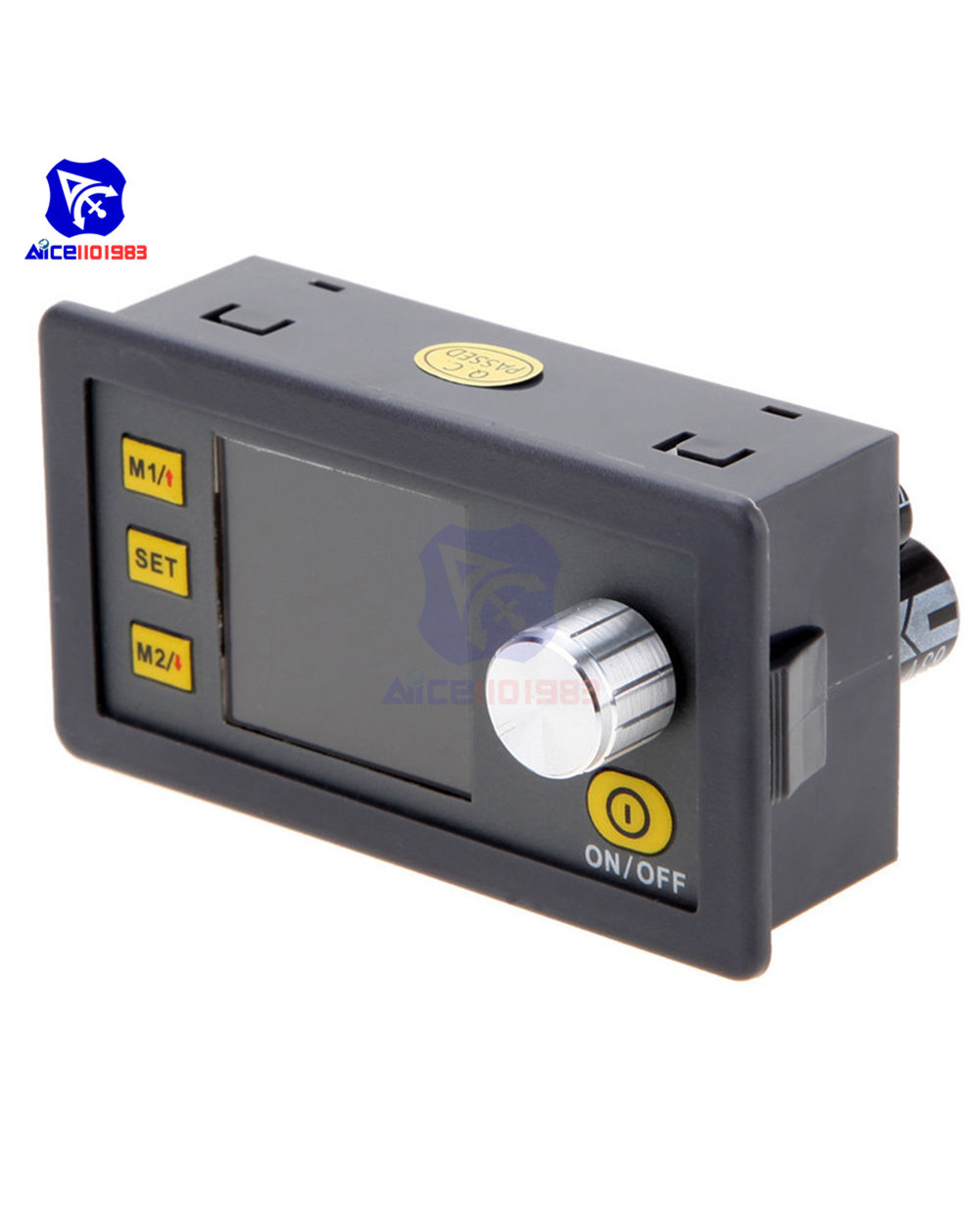

Key function instruction:
SET: Function setting, function confirmation;
M1/↑: Shortcut extract M1 stored data/Upturning to choose/shortcut store.
M2/↓: Shortcut extract M2 stored data/Page down to choose/shortcut store
ON/OFF: open or close voltage output.

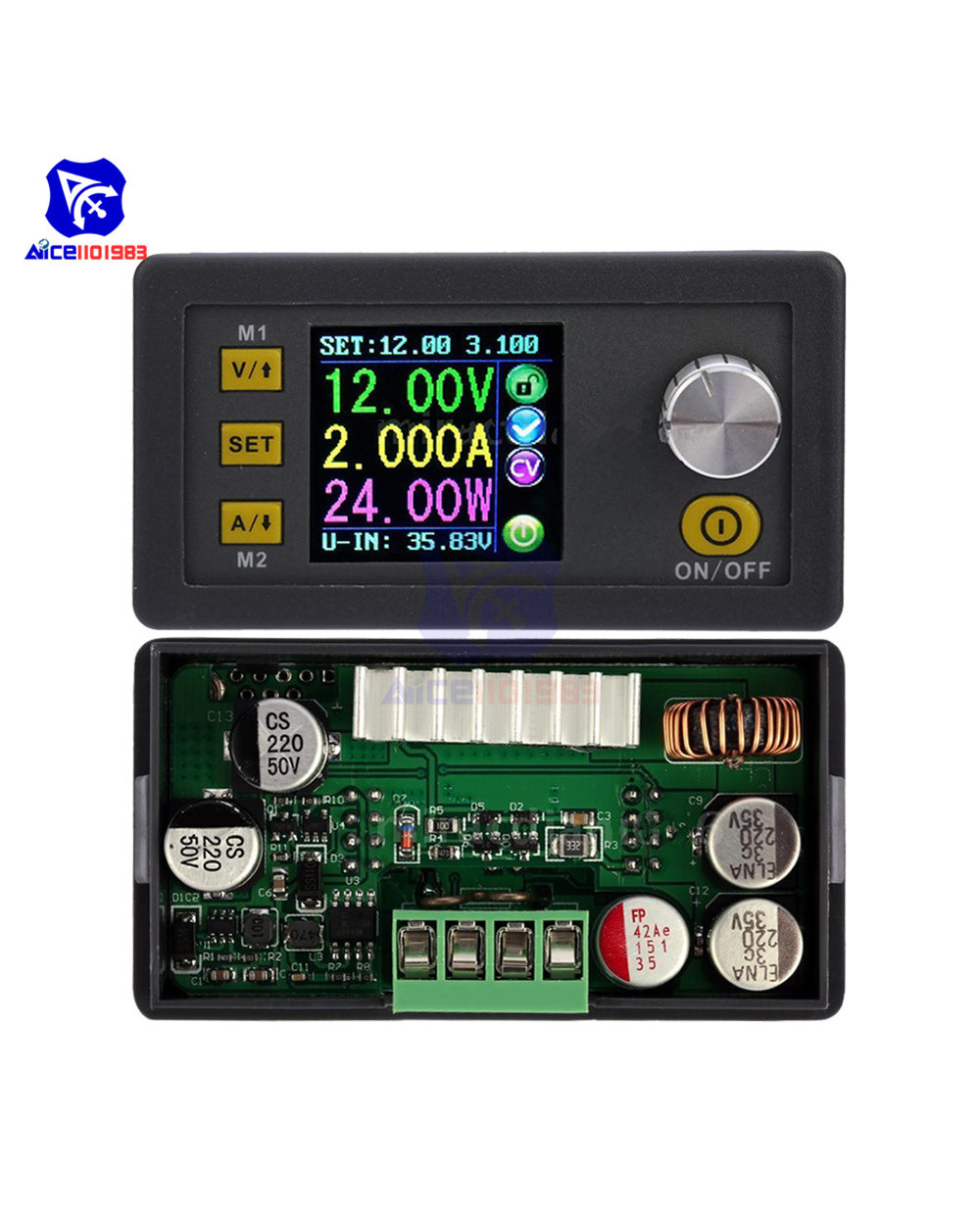

[DPS3003]

Description:
This constant voltage and constant current programmable control power module combines analog integration with digital control. The module has a power-down storage function that can store 10 sets of preset values and extract 2 sets of stored values. With LCD display, users can view preset voltage / current, output voltage / current, output power, input voltage and so on. This product is small in size, advanced in function, good in visual effect, high in operability and high in precision. It can be used independently or in a wide range of applications.

Feature:
Quickly operate voltage and current settings.
Combine analog integration with digital control.
The adjustable output voltage range is 0V-32V / 50.00V (optional) and the adjustable output current range is 0-3.000A / 5.000A (optional).
Set the default startup to turn the output on or off.
The module can store 10 sets of preset values and can quickly extract 2 sets of preset values.
LCD display and voltage / ammeter function, you can view the preset voltage / current, input voltage, output voltage / current, output power and so on.
In the output status display area, you can easily understand whether the output is working, constant voltage/current output status, current data group extraction, etc.
With advanced features, high precision, and a wide range of applications, the project is truly practical.

Note:
It is best to make the input voltage below the maximum value. Value, otherwise the item may be damaged.

Specification:
Model: DPS3003
Input voltage DC6-40V
Output voltage: 0-32.00V
Output current: 0-3.000A
Output power: 0-96W
Voltage resolution: 0.01V
Current resolution: 0.001A
IN +: Input positive
IN-: Enter a negative number
OUT +: output is positive
OUT-: output negative
Product size: 8 * 4.2 * 4.5cm / 3.1 * 1.7 * 1.8in

[DPS3005]

Description:
FDP30V5A Buck Adjustable DC Power Module with Integrated Voltmeter Ammeter Color Display

Parameter:
Input voltage range: 6.00-40.00V
Output voltage range: 0V-32.00V
Output current: 0-5.000A
Output power range: 00.00-160.0W
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output voltage accuracy: ± (0.5% + 1 digit)
Output current accuracy: ± (0.5% + 2 digits)

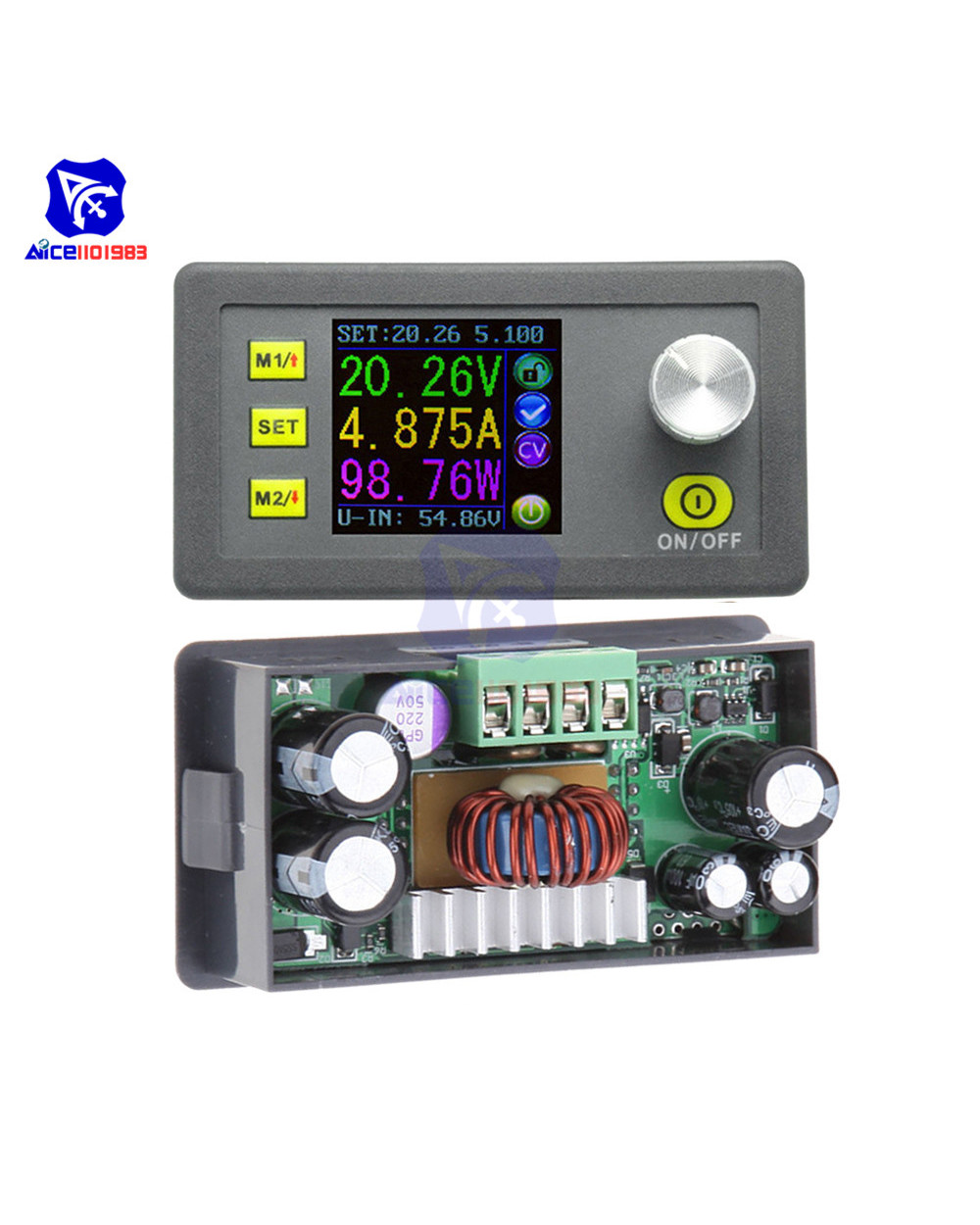

[DP50V5A]

Description:
This constant voltage and constant current programmable control power supply module makes analog integration and digital control functions combined in one.

Specification:
Input voltage: 6-55V
Output power: 0-250W
Output voltage: 0V-50.00V
Output current: 0-5.000A
Output voltage resolution: 0.01V
Output current resolution: 0.001A
Output Voltage accuracy: +/- (0.5% + 1 digit)
Output Current accuracy: +/- (0.5% + 2 digits)
Note: Input voltage must 1.1 times higher than the output voltage.
When large current circumstances, pay attention to heat elimination.

Wiring:
IN+: Input positive
IN-: Input negative
OUT+: Output positive
OUT-: Output negative

Note:
The maximum input voltage is 55V. It is better to make the value less than the limit value, otherwise the item maybe be damaged.
DP50V5A output for battery charging or capacitive load, please add a diode on output positive in case that the current flow backward the module.
Do not use the meter in AC power supply, and wiring should be exactly the same as the wiring diagram, or else it will cause damage.
