Diymore 433Mhz Sx1278 Lora Module 433M 10Km Ra-02 Wireless Spread Spectrum Transmission Board 2.4G Ipx Antenna For Sma

Diymore 433Mhz Sx1278 Lora Module 433M 10Km Ra-02 Wireless Spread Spectrum Transmission Board 2.4G Ipx Antenna For Sma

$22.95
2/7
description
product reviews


























Description:


Ra-02 is a wireless transmission module based on SEMTECH's SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. Can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.



The LoRa series module Ra-01 is designed and developed by AI-THINKER Technology. The SX1278 RF module is mainly used for long-range spread spectrum communication. It can resist Minimize current consumption. Thanks to SEMTECH's patented LoRa  modulation technology, the SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa  modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.






Feature:


LoRa Spread Spectrum modulation technology


Constant RF power output at + 20dBm-100mW voltage change


High sensitivity: down to -148dBm


Half-duplex SPI communication


Programmable bit rates up to 300kbps


Supports FSK, GFSK, MSK, GMSK, LoRa  and OOK modulation modes


127dB RSSI dynamic range


Automatic RF signal detection, CAD mode and very high speed AFC


Packet engine with CRC up to 256 bytes


Small footprint dual-row stamp-hole patch package


Shielded housing


Spring Antenna



Package Included:

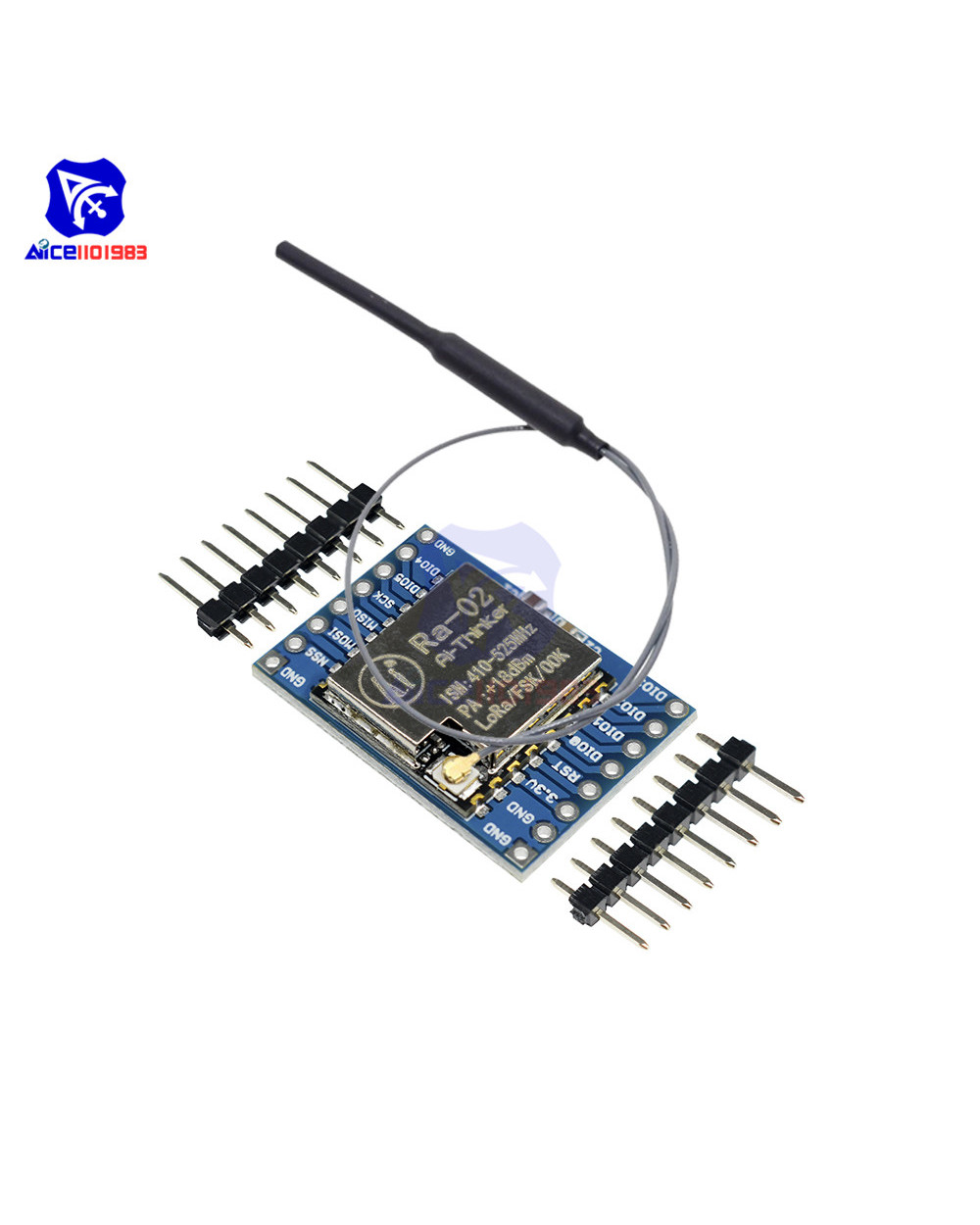

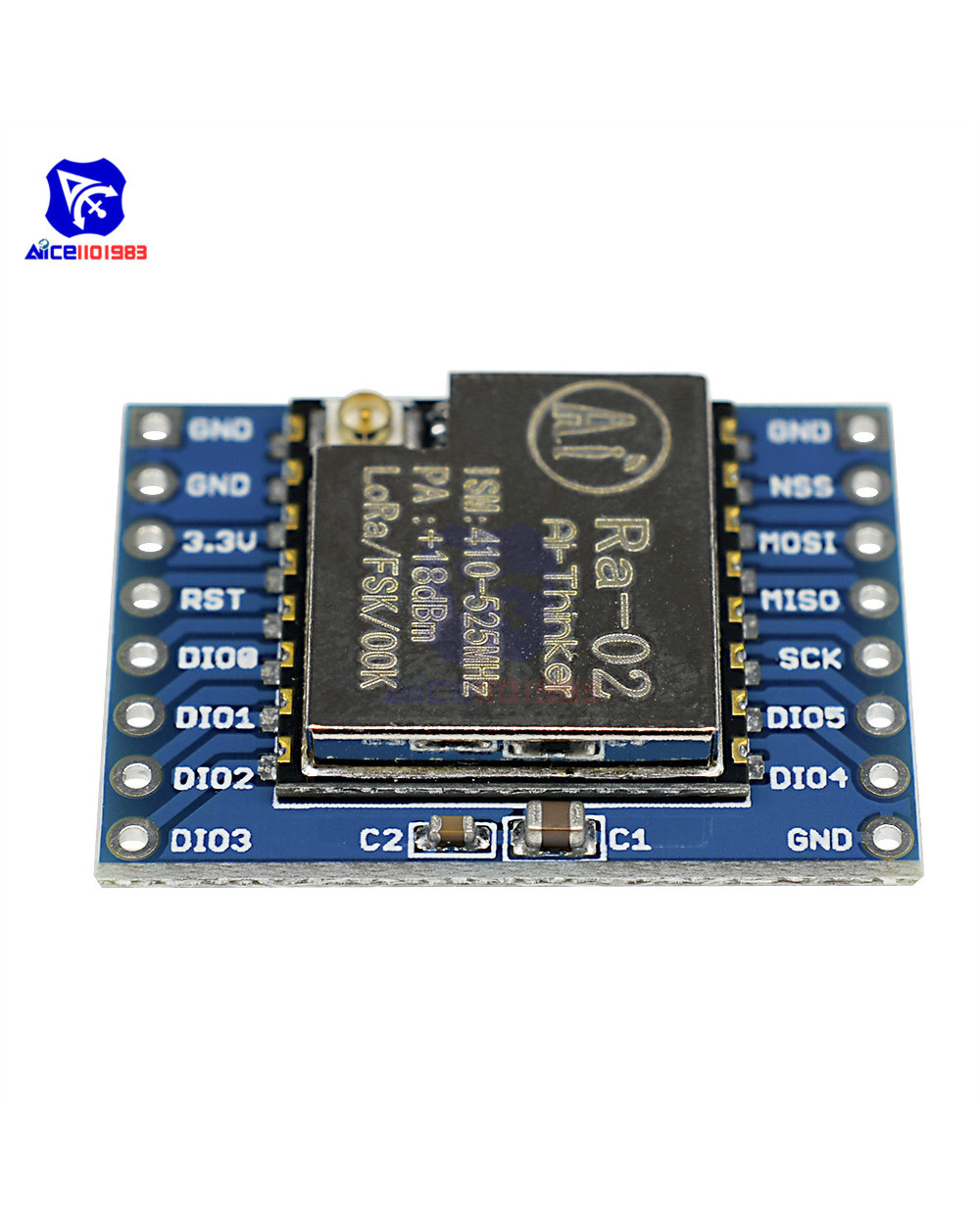

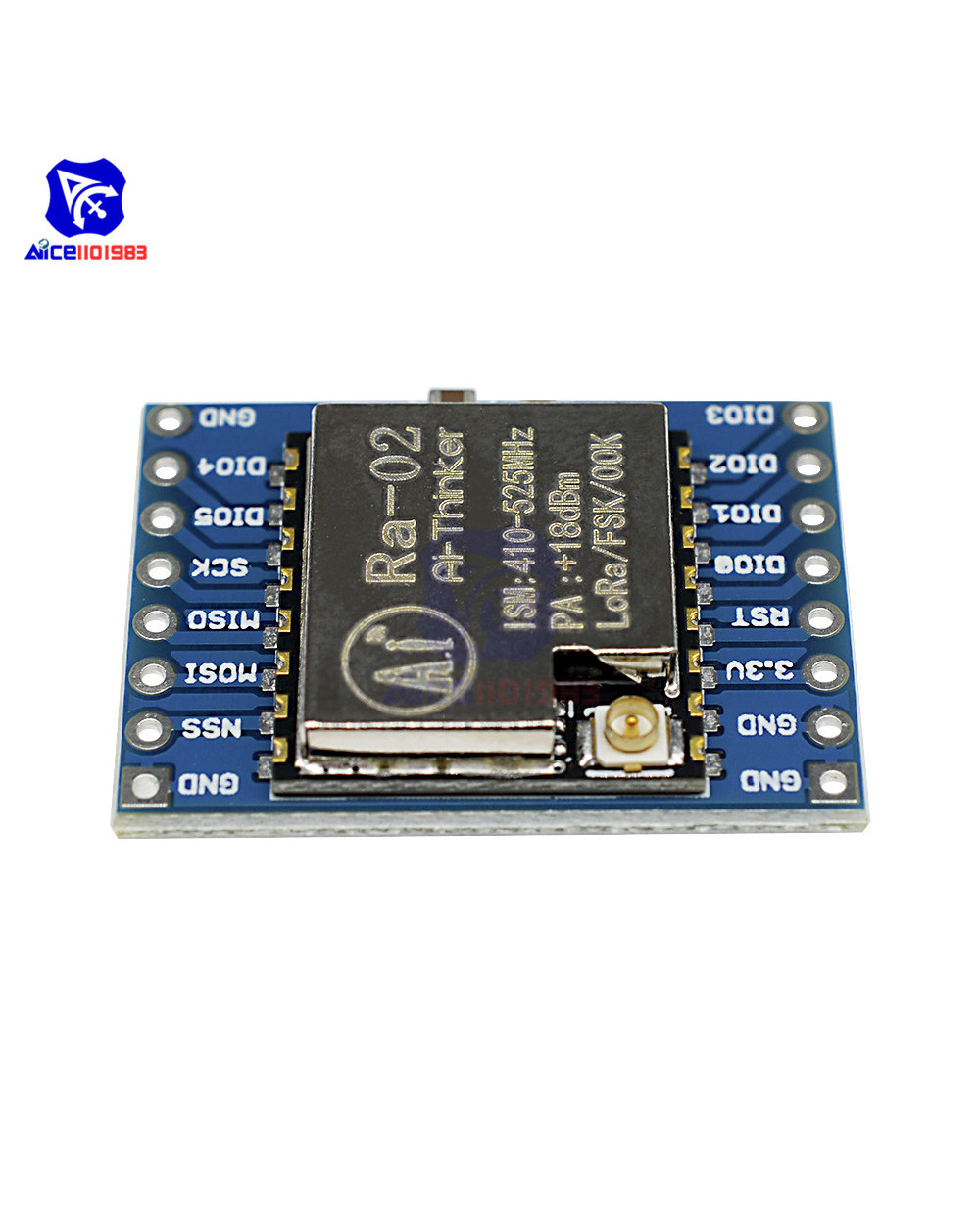

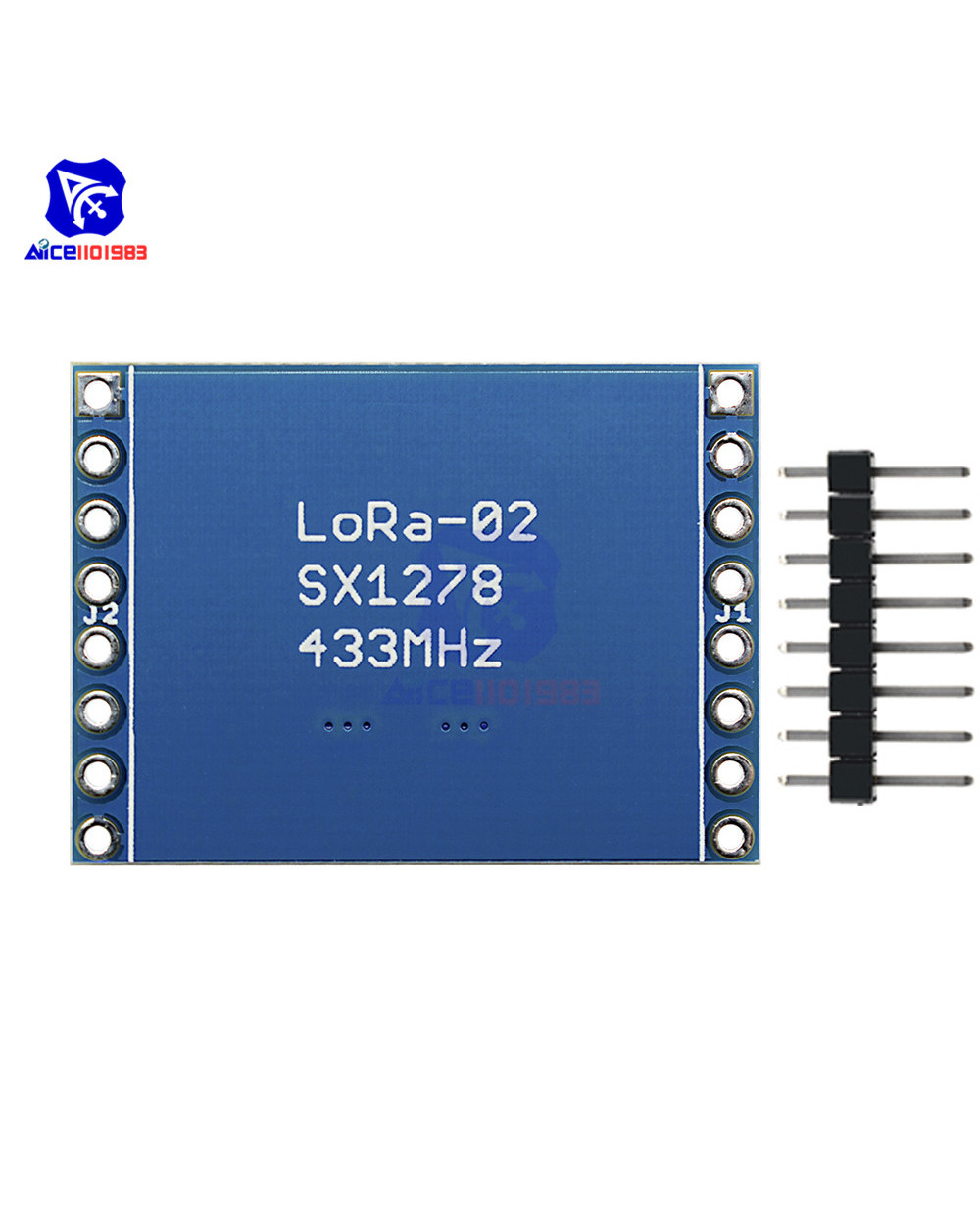

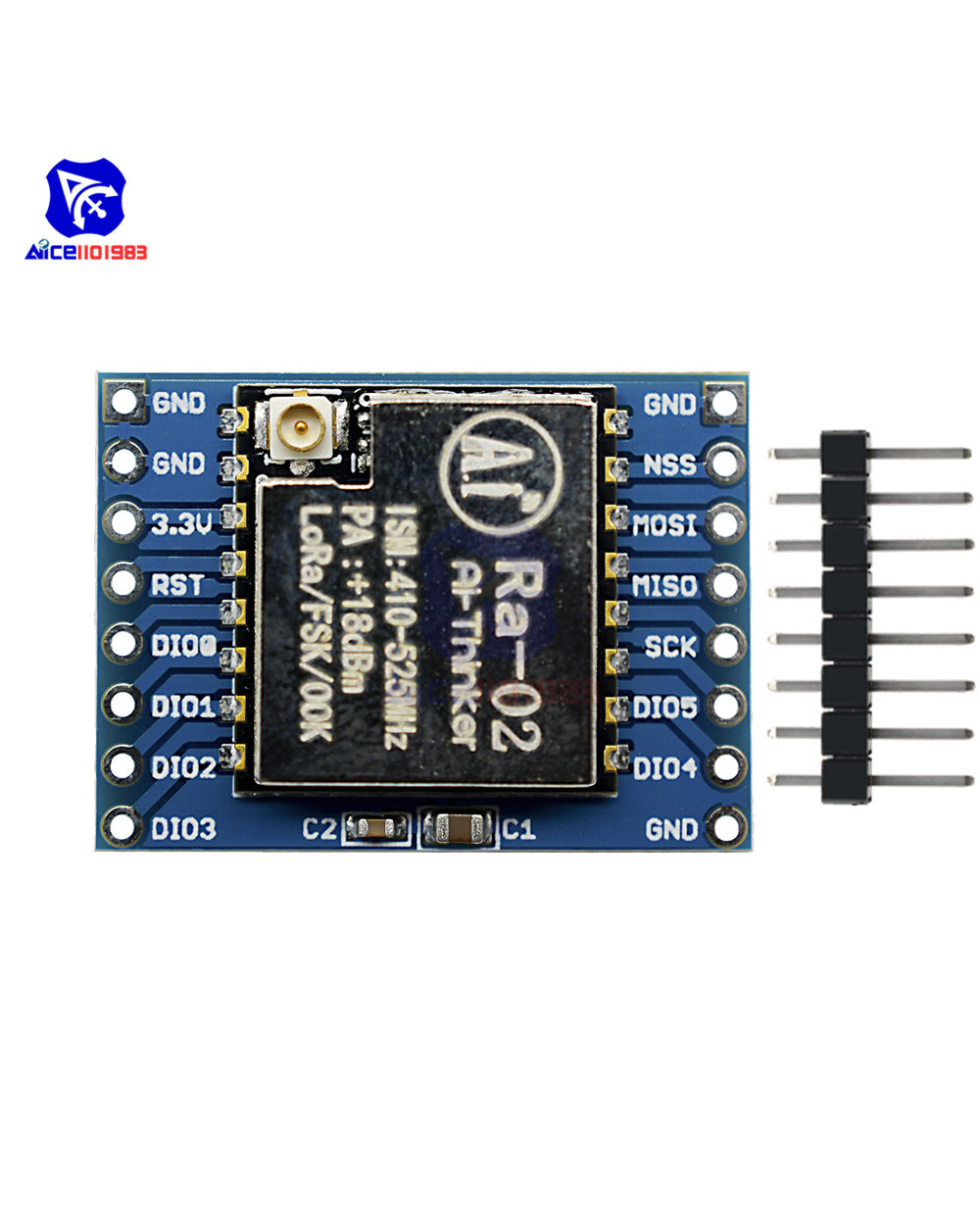

1 * LoRa Ra-02 SX1278 433M Wireless Module
