Diy Kit Smt Smd Component Welding Practice Board Rgb Led Flashing Controller Resitor Diode Transistor Electronics Learn

Diy Kit Smt Smd Component Welding Practice Board Rgb Led Flashing Controller Resitor Diode Transistor Electronics Learn

$21.95
2/7
description
product reviews

1. Function:

1>. It is DIY kit. User need to weld it.

2>. Interesting -- circuits installed with 3-12 v electricity is 10 road running water light, novel and fun.

3>. Training -- a total of 129 components (including the fly line), 313 solder joints, facilitate training speed.

4>. Comprehensive -- circuit with common components of 12 kinds, can be familiar with the use of more components

5>. Practical -- circuit with a particular function,

6>. Simulation -- with simulation test, can be used for the competition, selection,examination reference.

7>. Saving nature -- can be repeated desoldering use, improve utilization.

8>. Flexibility -- each element were numbered, not standard parameters, can adjust the parameters of flexible.

9>. Intelligent -- electric circuit intelligent judge whether the welding is normal, fault point lights.

10>. Promotion -- white label area, provide a variety of collocation, convenient selection,suitable for promotion.

11>. Technical -- circuit has a unique working principle, provides the complete schematic diagram, with 5 test points, can set fault examination, convenient to carry out various tests, is beneficial to improve the level of theory.

NOTE:There are 5 short circuit pad marked J1 to J6. User can weld it by pin from other components such as metal film resistors.



One Side Weld - B


Instruction Download link: https://attach01.oss-us-west-1.aliyuncs.com/IC/DIY-Manual/12235.pdf


1. Function:

1>.Multi-type SMD components

2>.Pure manual welding

3>.Integrated practice area and functional test area

4>.LED demonstration exercise results

5>.Easy operation

6>.Product Name:SMD-P Components Soldering Practice Board DIY Kit

7>.Work Voltage:DC 4.5V-5.0V

8>.Work Temperature:-40℃~85℃

9>.Work Humidity:0%~95%RH

10>.Size(Installed):91.4*60mm




Two Side Weld - C


1. Function:

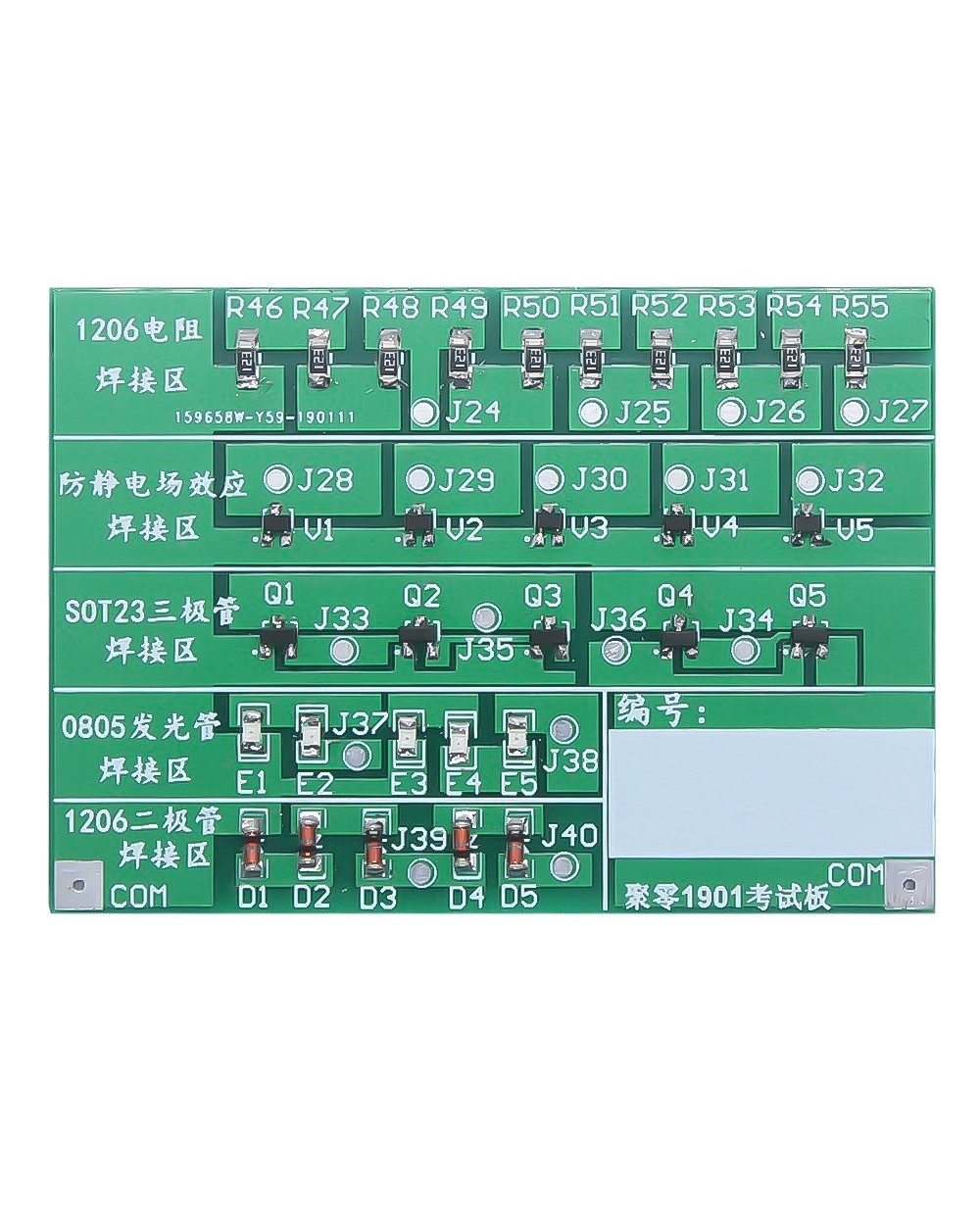

1).This kit incorporates ultra-small components such as 0201 and 0402, and also incorporates SOT323 anti-static FETs, which greatly increases the difficulty of soldering, and is especially suitable for factory job selection and competition.

2).1901 SMD Welding Practice Exam Kit: There are 7 major functions as follows. Training, exams, and competitions are preferred.

3).Training - There are 10 components in 10 categories and 210 solder joints, which can be practiced or tested.

4).Comprehensiveness - The circuit has 10 types of commonly used components, adding 0201, 0402, anti-static field tube and other components, and can be familiar with the use of more components.

5).Practicality - The circuit imitates the anti-static requirements of the factory, increases the ultra-small components, and is more practical.

6).Simulation - with simulation questions, can be used for competition, selection, exams and other references.


Two Side Weld - D


1. Function:

1).Interesting - add 4-6V after the circuit is installed, it is a 10-way binary counting light + 11 road with a carry-in water lamp, novelty fun.

2).Training - There are 240 components and 603 solder joints. It can be divided into practice and test surfaces. It can be practiced or tested.

3).Comprehensiveness - The circuit has 14 types of commonly used components, adding 0201, 0402, anti-static field tube and other components, and can be familiar with the use of more components.

4).Practicality - The circuit has a specific function, which is an electronic work, and it is more practical to imitate the anti-static requirements of the factory.

5).Simulation - with simulation questions, can be used for competition, selection, exams and other references.

6).Conservative - can be used repeatedly for desoldering, improve the utilization rate, and both the front and the back can be used to save costs.

7).Flexibility - Each component is numbered, no parameters are specified, and parameters can be flexibly adjusted. Questions can be modified as needed.

8).Intelligent - the circuit can be energized to intelligently determine whether the welding is normal, 31 indicators can see the location of the fault point.

9).Innovative – the circuit design is novel and the difficulty can be adjusted as needed.

10).Technical - The circuit has a unique working principle, provides a complete schematic, and has 35 test points to facilitate various tests, which is conducive to improving the theoretical level.




One Side Weld - E


1. Function:

1).1801 patch 15 way lantern controller patch welding practice kit: has the following 10 major functions. Training, exams, and competitions are preferred.

2).Interesting - add 4-6V after the circuit is installed, it is a 7-channel binary counting light + 8 way water light, novelty fun.

3).Training - a total of 76 components (excluding pin headers), 240 solder joints, easy to train speed.

4).Comprehensiveness - The circuit has 8 types of commonly used components and is familiar with the use of more components.

5).Practicality - The circuit has a specific function and is an electronic work.

6).Simulation - with simulation questions, can be used for competition, selection, exams and other references.

7).Savings - can be used repeatedly for desoldering to increase usage.

8).Flexibility - Each component is numbered, with no parameters, and can be flexibly adjusted.

9).Intelligent - the circuit can be energized to intelligently determine whether the welding is normal, and the fault point has a light indication.

10).Innovative - the circuit design is novel and the difficulty is moderate.

11).Technical - The circuit has a unique working principle, provides a complete schematic, and has 10 test points to facilitate various tests, which is conducive to improving the theoretical level.
