Diy Kit 74Hc595 3D Led Electronic Light 4X4x4 Led Blue/Green/Red/Yellow 64 Cuboids Shield For Arduino I/O Io Expansion

Diy Kit 74Hc595 3D Led Electronic Light 4X4x4 Led Blue/Green/Red/Yellow 64 Cuboids Shield For Arduino I/O Io Expansion

$21.95
2/7
description
product reviews







DIY Kit 4X4X4 Light Kit Blue for for arduino shield LED Precise

4x4x4 Light kit uses 64 cuboid LED,and controlled for for arduino . Expansion board uses two 74HC595 shift register chips, using eight I/Os can light the 4x4x4 Light ,it's hardware resources needed is less than other 4x4x4 light cubic expansion board(needs 20 I/Os to control).

1. Circuit Description
The display part of 4x4x4 Light kit consists of 64 cuboid LED,uses two 74HC595shift register chip to control LED anode, the 4 I/O ports of for arduino controls 4 common cathodes of LED.

2. Electrical parameters
Control module:for arduino control board
PCB size: 61*74mm
LED color: Blue/Green/Red/Yellow (Option)

Attention:
1).There are round head LED in our store, if you need it, please contact us.
2).This kit is 4x4x4 light cubic expansion board,without for arduino control chip or control module.
3).Provide for for arduino library,but there has less display effects,if you need more effects,you need to compile by yourself.

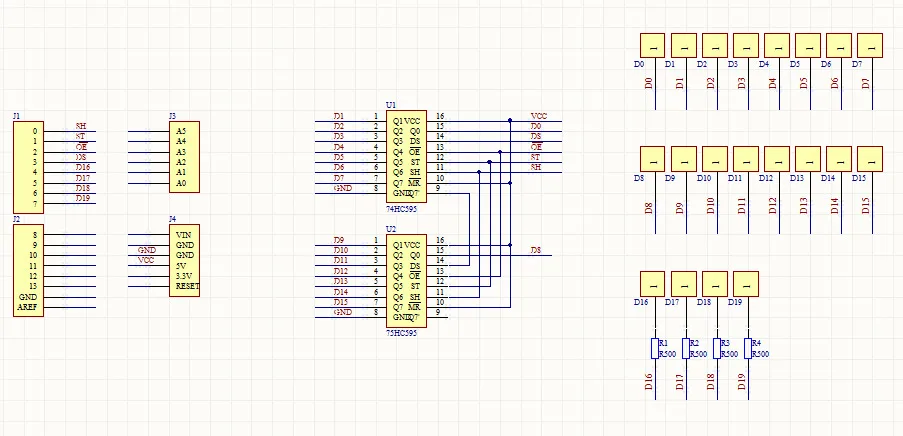

3. Schematic diagram

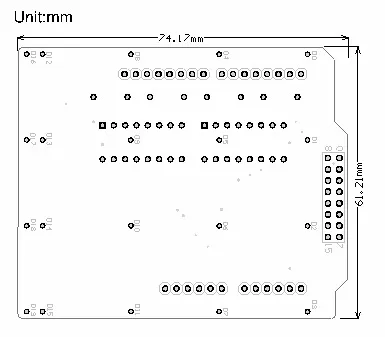

4. Mechanical drawing


5. Module description


The 0~15 slot of Diagram is used for inserting LED anode; D16~D19 slot is used for inserting the LED cathode.
Expansion board and for for arduino control pins.
74HC595 pin for arduino
SH 0
ST 1
OE 2
DS 3
D16 4
D17 5
D18 6
D19 7

6. Components list
