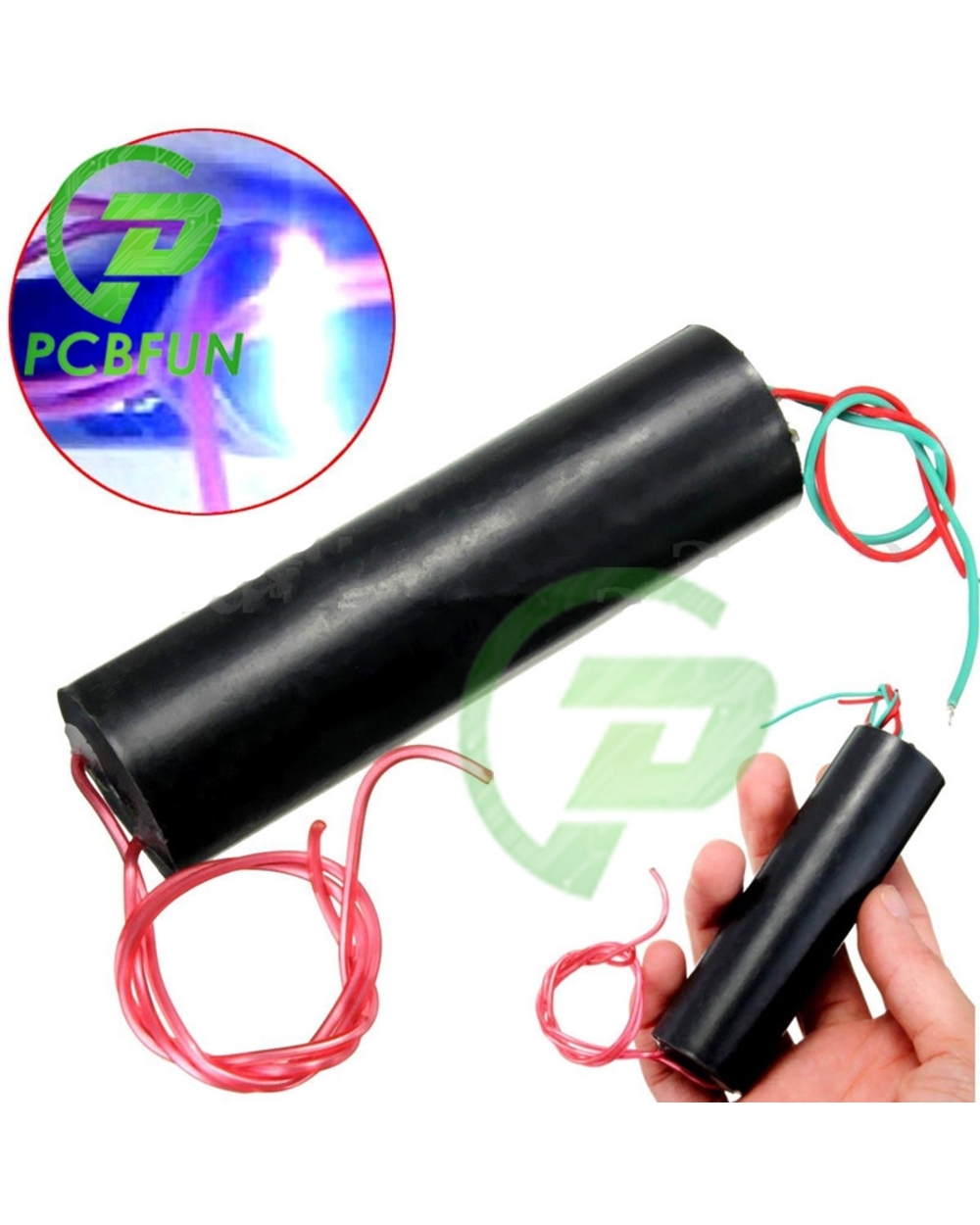

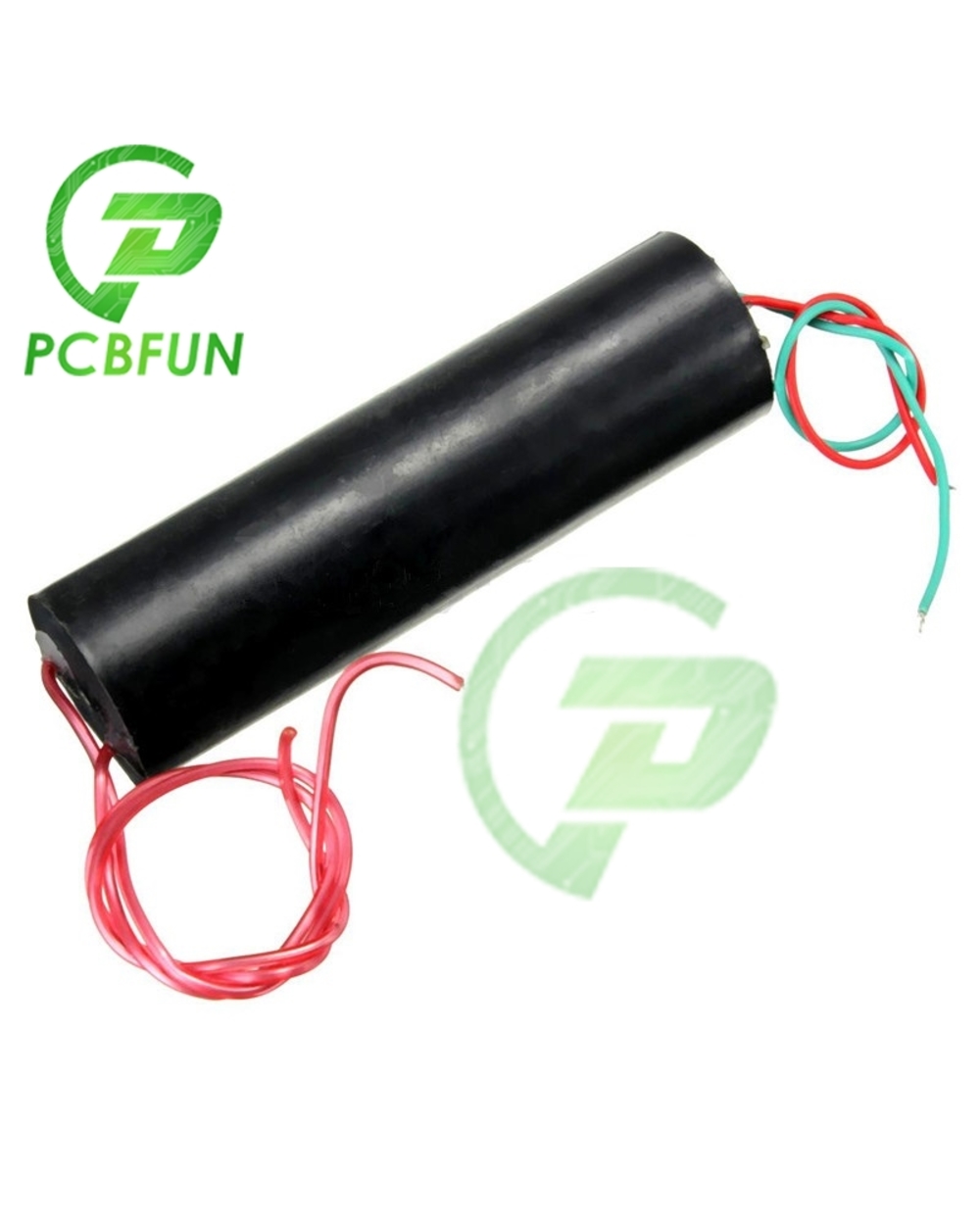

Dc 3.7V-7.4V Dc 3V-6V 3.7V-6V To 400Kv 1000Kv 1000000V Boost Step Up High-Voltage Generator Ignition Coil Pulse Power M

Dc 3.7V-7.4V Dc 3V-6V 3.7V-6V To 400Kv 1000Kv 1000000V Boost Step Up High-Voltage Generator Ignition Coil Pulse Power M

$20.95
2/7
description
product reviews

Description:

input voltage: DC 3 V to 6 V
Input current: 2 A - 5 A
High pressure type: the type of pulse current
Output voltage: 400000 v(Please pay attention to safety)
High pressure discharge distance between: 10 mm - 20 mm
The output high voltage wire length: 100 mm
Input power cord length: 100 mm (the red line is positive)


Wiring:


Red and green power connection red line:''+'' green line ''-''
output : the other side ,same color cable

please notice:

the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line , battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible , you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. )

Work: intermittent , continuous work does not allow more than 1 minute and the output side does not allow shorting . Improper voltage and long working hours easily damaged module

Specifications:

Module type: MC-901
Input voltage: 3.7V-7.4V
Input current: 0.5A-1A
Input wire length: 9 cm
High voltage type: pulse DC type
Output voltage: 800KV-1000KV (please pay attention to safety when using)
Output current: 0.5A-1A
Output length: approximately16 cm
High voltage bipolar discharge distance: 1.5 cm -2 cm
Size:88x26mm(LxD)

Module use note:

1, high voltage module should avoid the use of high voltage no-load, power must be
adjusted before the high voltage line end of the right distance, high voltage wire drawing
distance and the use of battery voltage and capacity is proportional to.
2, the test arc distance from short to long experiment, when the power is prohibited
beyond the longest arc distance, due to the high pressure energy can not be released,
very easy to damage the module.
3, the power of the module, the internal heat is not heat, so not a long time to work.

Package included:

1 x 400KV 56mm

1 x 400KV 65mm

1 x 1000KV

1 x 50KV
