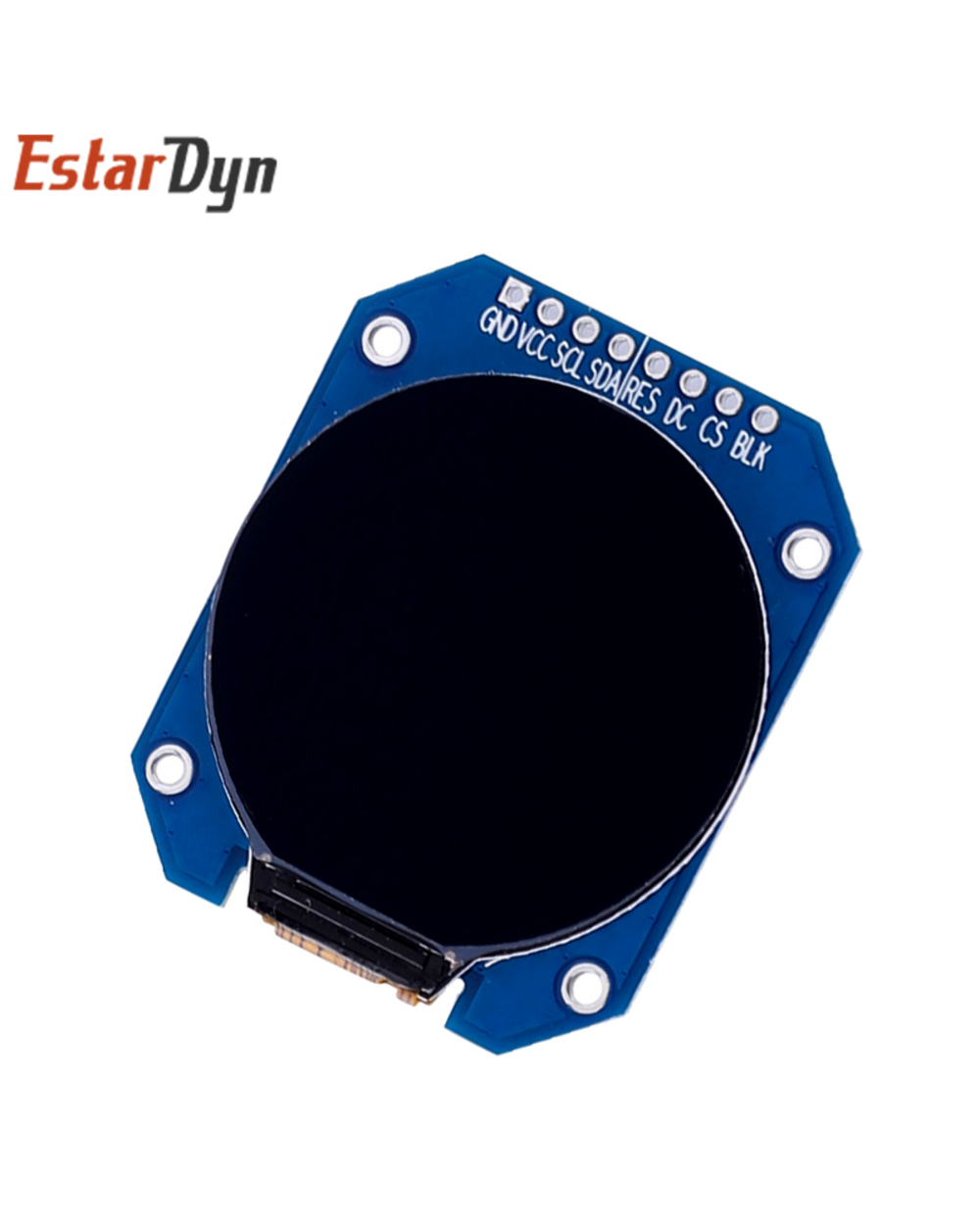

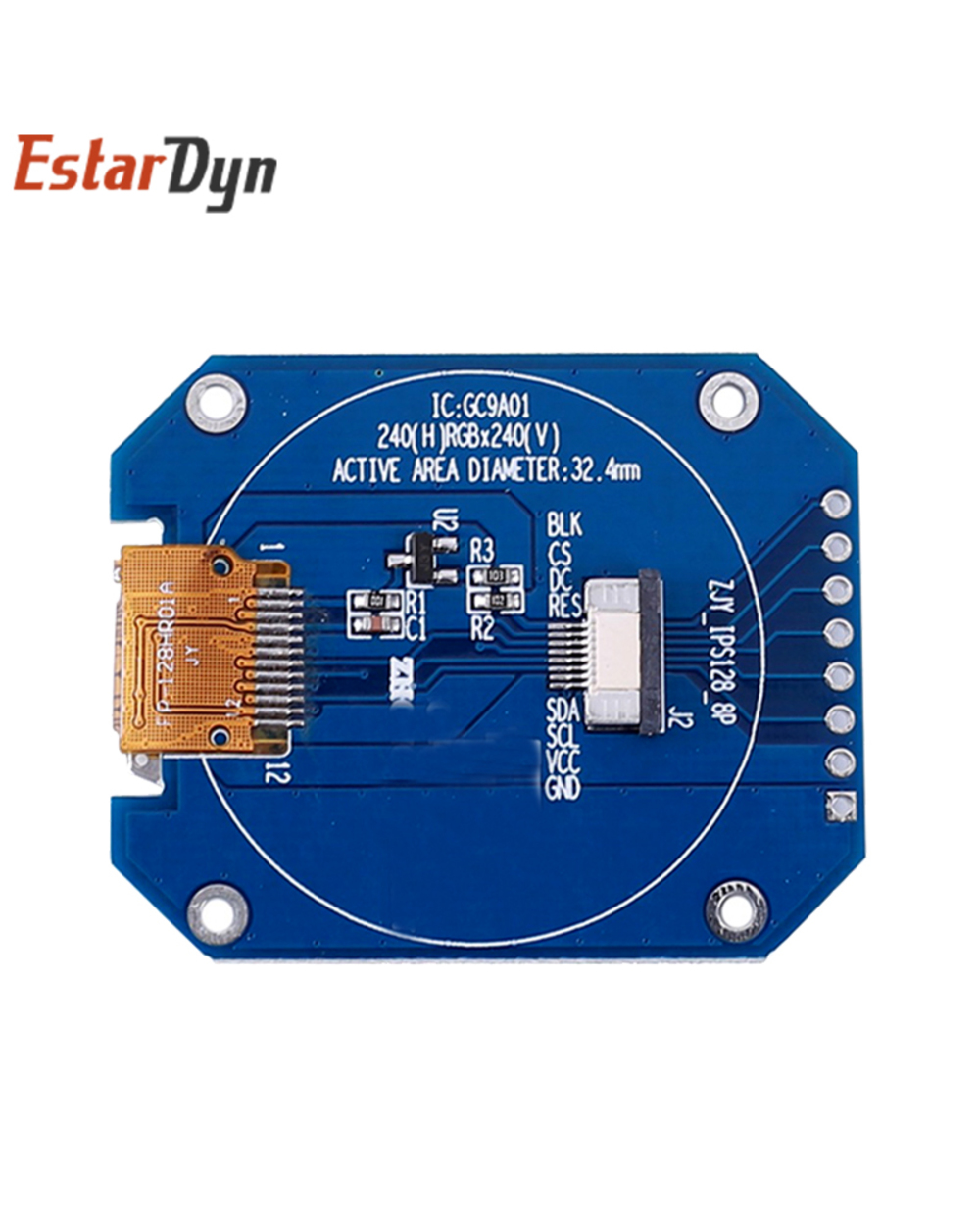

DC 3.3V 1.28 inch TFT LCD Display Module Round RGB IPS HD 240x240 Resolution GC9A01 Driver 4 Wire SPI Interface Adapter Board


Description:

- It is a 1.28inch 240*240 IPS LCD Display Screen.
- It uses IPS color display screen and the display effect is more vivid than ordinary TFT LCD effect.

Features:

     1>.IPS color display screen
    2>.4Pin SPI communication
    3>.Adjustable display direction
    4>.Full viewing angle display


Parameters:

     1>.Product Name:1.28inch 240*240 IPS LCD Display Screen
    2>.Material:IPS color display screen
    3>.Resolution:240*240
    4>.Driver Chip:GC9A01
    5>.Display Size:1.28inch
    6>.Display area:D32.4mm

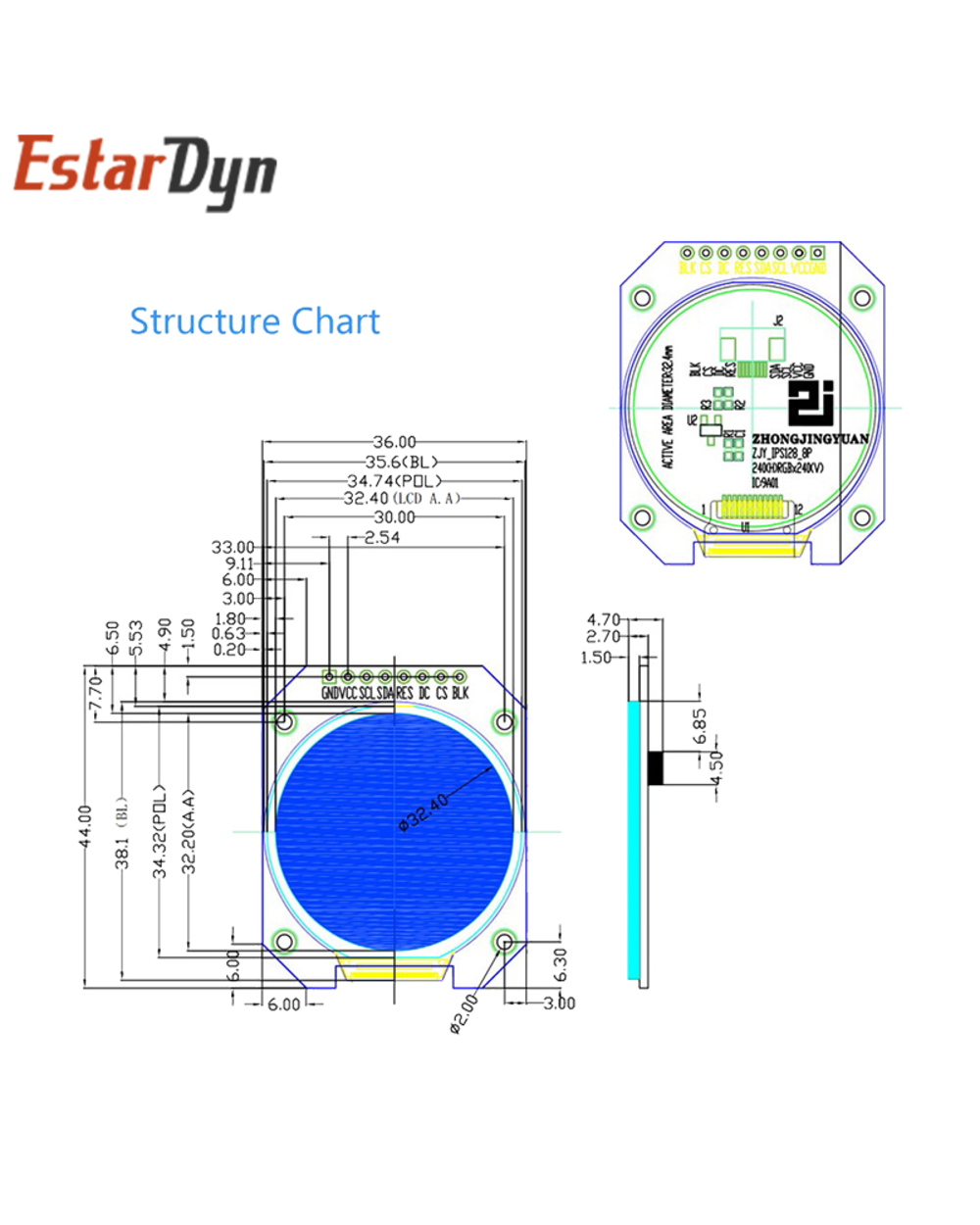

    7>.Panel size:35.6*38.1*1.5mm
    8>.Interface type:4-Pin SPI
    9>.Work voltage:2.8V-3.3V
    10>.Pins:2.54mm 8Pin
    11>.View:Full viewing angle display
    12>.Working Temperature range:-20℃~70℃
    13>.Working Humidity Range:5%-95%RH
    14>.PCB Size:44*36*5mm


Application:

     1>.Instrument display
    2>.Mobile devices
    3>.Wearable display device
    4>.Real-time monitoring and display equipment
