DC 12V Dual Display Time Relay Module Time Delay Relay Mini LED Digital Timer Relay Timing Delay Cycle Time Control Switch Home
Specifications:
Voltage: DC 12V
Current: 20A
Power: < 1800w
Shell Color: White / Black

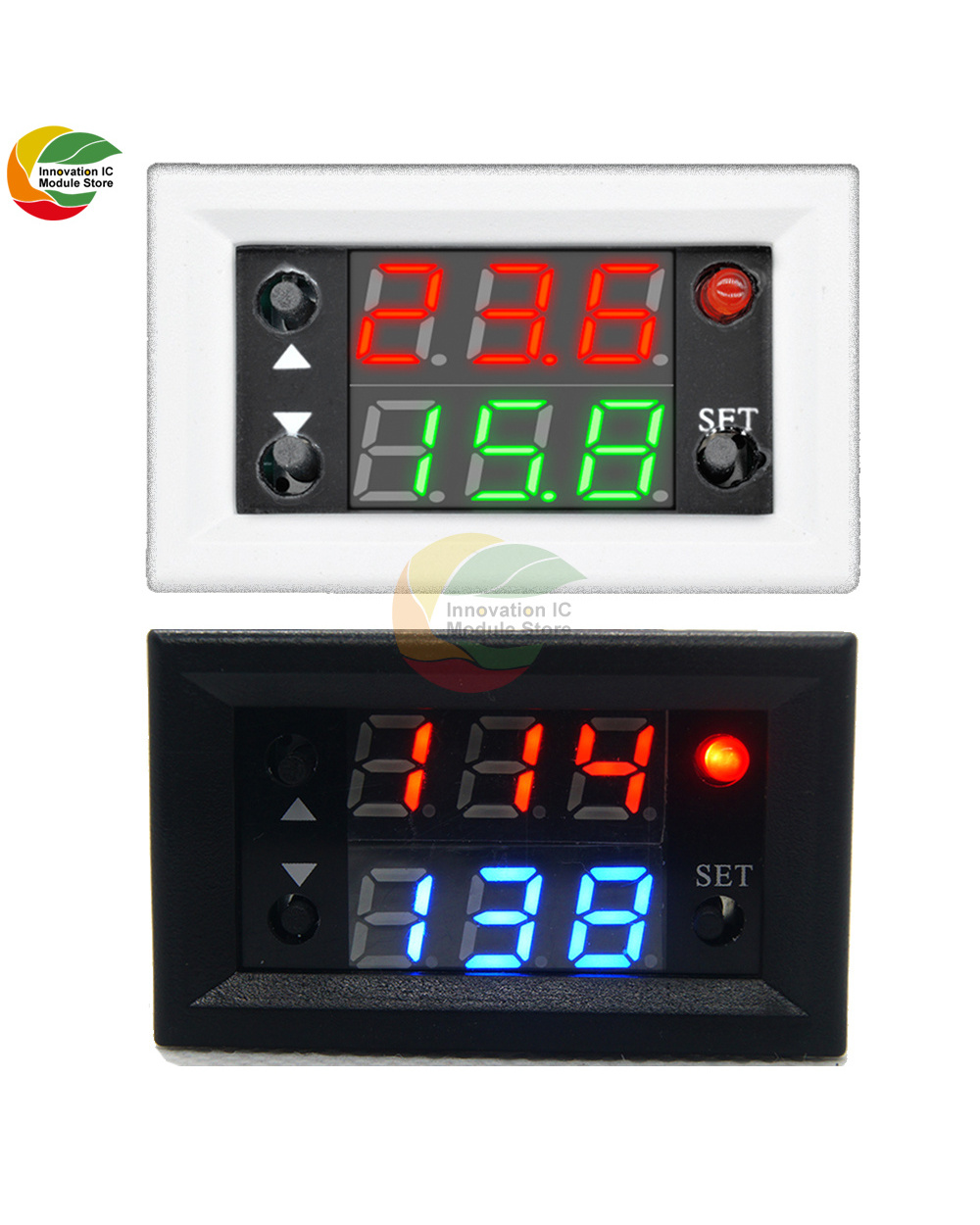

LED Display Color: Red+Green/Red+Blue
Timing Range: 0-999s,0-999min,0-999h
Dimension: Display board 48x29mm;
Installation 45.5x26mm
Function Setting:18 kinds combination function
Features:
1.Double LED Display:can set two sets timing time.Timing time T1,timing time T2
2.Three Timing Time Chosen:0-999s,0-999min,0-999h
3.Six Operating Mode Setting
0. mode:after delay T1 time,relay will operate(T1 timing)
1. mode:after delay T1 time,relay will not operate(T1 timing)
2. mode:after delay T1 time,relay will operate(T1 timing);after delay T2 time,relay will not operate(T2 timing),end
3. mode:after delay T1 time,relay will not operate(T1 timing);after delay T2 time,relay wil operate(T2 timing),end
4. mode:after delay T1 time,relay will operate(T1 timing);after delay T2 time,relay wil not operate(T2 timing),repeat cycling
5. mode:after delay T1 time,relay will not operate(T1 timing);after delay T2 time,relay wil operate(T2 timing),repeat cycling
Package Included:
1 x Dual Display Time Delay Relay
