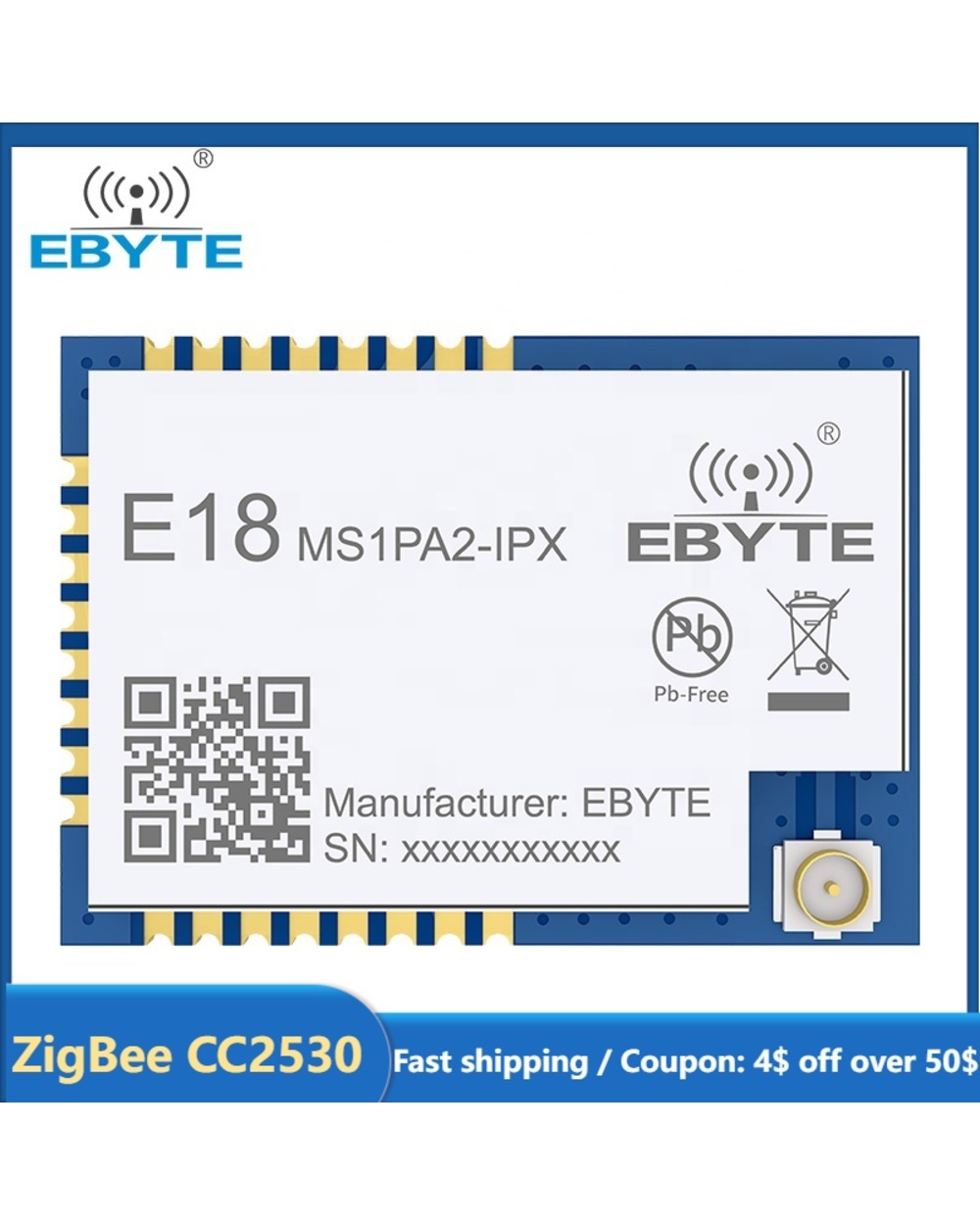

Cc2530 Zigbee Wireless Module Rf Smd Ipex Interface 100Mw For Smart Home E18-Ms1pa2-Ipx 20Dbm 1200Mlong Range Ebyte Zig

Cc2530 Zigbee Wireless Module Rf Smd Ipex Interface 100Mw For Smart Home E18-Ms1pa2-Ipx 20Dbm 1200Mlong Range Ebyte Zig

$24.95
2/7
description
product reviews





























19.6~20.5 dBm


-




Receiving sensitivity


-99~-97 dBm


Air data rate is 250 kbps




Protocol


ZigBee


-




Reference distance


1200m


Test condition: clear and open area, antennna gain: 5dBi,antenna height: 2.5m, aur data rate: 250kbps























































Hardware Parameter

Value

Remark

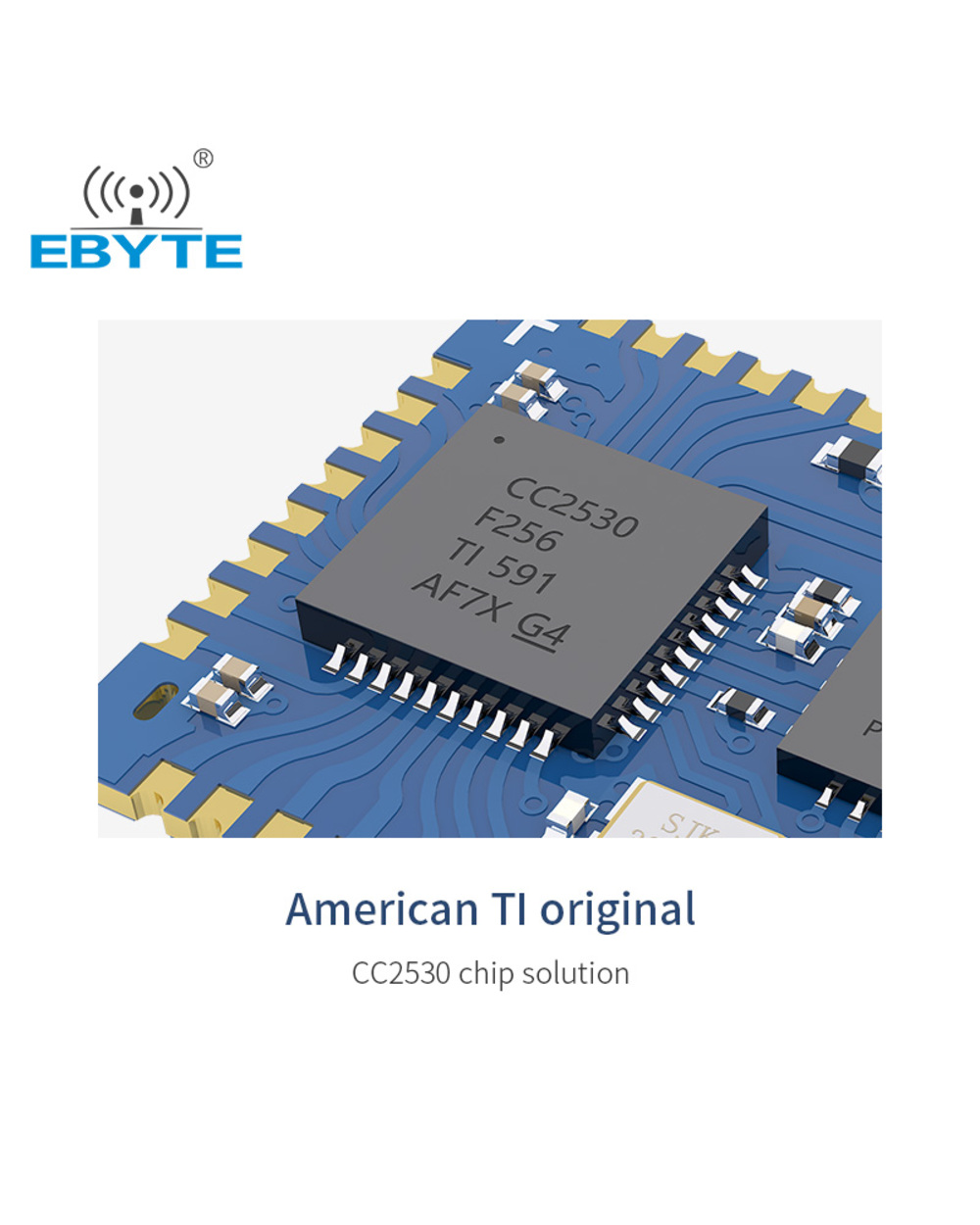

IC

CC2530F256RHAT/QFN40

Built-in PA+LNA

FLASH

256 KB

-

RAM

8 KB

-

Core

8051

-

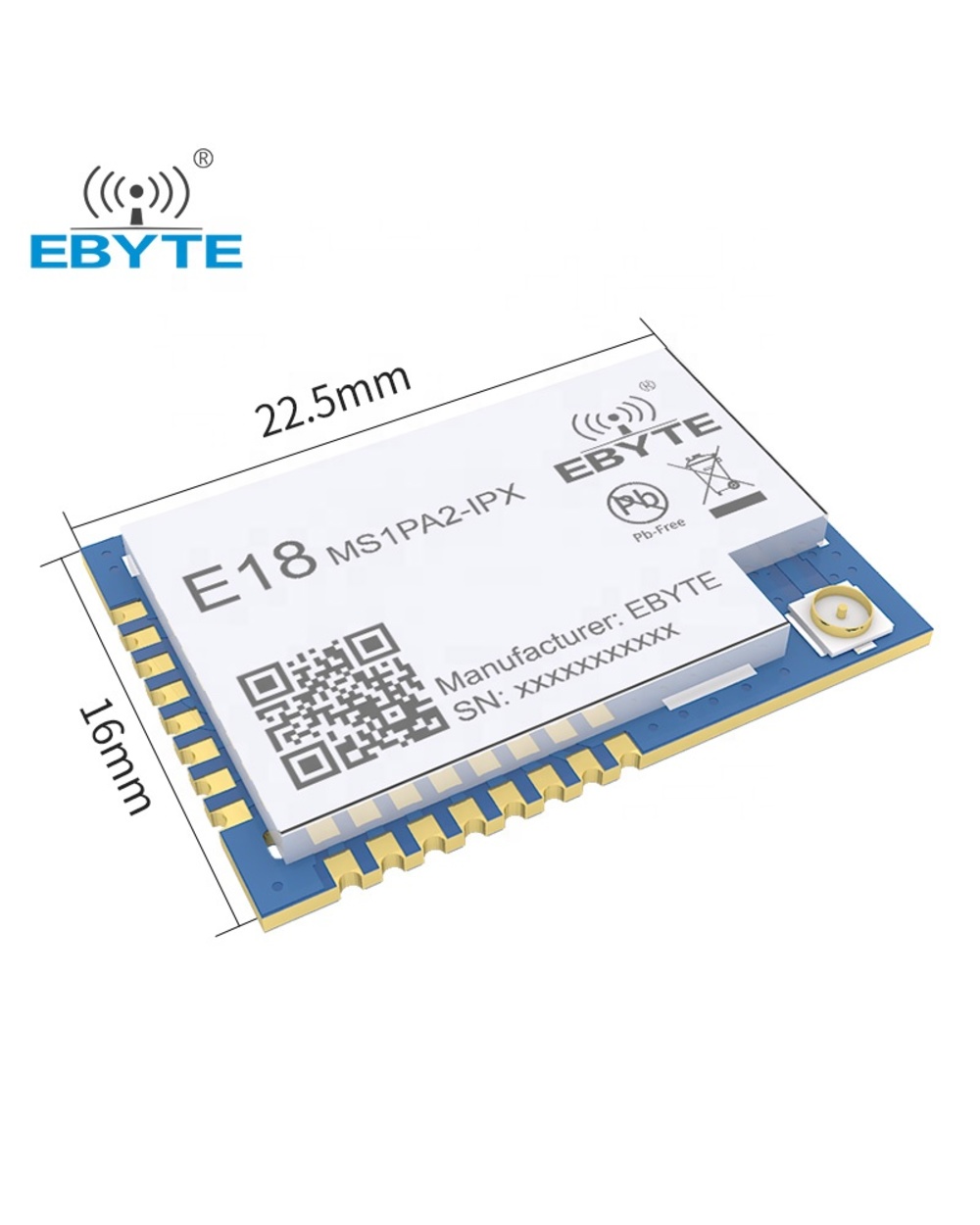

Size

16.0 * 22.5 mm

-

Interface

1.27mm

-

Package

SMD

-

Communication interface

I/O

All IO ports lead out































































Electronic parameter

Min.

Typ.

Max.

Unit

Condition

Operating voltage

2.0

3.3

3.6

V

≥3.3 V ensures output power

Communication level

-

3.3

-

V

For 5V TTL, it may be at risk of burning down

TX current

-

100

-

mA

Instant power consumption

RX current

-

35

-

mA


Sleep current

-

2

-

μA

Shut down by software

Operating temperature

-40

-

+85

Industrial grade
