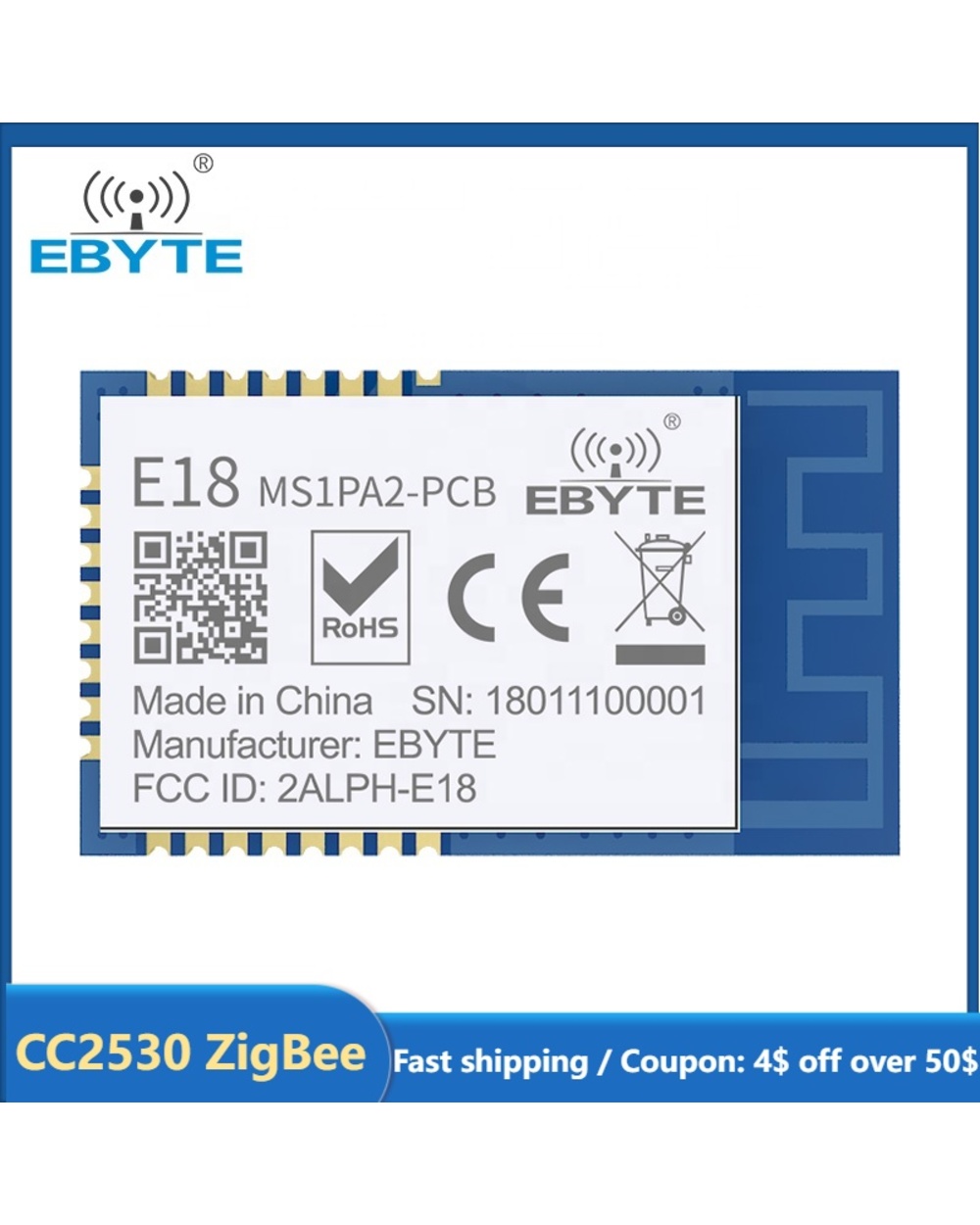

EBYTE CC2530 ZigBee 2.4GHz Wireless Module E18-MS1PA2-PCB 100mW Long Distance Zigbee AD HOC Network Module With PCB Antenna


[Introduction]: E18-MS1PA2-PCB is small-sized 2.4GHz ZigBee wireless module, which is designed and produced by Chengdu Ebyte. SMD type with pcb antenna, with a transmission power of 100mW and the pin pitch is 1.27mm. It is applicable for various applications (especially smart home).

Operating parameter

Main Parameters

Value

Remarks

Min.

Typical

Max

Operating voltage(V)

2.0

3.3

3.6

≥3.3 V ensures output power

Communication level(V)

-

3.3

-

For 5V TTL, it may be at risk of burning down

Operating temperature(℃)

-40

-

85

Industrial design

Operating frequency(MHz)

2.400

-

2.480

ISM band

TX Current(mA)

-

98

-

Instant power consumption

RX current(mA)

-

36

-

-

Sleep current(μA)

-

2

-

Shut down by software

Max Tx power(dBm)

19.6

20

20.5

-

Receiving sensitivity(dBm)

-99

-98

-97

Air data rate is 250 kbps


Main parameter

Description

Remarks

Reference distance

800m

Test condition: clear and open area, antennna gain: 5dBi,antenna height: 2.5m, aur data rate: 250kbps

Protocol

ZigBee

-

Communication interface

I/O

All IO ports lead out

Package

SMD

-

Interface

1.27mm

-

IC

CC2530F256RHAT/QFN40

Built-in PA+LNA

FLASH

256KB

-

RAM

8KB

-

Core

8051

-

Size

16*27mm

-

Antenna

PCB

50 ohm impedance


ZIGBEE AD HOC NETWORK MODULE

2.4GHz Original TI CC2530


Features

The Module defaults to a self-organizing networking program

Users can also conduct secondary development



Hardware Features

*American original TI CC2530 chip solution

*Industrial crystal

High precision low temperature crystal

*Impedance matching

Characteristic impedance

*High-quality capacitive inductance devices

Main selection of first-line brands such as Murata,TDK,AVX


Pin Definition



Circuit Diagram


Application Scenario

Ebyte products have strong hardware and software support,suitable for a variety of IoT applications.

Intelligent Control

Remote Control

Wireless Data Transmission

Smart Home



Factory
