Ca-508 Ca-408 4 Channel Adjustable Booster Board Module Lcd Screen Tcon Board Tft Backlight Driver Step Up Tcon Board

Ca-508 Ca-408 4 Channel Adjustable Booster Board Module Lcd Screen Tcon Board Tft Backlight Driver Step Up Tcon Board

$22.95
2/7
description
product reviews

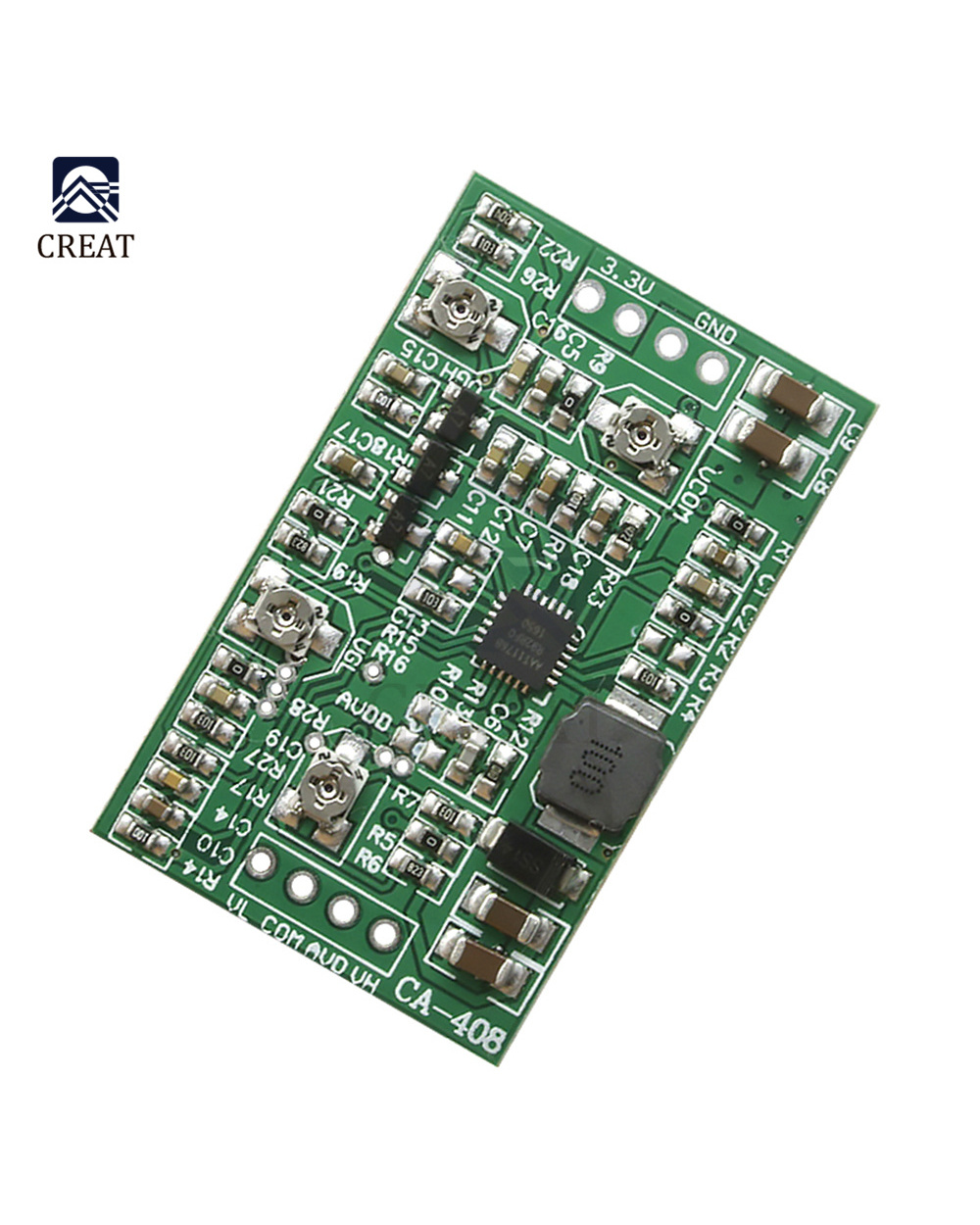

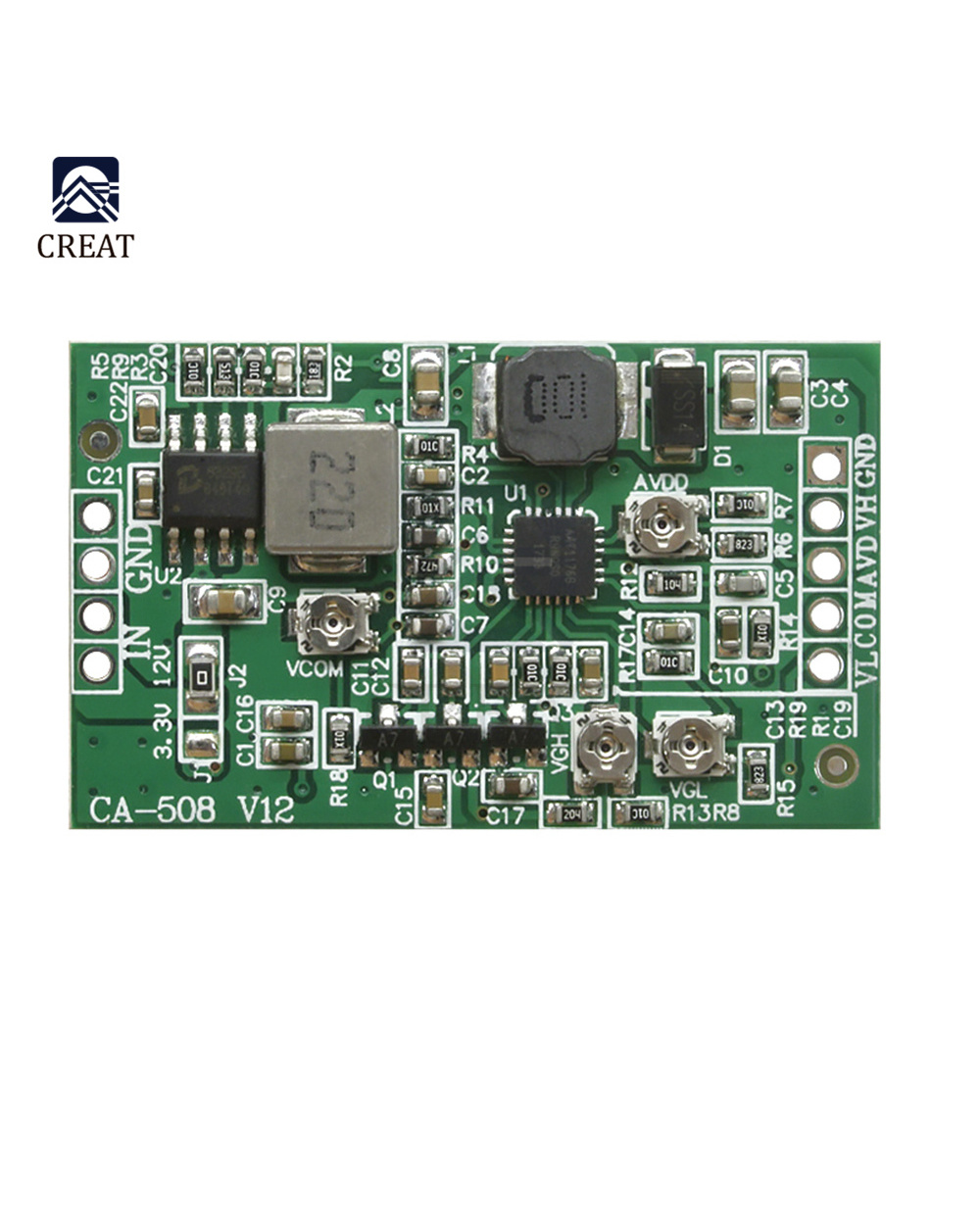

High Quality Board Module CA-508 CA-408 Boost Four-way Adjustable Boost LCD Screen TCON Module Adjustable Boost Module




Product selling points:

1: Widely used

2: Small appearance

3: Voltage optional

4: Voltage adjustable: all 4 voltages can be adjusted through adjustable resistors

5: Adjustable boost module


Describe:

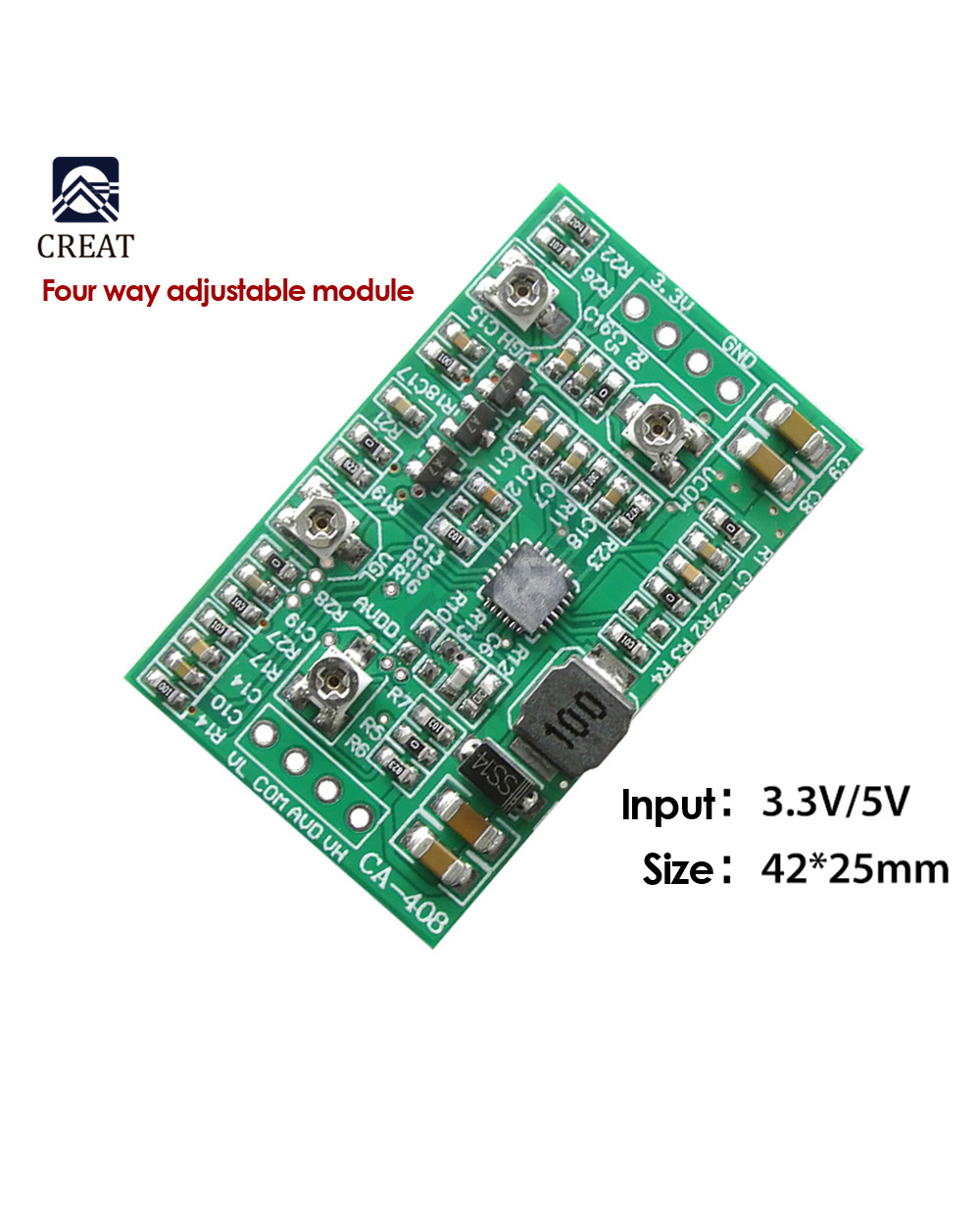

Input: 3.3V/5V 12V

Output: VCOM: 3~5V

AVDD: 7.5~12V

VGH: 17V~23V

VGL: -6~-8V

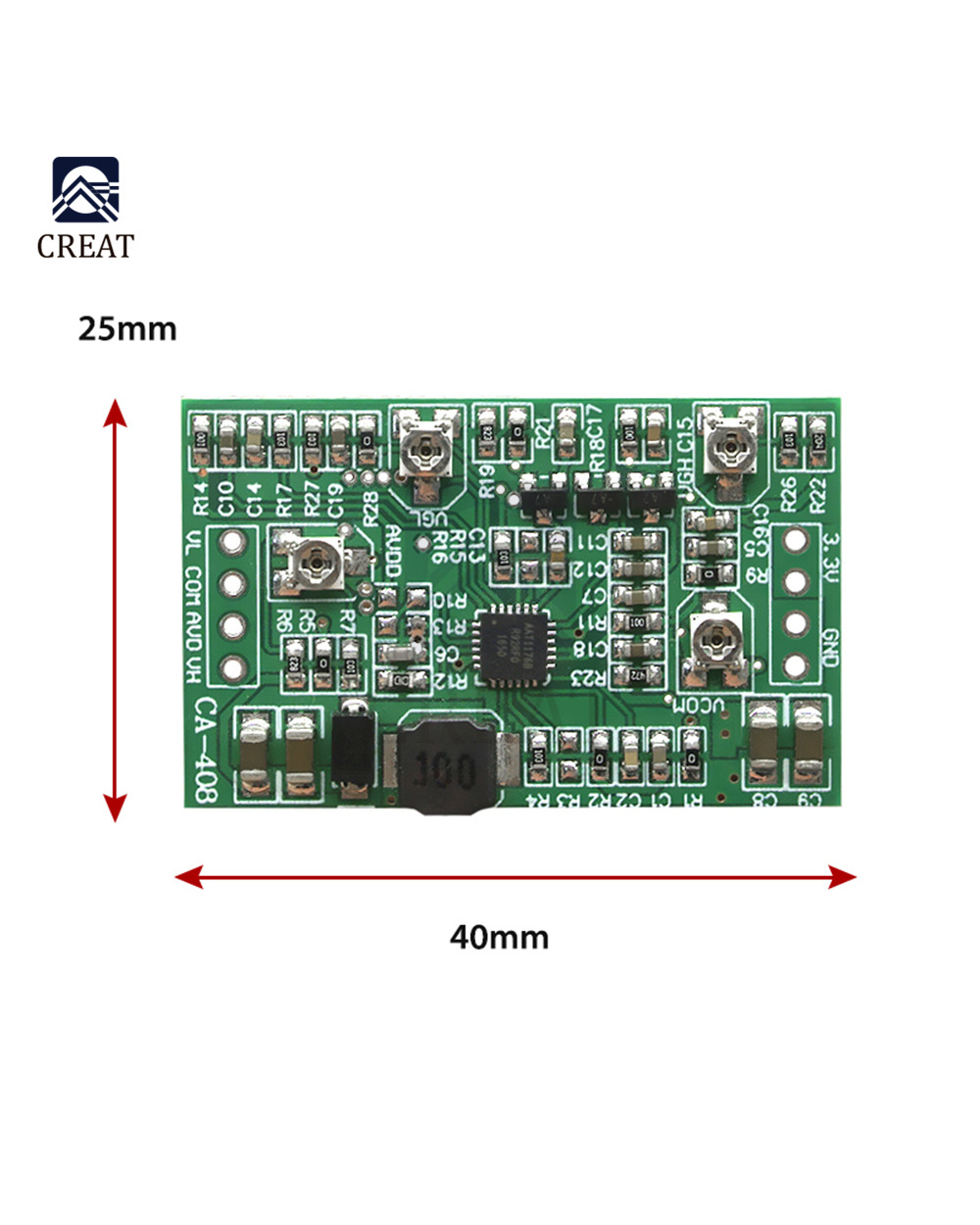

Product size: 40mm*25mm

Adjustable voltage: all 4 voltages can be adjusted by adjustable resistors

Product type: Booster board module LCD screen TCON board


Package include:

1*TCON module
