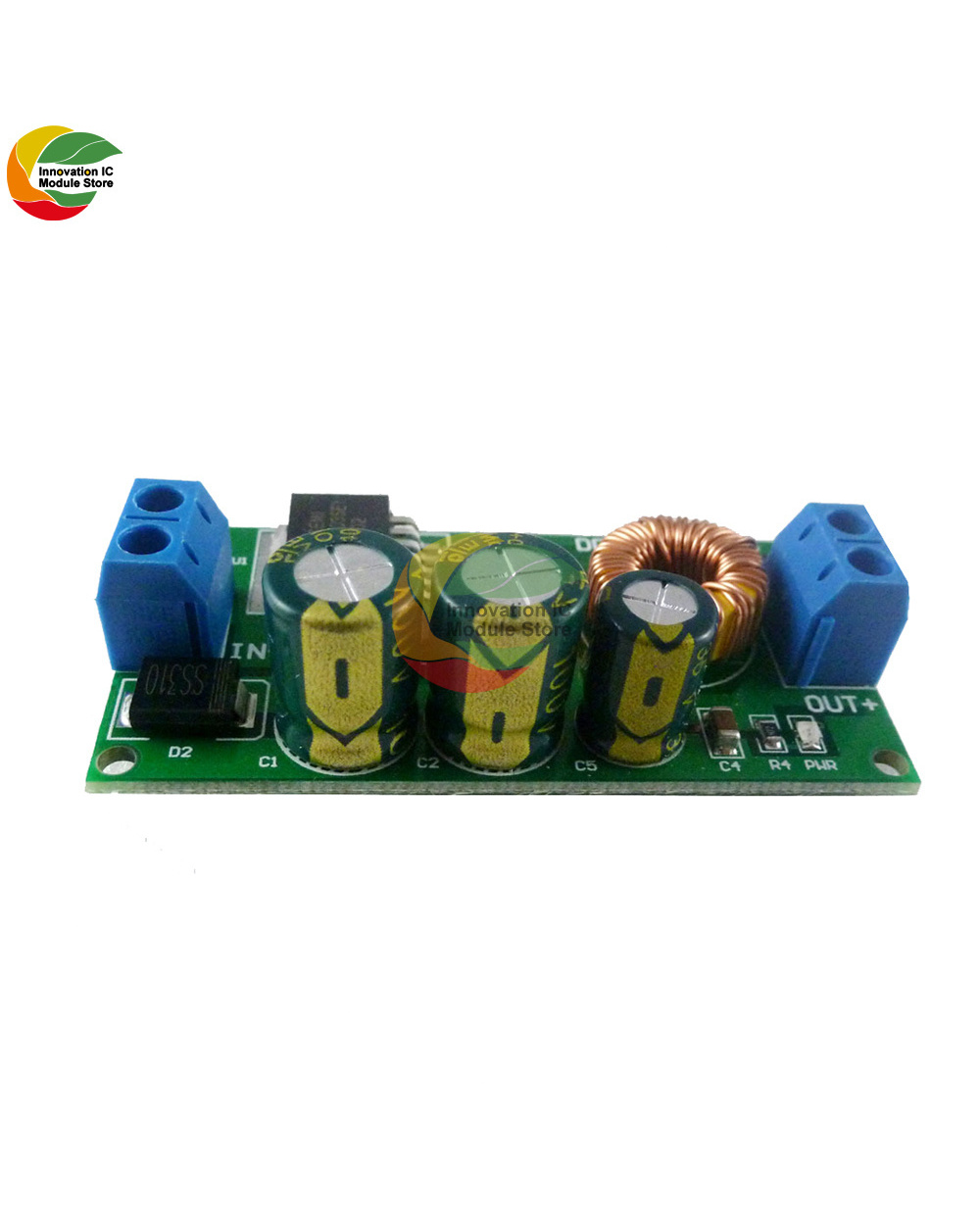

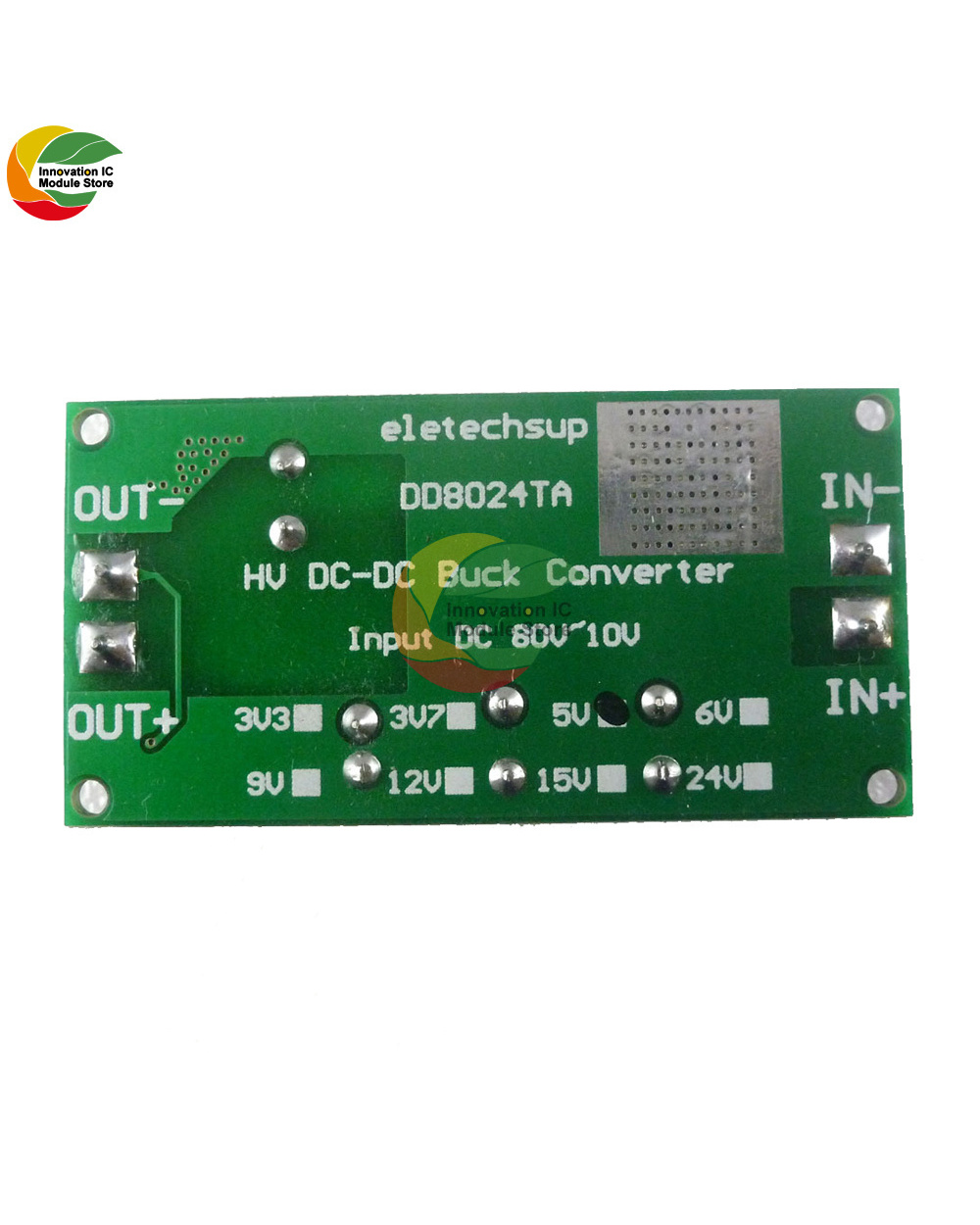

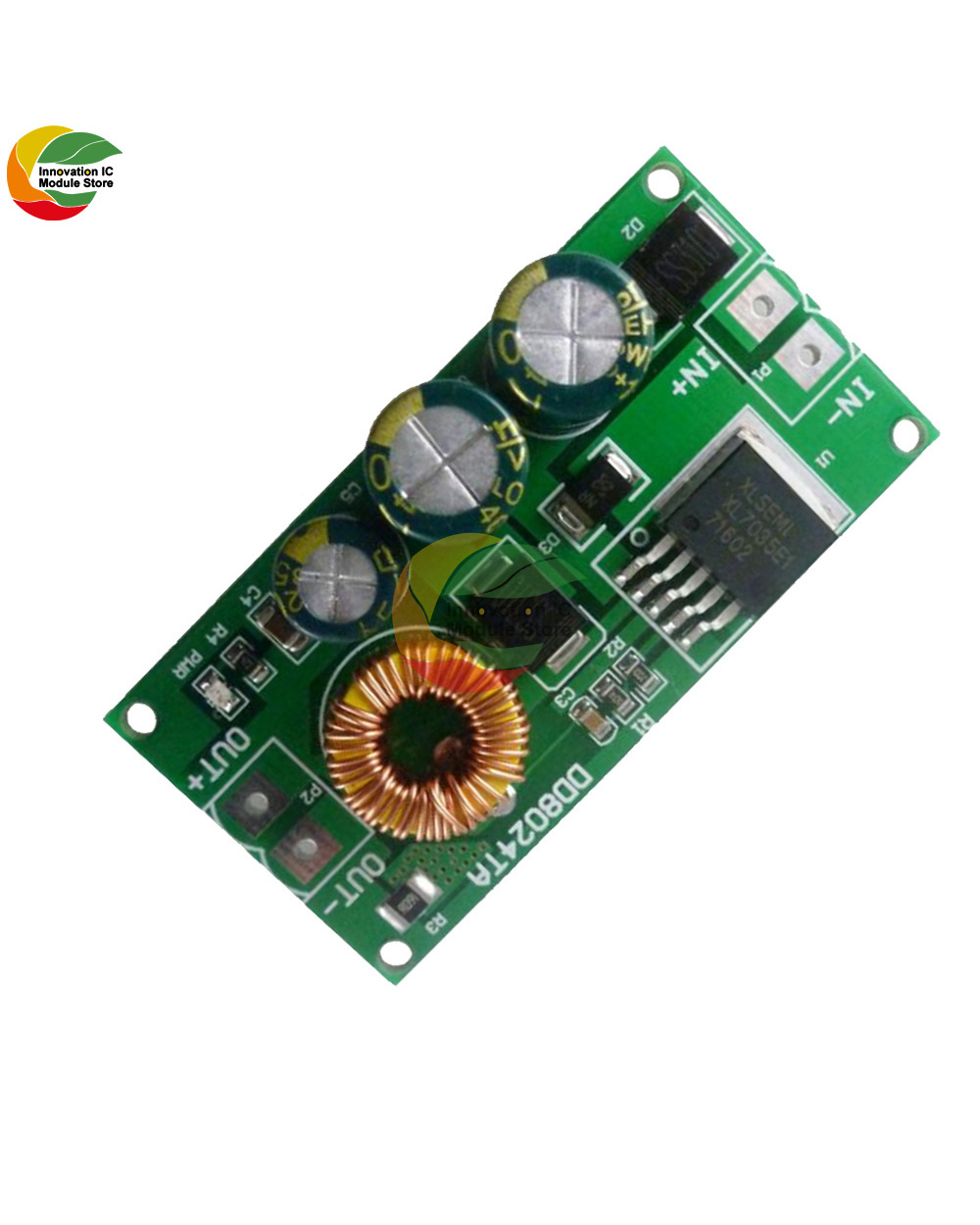

Buck Converter Module High Voltage Buck Converter Module Dd8024ta Dc-Dc 10-80V To 3.3V-15V With Terminal Block Or Termi

Buck Converter Module High Voltage Buck Converter Module Dd8024ta Dc-Dc 10-80V To 3.3V-15V With Terminal Block Or Termi

$24.95
2/7
description
product reviews

Recommended with


Ni-MH Rechargeable Lithium Battery Charging Module Smart Charger Module Charging Voltage 1.5V 3V 4.5V CC/CVCharging Module Board



High-Voltage EBike DC-DC Converter Buck Step-Down Regulator Module 80V 72V 64V 60V 48V 36V 24V to 15V 12V 9V 6V 5V 3.3V


product description:

1: Simple to use and easy to understand

2: Variety of choices

3: Input reverse connection protection

4: Output overcurrent protection

5: Over temperature protection


Product Description:

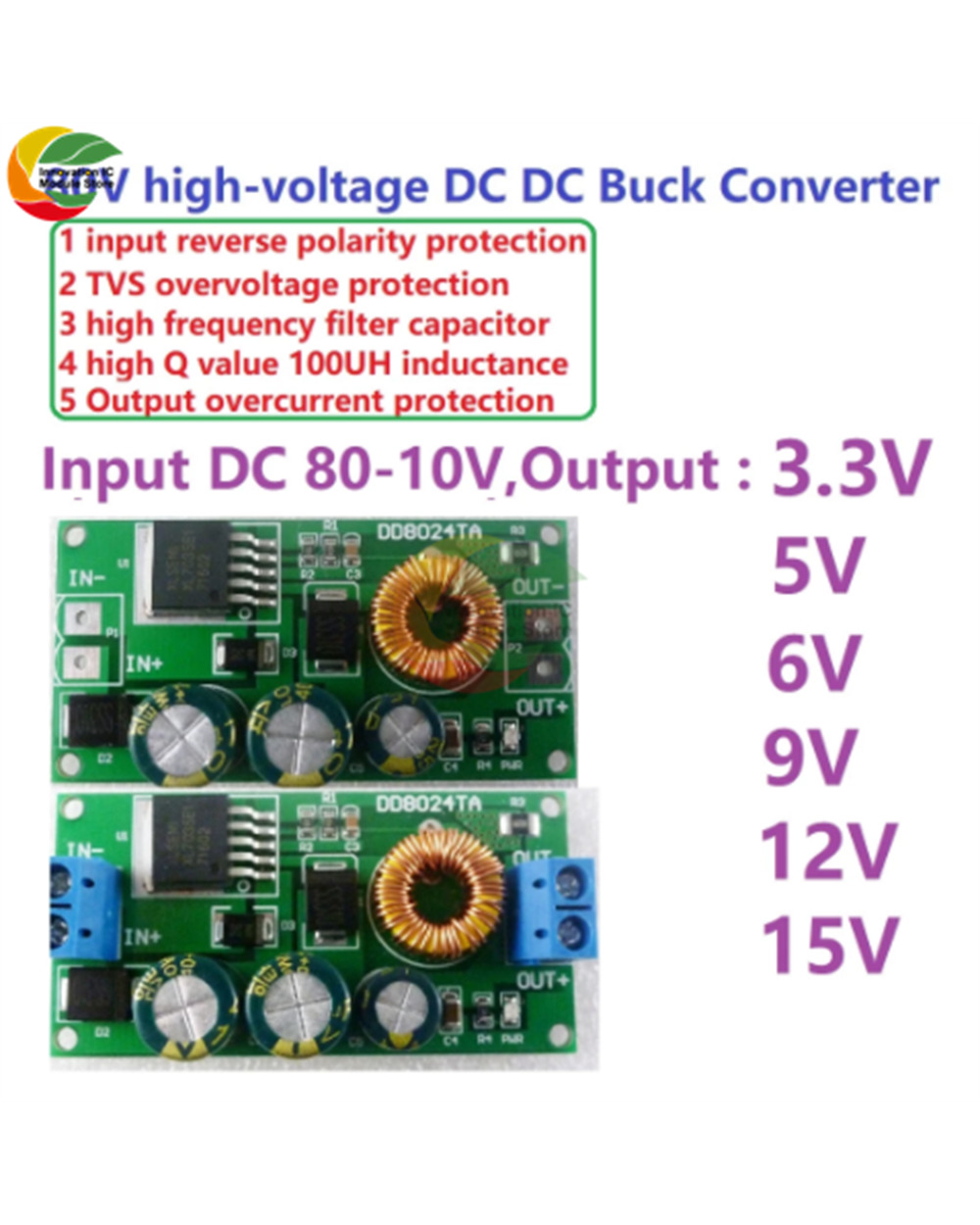

Features:


1 Input reverse connection protection

2 TVS overvoltage protection

3 High frequency filter capacitor

4 High Q value 100UH inductor

5 Output overcurrent protection

6 Over temperature protection

7 Output short circuit protection


3.3V:

Input DC 10~80V, output 3.3V

Maximum output current: 1A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

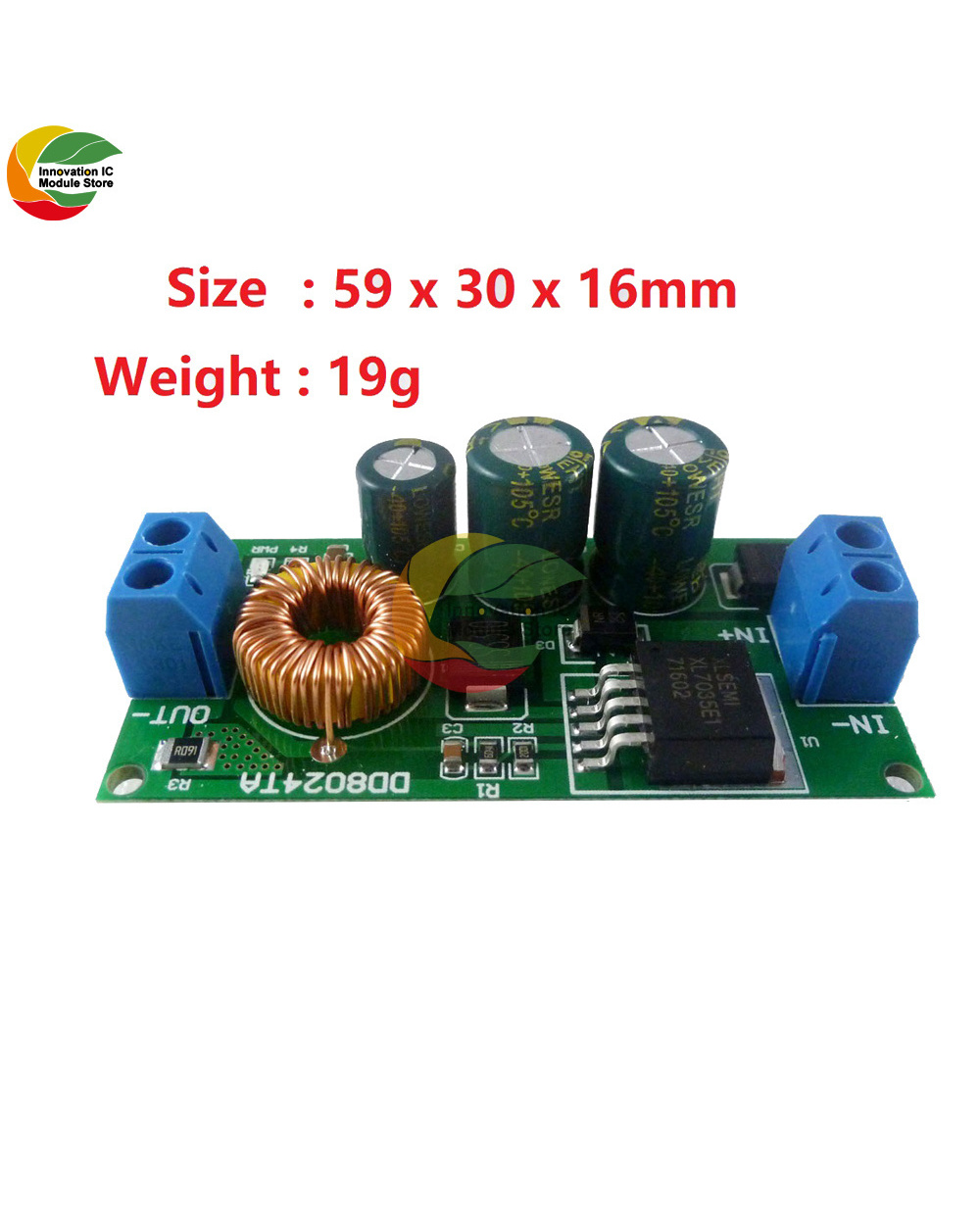

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


5V:

Input DC 10~80V, output 5V

Maximum output current: 1A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


6V:

Input DC 10~80V, output 6V

Maximum output current: 1A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


9V:

Input DC 10~80V, output 9V

Maximum output current: 0.75A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


12V:

Input DC 14~80V, output 12V

Maximum output current: 0.75A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


15V:

Input DC 17~80V, output 15V

Maximum output current: 0.75A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


Checklist

1*High voltage step-down module


3.3V:

Input DC 10~80V, output 3.3V

Maximum output current: 1A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


5V:

Input DC 10~80V, output 5V

Maximum output current: 1A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal




6V:

Input DC 10~80V, output 6V

Maximum output current: 1A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


9V:

Input DC 10~80V, output 9V

Maximum output current: 0.75A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


12V:

Input DC 14~80V, output 12V

Maximum output current: 0.75A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal


15V:

Input DC 17~80V, output 15V

Maximum output current: 0.75A

DC-DC high voltage step-down conversion module, frequency 150KHZ

Maximum conversion efficiency: 85%.

Quiescent working current: about 2.5mA

Working temperature: –40°C to +85°C

Size: 59 x 30 x 16mm

Weight: 19g with terminal; 15.5g without terminal
