Bst900w Dc-Dc Boost Converter Lcd Display Step Up Power Supply Module 8-60V To 10-120V Voltage Transformer Module Regul

Bst900w Dc-Dc Boost Converter Lcd Display Step Up Power Supply Module 8-60V To 10-120V Voltage Transformer Module Regul

$31.95
2/7
description
product reviews

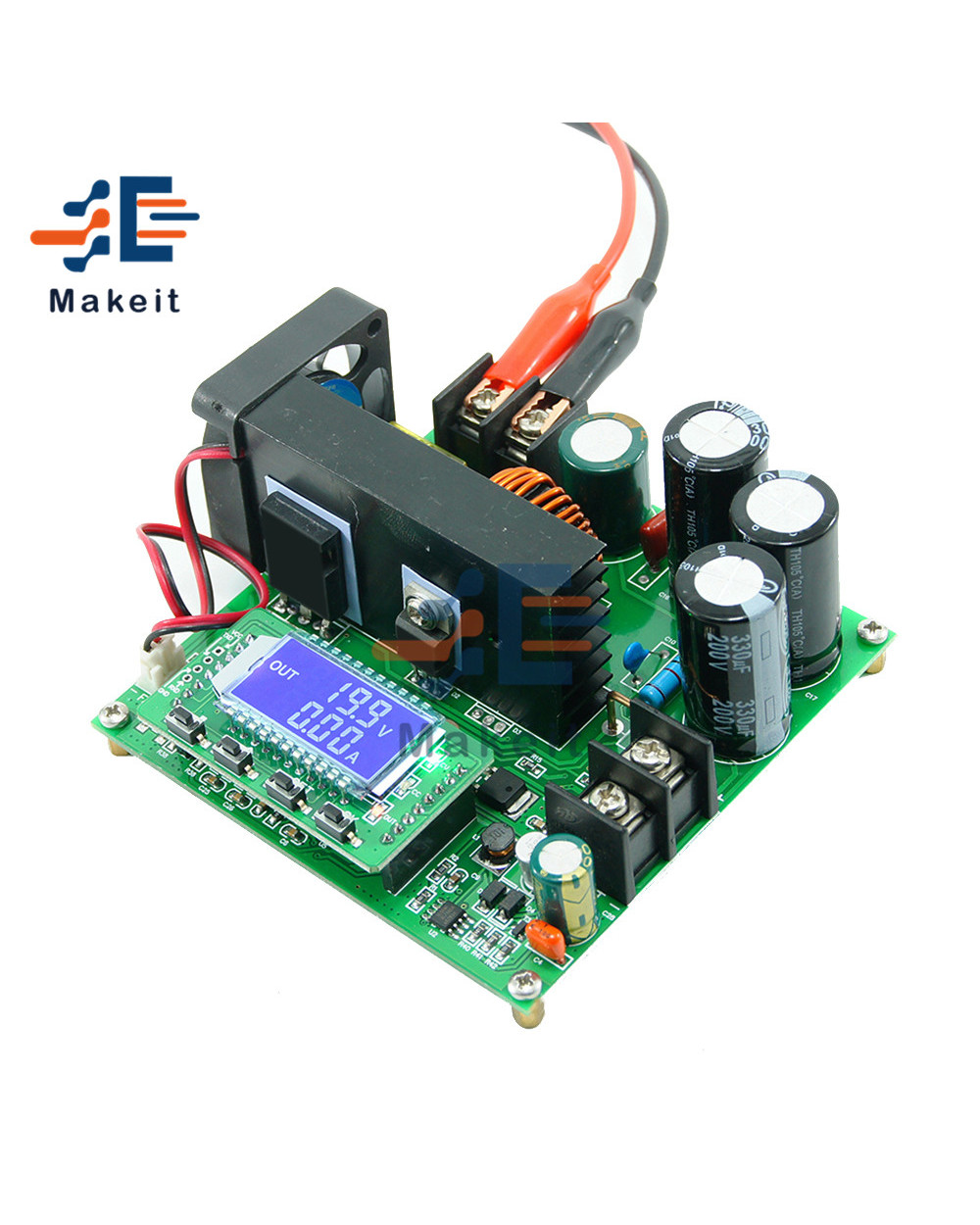

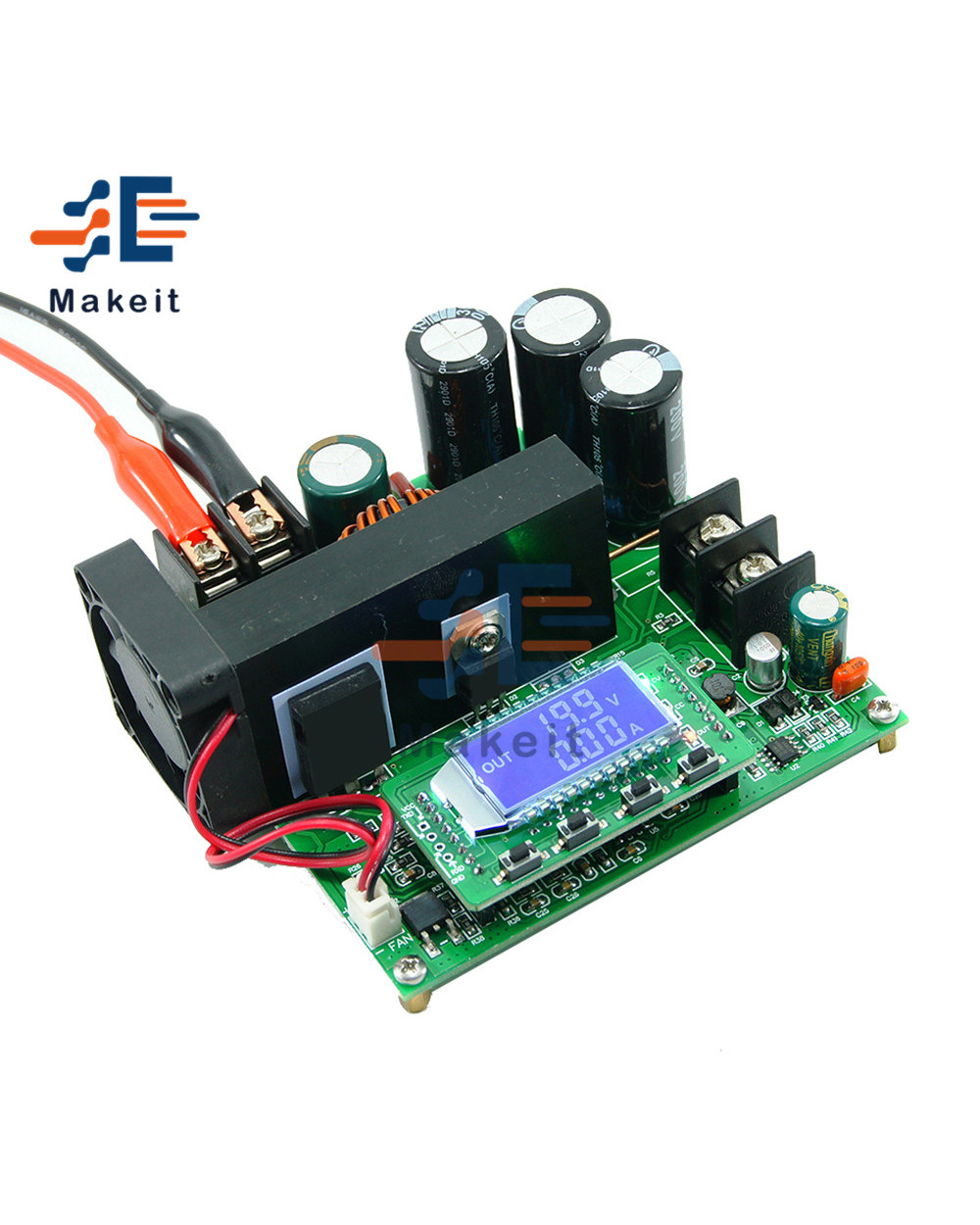

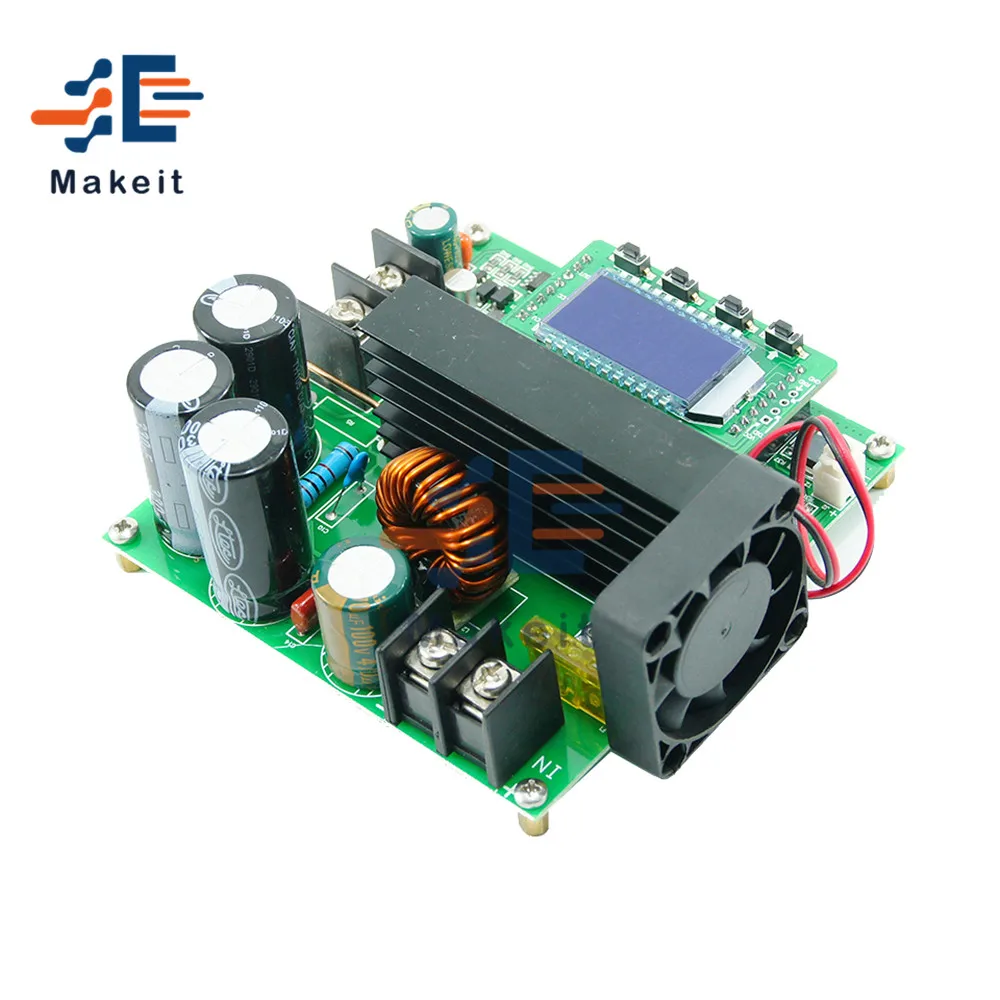

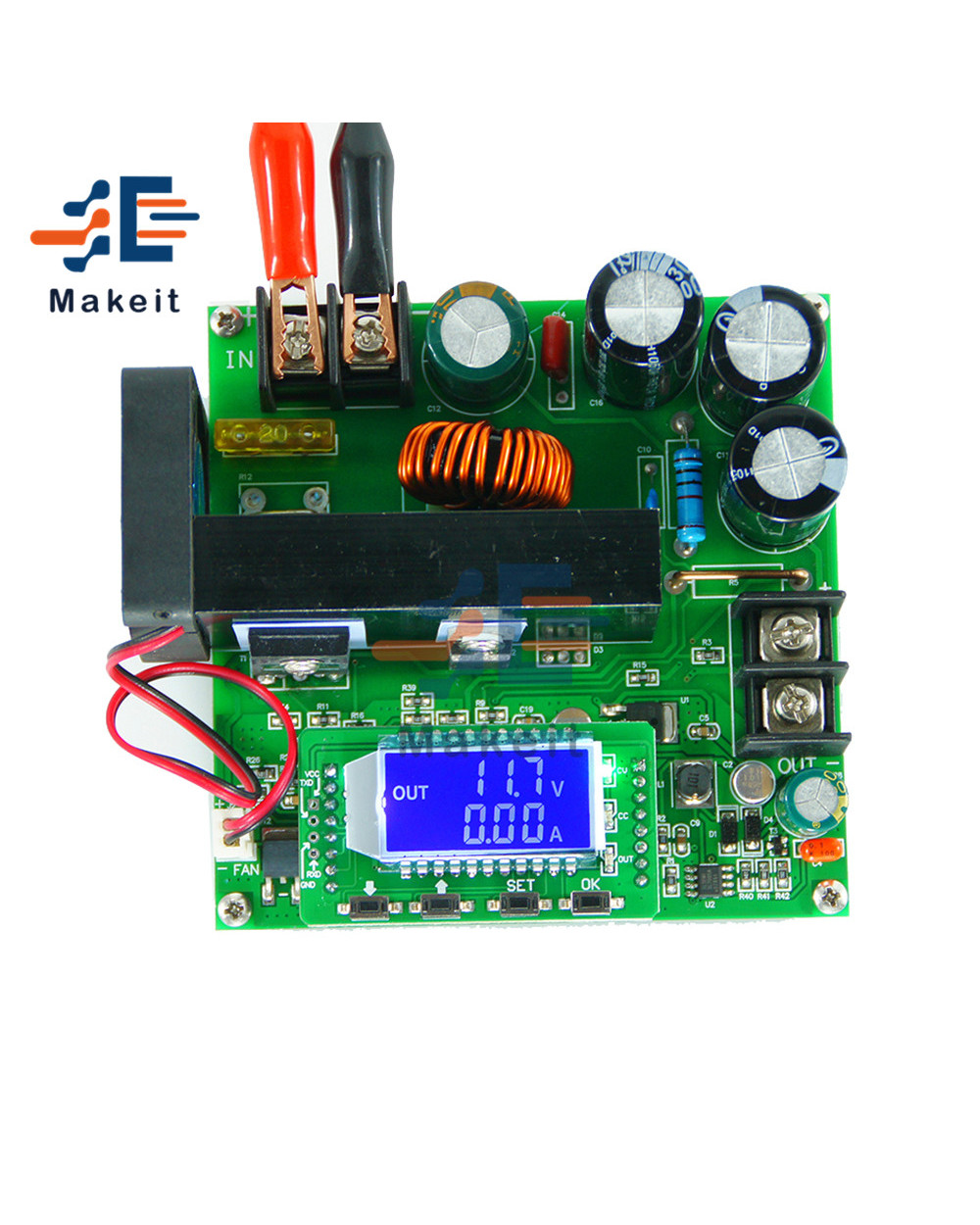

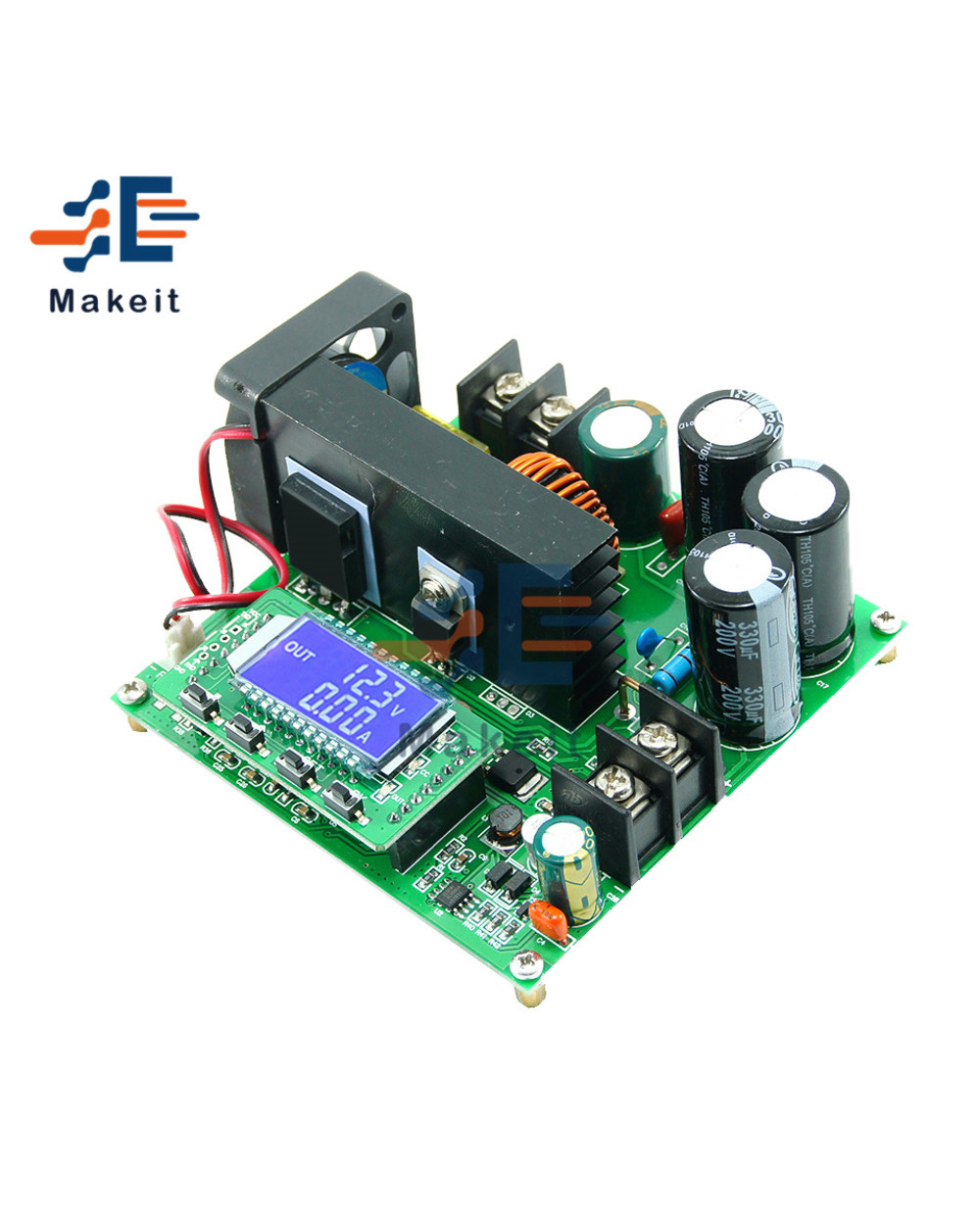

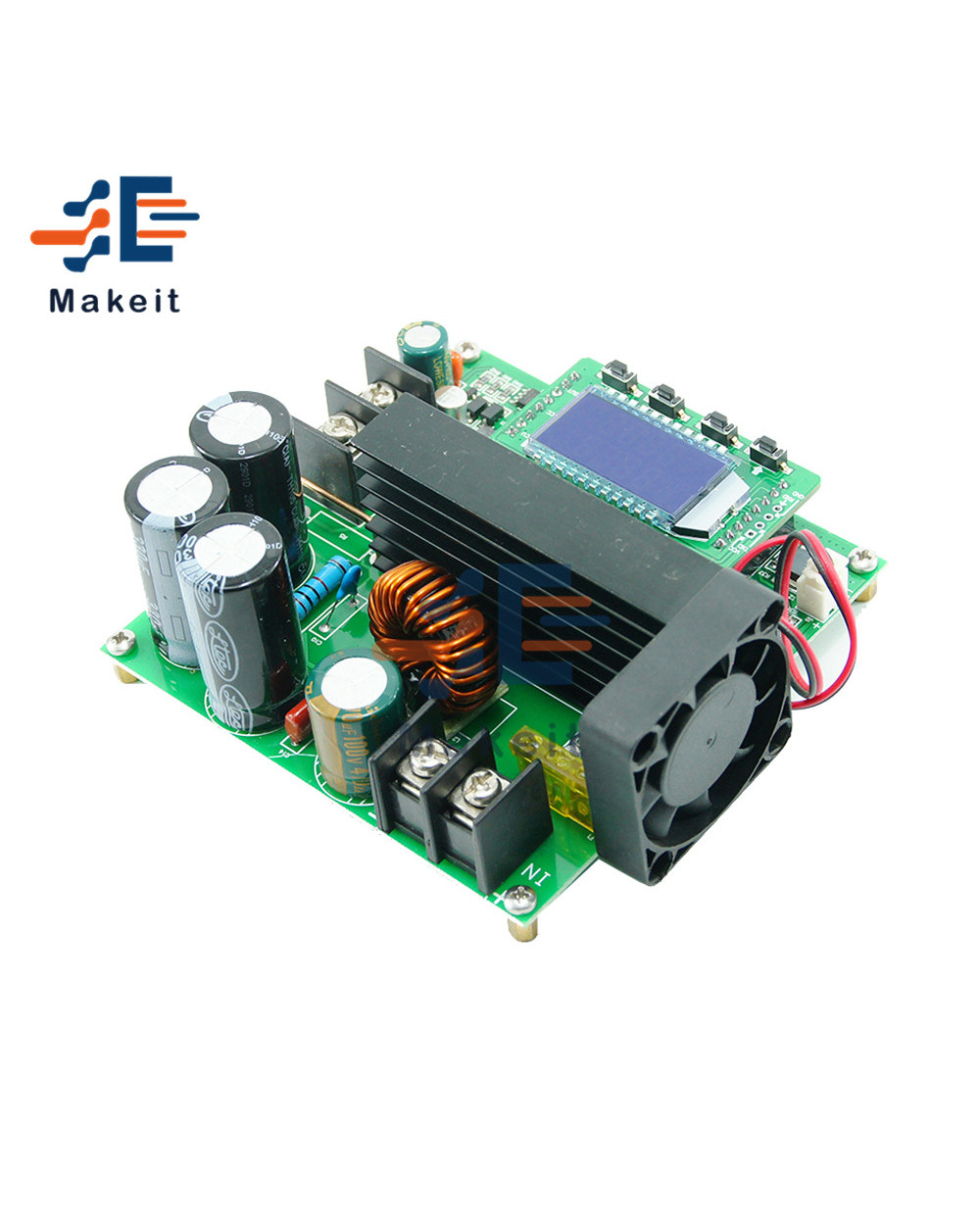

BST900W DC-DC Boost Converter LCD Display Step Up Power Supply Module 8-60V to 10-120V Voltage Transformer Module Regulator

Technical Parameters:


Input voltage (U-IN): DC8V~60V
Input current: 0~15A
Output voltage (U-OUT): 10V~120V
Output current: 0~15A
Conversion efficiency: 85%
Working frequency: 150KHZ
Short circuit protection: 20A fuse (non-self-recovery)
Working temperature: -40℃~85℃
Control method: digital control + LCD screen display
Voltage adjustment display: 0.00V~00.0V~000V
Current adjustment display: 0.00A~00.0A
Output ripple: ≤50mV
Storeable array: 10 groups
Weight: 213g (net weight)
Size: 48mm×100mm×110mm (product)
Packing size: 90mm×110mm×120mm (electrostatic bag + carton packaging)
Weight with packaging: 267g

1. Start boost
① Manual boosting press and hold the OK button for 10 seconds to enter the interface and select AUTO-OFF as manual boosting. , Select AUTO-ON to automatically start the boost.
② Click OK to start or stop the boost.
2. Set storage
In the setting mode, long press the SET button for 10 seconds to enter the data storage interface, and use the up and down keys to select 10 groups of data from 0 to 9, and press the SET button to save the settings.
3. Retrieve and access the array
In the normal interface, press and hold the SET button for 10 seconds to enter the storage and recall interface. You can select 10 data groups from 0 to 9 through the up and down keys, and press the SET button to confirm the recall.

Package included:

1 ×  900W Digital Boost Module
