Bms 4S 40A 5S 100A 3.7V14.8V 16.8V Li-Ion Lmo Ternary Lithium Battery Protection Circuit Board Li-Polymer With Balance

Bms 4S 40A 5S 100A 3.7V14.8V 16.8V Li-Ion Lmo Ternary Lithium Battery Protection Circuit Board Li-Polymer With Balance

$22.95
2/7
description
product reviews

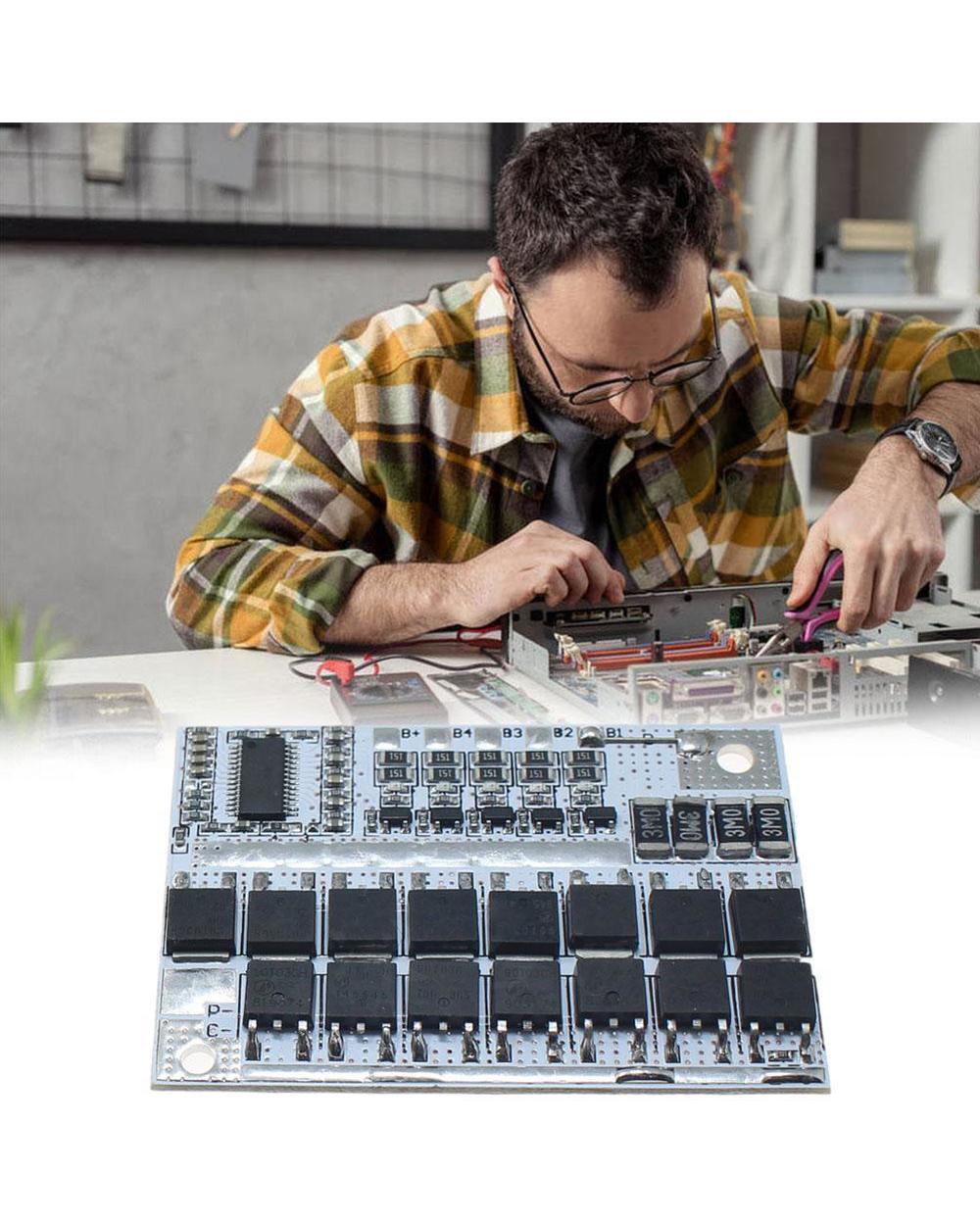

1.This protection board is 5s in common use lithium battery protection board

2.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

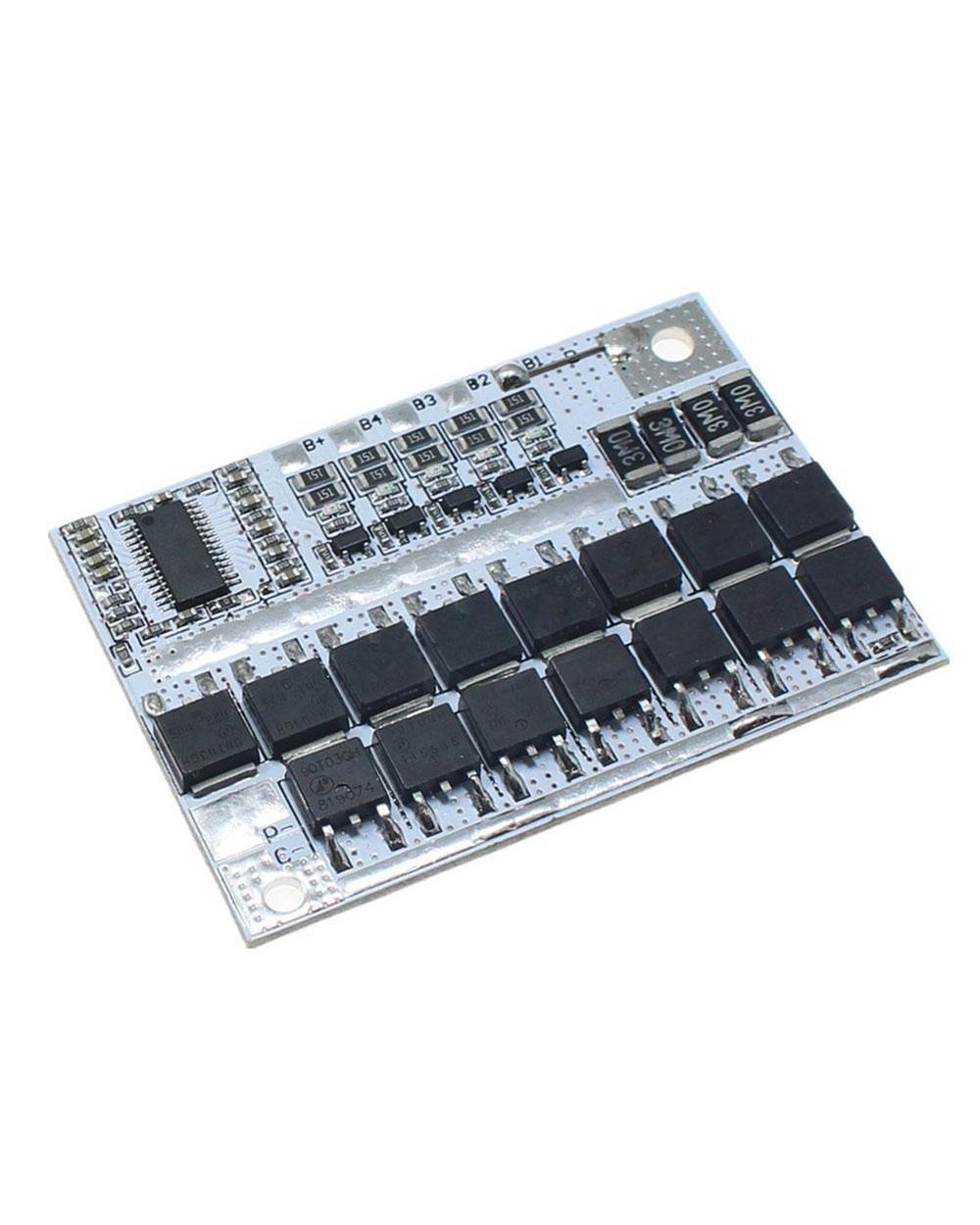

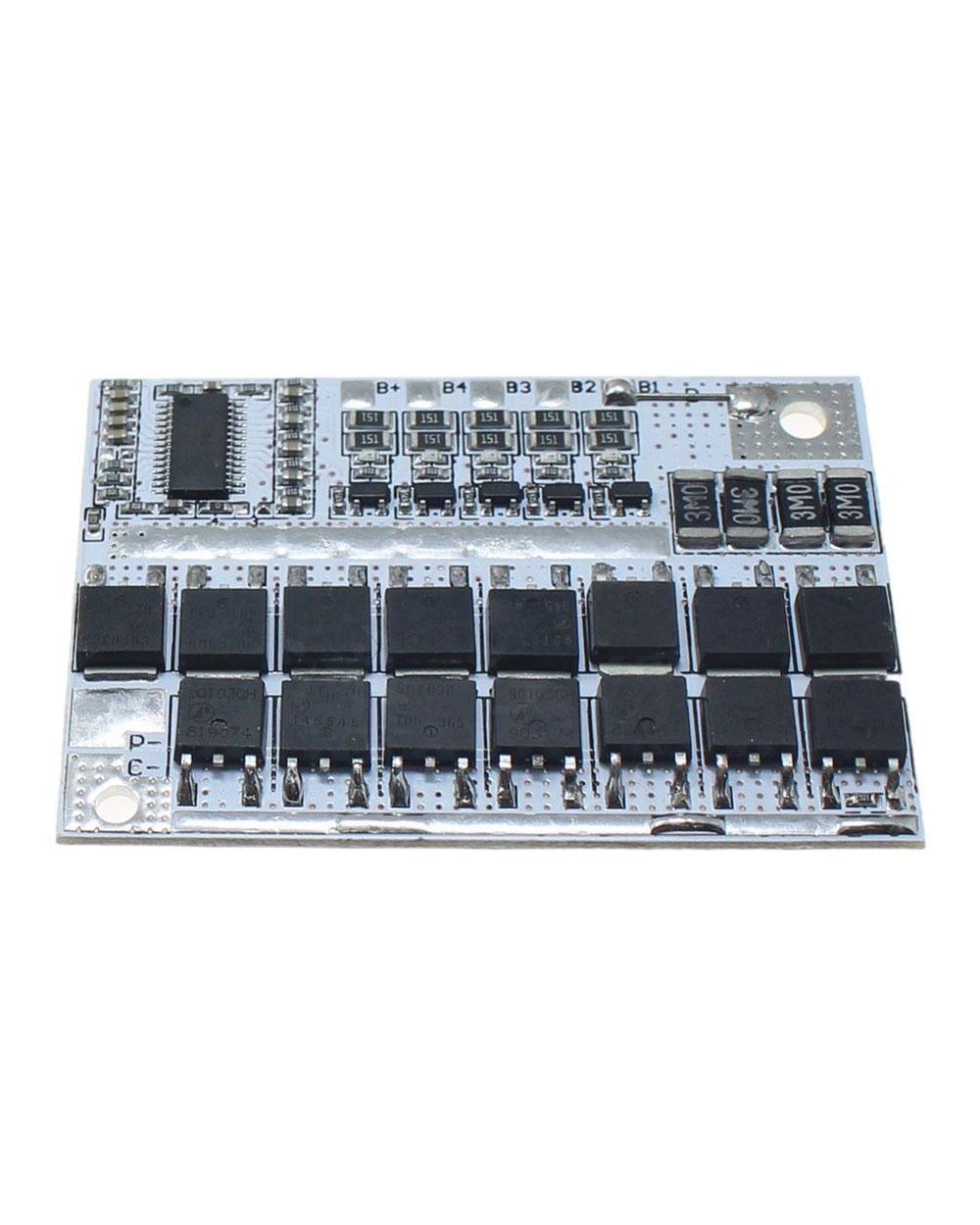

3.Common use for same port and different port, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.

4.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.

Parameter:
FOR Li-POLYMER LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge protect voltage : 2.72-2.88 V
Single cell battery over-discharge protect recover voltage : 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 60MA
Current balance accuracy : 4.14-4.24V


Package include:
1 x 21V 100A 5S BMS Li-ion LMO Ternary Lithium Battery Protection Circuit Board











Features


100% Brand new!


4 string 40A lithium battery protective board, comes with recovery function-auto recovery.


Enhanced version, applicable to electric drills with starting current below 80A, power below 230W(no balanced function).


Integrated 10 imported low internal resistance MOS tubes, continuous discharge 40A, suitable for electric drills, sprayers, LED lights, low power inverters, etc.


Ideal 4S 40A 4S40A li-ion battery 18650 charger BMS PCB protection board with balance for drill motor 14.8V 16.8V lipo cell module.





Specifications


Charging Voltage: 16.8V~18.1V


Continuous Discharge Current (upper limit): 40A(If the cooling environment is not good, please reduce the use of load current.)


Continuous Charge Current (upper limit): 20A


Size: About 45x55x3.4mm/1.8x2.2x0.13"


Scope: Nominal voltage of 3.6V, 3.7V lithium battery(including 18650, 26650, lithium polymer battery)





Attentions


1. Please allow tiny size deviations due to human measurement.


2. This item is an enhanced version BMS PCB without any equalized charging.


3. The successful start of the drill requires four 10C-20C power battery, or eight 5C-10C power battery(ordinary 18650 can not start the drill!!).


4. Strictly according to wiring guide 0V, 4.2V, 8.4V, 12.6V, 16.8V, do not touch any components on the board while soldering the wire to avoid short circuit.


5. When soldering the battery for the first time or when charging, as long as a single battery exceeds 4.2V, the "430" resistor will heat up and discharge (stopping heating when discharged to 4.19V or so). If the "430" resistor is severely heated (it's too hot to touch), please check if the wrong line is connected.


6. When connecting 4 groups of batteries in series, please ensure that the voltage of each group of batteries is the same. If they are different, please charge each group of batteries individually and reconnect it in series. In the discharge test, the battery with a faster voltage is a poor battery.





Package Included


1 x 4S 40A Protection Board


Dear buyer,Welcome to our store. You can contact with us to get more detail of the goods .If you need more this item ,you can contact us.we will give you our best price. Leave your message!
