Bms 3S 4S 5S 12V 16.8V 21V 100A Li-Ion Lithium Battery Protection Circuit Board With Balance Charging Module For Power

Bms 3S 4S 5S 12V 16.8V 21V 100A Li-Ion Lithium Battery Protection Circuit Board With Balance Charging Module For Power

$22.95
2/7
description
product reviews


3S

Description:


100% Brand new and high quality 18650 battery charging Module

FOR Lithium POLYMER protection Board(3.7V)

Single cell battery overcharge protect voltage : 4.21-4.29 V

Single cell battery overcharge  protect recover voltage : 4.14-4.24V

Overcharge protect delay : 1.5-2.5S

Single cell battery over-discharge  protect voltage : 2.72-2.88 V

Overcharge protect Current : 100A

Over-discharge protect Current : 100A

Over-discharge protect delay : 0.5-1.5S

Temperature protect : Yes

Disconnect protect : Yes

Shortage protect : Yes

Shortage delay : 100-600 uS

Shortage protect recover : YES

Charging Current : 60A

Current Balance : Yes

Ampere balance (Current) : 60MA

Voltage alance accuracy : 4.14-4.24V


4S


Description:

1.This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 4S ternary lithium.
2.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

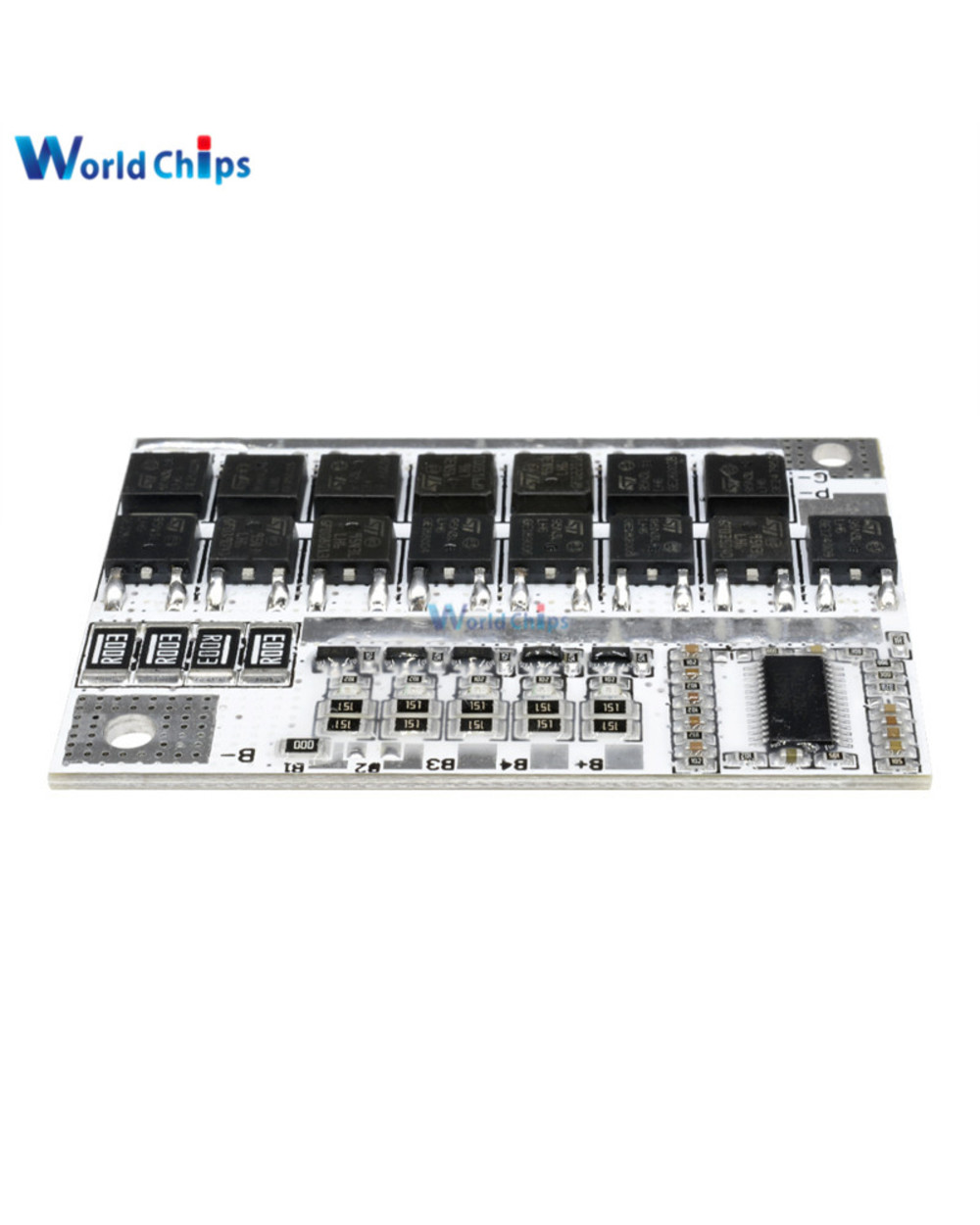

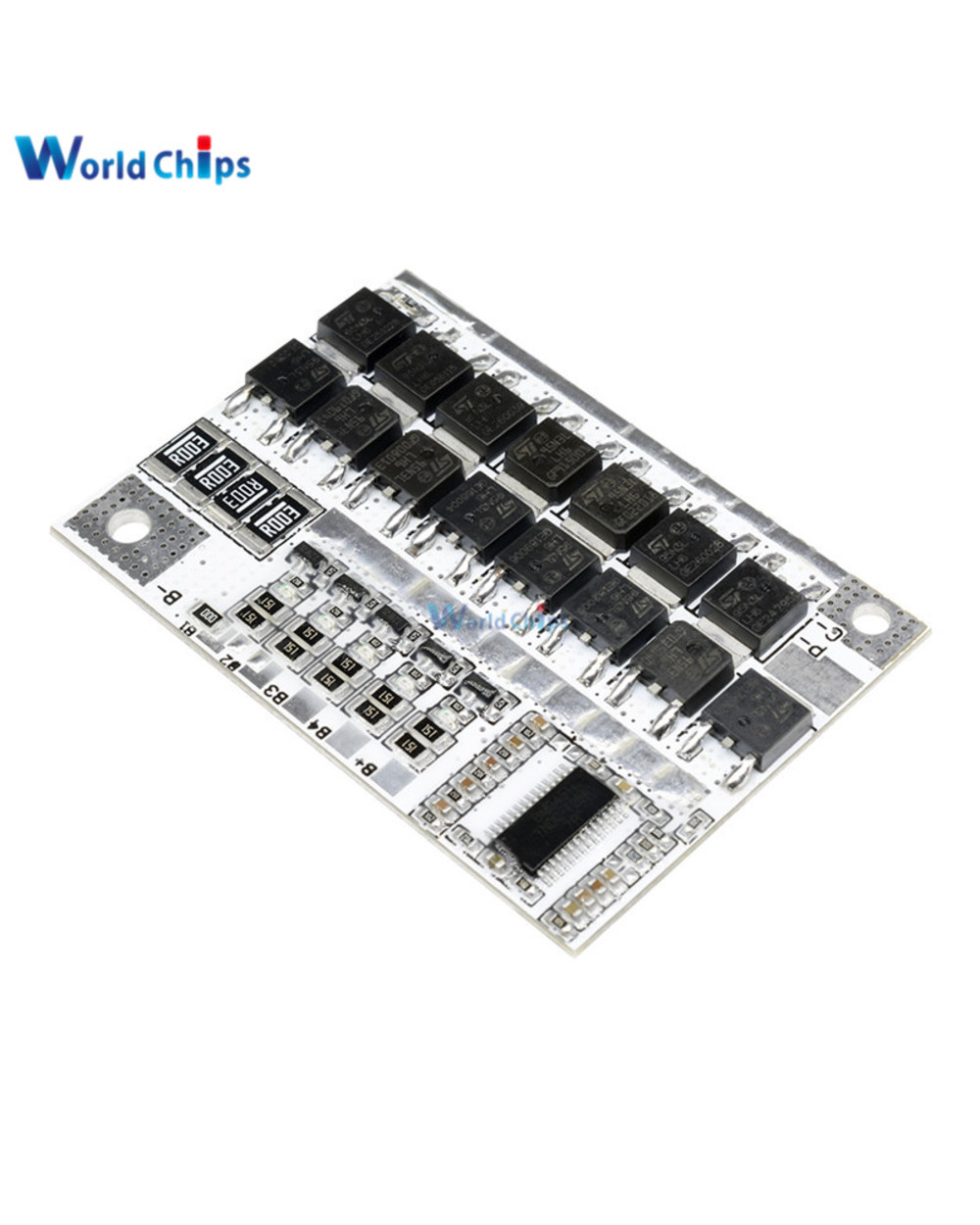

3.Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.
4.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.
Parameter:
FOR Li-POLYMER  LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge  protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge  protect voltage : 2.72-2.88 V
Single cell battery over-discharge  protect recover voltage : 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 60MA
Current balance accuracy : 4.14-4.24V

5S

Description:


1.This protection board is 3s 4s 5s in common use lithium battery protection board (you can adjust for how many strings to be used), the default delivery is 5S ternary lithium.

2.Specified chip, stable performance, support disconnection protection, over-current protection, over discharge protection, overcharge protection, with balance, etc.

3.Common use for “same port” and “different port”, the protection board uses 15 high-power of ultra-low resistance MOS tube (discharge of 8, charging of 7), in the same port mode can support the discharge current 60A, charging current 60A; different port mode discharge current 80A, charging current 60A.

4.Can use for LMO.Ternary lithium battery.LCO(3.7V)battery packs etc.

Parameter:
FOR Li-POLYMER  LiMnO Protect Parameter(3.6V/3.7V)
Single cell battery overcharge protect voltage : 4.21-4.29 V
Single cell battery overcharge  protect recover voltage : 4.14-4.24 V
Overcharge protect delay : 1.5-2.5S
Single cell battery over-discharge  protect voltage : 2.72-2.88 V
Single cell battery over-discharge  protect recover voltage : 2.9-3.1 V
Over charge protective current:100A
Over discharge protective current:100A
Over-discharge protect delay : 0.5-1.5S
Temperature protect : Yes,have Temperature control interface.
Disconnect protect : Yes
Shortage protect : Yes
Shortage delay : 100-600 uS
Shortage protect recover mode: Off load release.
Contact discharge current:80A
Synopline discharge current:60A
Charging current:60A
balance function:yes
Ampere balance (Current) : 60MA
Current balance accuracy : 4.14-4.24V


Package include:

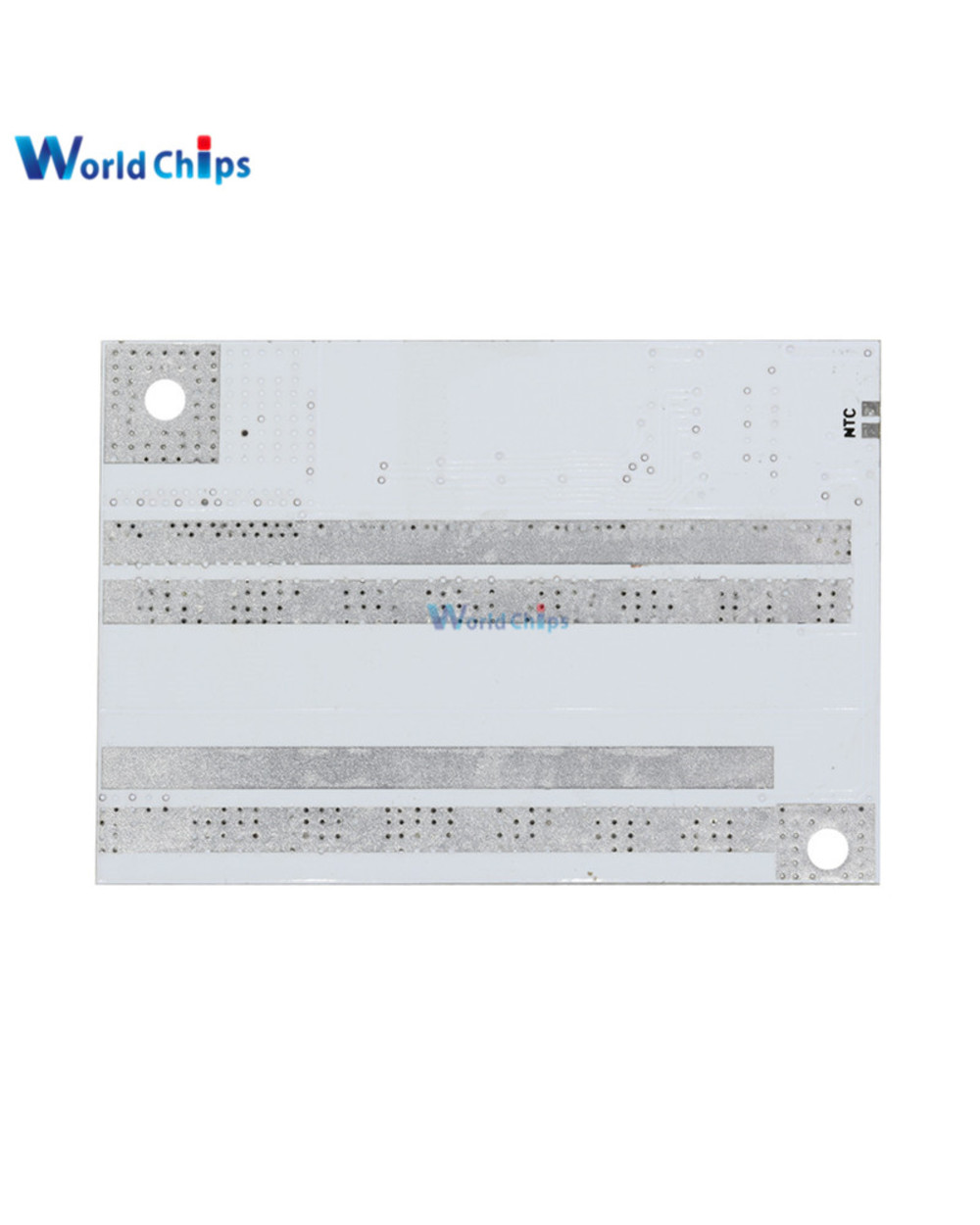

1 x 3S/4S/5S BMS 12V 21V 100A Li-ion LMO Ternary Lithium Battery Protection Circuit Board Li-POLYMER Balance Charging Board Module
