Blue Black Tiny85 Digispark Kickstarter Micro Development Board Attiny85 Module For Arduino Iic I2c Usb

Blue Black Tiny85 Digispark Kickstarter Micro Development Board Attiny85 Module For Arduino Iic I2c Usb

$20.95
2/7
description
product reviews

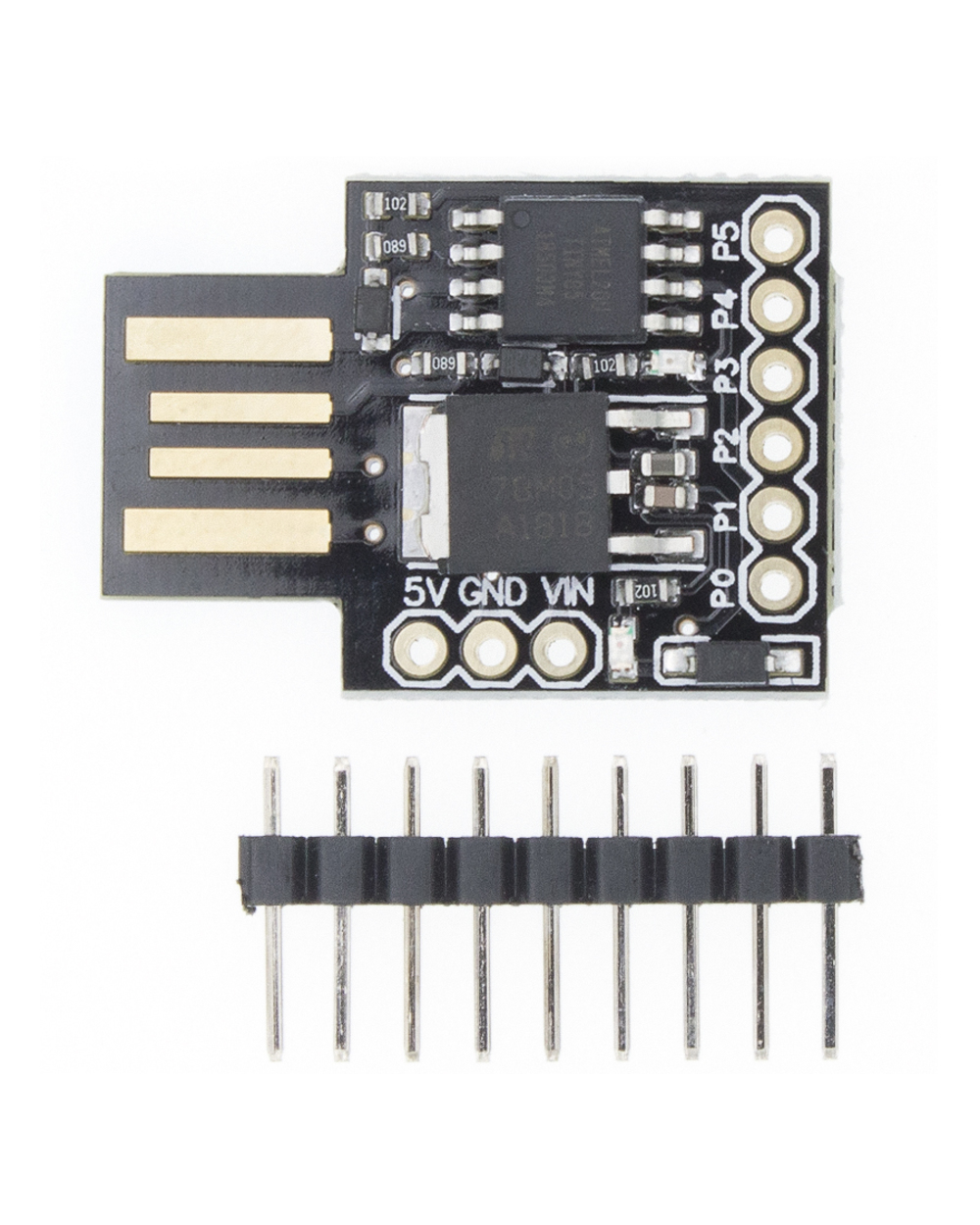

ATTINY85 module Black:






1. Support for the Arduino IDE 1.0 + (OSX/Windows/Linux).

2. Power via USB or External Source or 7-16 v to 5 v (automatic selection).

3. The On - board, 150 ma 5 v Regulator.

4. Built - in USB and serial was debugging).

5. 6 I/O Pins (2 are informs the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).

6. 8 k Flash Memory (about 6 k after bootloader).

7. The I2C and SPI (vis USI).

8. PWM on 3 pins (more possible with Software PWM).

9. The ADC on 4 pins.

10. The Power LED and the Test/Status leds.

The Specs:



1. Support for the Arduino IDE 1.0+ (OSX/Win/Linux).

2. Power via USB or External Source - 5v or 7-16v (automatic selection).

3. On-board 150ma 5V Regulator.

4. Built-in USB (and serial debugging).

5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).

6. 8k Flash Memory (about 6k after bootloader).

7. I2C and SPI (vis USI).

8. PWM on 3 pins (more possible with Software PWM).

9. ADC on 4 pins.

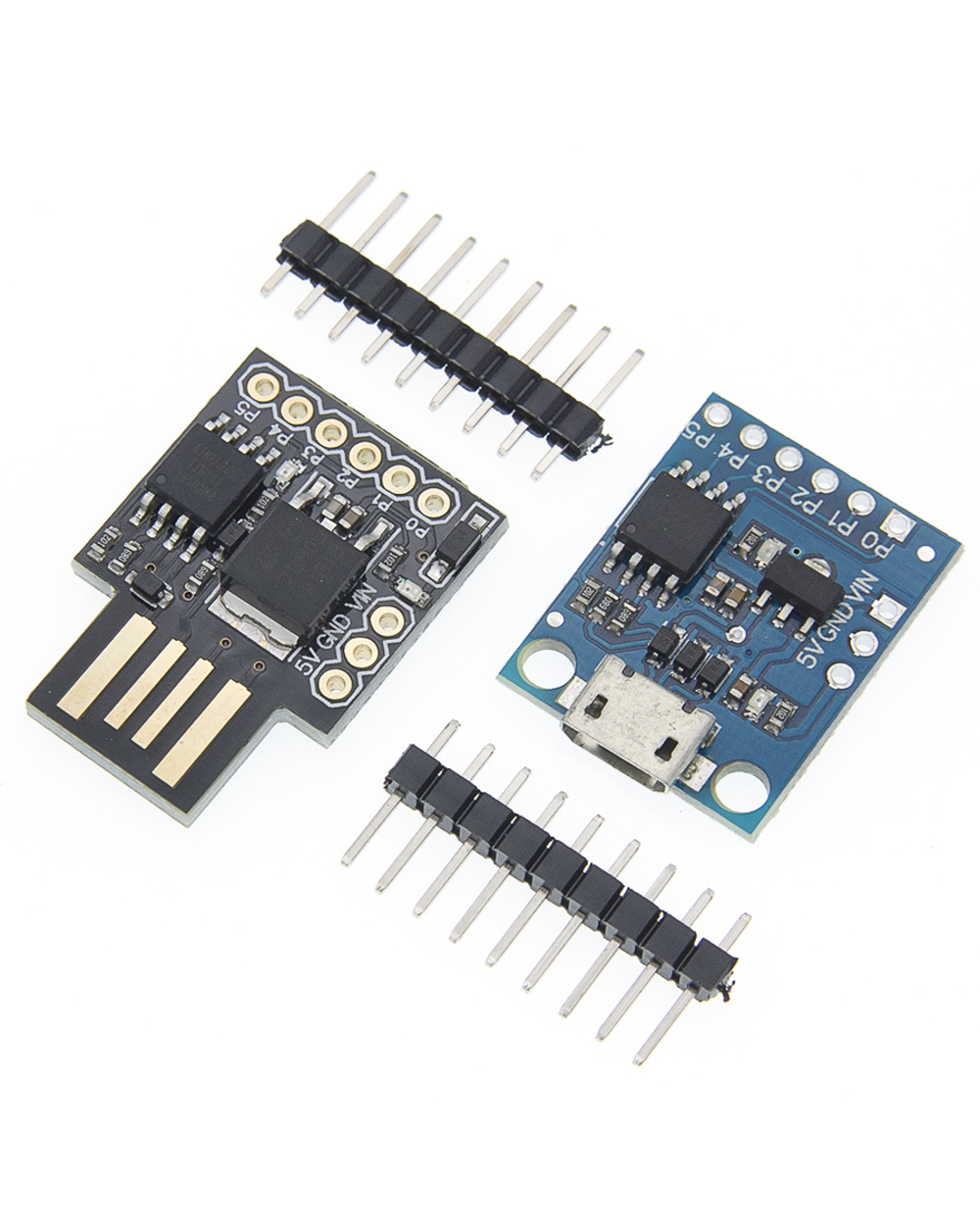

ATTINY85 module Blue






1. Support for the Arduino IDE 1.0+ (OSX/Win/Linux).



2. Power via USB or External Source - 5v or 7-16v (automatic selection).



3. On-board 150ma 5V Regulator.



4. Built-in USB (and serial debugging).



5. 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB).



6. 8k Flash Memory (about 6k after bootloader).



7. I2C and SPI (vis USI).



8. PWM on 3 pins (more possible with Software PWM).



9. ADC on 4 pins.



10. Power LED and Test/Status LED















2/7

Blue Black Tiny85 Digispark Kickstarter Micro Development Board Attiny85 Module For Arduino Iic I2c Usb

$20.95
Shipping info

Shipments will deliver in 10 to 20 business days.


Learn more about our shipping rates here and our returns, refunds, and exchanges policy here.
