Avr Atmega16 Minimum System Board Atmega32 Development Board + Usb Isp Usbasp Programmer Isp Attiny 51 Board Module Diy

Avr Atmega16 Minimum System Board Atmega32 Development Board + Usb Isp Usbasp Programmer Isp Attiny 51 Board Module Diy

$21.95
2/7
description
product reviews















AVR ATMEGA16 Minimum System Board ATmega32 Development Board + USB ISP USBasp Programmer ISP ATTiny 51 Board Module DIY Kits


100% brand new and high quality

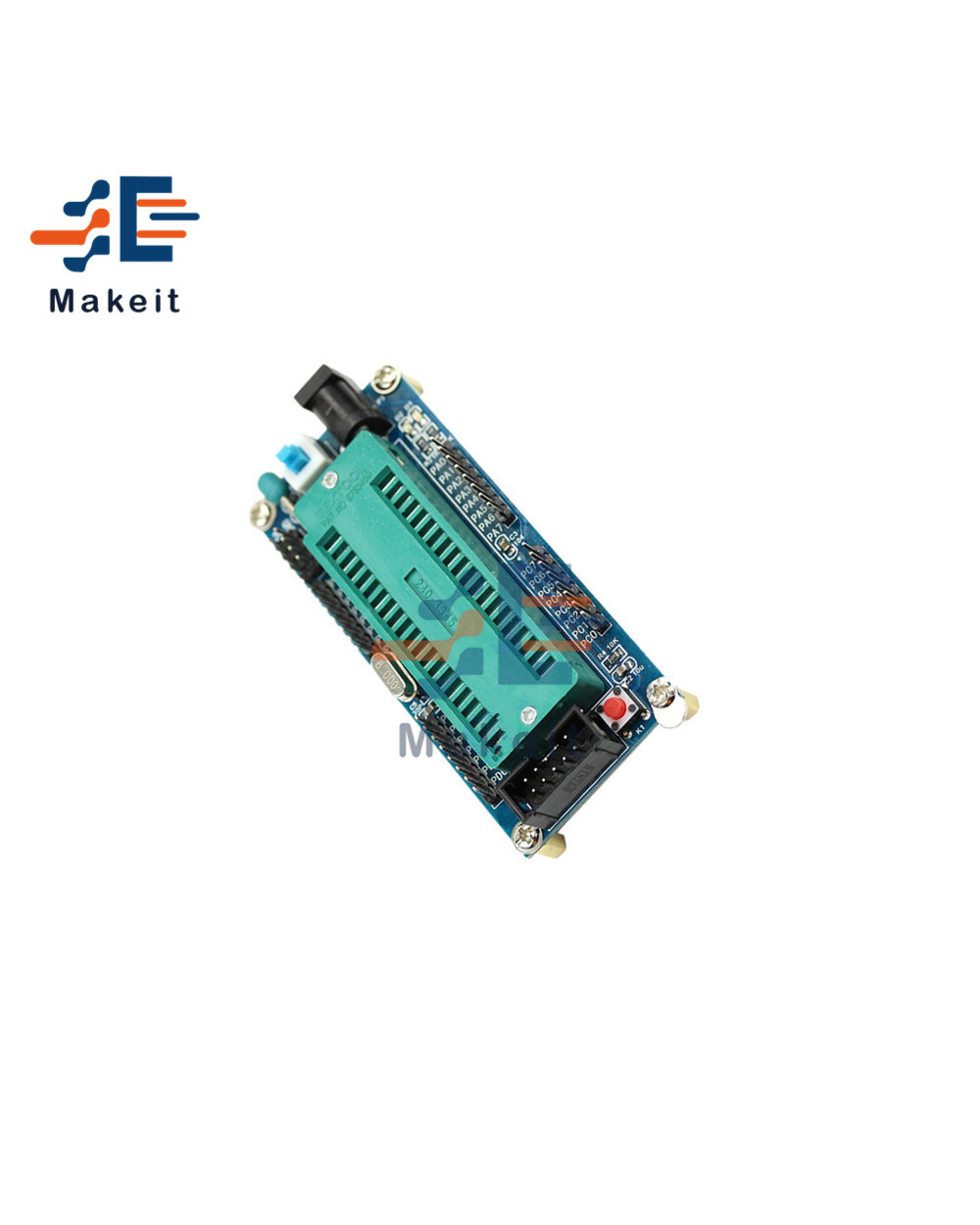

ISP ATMEGA16 ATmega32 Minimum Board

Quantity: 1pc

Weight: 46 g

Color: as picture show

Size: 88mmx38mm/3.47"x1.49"(inch) (approx)


Product Features:


1. 32 I/O pin all the leads.

2. Classic ATmega16 minimum system, eliminating the hassle of soldering.

3. Crystal: The socket hole welding facilitate the buyer to replace the crystal, 8M crystal.

4. Support chips: ATmega16/ATmega32 and chip which pin-compatible.

5. Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply).

6. DC-005 Power Block (supporting the transposon is 5.5*2.1mm).

7. Expand outside 4 channel VCC, GND.

8. Reset: Power-on reset and reset button.

9. Power LED (D1) and the program run indicator (D2).

10. Standard ISP download interface.


Note: This minimum system development board without AVR chip, you need purchase for chip in additional!!!!

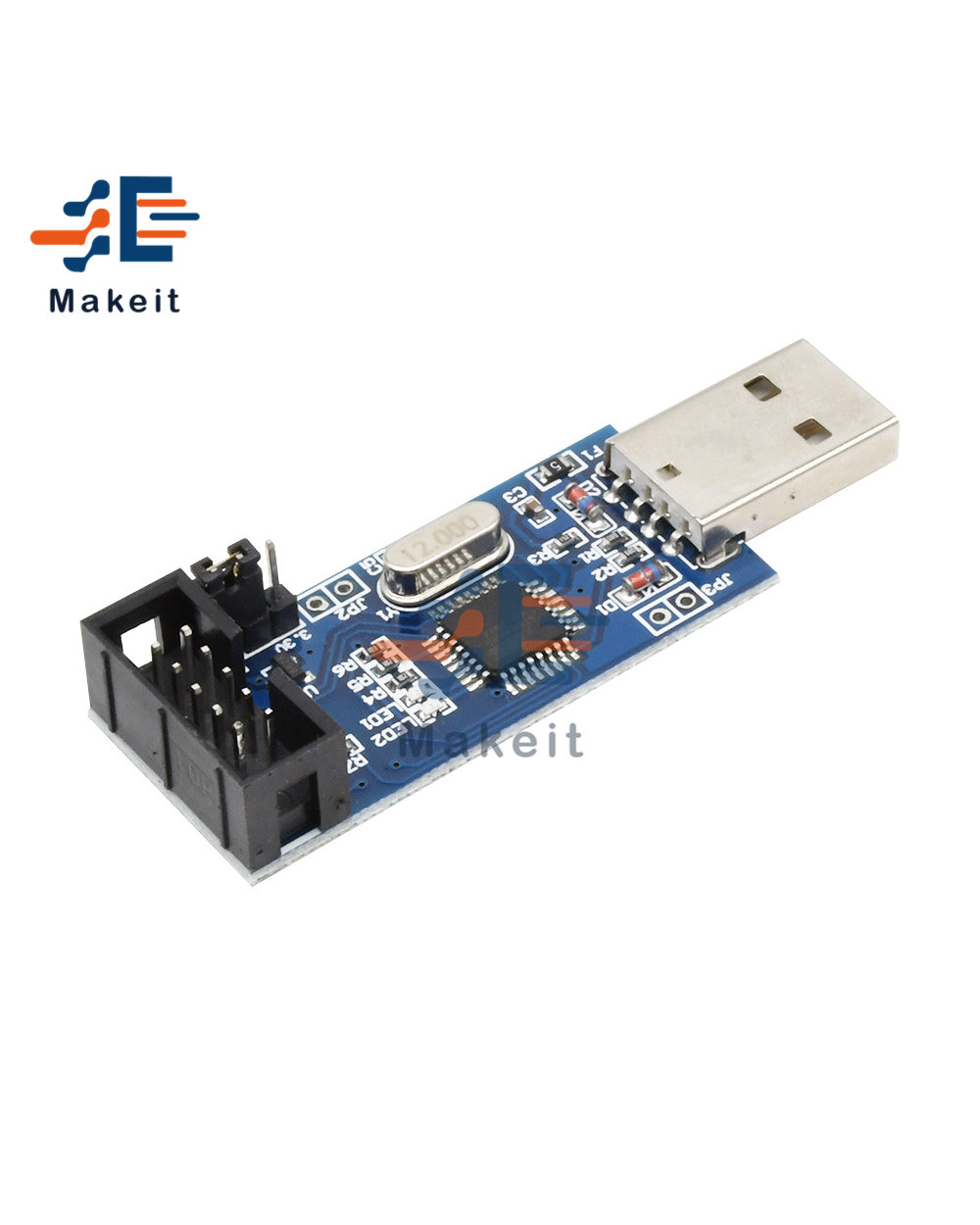

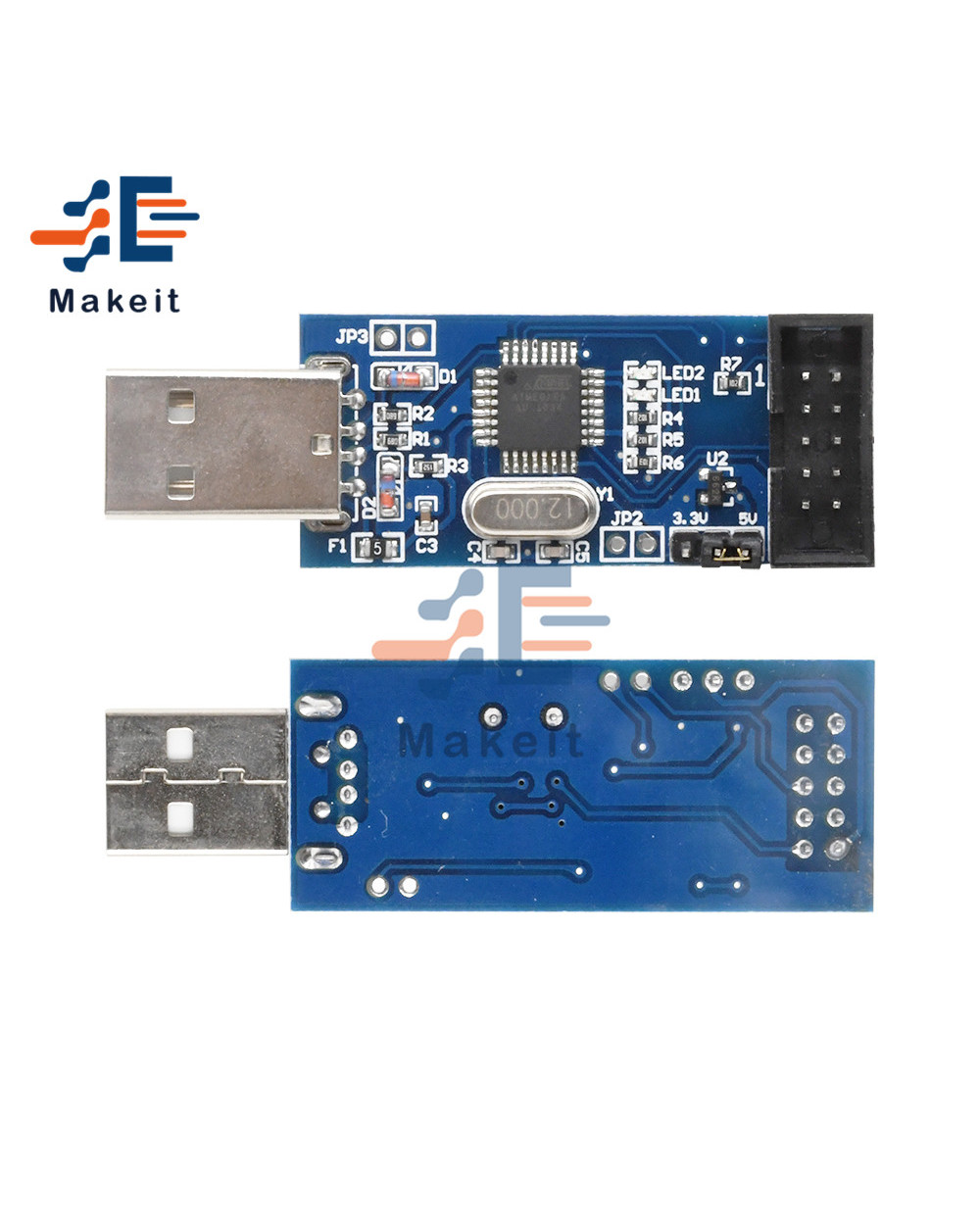

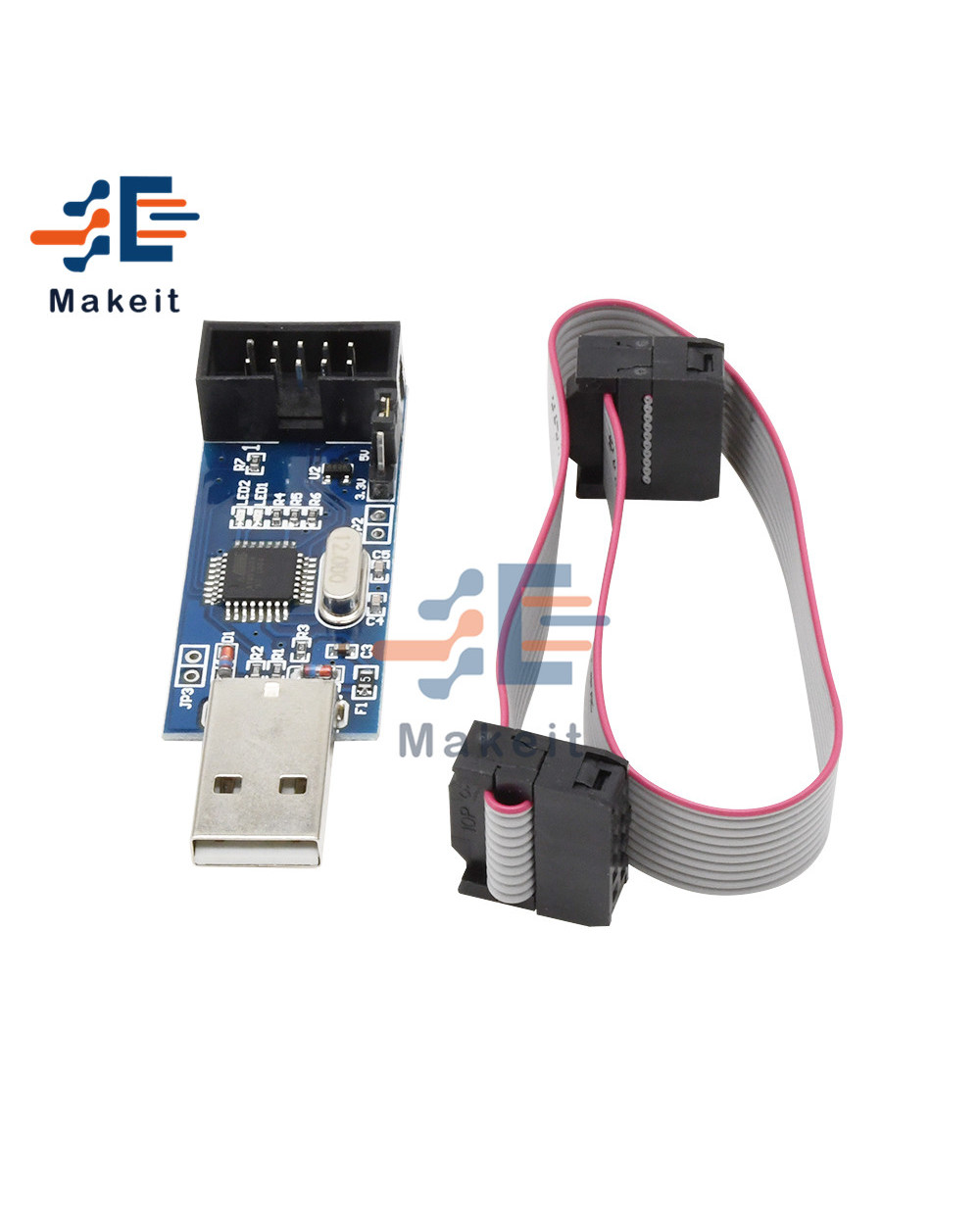

This programmer is based on Thomas Fischl's USBasp design and connects to your computer's USB port. Not only is it quite compact, but the design is really elegant. The USB interface is achieved by using an atmega processor and the rest is done in firmware


With 500mA over-current protection self-recovery fuse, and complete protection of expensive computer motherboard

designed for notebook computers, special two 3.6V regulator, a perfect match to level, get rid of the instability of hardware hidden! Target board power mode jumper settings.


The well-configured firmware, the speed of the unique adaptive technology, stability and obtain the best balance between speed! Supports firmware upgrade unlimited.


List of supported chips:


51 Series: AT89S51, AT89S52,, AT89S53, AT89S8252


AVR Series:


ATTiny12 (L), ATTiny13 (V), ATTiny15 (L), ATTiny24 (V), ATTiny25 (V), ATTiny26 (L), ATTiny2313 (V) , ATTiny44 (V), ATTiny45 (V), ATTiny84 (V), ATTiny85 (V), AT90S2313 (L), AT90S2323 (L), AT90S2343 (L), AT90S1200 (L), AT90S8515 (L), AT90S8535 (L), ATMEGA48 (V), ATMEGA8 (L), ATMEGA88 (V), ATMEGA8515 (L), ATMEGA8535 (L), ATMEGA16 (L), ATMEGA162 (V), ATMEGA163 (L), ATMEGA164 (V), ATMEGA165 (V), ATMEGA168 (V), ATMEGA169 (V), ATMEGA169P (V), ATMEGA32 (L), ATMEGA324 (V), ATMEGA325 (V), ATMEGA3250 (V), ATMEGA329 (V), ATMEGA3290 (V), ATMEGA64 (L), ATMEGA640 (V), ATMEGA644 (V), ATMEGA645 (V), ATMEGA6450 (V), ATMEGA649 (V), ATMEGA6490 (V), ATMEGA128 (L), ATMEGA1280 (V), ATMEGA1281 (V), ATMEGA2560 (V), ATMEGA2561 (V), AT90CAN32, AT90CAN64, AT90CAN128, AT90PWM2 (B) , AT90PWM3 (B), etc.


Note: Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!


Package Included :

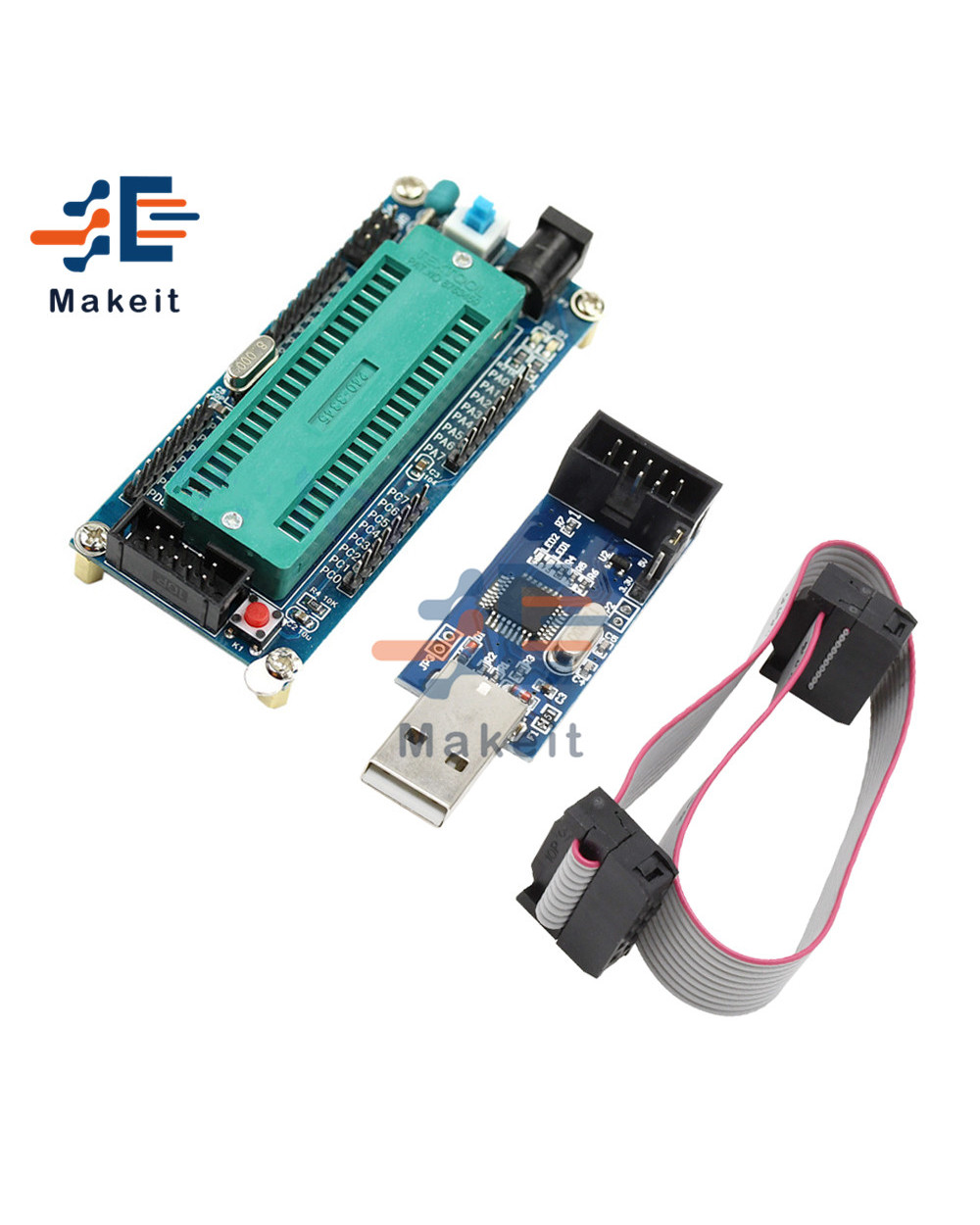

1set x AVR Minimum System Board ATMEGA16 ATmega32 + USB ISP USBasp Programmer
