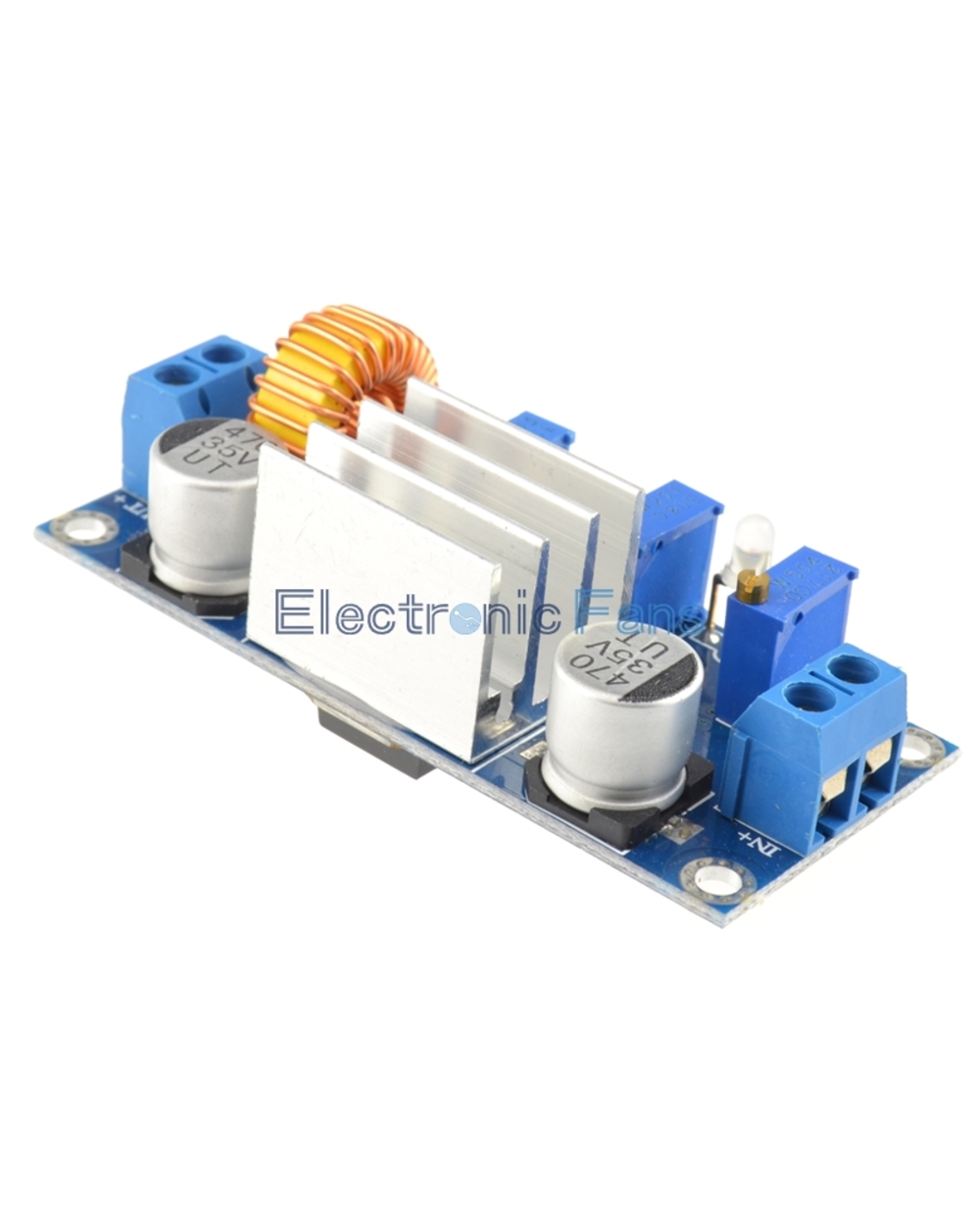

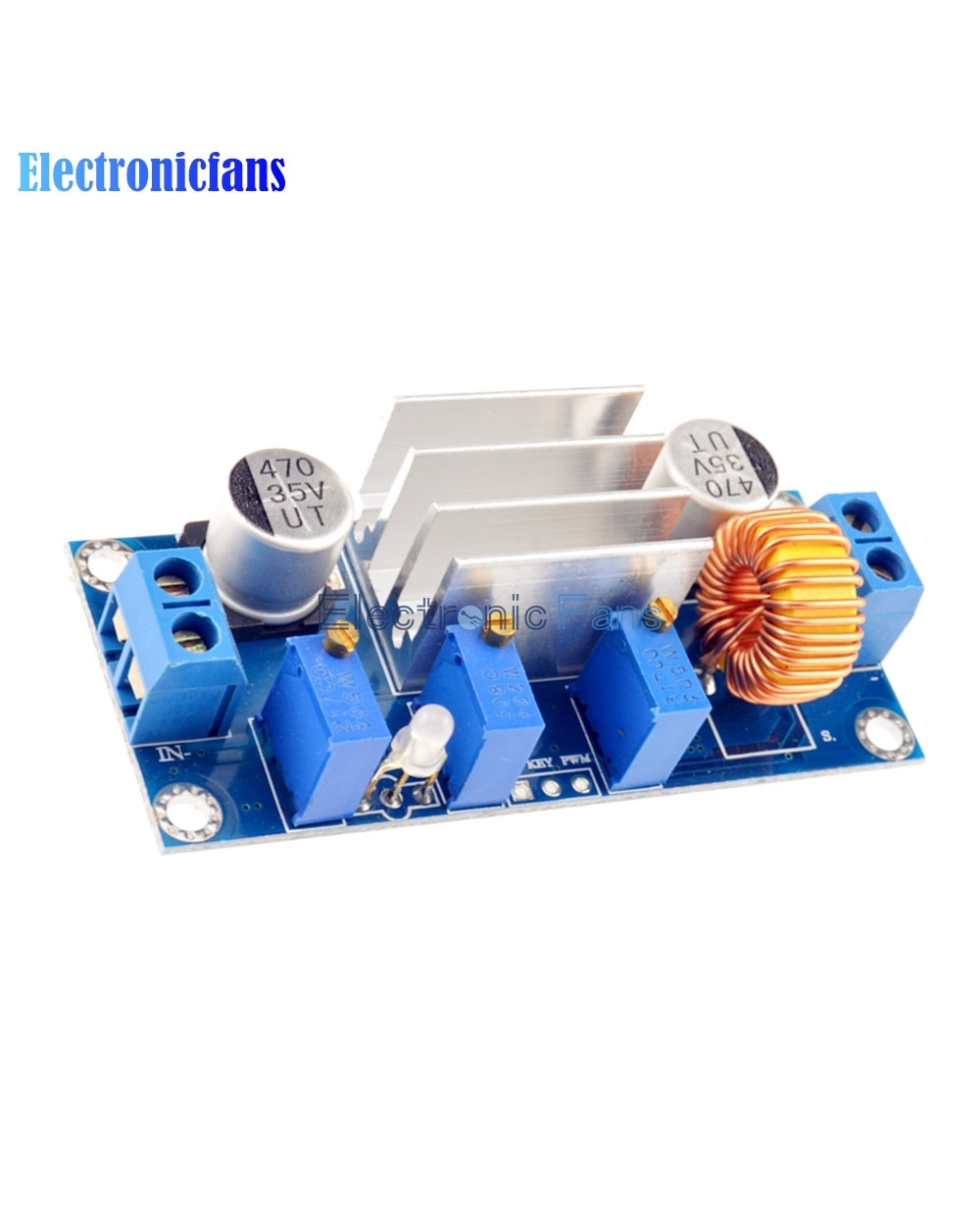

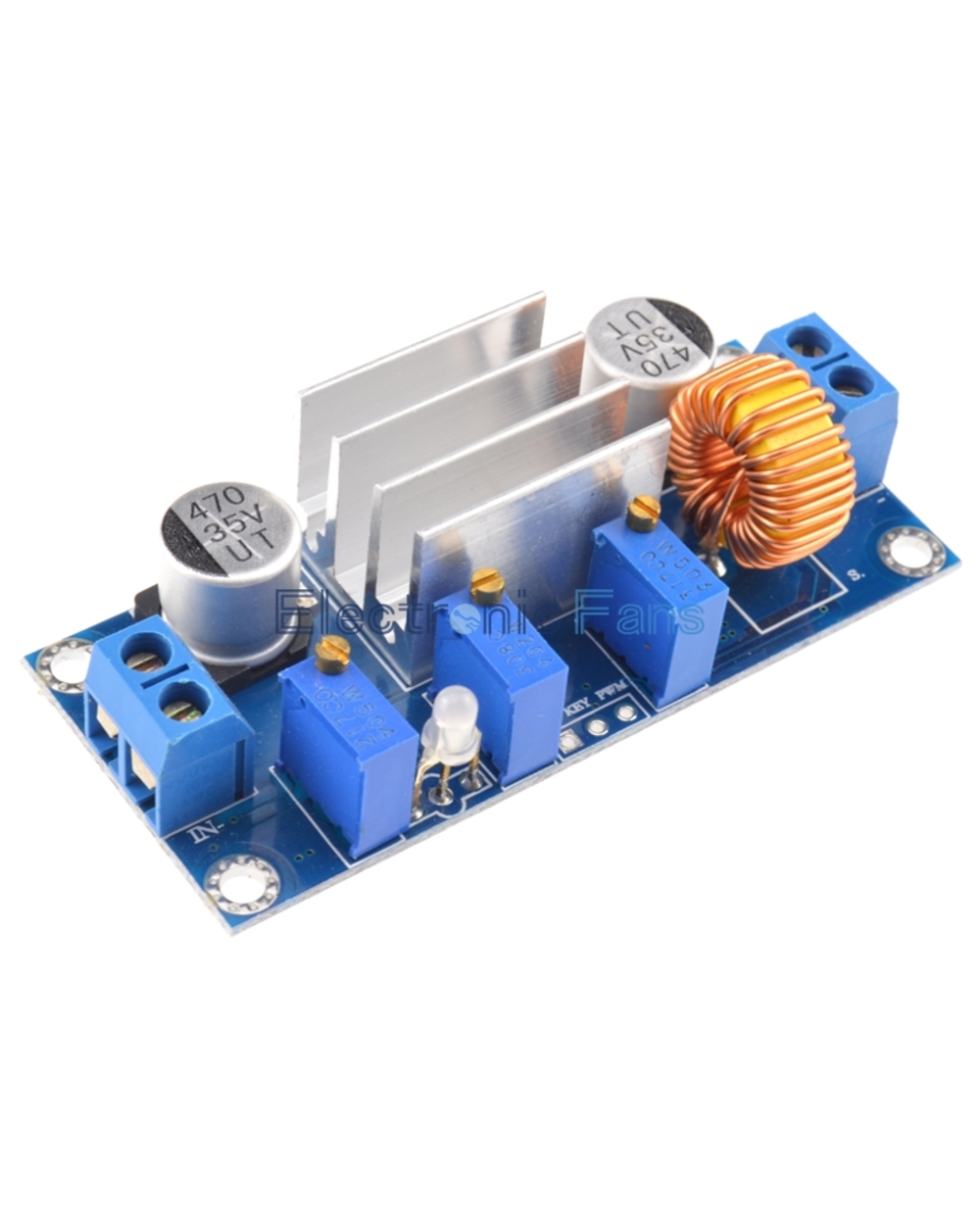

Automatic Protection! 5A Max Dc-Dc Xl4005 Step Down Buck Power Supply Module Adjustable Cc/Cv Lithium Charge Board For

Automatic Protection! 5A Max Dc-Dc Xl4005 Step Down Buck Power Supply Module Adjustable Cc/Cv Lithium Charge Board For

$23.95
2/5
description
product reviews



The module properties: non - isolation step-down module

Input module parameters:

Voltage range: 4.5 - 30 V

Output current range: 0.1 - 5 A

Output voltage range: 0.8 - 30 V (adjustable)

The light output range: 0.1 - 5A

Working temperature: - 40 -- 85 °

Working frequency: 300 KHZ

PWM control Frequencerange: 100-300 hz

Range of transition: up to 95% (efficiency and input and output voltage, current and pressure difference)

Overtemperature protection:Yes (after overtemperature shutdown output)

Reverse connect protection:yes (input power transmission capacity greater than 2, reverse connection protection is invalid)

Module size: 64.5 mm *28.1 mm*20mm(L*W*H)



Package Included:

  • 1PCS    * 5A Max DC-DC XL4005 Step Down Buck Power Supply Module Adjustable CC/CV Lithium Charge Board for Arduino
