Automatic Dual Power Transfer Switch 11000W Max Power Solar Charge Controller For Solar Wind System Ac 110V 220V On/Off

Main Features:

【Beneficial to Solar or Wind System】: On cloudy or windless days when your battery gets low, it will automatically switch to grid power, protect your battery.

【Works like an opposite direction UPS】: The ATS controller will switch to grid power when batteries votagle are lower than cut off point,it will switch back to battery power when the batteries votagle are higher than recovery point.

【Auto distinguish】: DC 12/24/48V,AC 100-120V 60HZ / 220-240V 50HZ auto distinguish.User can define the Cut-Off and Recovery Voltages.Recovery voltage must be higher than Cut-off voltage. Battery type: Suitable for Sealed,Gel,Lead-acid,Lithium battery and so on. as long as the voltage of your battery are within the voltage ranges in the followings.9-17V at 12V system;18-30V at 24V system; 30-60V at 48V system.

【Big Power】: 5.5kw(110V) or 11KW(220v),Fast Transfer time:Inverter transfer to public power ≤10ms,public power transfer to inverter ≤16ms.

【LCD display】: Battery real-time voltage;working status of public power,inverter and battery.

Note: The controller needs to connect the battery, powered by the battery and get battery power data.

Product Features

*New item release

The controller allows for trouble-free operation of inverters and AC mains in the same circuit.

The controller switches automatically between inverter and AC mains while protecting theinverter against external voltage.

* Works like an UPS, but in opposite direction

The controller will switch to grid when batteries are low to cut off point, once the batteries areback to recovery point, it will switch back to battery power.

*Great for solar and wind

Automatically switches over to grid power on those cloudy or windless days and yourbatteries get low.Take charge over your battery bank.

*Auto distinguish for DC 12/24/48V,AC 110/220V

*LCD display

*Transfer Time:s10ms.

*Adjiustable battery cut off low voltage and recovery voltage.

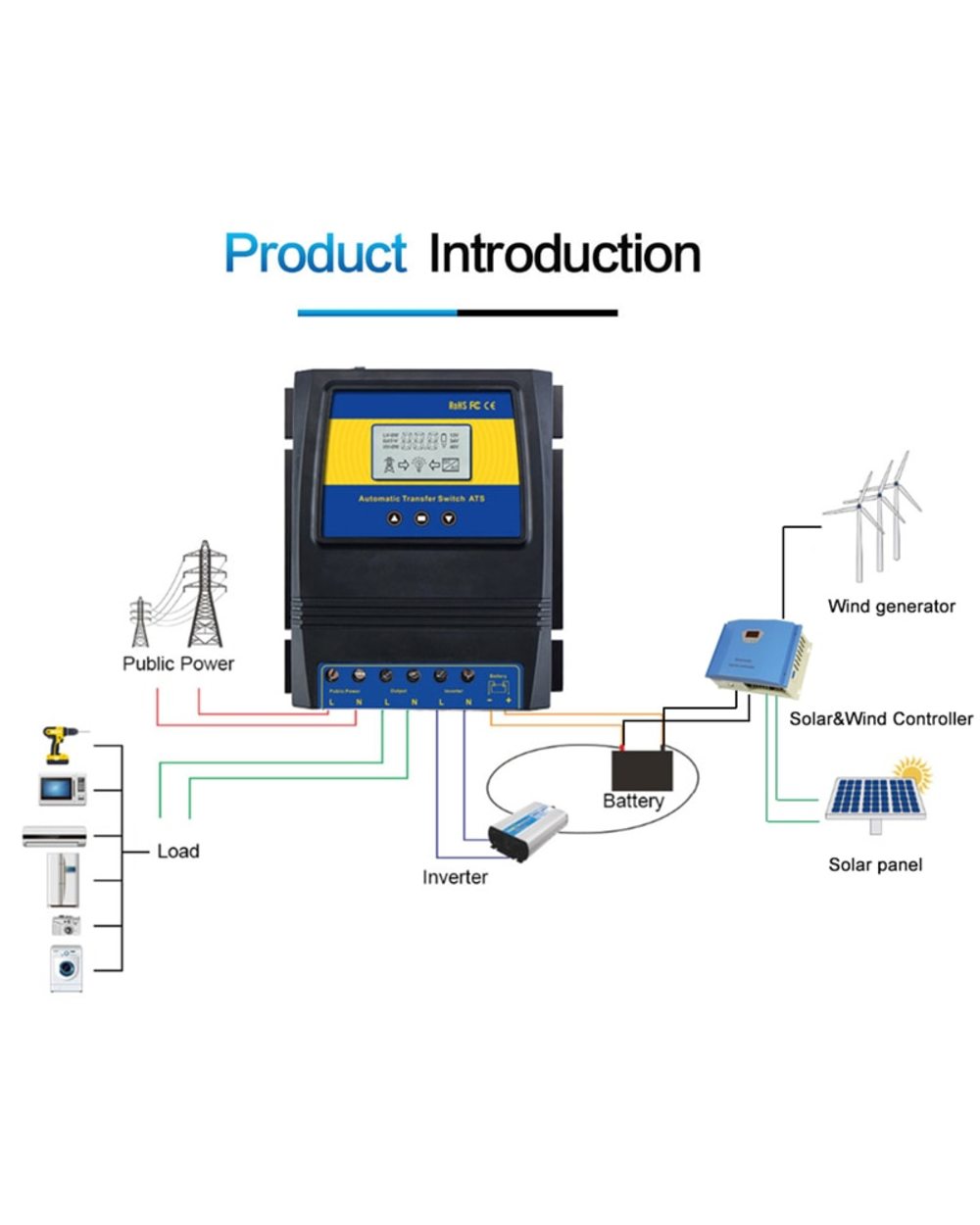

1.Applications

The power transfer controller allows for trouble-free operation of inverters and AC mains in the

same circuit.

The power transfer controller switches automatically between inverter and AC mains and protects

the inverter against external voltage.

In addition, it offers the possibility to choose the battery power prior between the two power

sources.

2. Our advantages of Dual Power Transfer Controller Customized--We are the manufacturer! sample &OEM&ODM are available!

oSafety--We have own test chart, all of our products have been rigorously tested in the factory.·Certification--We have CE, FCC,ROHS and quality management system certification.

●High Quality alloy cooling plate-- the new design of the heat dissipation,MOS tube close to theback of the design,High efficiency cooling, not afraid of the heat weather. Run more stable.

●High quality PCB board--Dust free workshop, professional placement machine production ofsophisticated technology create high-quality PCB board.professional circuit design--The circuitry designed with the international standard of electrical,do not refined simple components, so use more assured.
