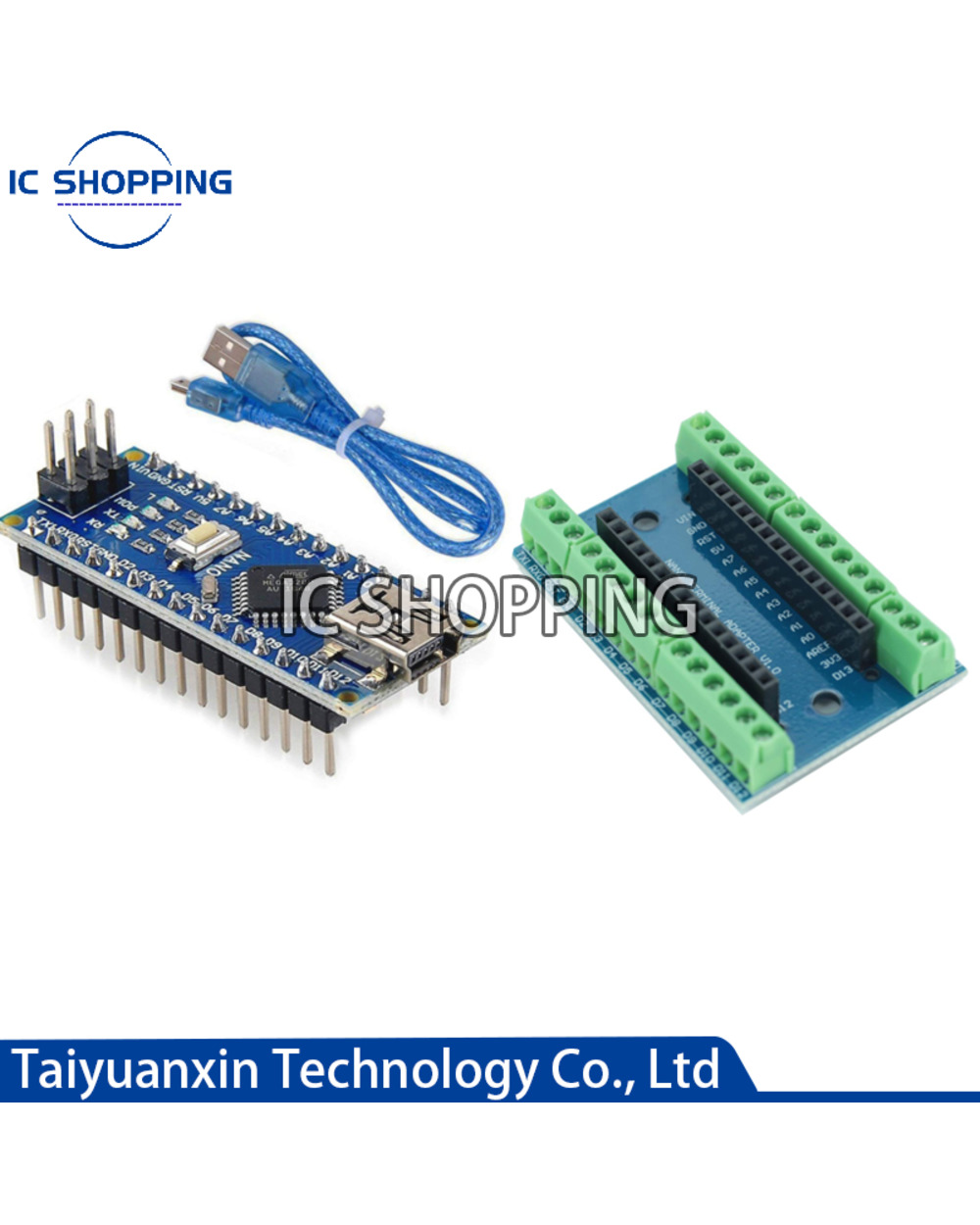

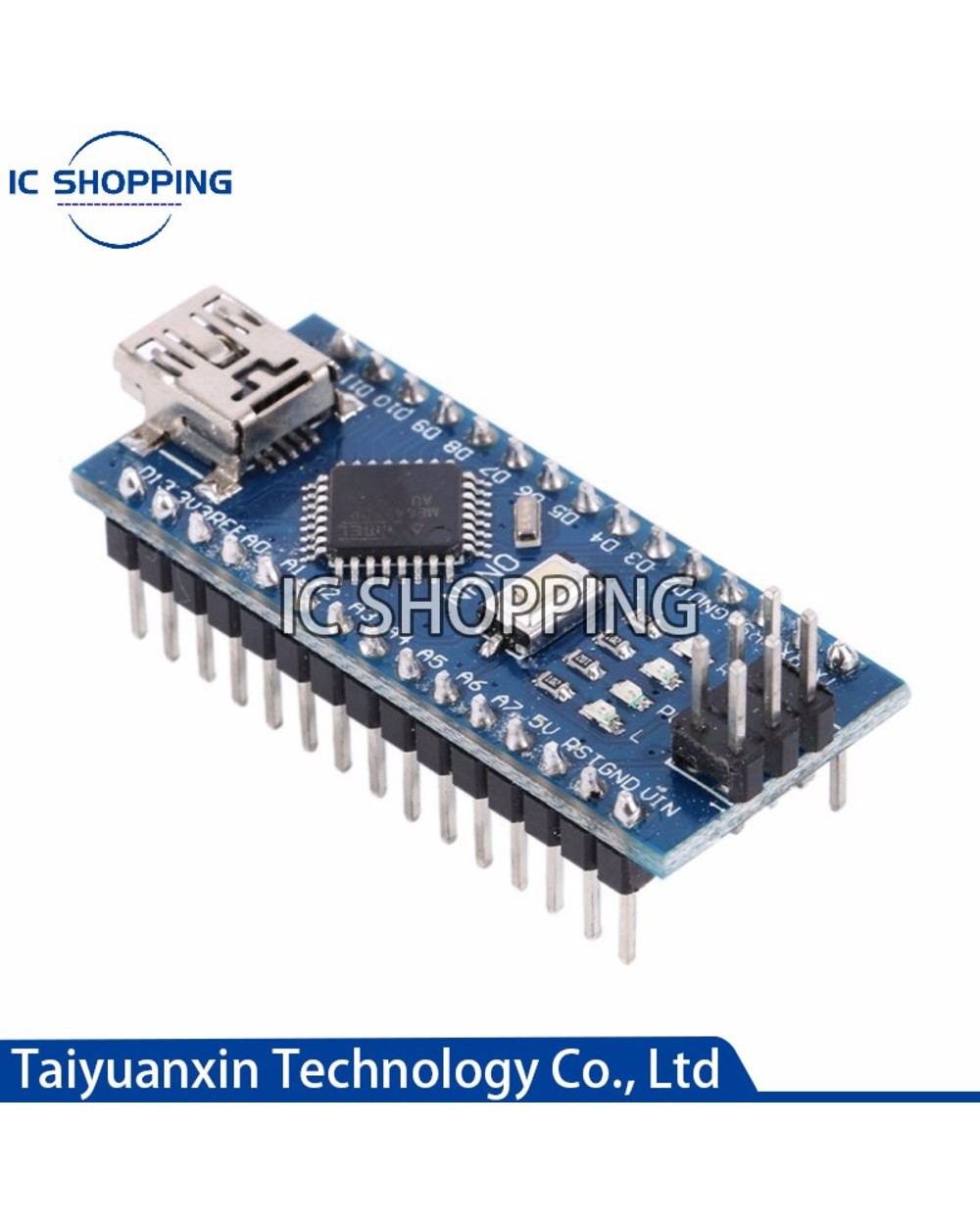

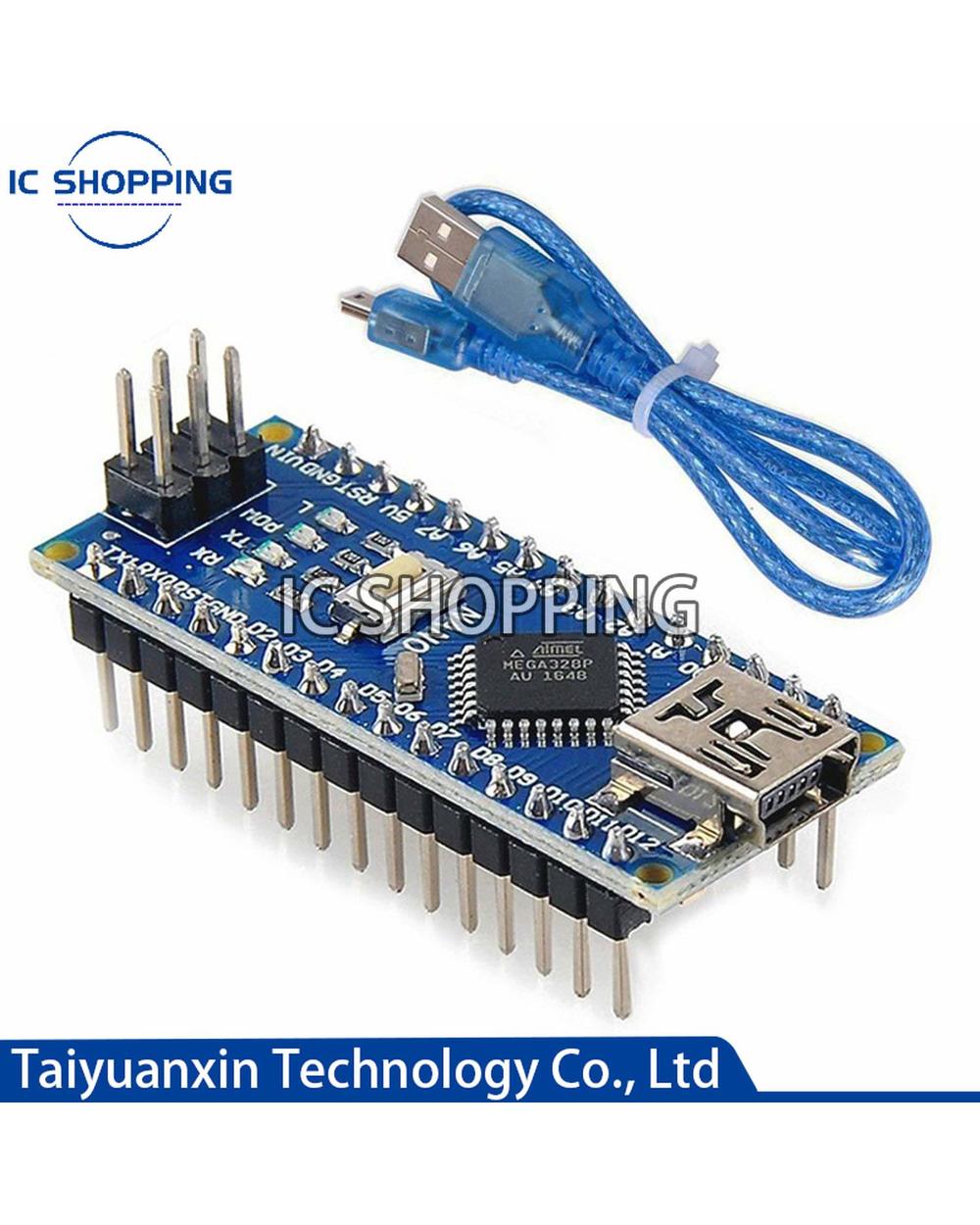

Arduino Miin Nano V3.0 Atmega328p Microcontroller Board For Arduino Ch340 Usb Driver 16Mhz Nano V3.0 Atmega328p/168P

Arduino Miin Nano V3.0 Atmega328p Microcontroller Board For Arduino Ch340 Usb Driver 16Mhz Nano V3.0 Atmega328p/168P

$25.95
2/6
description
product reviews
Specification: ATMEGA328P-1 is Mini interface
                       ATMEGA328P-2 is Mini interface
                       ATMEGA328P-3 is Mini interface
                       ATMEGA328P is TYPE-C interface

Instructions:

1. Downloaded IDE

    Download link: https://arduino.cc/en/Main/Software (copy and open)

2. Download the USB chip driver

    Download link: https://www.wch-ic.com/download/list.asp?id=126

3. Plug in the NANO development board, the driver will be installed automatically

4. Select the board NANO in die

5. Select the COM port, this can be queried in my computer, the port in your uno development board just now


6. It is best to choose first, the routine program that comes with arduino, burn it in

Circuit diagram reference
Nano3.0 https://arduino.cc/en/uploads/Main/ArduinoNano30Schematic.pdf
Hardware design file (Eagle file)
Nano3.0 https://arduino.cc/en/uploads/Main/ArduinoNano30Eagle.zip

Test tutorial: https://xwdz.lanzous.com/ipVwgdoljda
