Wide Range Of Applications

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles, ATVS,light trucks and speedboats,Suitable for all car models.

Indenpendent switch control design

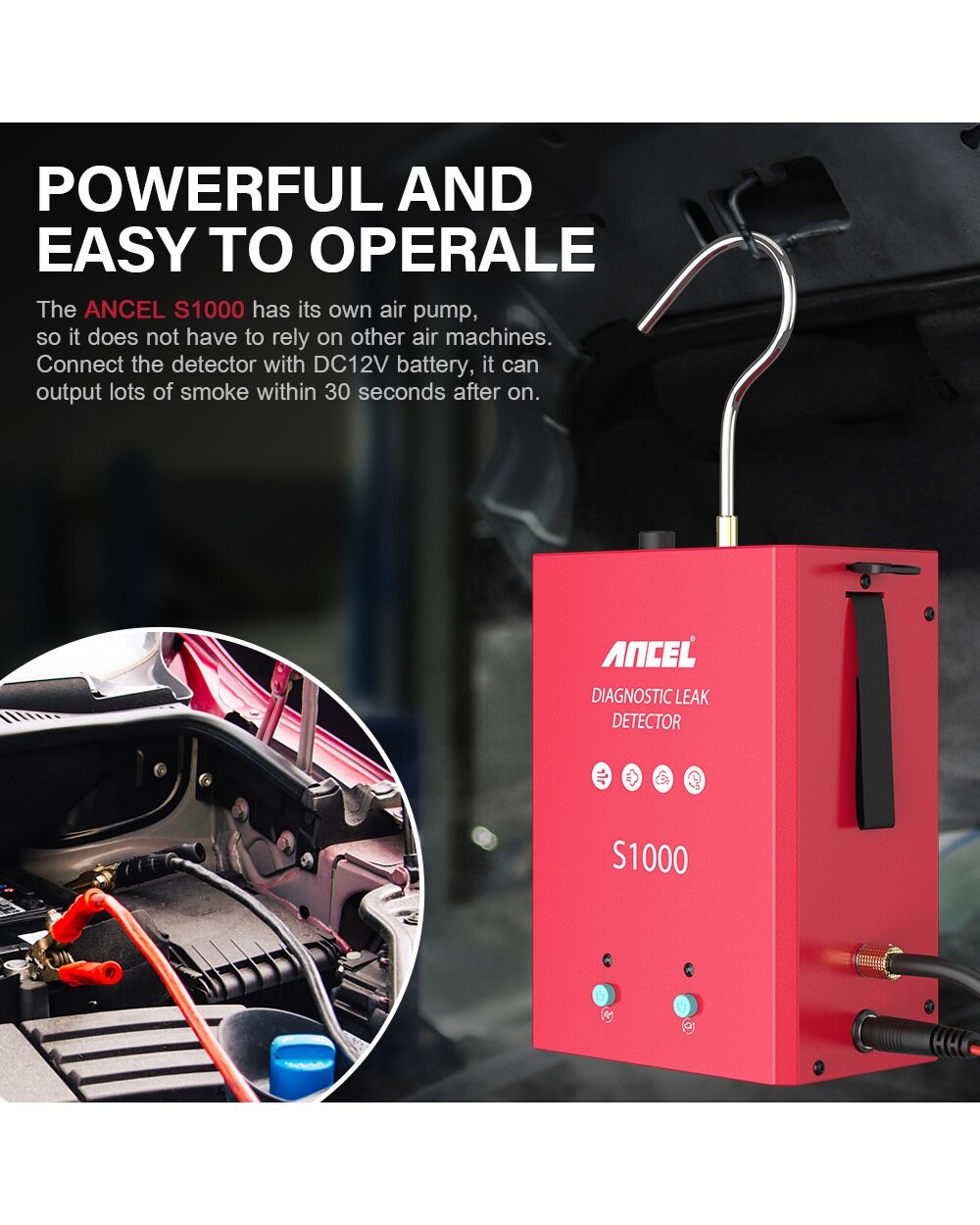

POWERFUL AND EASY TO OPERALE

The ANCEL S1000 has its own air pump,so it does not have to rely on other air machines. Connect the detector with DC12V battery , it can output lots of smoke within 30 seconds after on.

OVERHEAT & ANTI-FROST PROTECTION

For detecting the leakage of pipe systems on cars,motorcycles,snowmobiles,off-road vehlicles, ATVS,light trucks and speedboats,Suitable for all car models.

Overheat Protection

When the temperature of the device exceeds 75℃, power protection will be intelligently activated to turn it off.

Anti-frost Protection

The device can also work normally at -20℃.

Package Included

[Reasonable Air Control and Smoke Control Buttons]: Turn on the air control switch, connect a pressure gauge to the pipe or use a stethoscope to check whether there is a squeak, you can check whether there is a leak. If you want to know the source of the inspection leak, you can find it by turning on the smoke control.

[Clear and Easy-to-Understand Indicator Lights]: Through the indicator light, you can tell the current state of the machine, or whether the machine is overheated

[Intimate Fuel Volume Line]: show you the real fuel volume and when you need to refuel or whether the fuel volume is too high.

[Velcro on the side]: a useful design for collecting power cords and smoke transmission hoses

[Equipped Funnel]: an auxiliary method to replenish the smoke oil to prevent the oil from splashing on the surface of the unit.

[Intake Bladder Replacement Rubber]: The rubber on the Intake Bladder may be easily broken, if not operate properly with caution. The rubber could be replaced with a new one without replacing the whole Intake Bladder.

[Adapter Cone]: help sealing different sizes of air intake and exhaust ports.

Caution：

1.When you use this ANCEL S3000 Car Smoke Leak Detector for the first time, fill with 20ml oil . Please be careful NOT to beyond this range.

2.The testing liquid : both liquid paraffin and baby oil are OK.

3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.

4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.

5.During the process of leak detection, please keep away from smoke-sensitive parts.

6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.

7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will automatically turn off the power. In this case, please operate it later.

8.The round part of this detector has temperature, please be careful to avoid burns.

9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.

Using tips

▶Cannot test air conditioning ducts

▶Do NOT use the unit on smoke-sensitive parts. Eg. Lamp housing.

▶The equipment is compatible with mineral oil-based baby oil like Johnson&Johnson Pink bottles.

Pure #5 white oil is the best choice if available.

▶Always confirm Fluid level before use, if the fluid level is low enough to the bottom of the fillerport, it will need a refill.

▶For detecting the leakage of pipe systems on cars, motorcycles, snowmobiles, off-road vehicles, ATVs, light trucks, and speedboats. Suitable for all car models.

Product Specification

Product details

ANCEL S1000 Packing Lists

1*S1000 Fog Smoke Machine

1*Power Cord

1*Smoke Delivery Hose

1*Cone Adapter

1*Intake Bladder

1*Spare Rubber

1*Hook

1*Funnel

1*User Munual.
