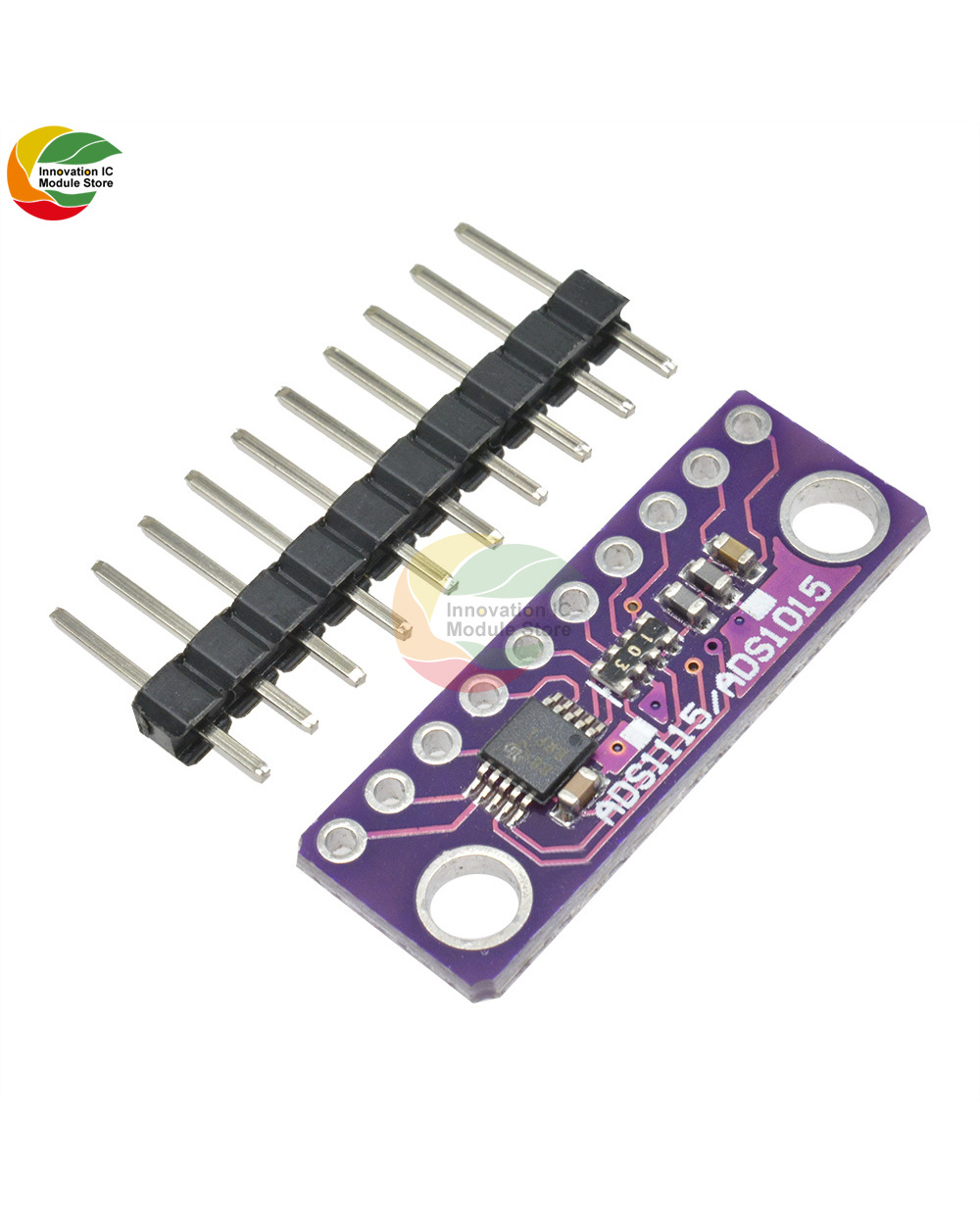

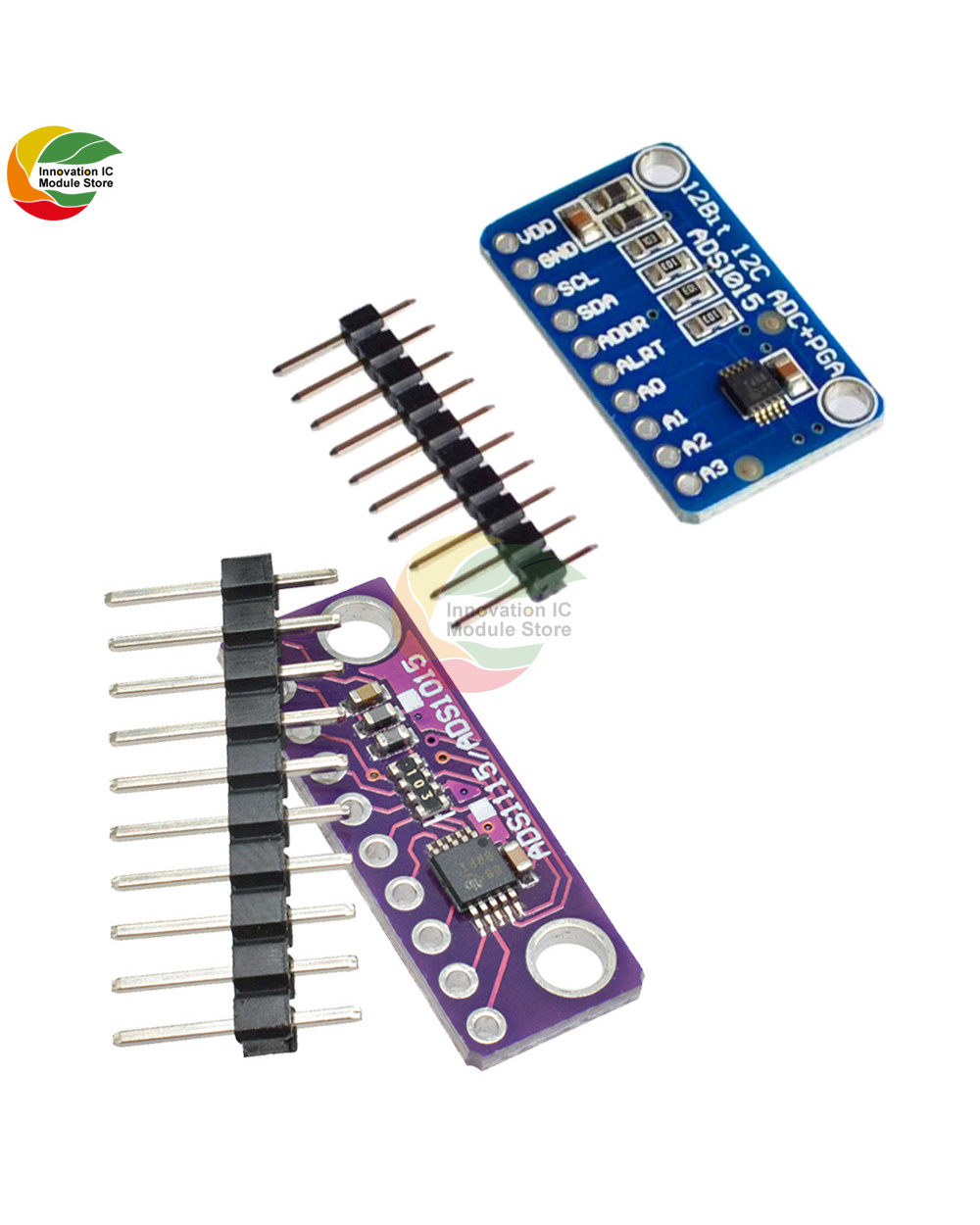

Ads1015 Convertidor Analógico A Digital De Precisión De 12 Bits Placa De Desarrollo Adc Módulo Programador Mcu Interfaz

Ads1015 Convertidor Analógico A Digital De Precisión De 12 Bits Placa De Desarrollo Adc Módulo Programador Mcu Interfaz

$22.95
2/7
description
product reviews


Product parameters:

Power/logic level: 2.0V to 5.5V

Low current consumption: continuous mode: only 150μA single-shot mode: automatic shutdown

Resolution: 12 bits

Programmable sampling rate: 128 to 3300 samples/sec

Internal low drift voltage reference

Internal oscillator

Internal: PG×16

I2C interface: 4-pin optional address

Four single-ended or 2 differential inputs

Programmable comparator

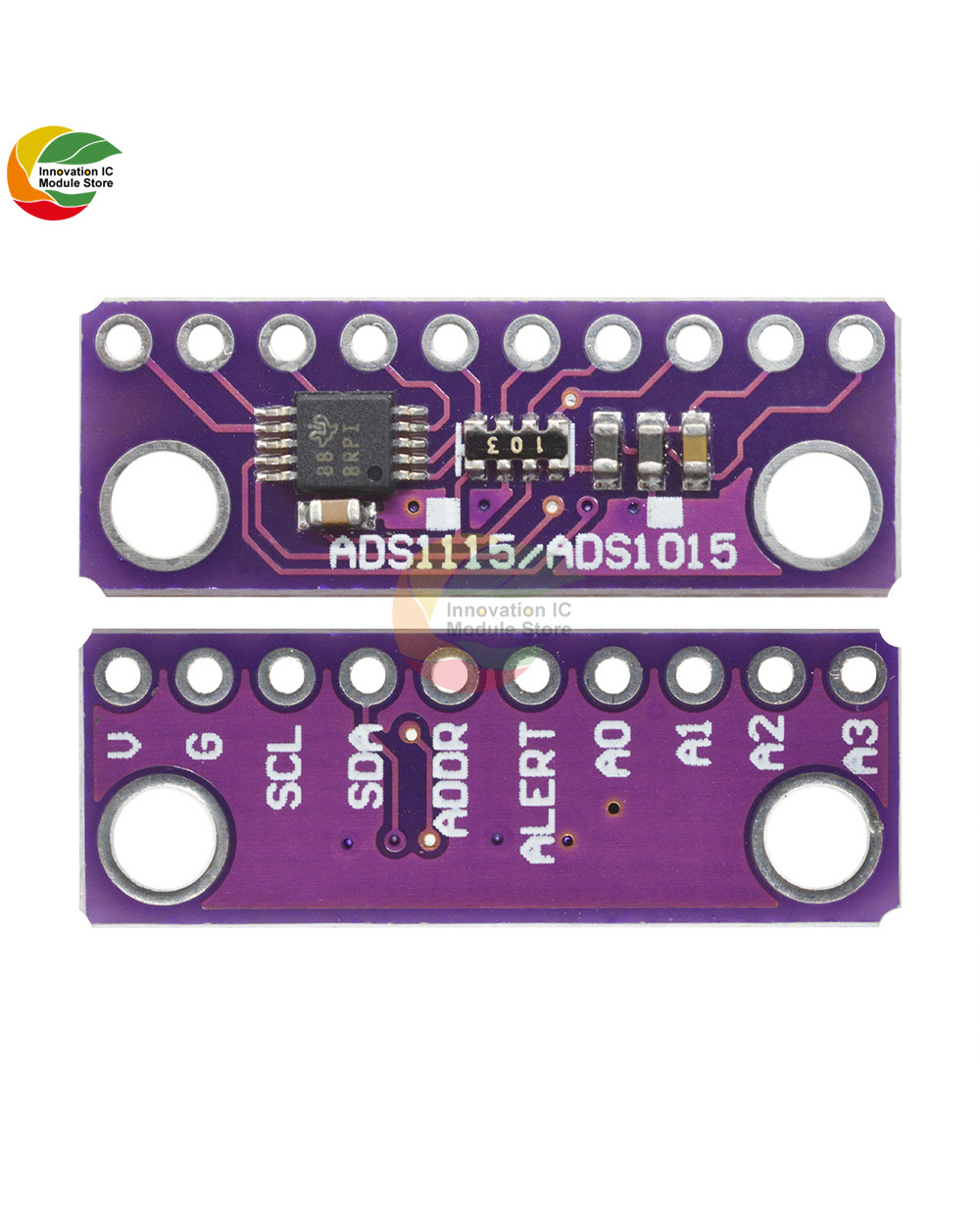

Pin description:

VDD: Positive power supply (3.3V/5V)

GND: ground, power negative

SCL: IIC clock line

SDA: IIC data cable

ADDR: Determine the IIC slave address

ALRT: Digital comparator output or conversion ready

A0: Differential channel 1, positive input or single-ended channel 1 input

A1: Differential channel 1, negative input or single-ended channel 2 input

A2: Differential channel 2, positive input or single-ended channel 3 input

A3: Differential channel 2, negative input or single-ended channel 4 input


Instructions for use:

The module's IIC bus has a pull-up resistor, and users do not need to pull it up. The default 7-bit IIC address of the module is 0x48 (1001000), and the chip uses a clever addressing method that allows one address pin (ADDR) to achieve four different the address of

When ADDR is grounded, the IIC address is 0x48 (1001000)

When ADDR is connected to VDD, the IIC address is 0x49 (1001001)

When ADDR is connected to SDA, the IIC address is 0x4A (1001010)

When ADDR is connected to SCL, the IIC address is 0×4B (1001011)


Package Included:

Modular module X1

Single row pin X1
